Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK6090F
- CNC or Not: CNC
- Product name: Big area fiber laser marking fiber engraving machine
- Laser power: 20W /30w/ 50w(Optional)
- Application: Metal Materials
- Keywords: Laser Markng Machine
- Laser wavelength: 1064nm
- Marking speed: 0-7000mm/s
- Marking depth: 0.01-1mm
- Working area: 110*110 /150*150/175*175/ 200*200/300*300mm
- Laser head: Galvenometer Head
Product Description

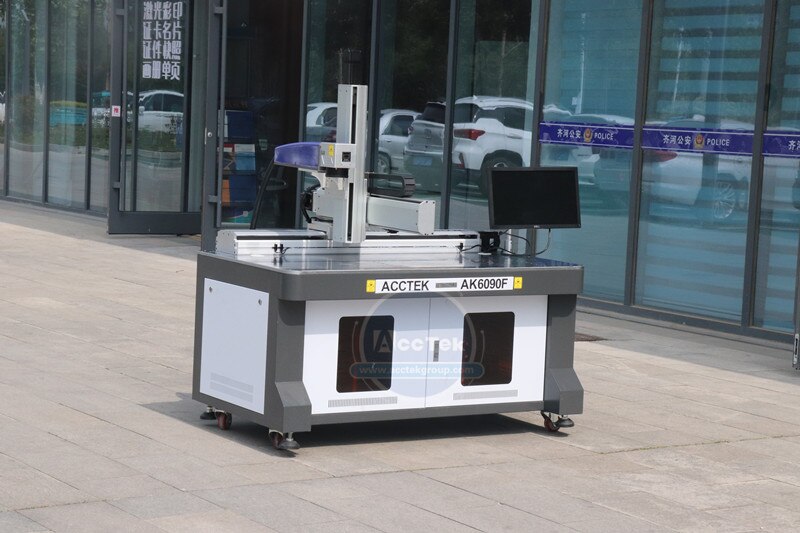

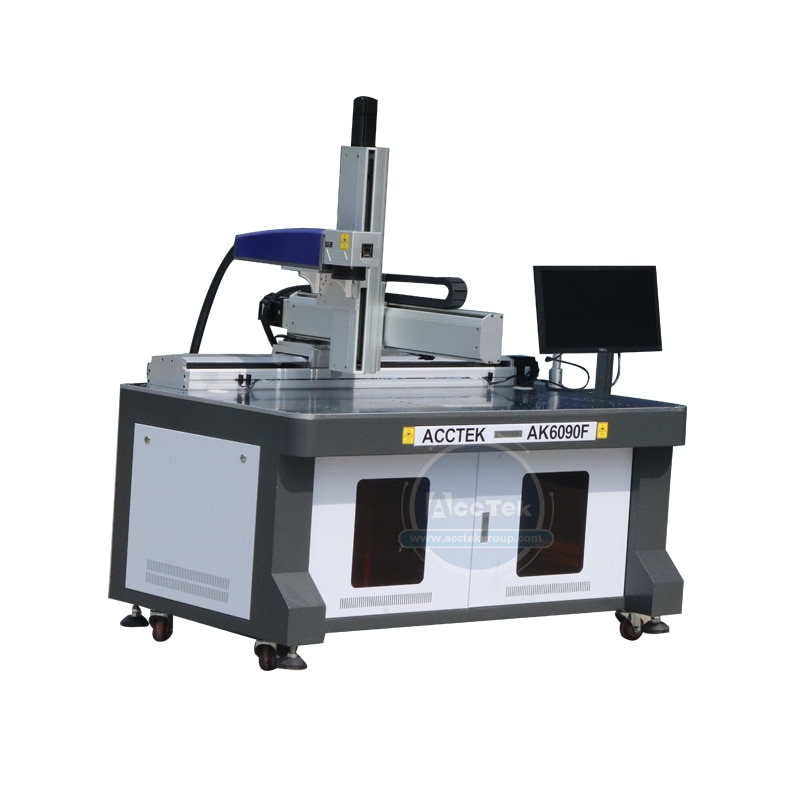

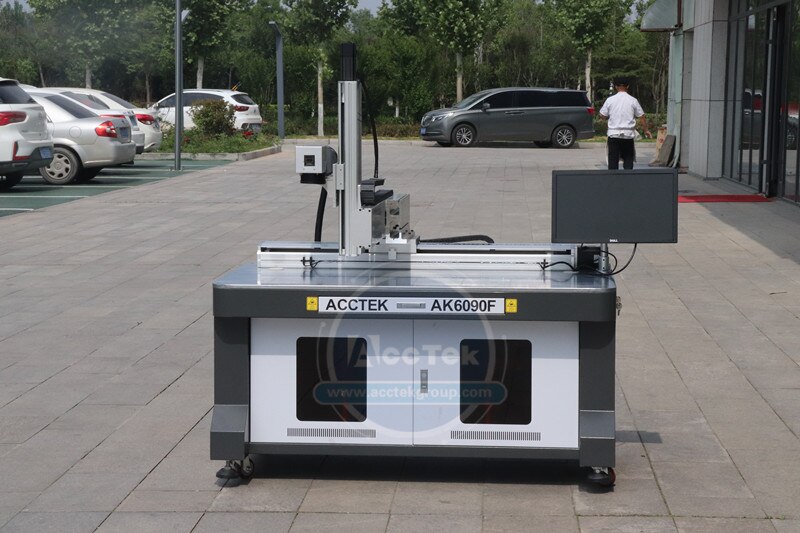

Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
Detailed Images
Technical Parameters
|
Description
|
Parameter
|
|
Model
|
AK6090F
|
|
Laser
Power
|
20W 30W 50W optional
|
|
Making
Range
|
600*900mm
|
|
Laser
Wavelength
|
1064nm
|
|
Fiber laser generator
|
Raycus
|
|
Minimum
Line Width
|
10 micron
|
|
Minimum Character
|
0.15mm
|
|
Marking Depth
|
0 ~0.5mm
|
|
Engraving
Line Speed
|
≤7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|
Beam
Quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date, Batchnumber, Serialnumber, Frequency,etc. |
|
Graphic Format Supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
Working
Voltage
|
110v/220V±10%/50Hz/4 60hz
|
|
Unit Power
|
≤0.5KW
|
|
Use of the
Environment
|
Clean and Dust Free or Dust less
|
|
Working Condition:Humidity
|
5%-75%,Free of Condensed Water
|
|
Laser
Module Life
|
>100000 hours
|
|
Package
|
Plywood box
|
|
N/G weight
|
550/650kg
|
Some Samples
After Sales Service
Pre-sale services of Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
3) According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4) Welcome to visit our factory. Services during the sales of Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator. After sale services of Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
3) According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4) Welcome to visit our factory. Services during the sales of Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator. After sale services of Fiber Laser Marking Machine Engraving Metal AK6090F Big Area Fiber Laser Engraving And Marking Machine With Module Drive
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.
