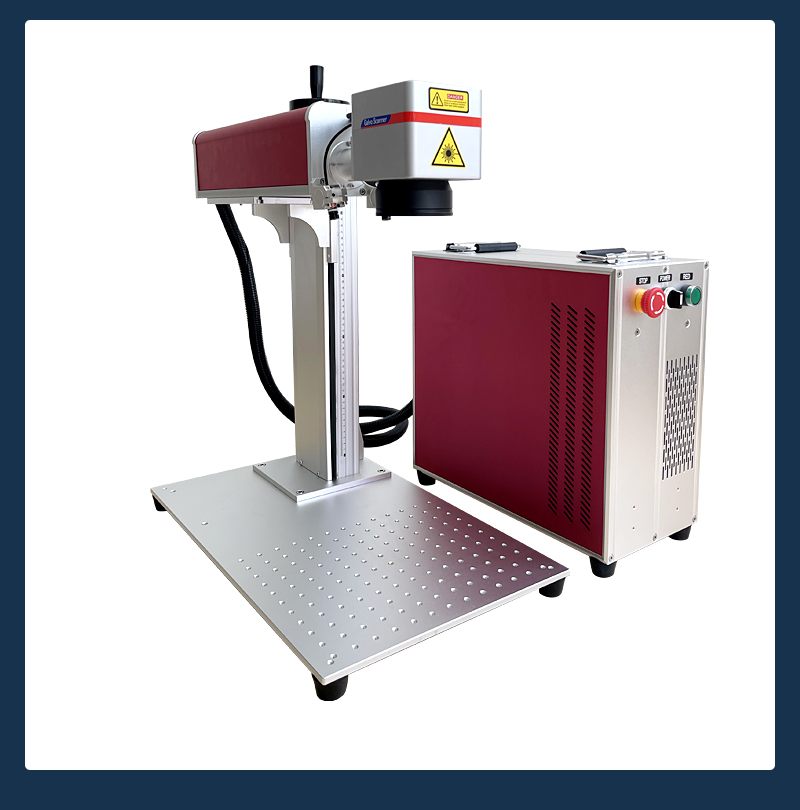

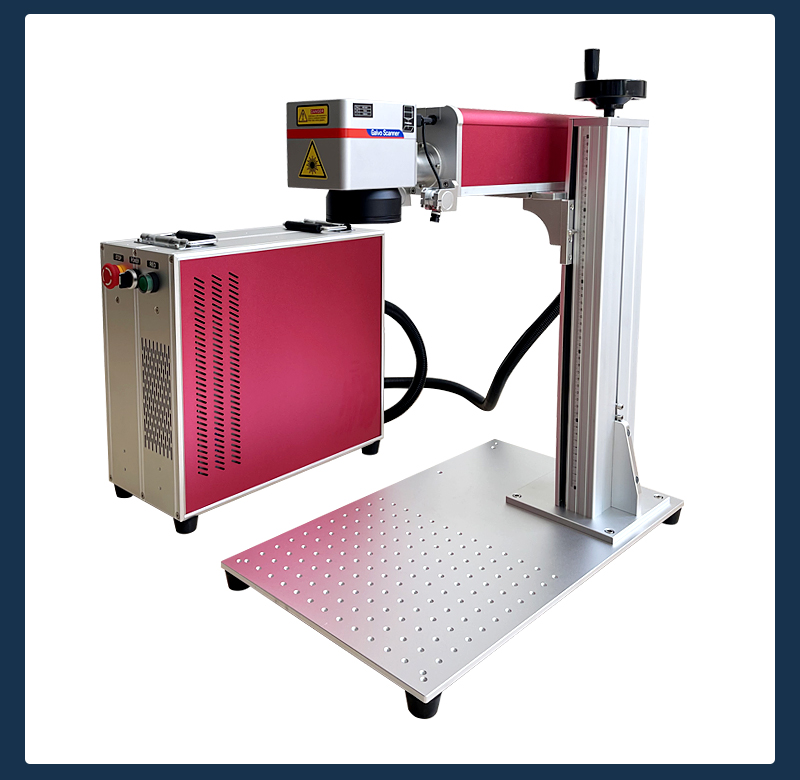

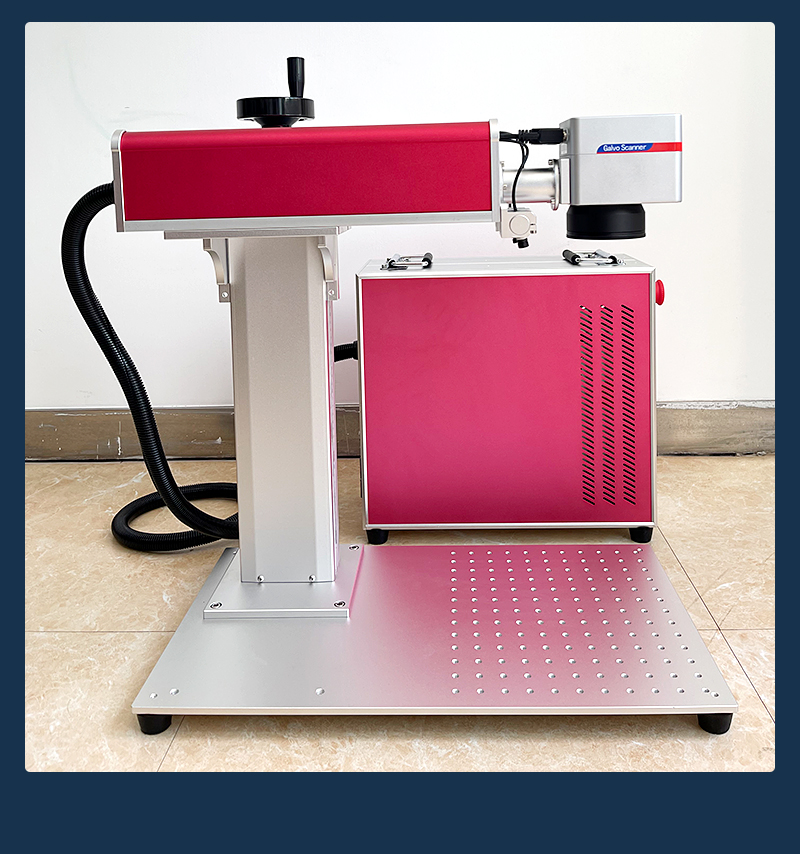

Fiber Laser Engraving Machine Laser Marking Machine 20W 30W 50W Raycus JPT Fiber Laser Engraver For Metal Steel Gold Silver Engraving

About Shipping and Tax

As we know, for high price product, Some countries need pay tax for customs clearance .
if you have any question with customs clearance , please contace us .

How to choose a fiber laser marking machine? Raycus, JPT or MAX？

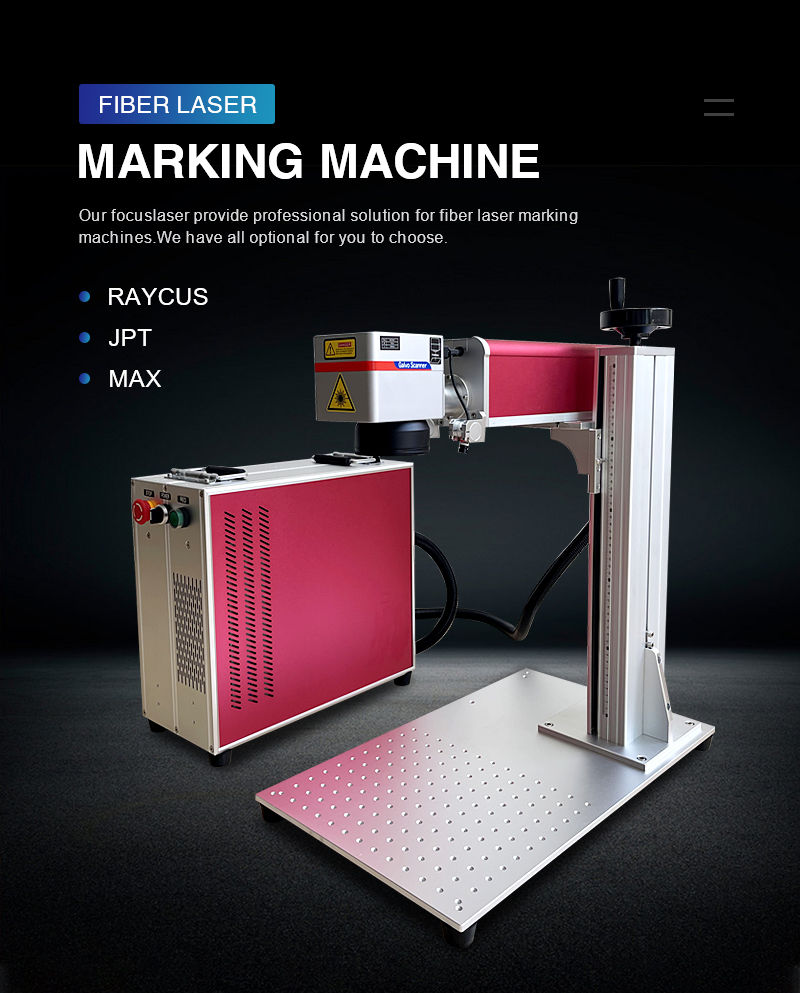

Our focuslaser provide professional solution for fiber laser marking machines.

We have all optional for you to choose.

Here are somedifferencesof Raycus, JPT and Max.

Raycus is one of the most famous brand here in China which produce laser sources earliest in China.

JPT is famous for MOPA structure design if for fine engraving we can choose JPT.

Max is another brand and popular in China.

If we want engrave deep and has feel with finger touch same power you can choose a Raycus, if we want a fine engrave result，we can choose a JPT. If we think MAX is good choice we can choose a Max.

But mostly customers choose Raycus or JPT.

Data sheet/ Configuration
Model	3FLFBRRJE
Laser Source Power	20W/30W/50W
Laser module Brand	JPT/Raycus/MAX
Scanner	SINO TECH/1001/SG7110
Power supply	Meanwell/Hengfu
F-lens	F-theta
Pulse Repetition Rate	JPT 1-600KHZ, Raycus 20-60KHZ
Beam Quality ㎡	<1.1
Operating Voltage	AC 110V/220V 50/60HZ 5A
Laser Wavelength	1064nm
Engraving Range	110*110/175*175/200*200/300*300mm
Repetition Precision	±0.003mm
Engraving Speed	≤7000mm/s
Minimum Line Width	0.01mm
Character Size	0.5-110mm
Cooling System	Air Cooling
Ezcad control software	1 copy
Working Temperature Range	10-30℃
Driver for rotate	Yes
Net Weight of Machine	40kg
Warranty	12 months
Gross Weight with packing	65KG

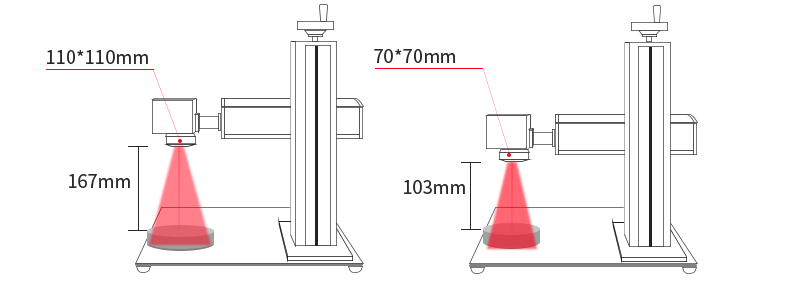

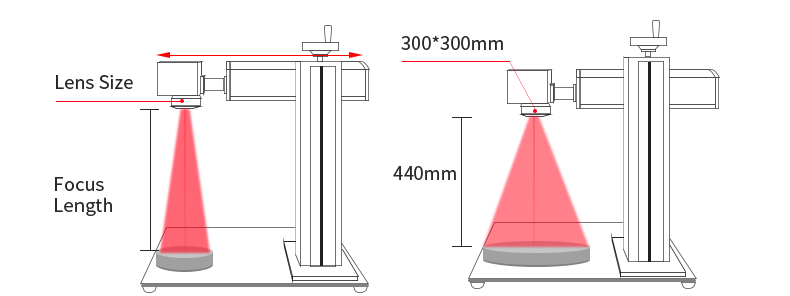

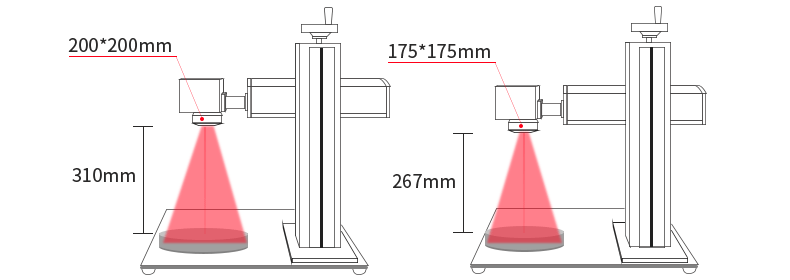

How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,

if 20w laser choose 300mm*300mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,
30w choose 70mm*70mm , 110mm*110mm , 175mm*175mm
50w choose 70mm*70mm , 110mm*110mm , 175mm*175mm ,200mm*200mm ,300mm*300mm.

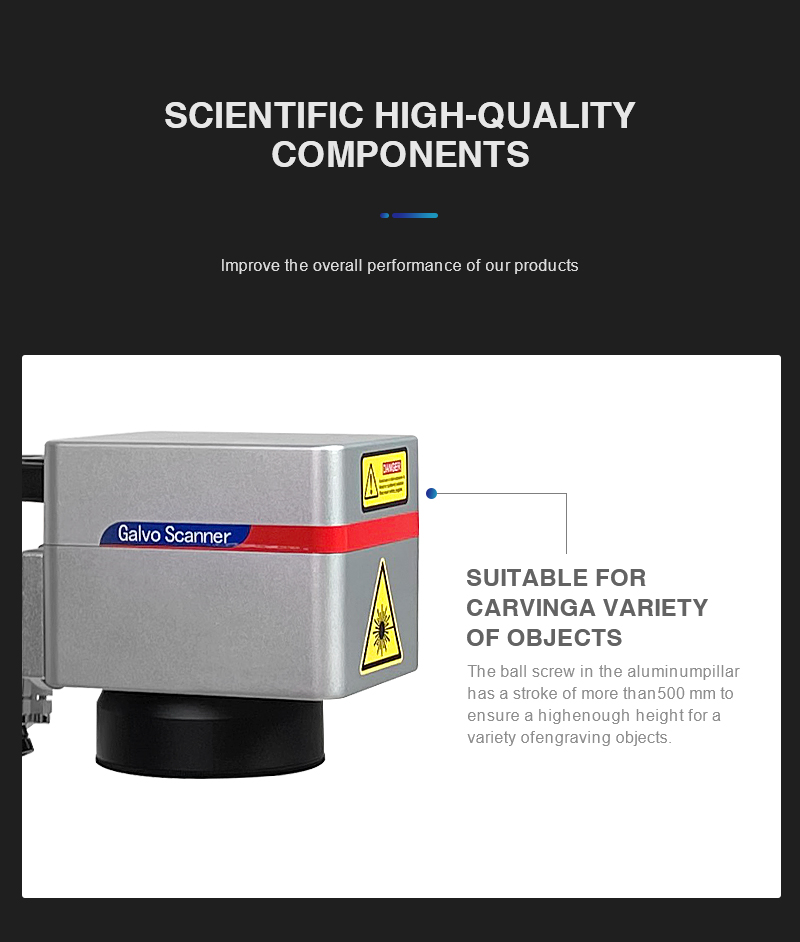

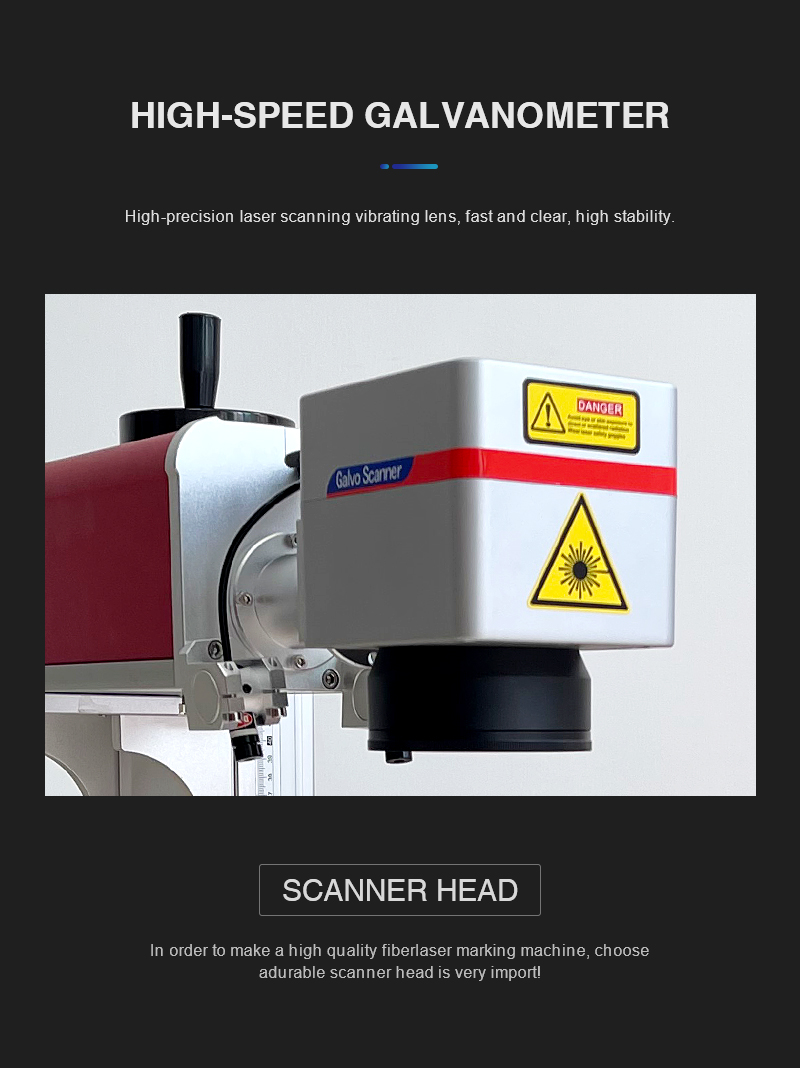

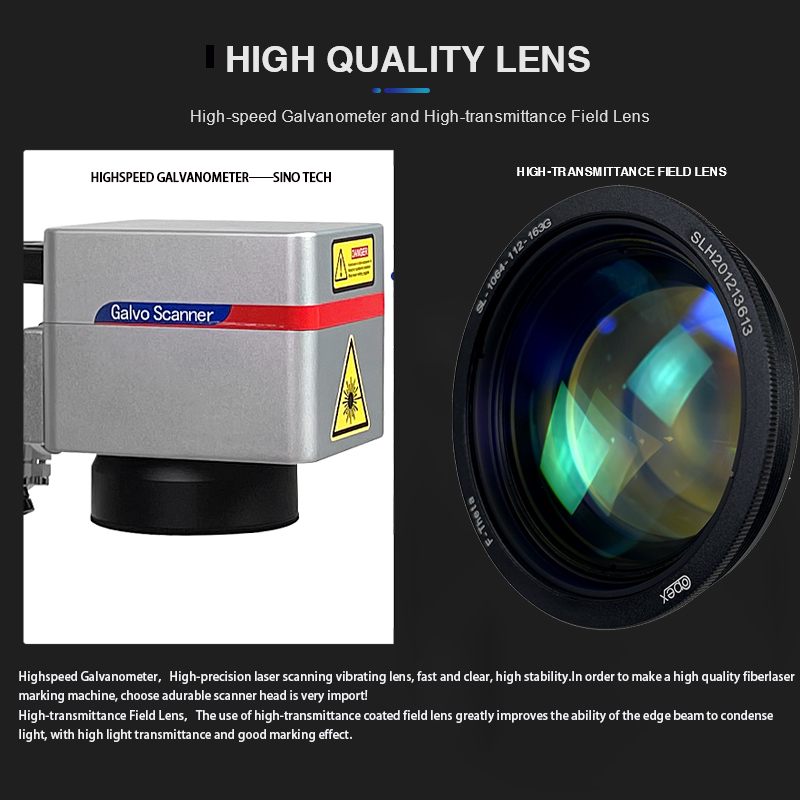

Highspeed Galvanometer

High-precision laser scanning vibrating lens, fast and clear, high stability.ln order to make a high quality fiberlaser marking machine, choose adurable scanner head is very import!

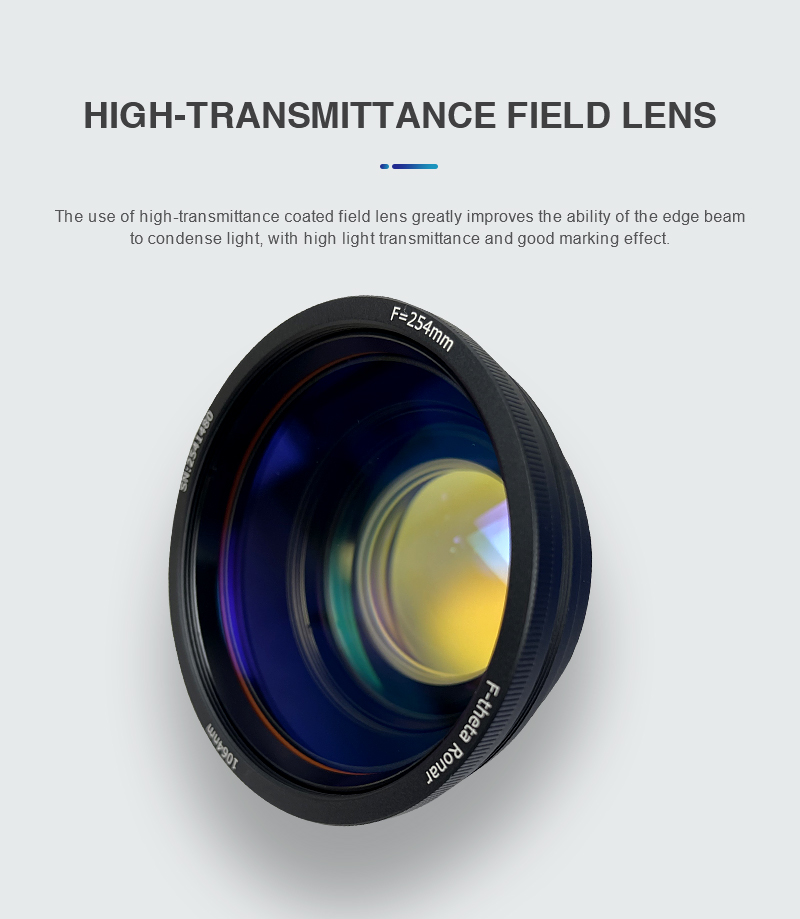

High-transmittance Field Lens

The use of high-transmittance coated field lens greatly improves the ability of the edge beam to condense light, with high light transmittance and good marking effect.

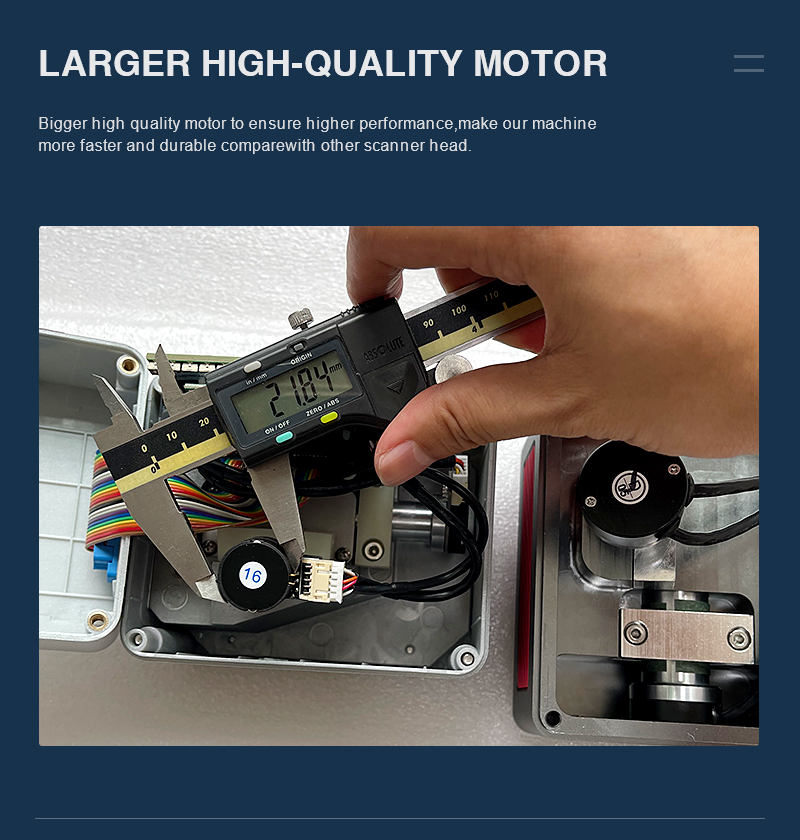

Larger High-quality Motor

Bigger high quality motor to ensure higher performance,make our machine more faster and durable comparewith other scanner head.

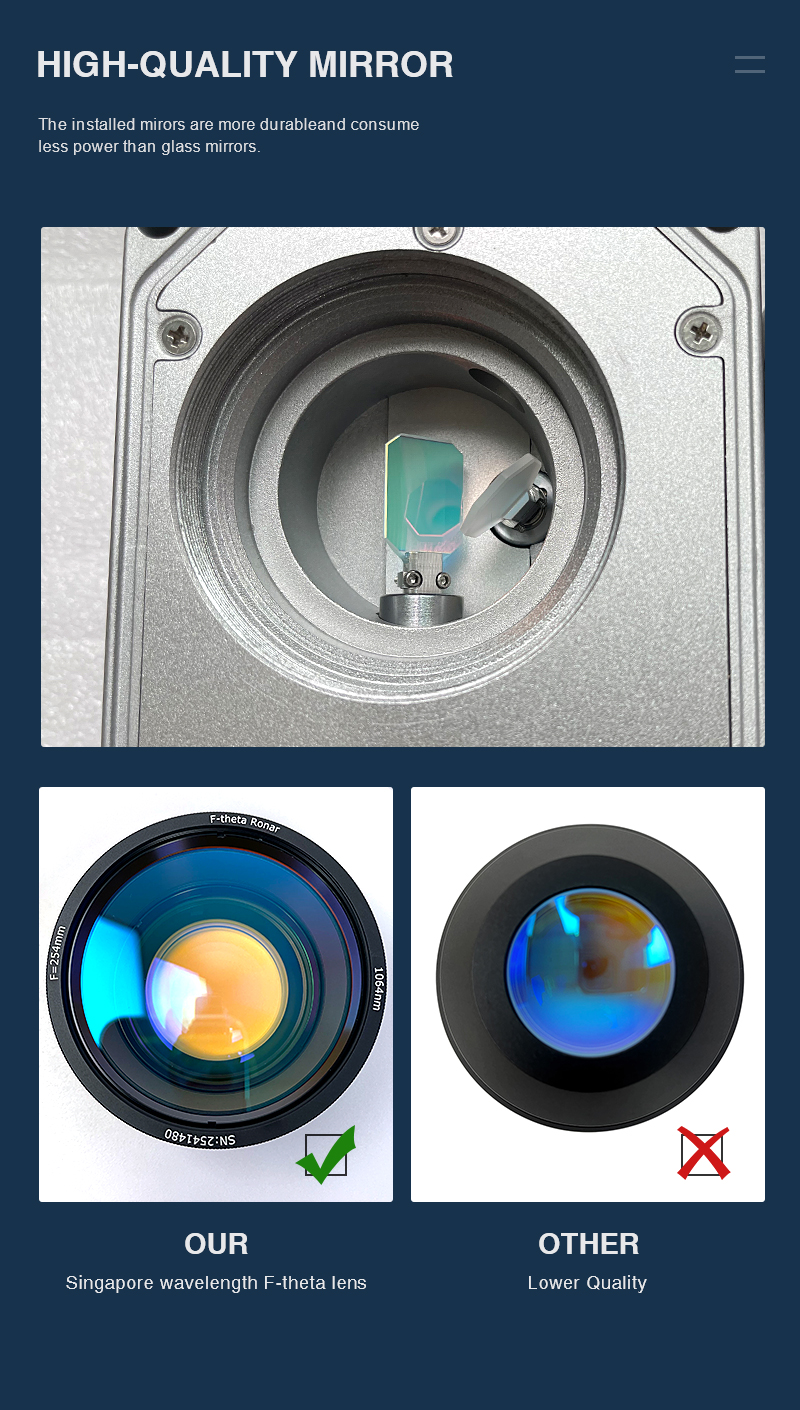

High-quality Silicon Mirror

The installed silicon mirrors are more durableand consume less power than glass mirrors.

LONG WORKING LIFE

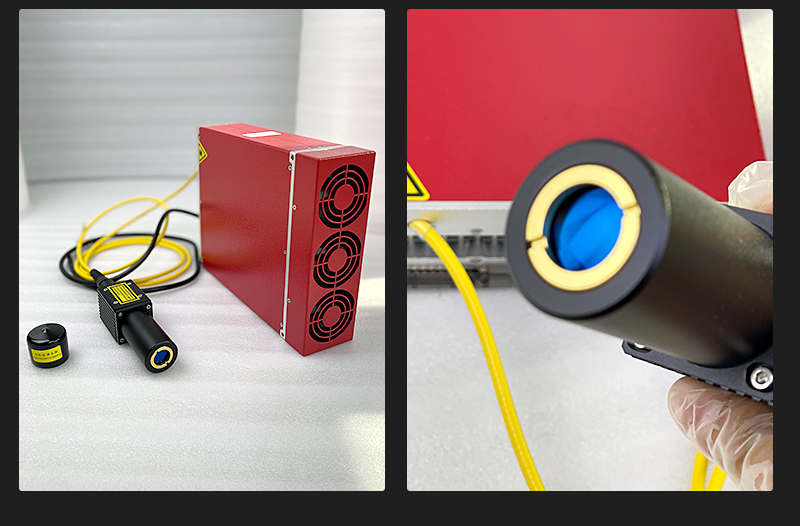

Fiber Laser Source We Choose Raycus, JPT, Max With Detail Selected Laser Source With High Quality Spot Size And Long Lifetime Over 110,000 Hours Running. Like 8 Hours A Working Day Running More Than 30 Years.

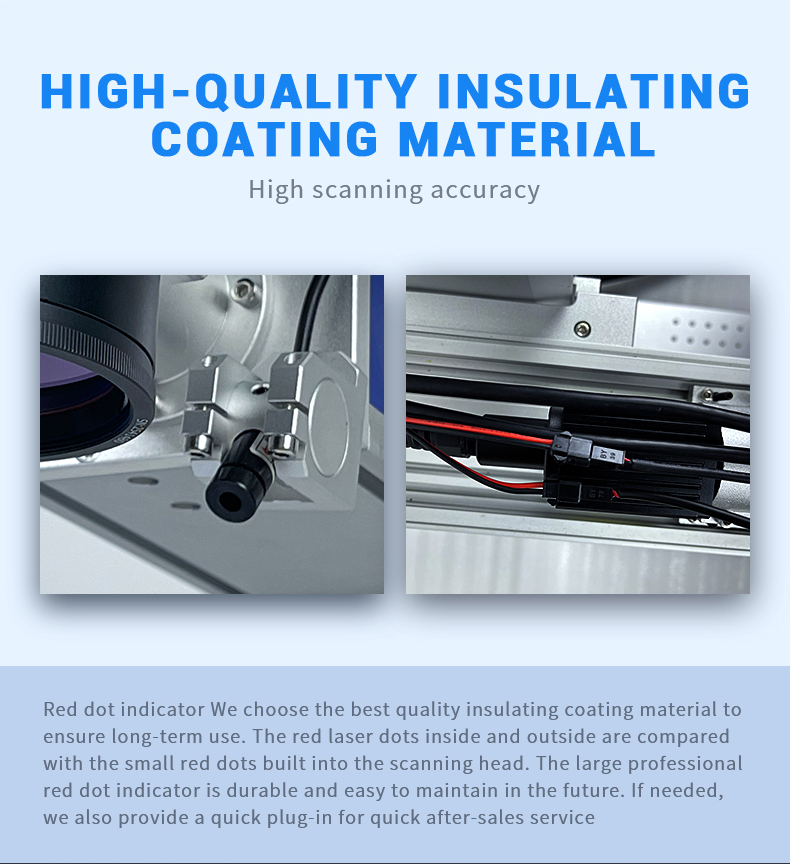

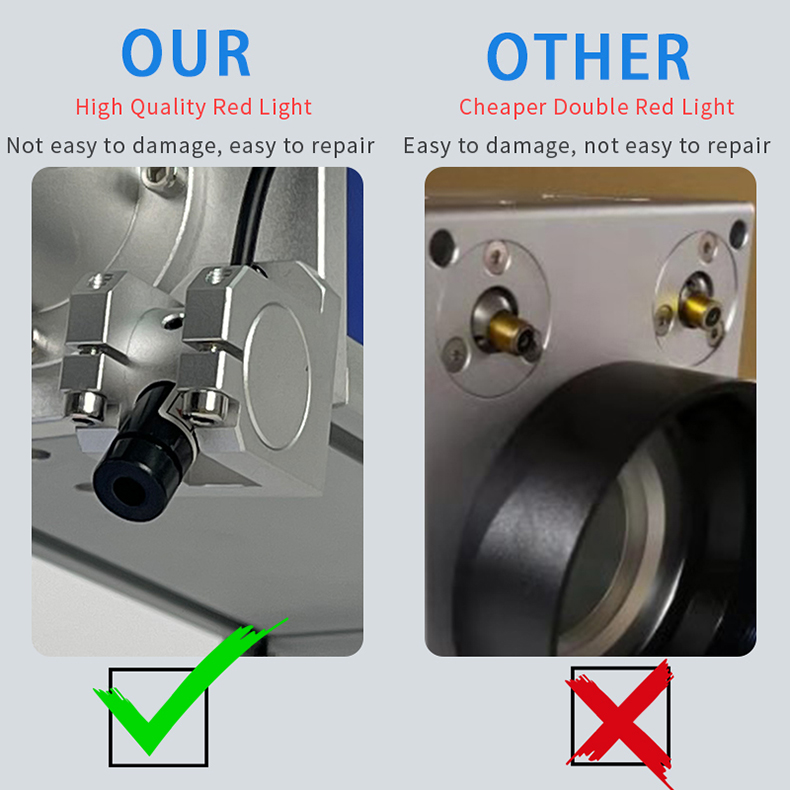

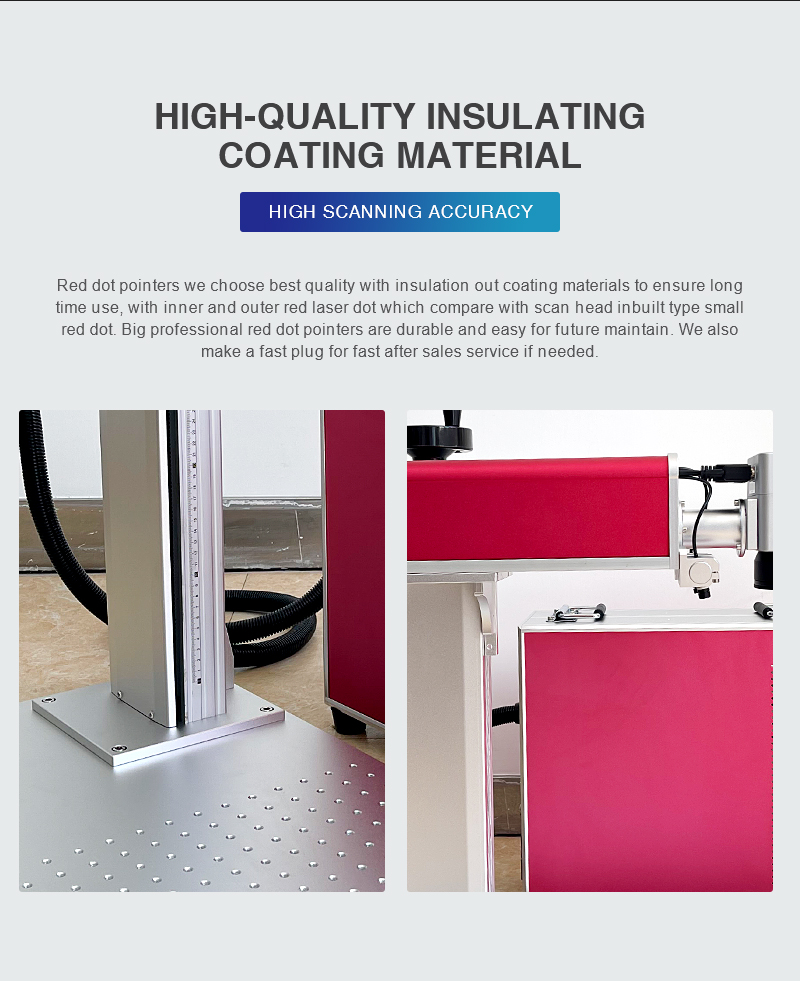

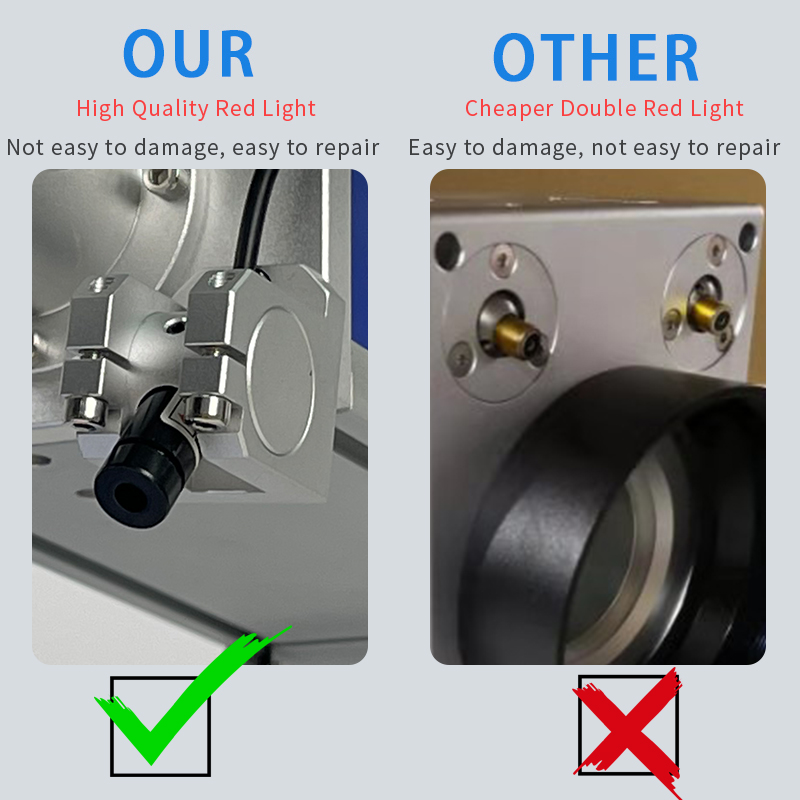

Red dot pointers

We choose best quality with insulation out coating materials to ensure long time use, with inner and outer red laser dot which compare with scan head inbuilt type small red dot. Big professional red dot pointers are durable and easy for future maintain. We also make a fast plug for fast after sales service if needed.

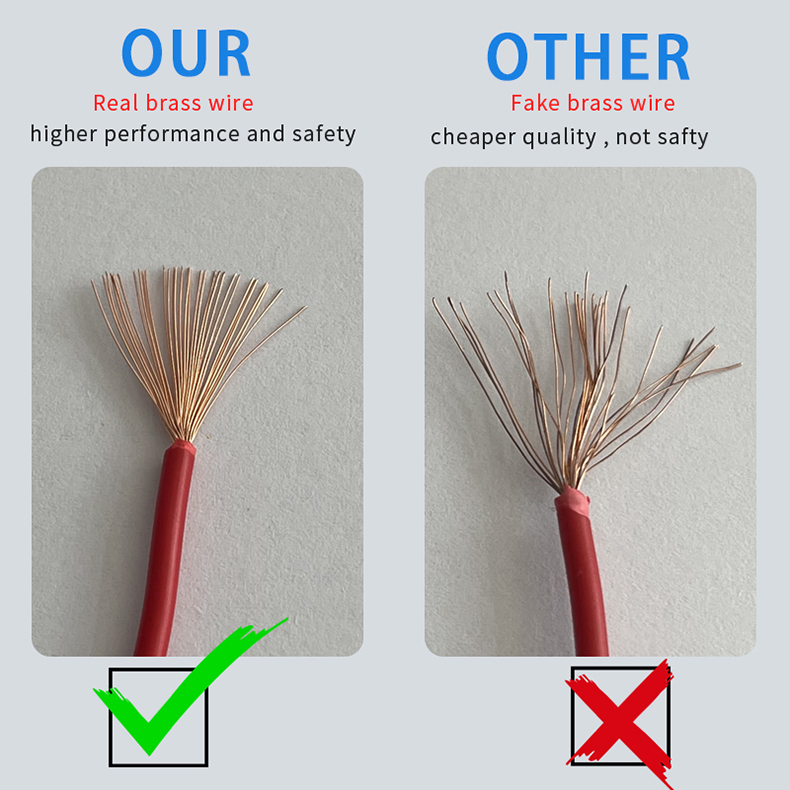

Real Brass Wire

Left side is Guangzhou focuslaser real brass wire, shining, strong, durable with higher performance and safety.
Others use fake brass wire to save cost, outside looks same but inside is different.
Our Guangzhou focuslaser make machines by heart and choose good spare parts to ensure quality.

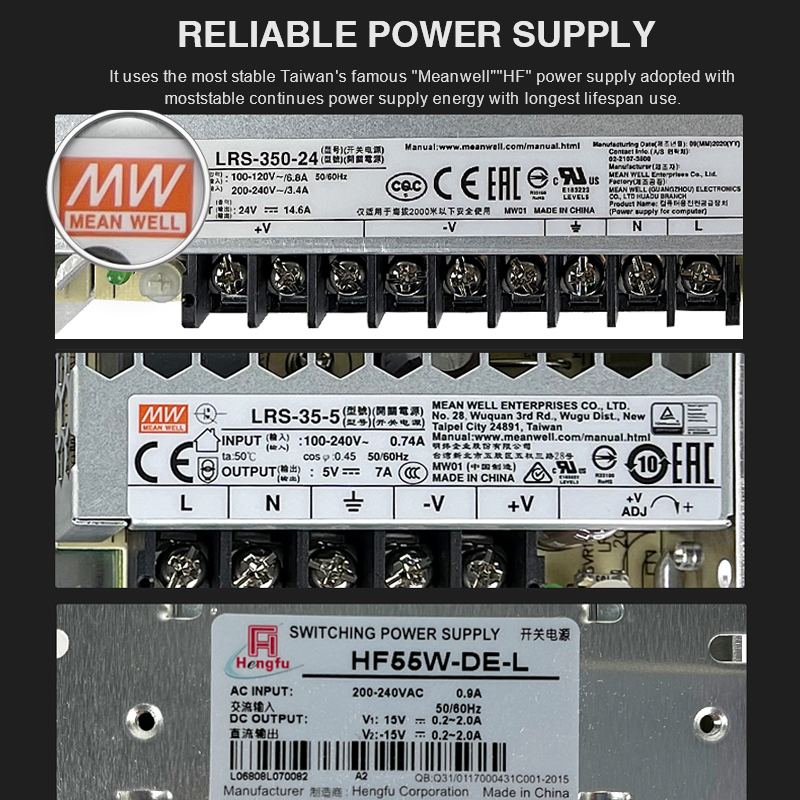

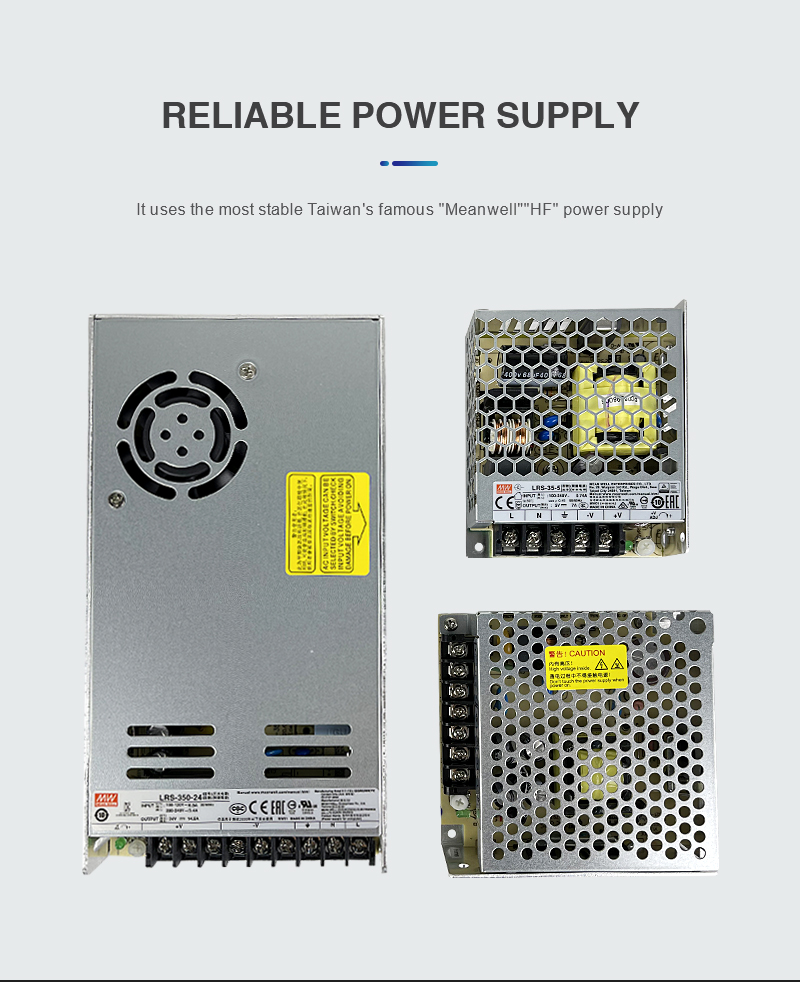

RELIABLE POWER SUPPLY

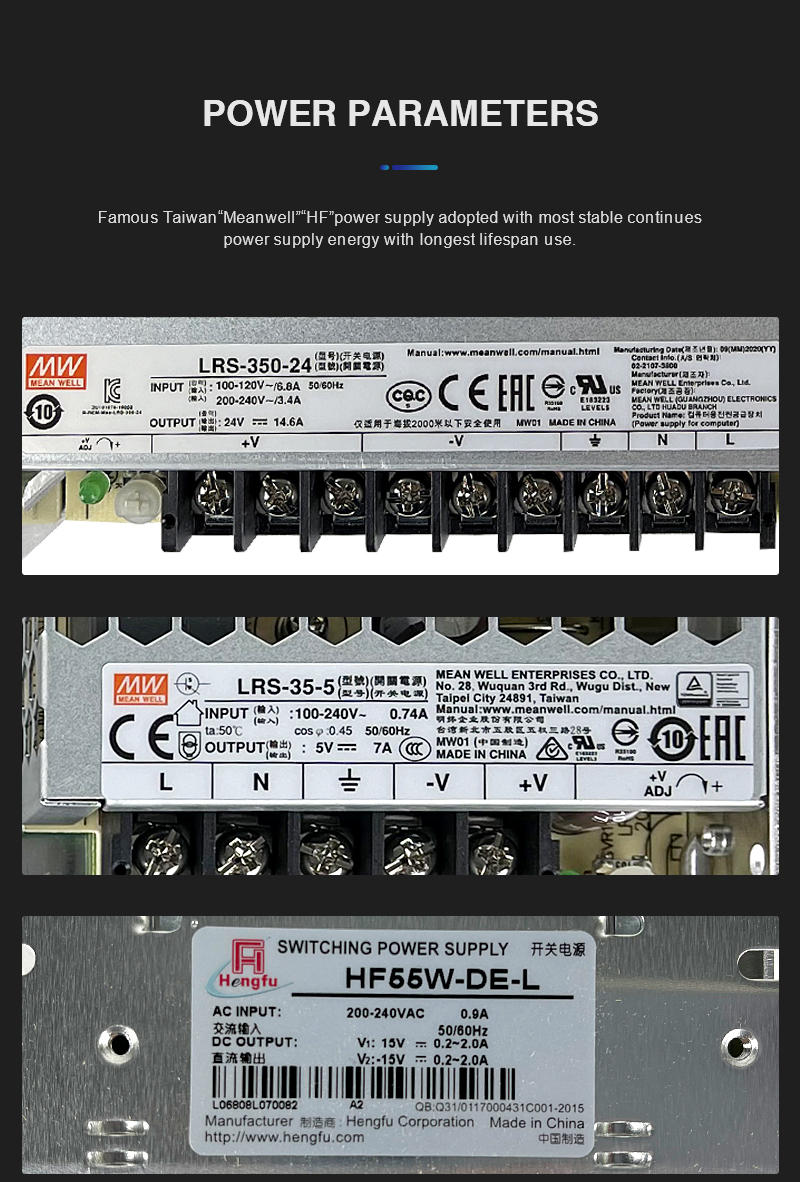

lt uses the most stable Taiwan’s famous “Meanwell””HF” power supply adopted with moststable continues power supply energy with longest lifespan use.

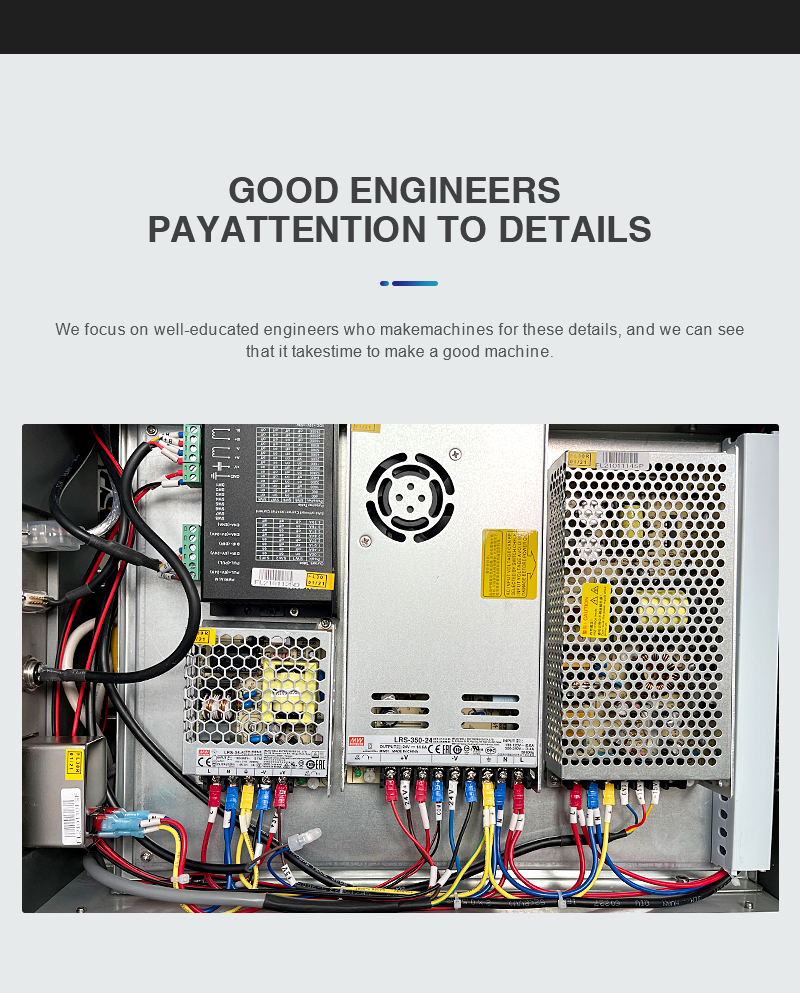

GOOD ENGINEERS PAYATTENTION TO DETAILS

We focus on well-educated engineers who makemachines for these details, and we can see that it takestime to make a good machine.

Enough height
for carvinga variety of objects

The ball screw in the aluminum pillar has a stroke of more than 500 mm to ensure a high enough height for a variety ofengraving objects.lmprove the overall performance of our products.Suitable for carvinga variety of objects.

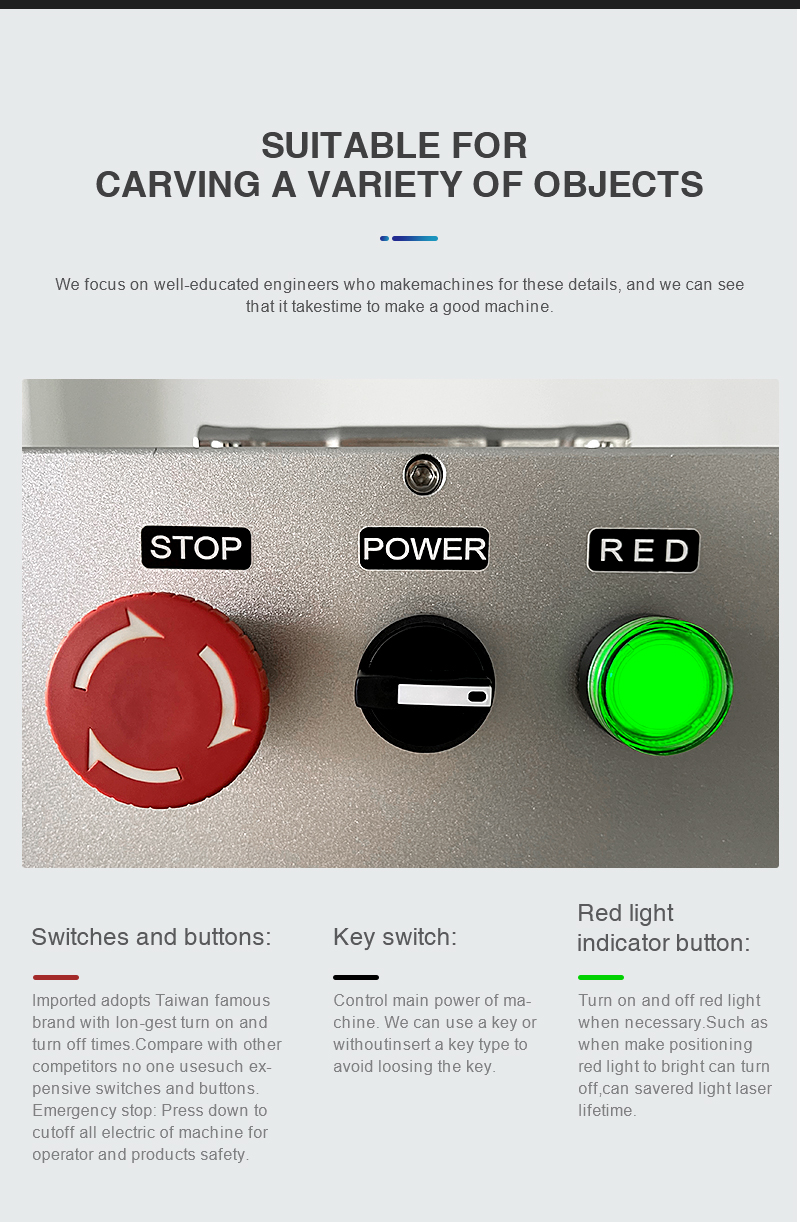

Switches and buttons

Imported adopts Taiwan famous brand with longest turn on and turn off times. Compare with other competitors no one use such expensive switches and buttons. Emergency stop: Press down to cut off all electric of machine for operator and products safety. Key switch: Control main power of machine. We can use a key or without insert a key type to avoid loosing the key. Red light indicator button: Turn on and off red light when necessary. Such as when make positioning red light to bright can turn off，can save red light laser lifetime.

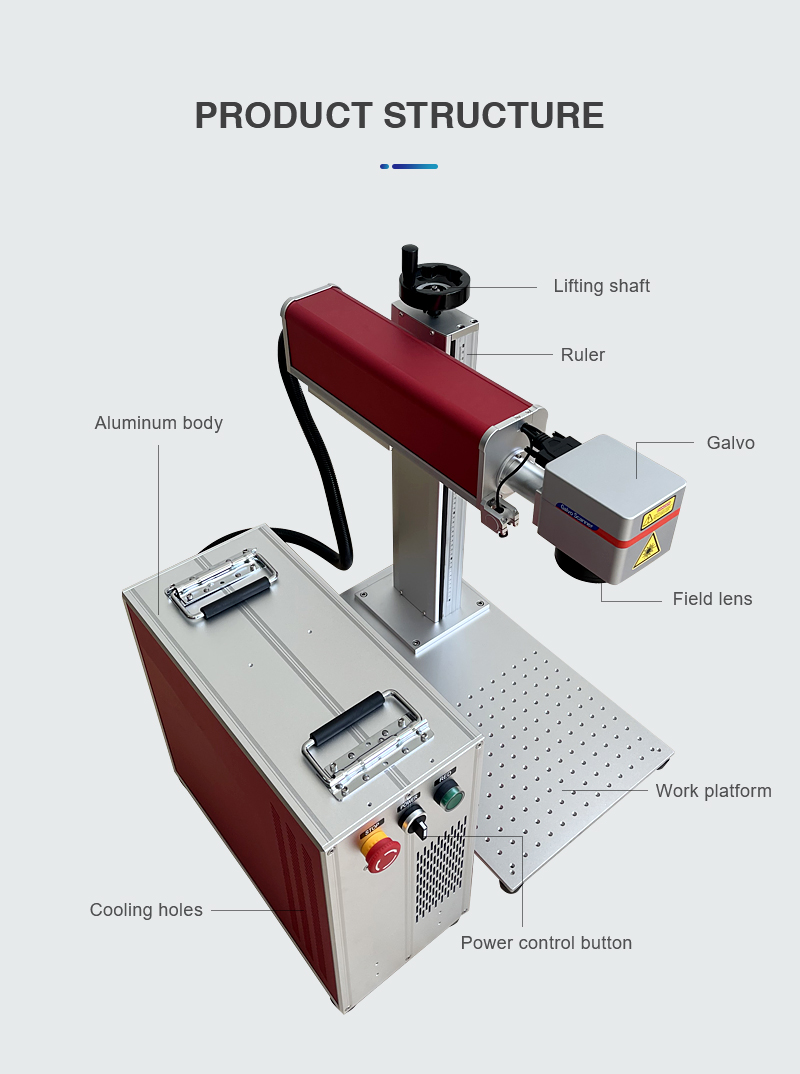

Product Details

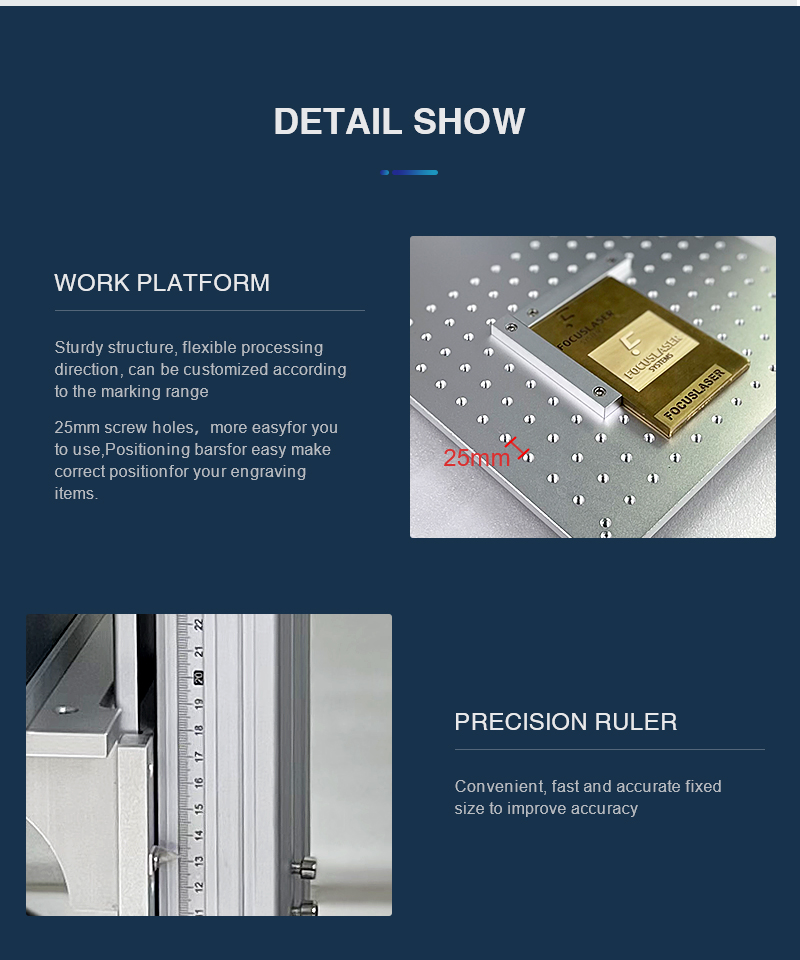

1.Work Platform

Sturdy structure, flexible processing direction, can be customized according to the marking range.25mm screw holes，more easyfor you to use,Positioning barsfor easy make correct positionfor your engraving items.

2.Precision Ruler

Convenient, fast and accurate fixed size to improve accuracy

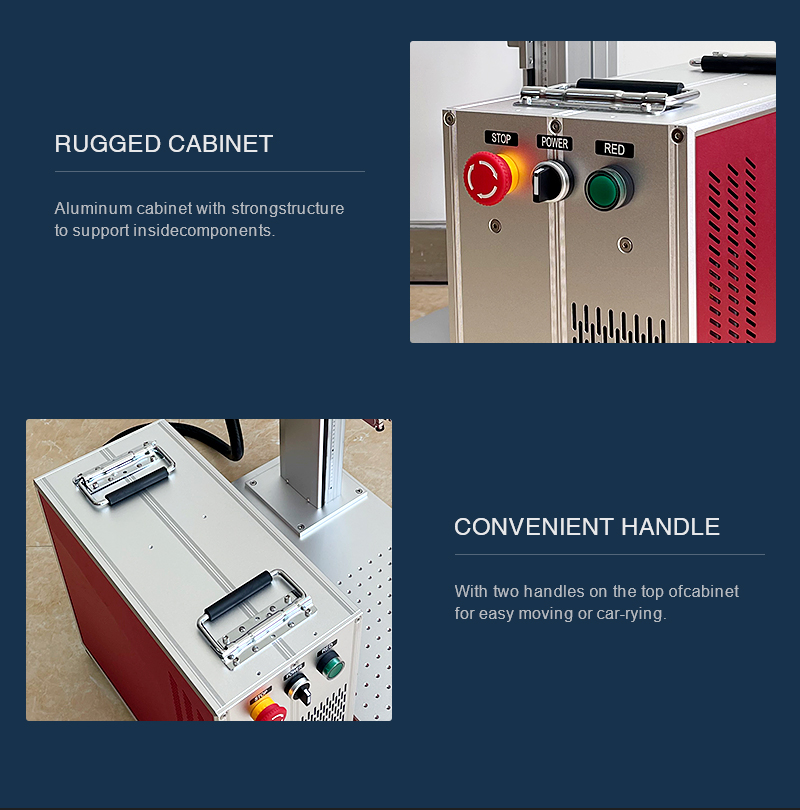

3.Rugged Cabinet

Aluminum cabinet with strongstructure to support insidecomponents.

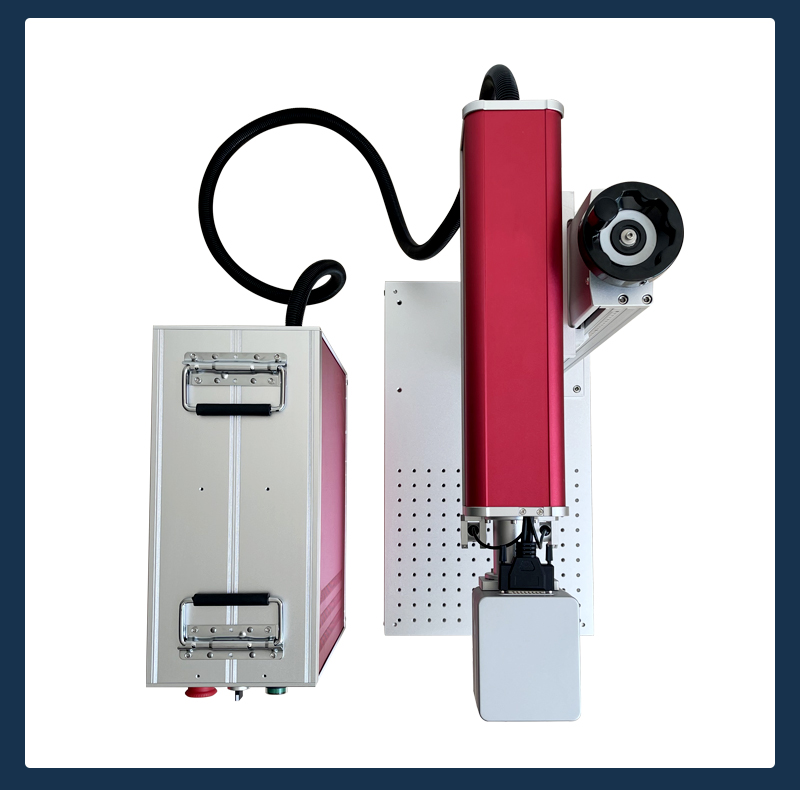

4.Convenient Handle

With two handles on the top ofcabinet for easy moving or car-rying

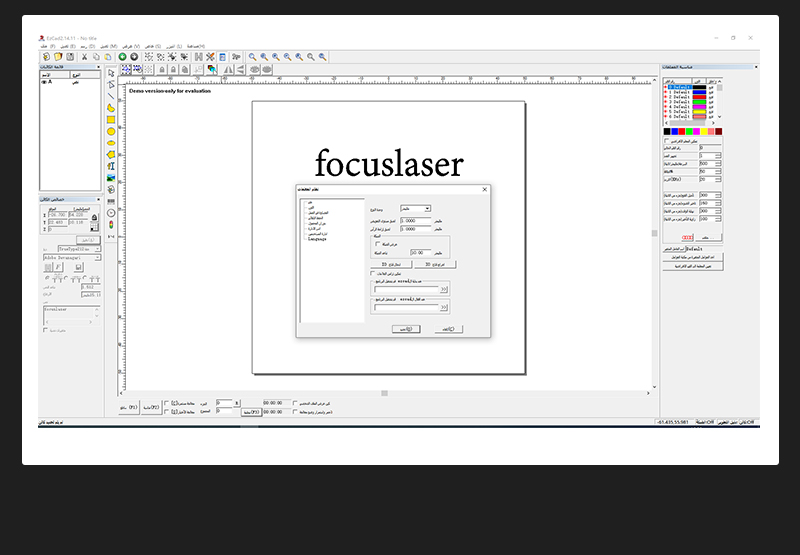

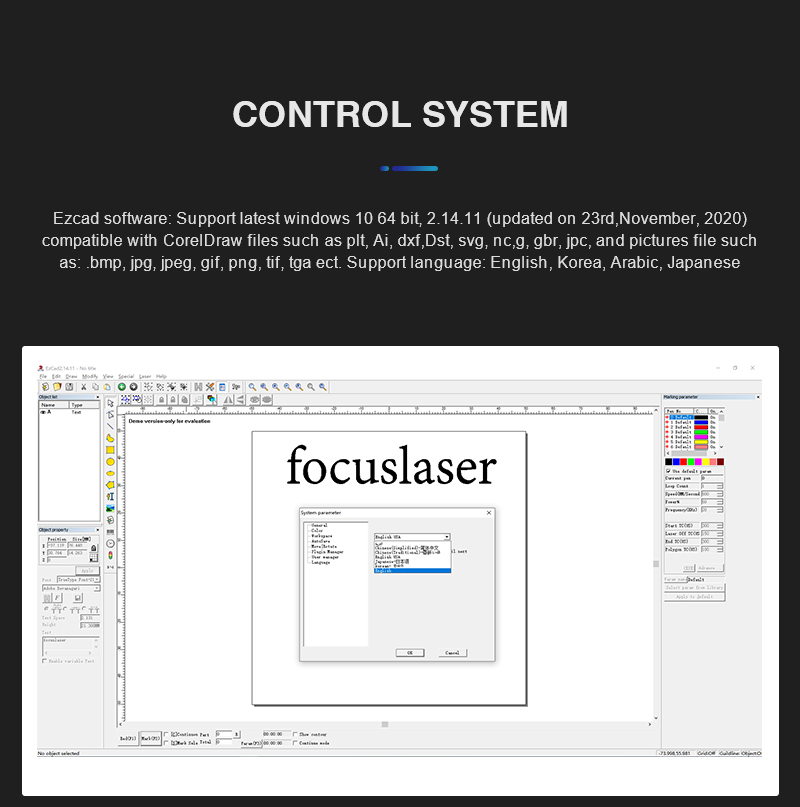

Ezcad software

Support latest windows 10 64 bit, 2.14.11 （updated on 23rd,November, 2020）compatible with CorelDraw files such as .plt, .Ai, .dxf, . dst, .svg, .nc,.g, gbr, .jpc, and pictures file such as: .bmp, .jpg, .jpeg, .gif, .png, .tif, .tga ect. Support language: English, Korea, Arabic, Japanese
