Description

fiber laser 50w 100w high power cw laser diode 50w – 500w for metal











Wide application



1 Metal marking



2 Diamond cutting



3 Laser welding and cutting







Specification

Output Power: 20-500W (1064nm, CW)

Working Mode: CW

Wavelength: 1064nm

ND: YAG, Doping at 0.6%

Water-cooled

Expected life: 10000 hours

Warranty: 12 months

Diode Provider: Jenoptik (Jena, Germany) 40W bars.

 Click to learn more about products

Brief Description

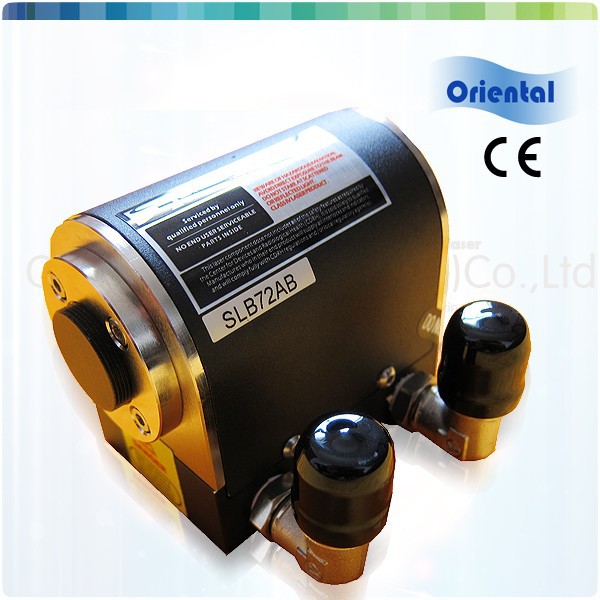

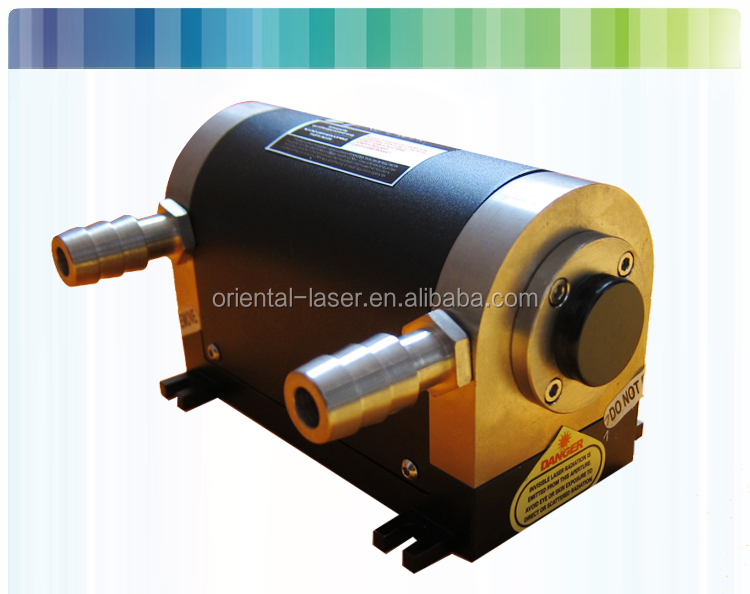

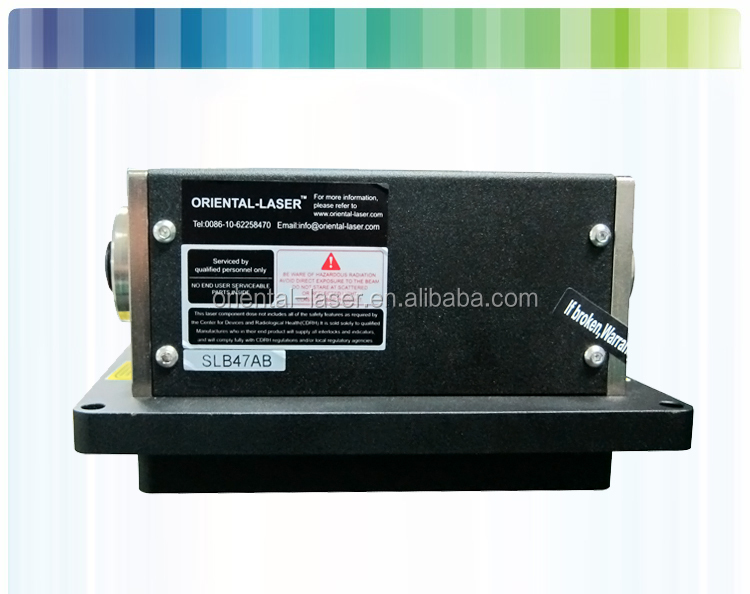

Oriental-Laser has develped a full product line of Diode-Pumped Solid State laser modules for industry applications. This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 20W up to 500W (@1064nm). These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.



Diode laser bar is from Germany Jenoptik











 Repairing service





Click to learn more about products

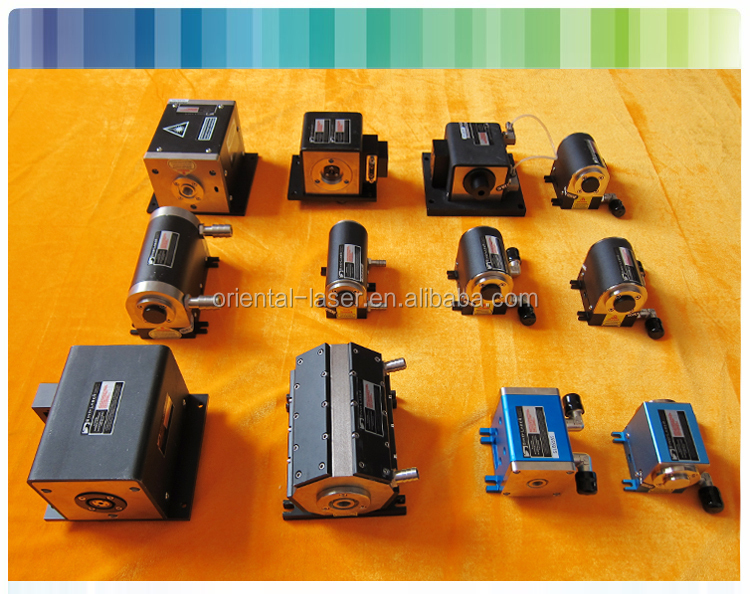

35w-500W CW 1064nm DPSS Laser Modules



Parameters





Model No.	Output Power	Nd:YAG	Operating current	Voltage	Diode Driver
GN35	35W	2	18A	<18	GN520
GN50-H	50W	2,3	20A	<18	GN720
GN50-E	50W	3	25A	<18	GN720
GN75-H	75W	2,3	20A	<24	GN520
GN75-E	75W	3	25A	<24	GN720
GN100	100W	3,4	25A	<30	GN920
GN150	150W	4	25A	<40	GQ40
GN200	200W	4,5	25A	<50	GQ50
GN300	300W	4,5	25A	<70	GQ70
GN400	400W	5,6,6,6.35	25A	<80	Contact Us
GN500	500W	7,8	25A	<100	Contact Us
GN1000	1000W	7,8	25A	<200	Contact Us





















































NOTE: The modules can be customized by customers

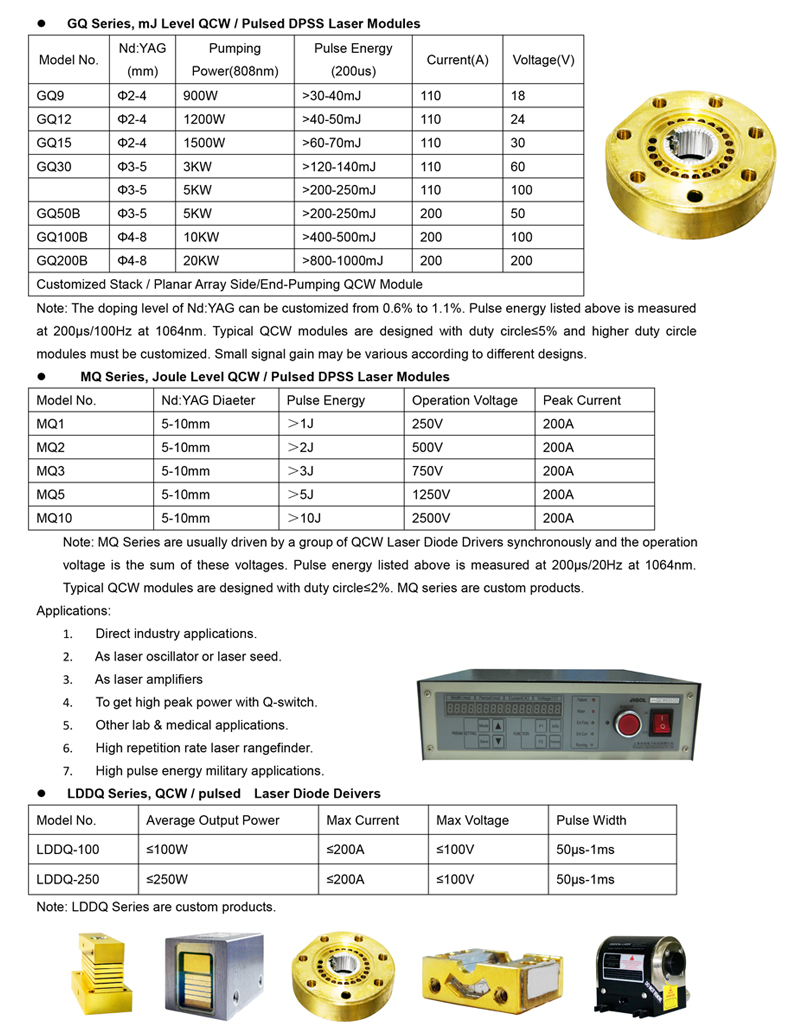

QCW Pulsed DPSS Modules



Parameters





Model No.	Pumping Power	Nd:YAG	Operating current	Voltage	Pulse energy
GQ9	900W	2-4	110A	18	>30-40mJ
GQ12	1200w	2-4	110A	24	>40-50mJ
GQ15	1500w	2-4	110A	30	>60-70mJ
GQ30	3kw	3-5	110A	60	>120-140mJ
GQ50	5kw	3-5	110A	100	>200-250mJ
GQ50B	5kw	3-5	200A	50	>200-250mJ
GQ100B	10kw	4-8	200A	100	>400-500mJ
GQ200B	20kw	4-8	200A	200	>800-1000mJ
Customized stack/Planar Array Side/ End-pumping QCW Module
