Fiber Cnc Laser Marker 20w 30w 50w Fiber Laser Marking Machine Price 50 Watt Fiber Laser For Engraving Metal Marking

  • Home
  • Fiber Cnc Laser Marker 20w 30w 50w Fiber Laser Marking Machine Price 50 Watt Fiber Laser For Engraving Metal Marking
Awaiting product image

Fiber Cnc Laser Marker 20w 30w 50w Fiber Laser Marking Machine Price 50 Watt Fiber Laser For Engraving Metal Marking

$18,900.00 – $20,100.00

SKU: 1005002394344969 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AK6090F
  • CNC or Not: CNC
  • Product name: 30w 20w Fiber Laser Marking Machine for Sale
  • Working Accuracy: 0.001mm
  • Cooling Mode: Air Cooling
  • Control Software: EZCAD
  • Graphic Format Supported: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
  • Marking Depth: 0-0.4mm
  • Working Area: 600*900mm
  • Rotary device: Optiona
  • Laser wavelength: 1064nm
  • Certification: CE, ISO

HTB1bokMtACWBuNjy0Faq6xUlXXax

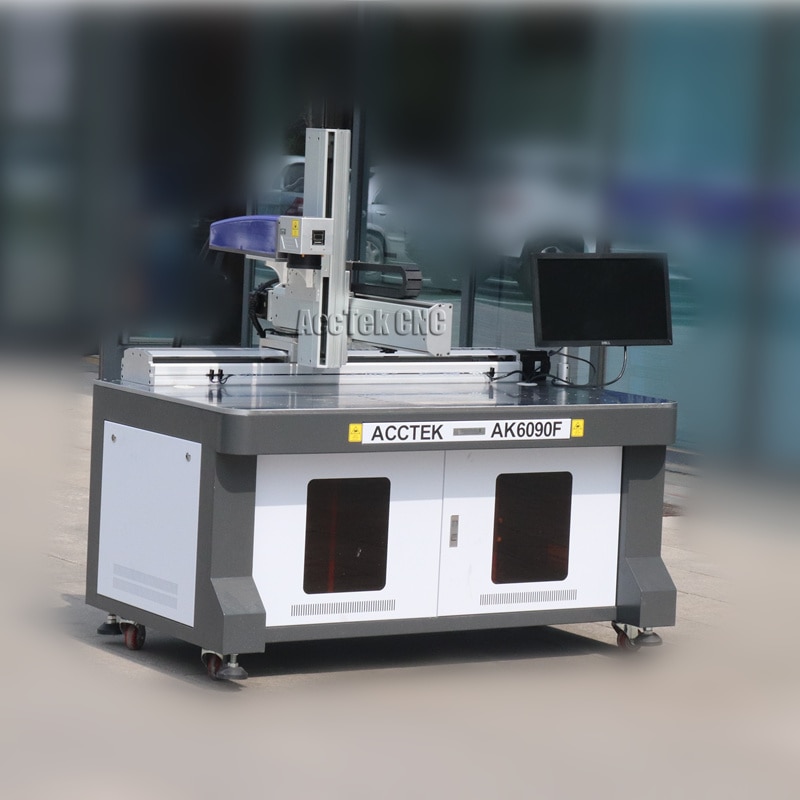

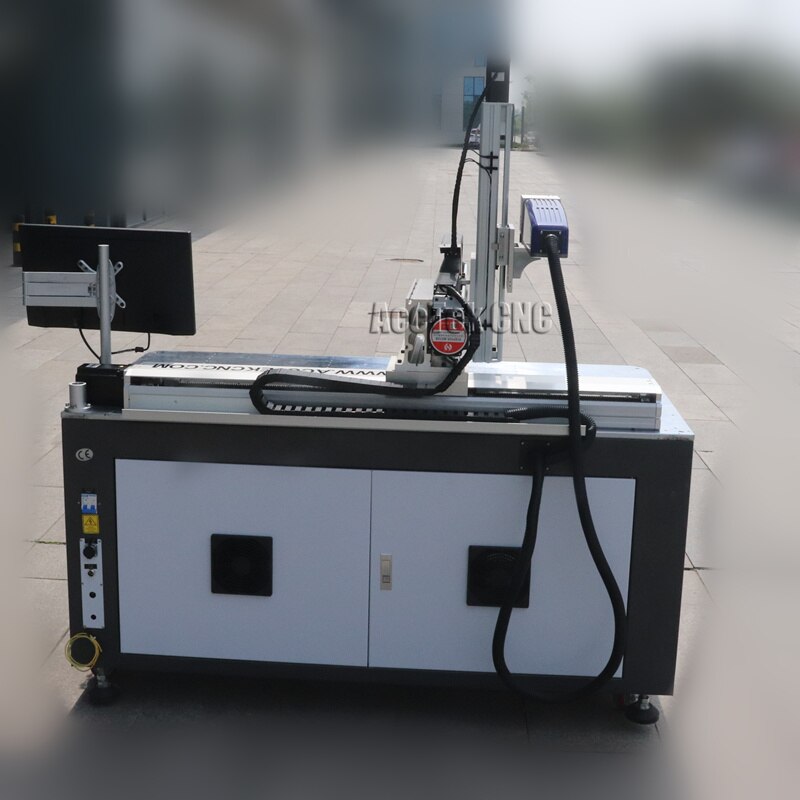

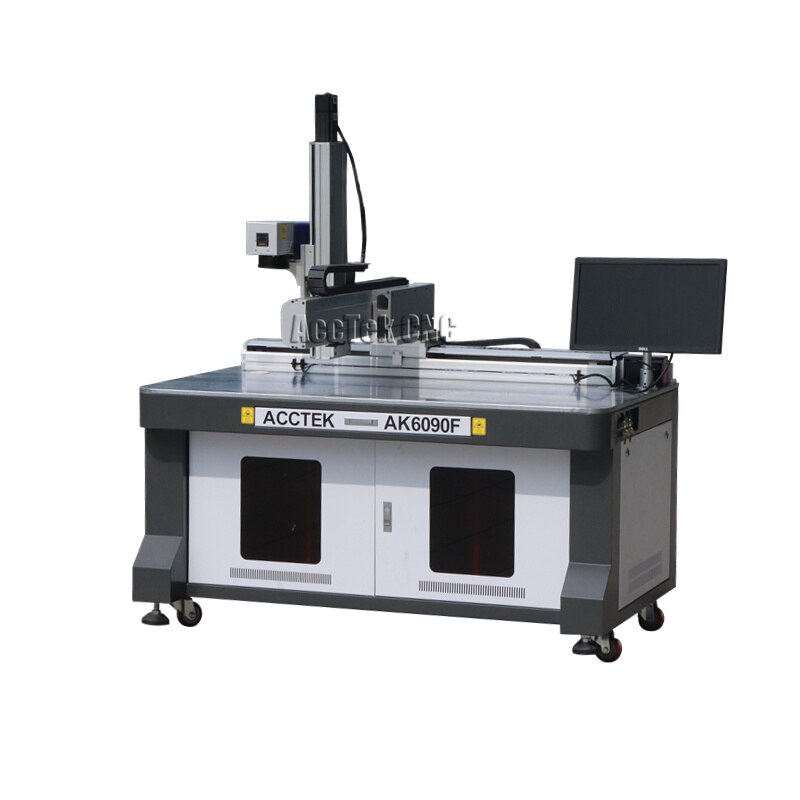

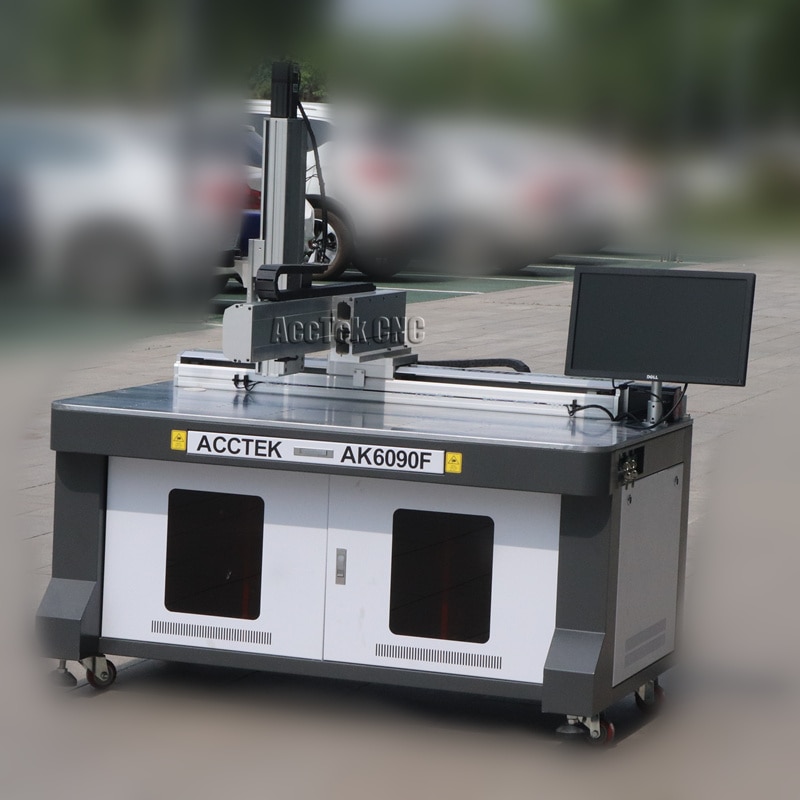

AK6090F Fiber Laser Marking Machine 600*900MM

Fiber Cnc Laser Marker 20w 30w 50w Fiber Laser Marking Machine Price 50 Watt Fiber Laser For Engraving Metal Marking

If you want to know the more machine information, please contact me by below:

Monica Yang

Email&Skype:export05@acctekcnc.com

Machine Show
Main Features

1) Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2) High Precision: Re-position precision is 0.002mm
3) High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
4) Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5) High Reliability: MTBF>100,000 hours
6) Energy Saving: The efficiency of optic-electrical converting is up to 30%
7) Low Running Cost: No consumable parts. Free maintaining.

Details Show
Technical Parameter
Model
AK6090F
Laser Generator
Raycus/IPG/JPT
Laser Power
20W/30W/50W
Laser Length
1064nm
Quality of Lase Beam
m2<1.5
Laser Repetition Frequency
≤100 KHz
Standard Marking Area
600*900mm
Engraving Depth
≤1.2mm
Engraving Speed
≤12000mm/s
Minimum Line Width
0.01mm
Minimum Character
0.05mm
Resolution Ratio
±0.001mm
Gross Power
≤500W
Working Voltage
200V/50Hz/10A
Cooling Mode
Air cooling
Application

It is capable of carving the metal materials and partial non-metal materials, especially suitable for some fields required more precise and higher smoothness.

It is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelry accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.
Working Samples
Our Services
1) Guarantee.
18 months guarantee of the whole machine, 6 months guarantee of the laser tube.
2) Software issue.
Our technician is able to re-install or set up by remote for free.
3) Hardware issue.
Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support online.
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory.
We are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way).
We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
Company Profile

Reviews
