Description

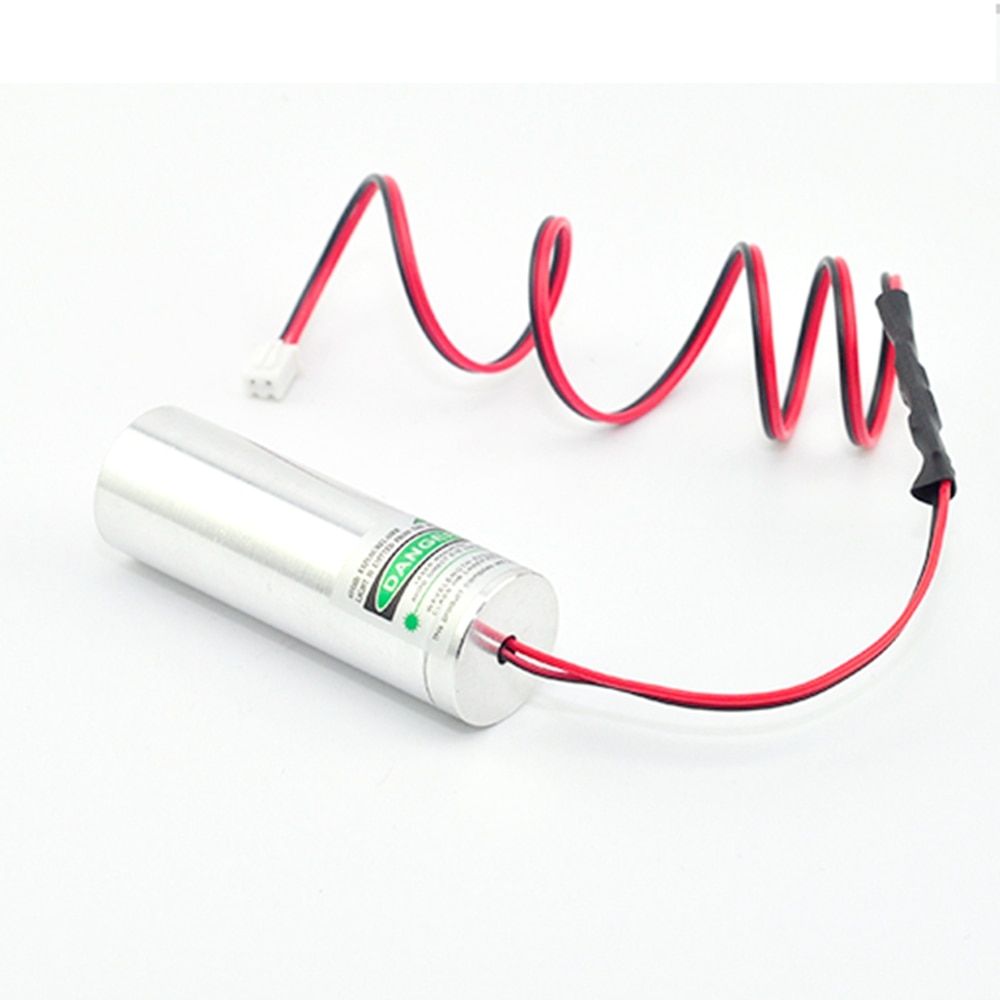

Fat Beam 532nm 50mw Green Laser Dot Diode Module KTV Bar DJ Stage Lighting

Parameters

wavelength: 532nm  green

Output power: 50mW

Working time:30 minutes of continuous work

Working current: 320 mA

diode: Roma RLD80E30

Power supply: DC 4.2-5V (Available single 18650 or other 3.7V lithium battery)

Spot diameter: dot 14-16mm  Light crude

Storage temperature: －40℃～80℃

Laser class: B3 class

Working life:  6000hours

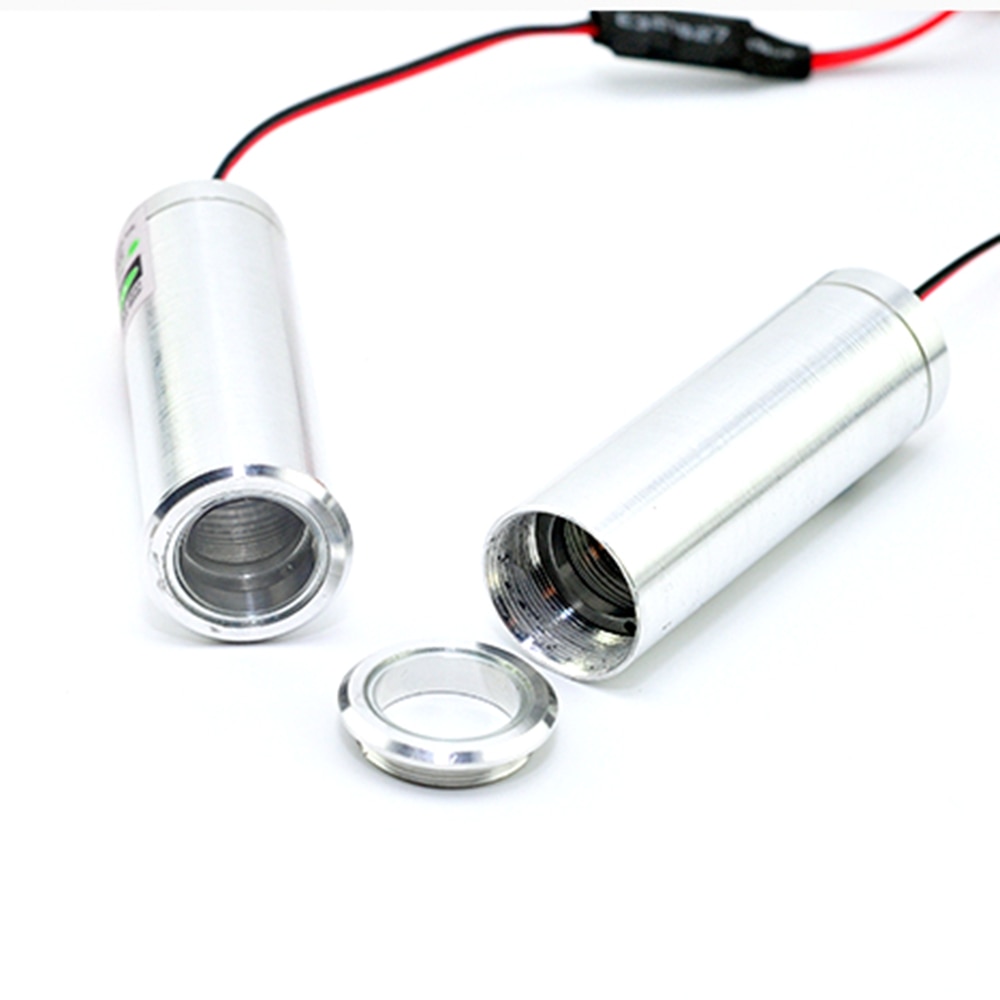

Material:  Aluminum

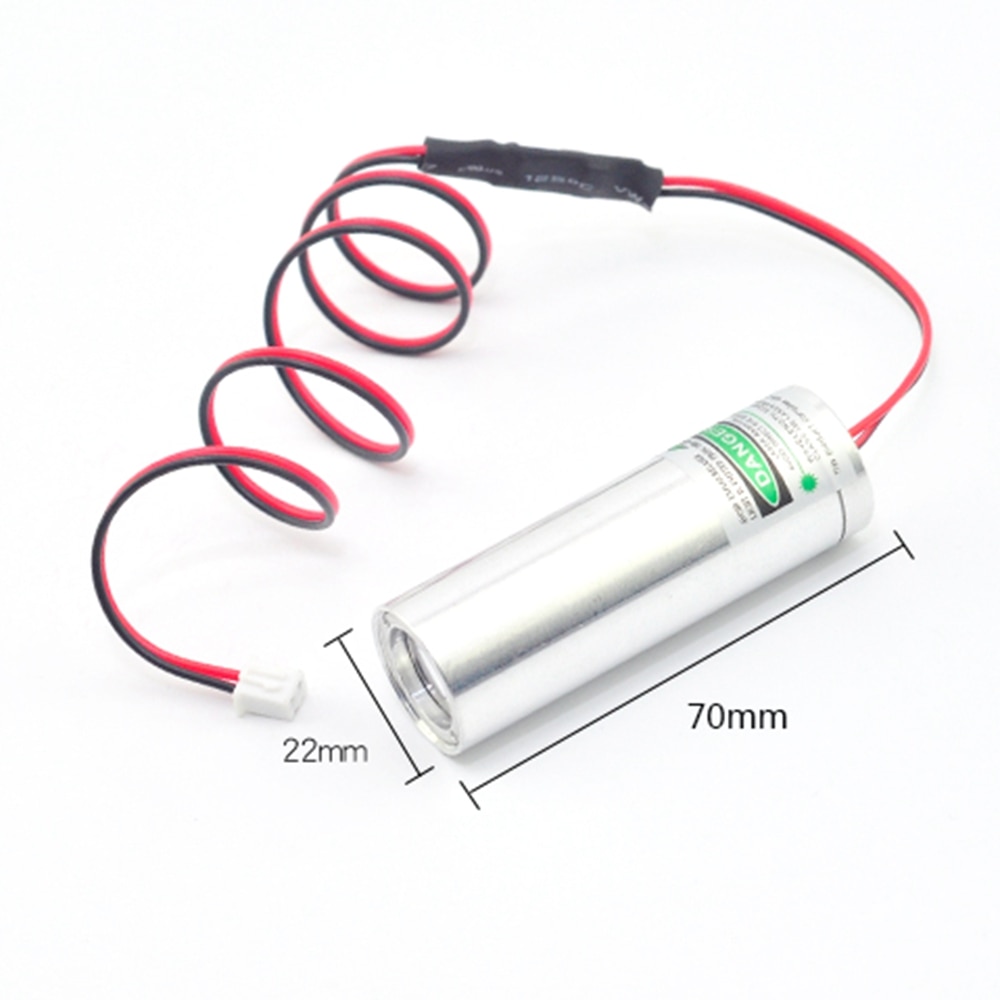

size: 22*70mm

Mounting cutout 22mm mirror waterproof

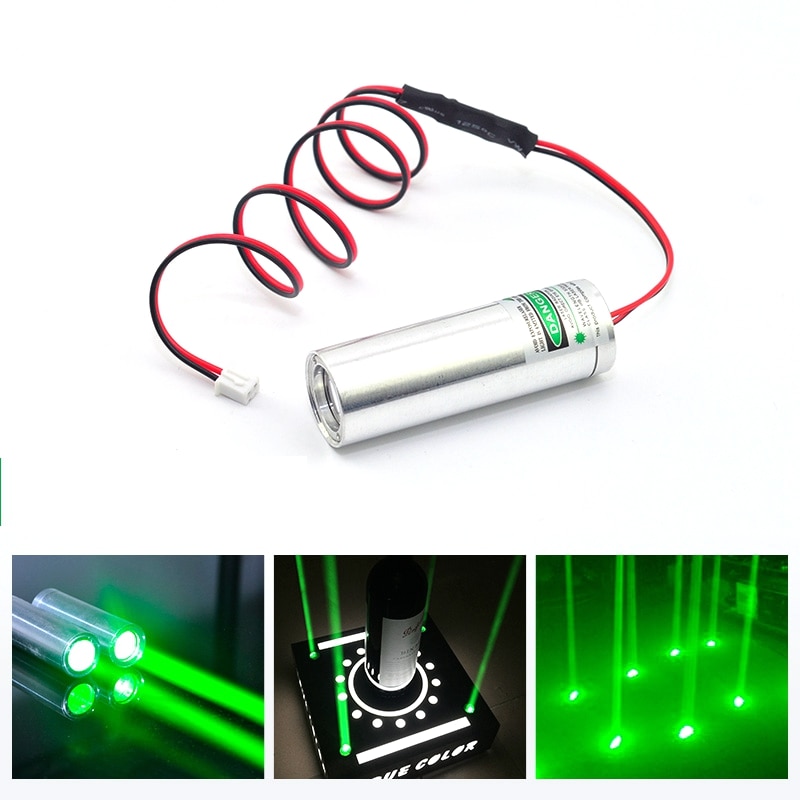

Notice:All the photos are taken by ourselves.But the effect photos are all take in dark and foggy environment.In normal conditions,the fat beam will not be shown like the product photos.Kindly please understand it.Thanks.

Features

it can not directly to the naked eye

1 Structure: Japanese original laser diode + large area coating copper sleeve + quality coated lens + microcontroller controls the drive circuit + wire

2. Materials Features: laser tube: Japanese factory output power guaranteed; copper pieces: a large volume of work designed to ensure the stability of performance

3 circuit characteristics: unique to the industry MCU control circuit, with anti-surge, brownout protection, secondary purification, LDO technology features: stable

4 Main purpose: bar supplies, wine display stand, wine holder laser, laser effects stage chamber to escape, and other widely used

5.Main features: sprinkled it or KTV room environment, gorgeous spot, the light mirror waterproof, can work long hours, etc.

Package

1pc Thick Beam 50mW 532nm Green Laser Diode Module Bar Stage Light
