Description
- Brand Name: laserlands
- Certification: NONE
- Origin: Mainland China
- Style: DMX Stage Light
- Model Number: N/A
- Occasion: Home Entertainment

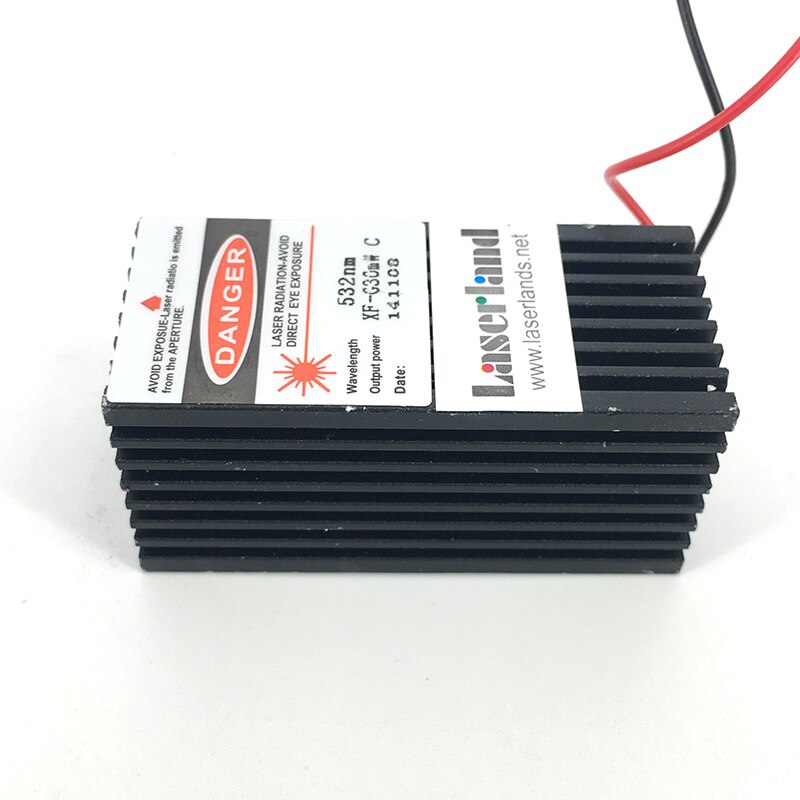

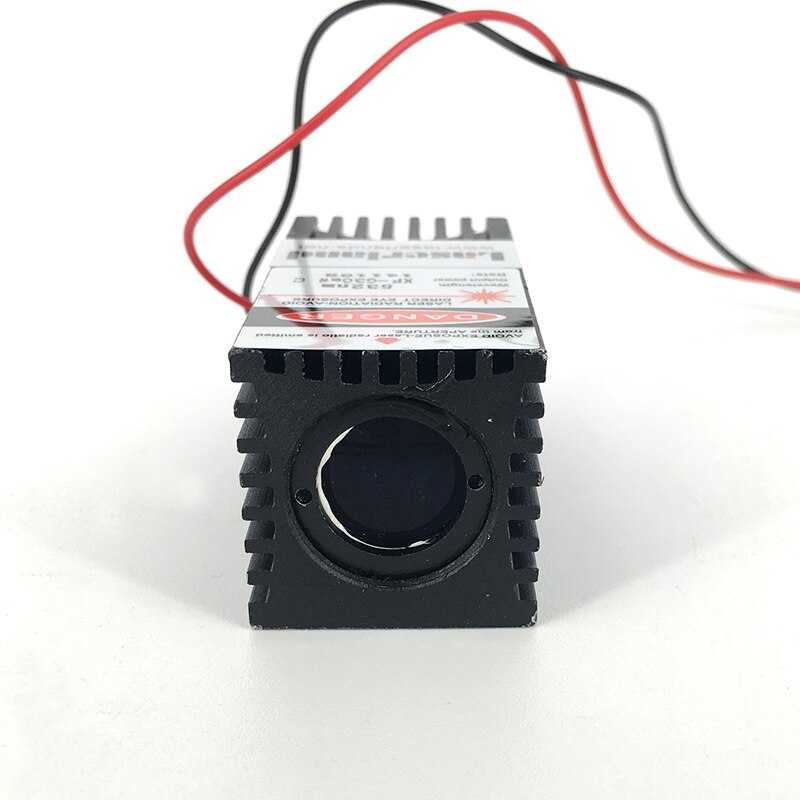

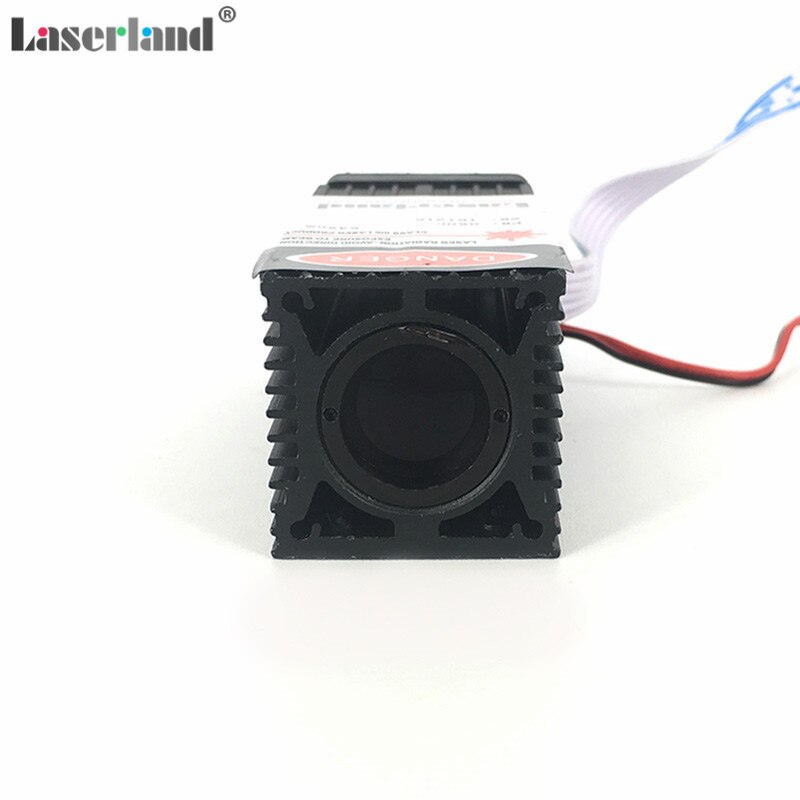

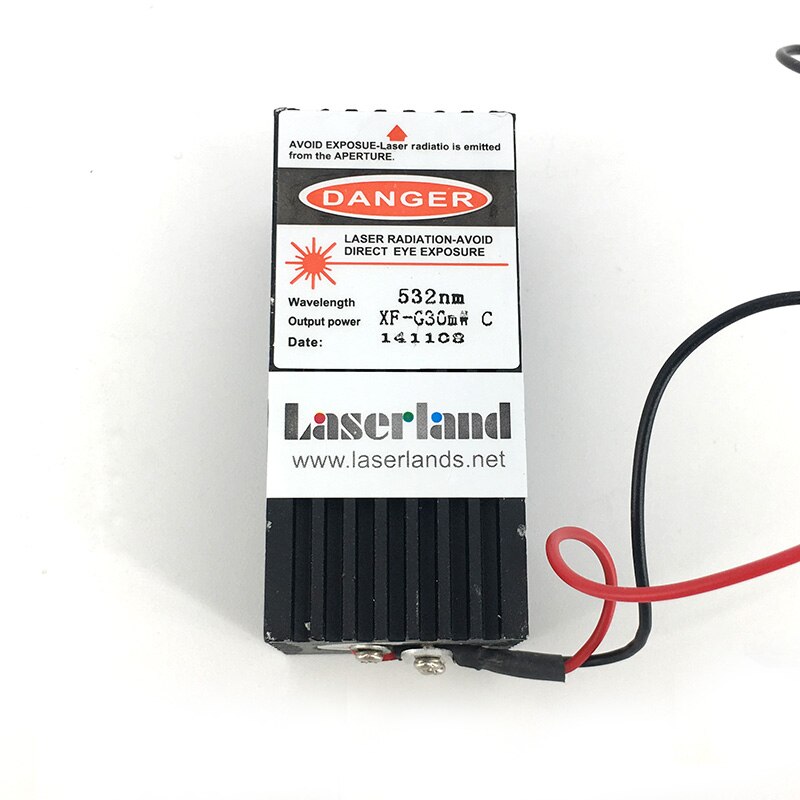

Fat Beam 532nm 50mW Green Laser Diode Module TTL 12V light show
wavelength(nm) 532
Output power(mw) >50
Transverse mode TEM00
Operating mode CW
Power stability (rms, over 4 hours) <5%
Warm-up time (minutes) <15
M2 factor <1.2
Beam divergence, full angle (mrad) <1.5
Beam diameter at the aperture (mm) ~13
Beam height from base plate (mm) 16
Polarization ratio >100:1
Beam roundness >90%
Operating temperature (℃) 10~35
Power supply (12VDC) 35.6(L)×72(W)×24(H)

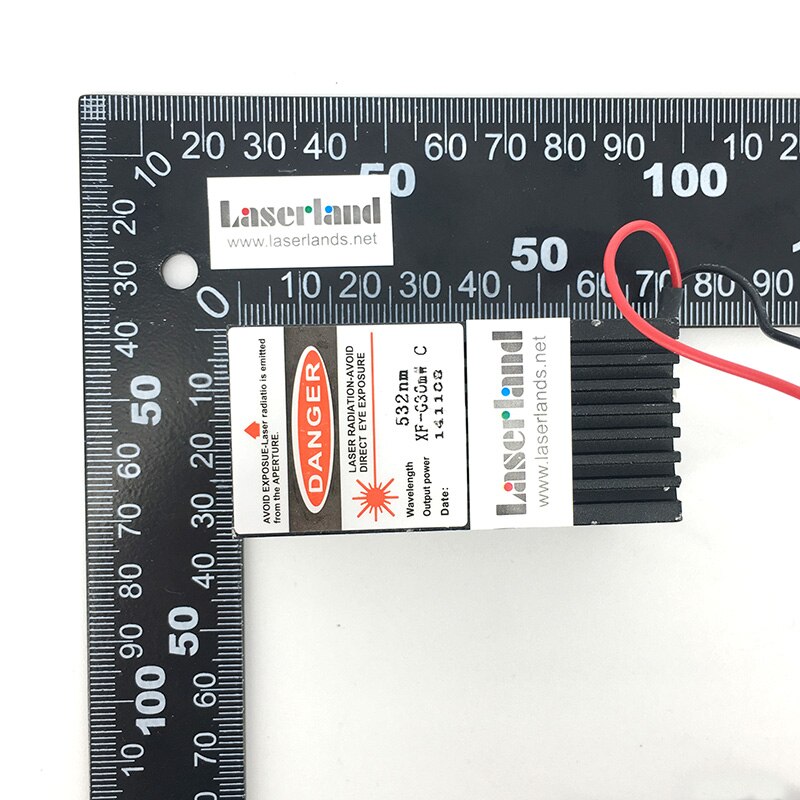

Dimensions of Laser Head (mm) 85.5(L)×32(W)×32(H)
Modulation option TTL/Analog modulation0-5V
Expected lifetime (hours) 5000
Warranty period 1year
