Description

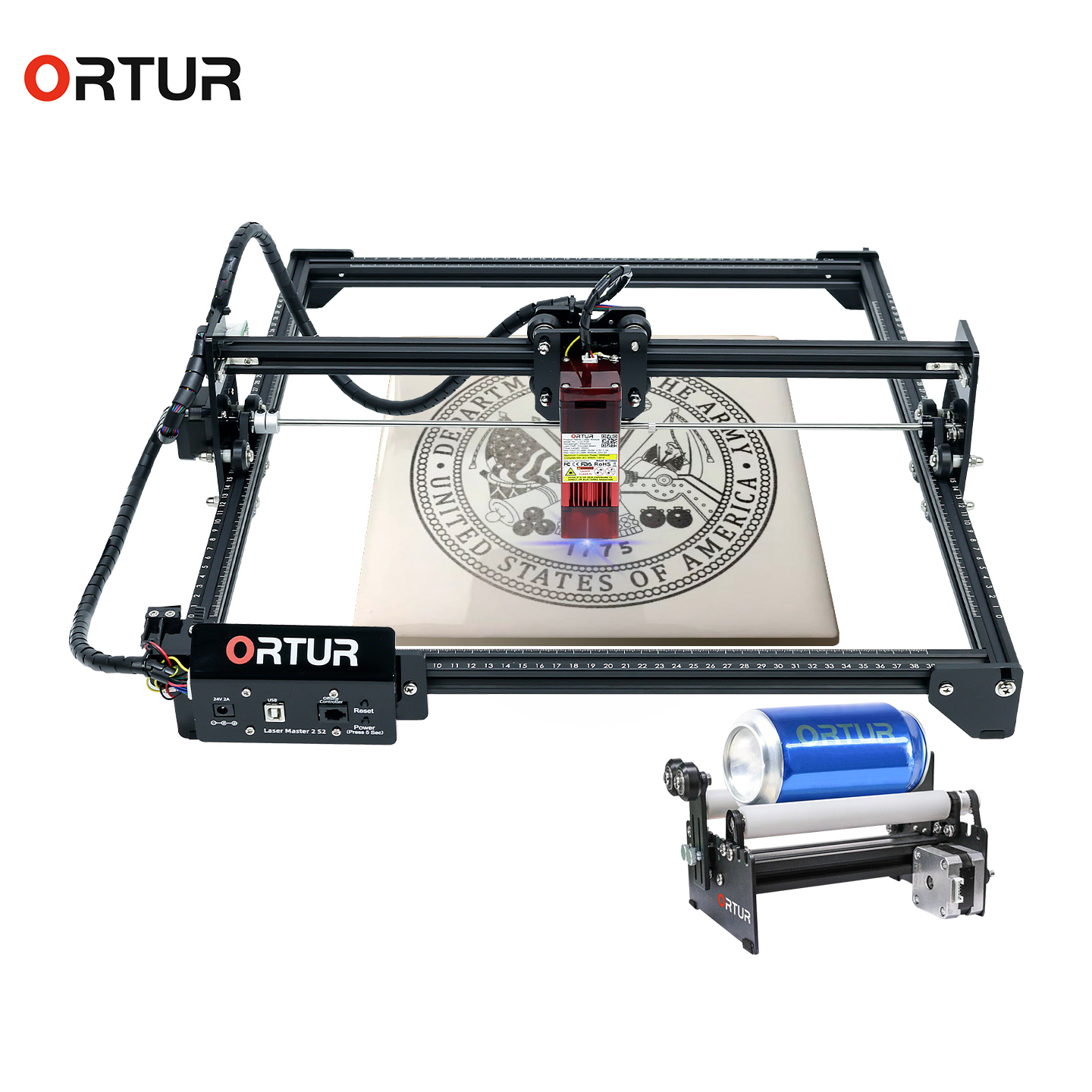

Ortur Laser Master 2 S2
|
Available Laser Modules
|
||||||
|
Product Name
|
LU2-4-SF
|
LU2-4-LF
|
LU2-2
|
|||
|
Optical Power
|
4500- 5500 mW
|
4500- 5500 mW
|
1000-1600 mW
|
|||
|
Focal Spot
|
About 0.12×0.15 MM
|
About 0.12×0.15 MM
|
About 0.07×0.06 MM
|
|||
|
Light Path
|
Focused Beam
|
Focused Beam
|
Focused Beam
|
|||
|
Focal Length
|
30 MM
|
50 MM
|
50 MM
|
|||
|
Electric Current
|
3.4-3.6 A
|
3.4-3.6 A
|
1.1-1.35 A
|
|||
|
Wavelength
|
445+10 NM
|
445+10 NM
|
445±10 NM
|
|||
|
Voltage
|
4.2-5.0 V
|
4.2-5.0 V
|
5-6 V
|
|||
|
Product Size
|
40x41x122 MM
|
40×41.5×1 10 MM
|
40×41.5×96 MM
|
|||
Note: The above work is done by LU2-2 or LU2-4-LF or LU2-4-SF laser module, but each model of laser module has a different focus.LU2-2 is suitable for fine carving; LU2-4-LF is more suitable for cutting; LU2-4-SF can achieve a certain effect in both carving and cutting.
1. Based on OLF1.7 firmware, the 1.8 firmware has optimized the grayscale engraving algorithm to bring more realistic picture effect.
2. It could support any baud rate, save some delays due to command transmission, increase the engraving speed.
1. Driver Free use on most modern operating systems. (for Windows XP and Windows 7 driver required)
2. Higher MCU frequency at 240Mhz and about 10% faster calculation speed than 8th motherboard.
3. Support next generation Digital Laser Module.

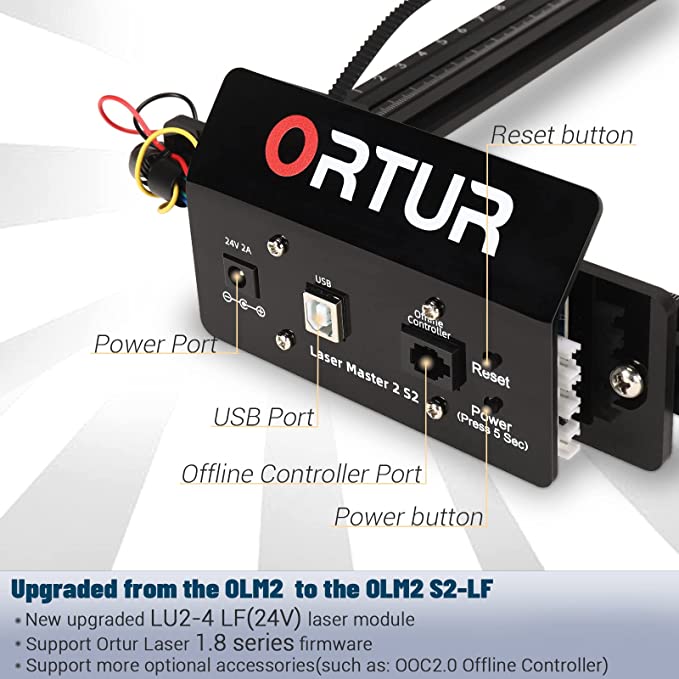

The latest and most advanced motherboard of Ortur.
The latest and most advanced motherboard of Ortur.
It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.
It’s high power and has a Compressed Laser Spot, so it’s good at cutting and better at engraving harder materials.
It’s high power and has a longer Depth of Field, so it’s good at engraving and better at cutting.
Air Source (compressor) is not included in package Aufero recomends Air source with a flow of >40ml/min

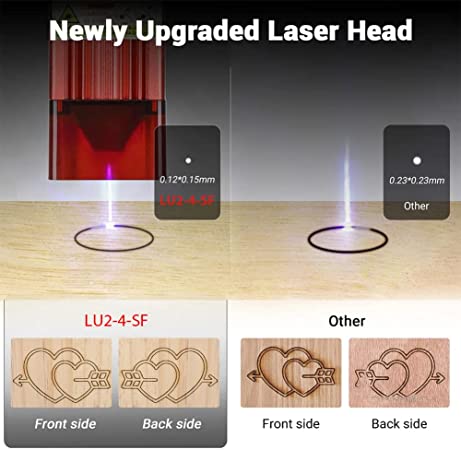

LU2-4-SF Short Focus Laser Module : It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.

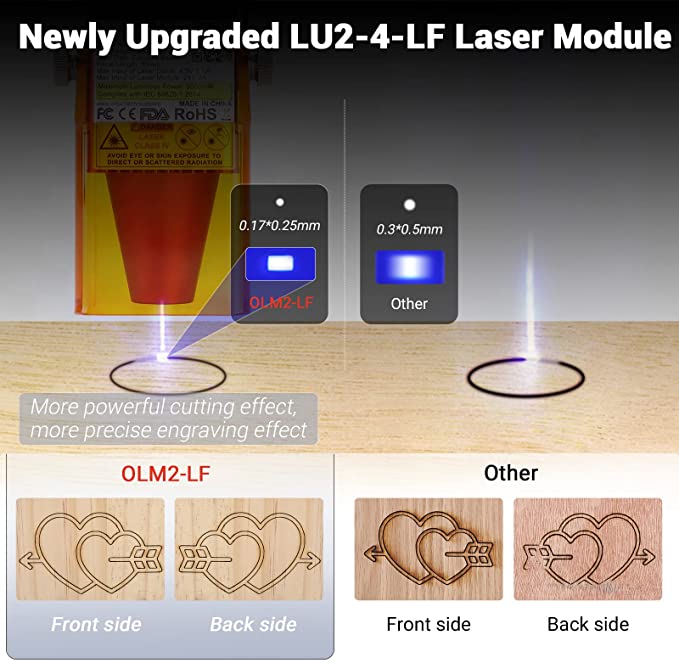

LU2-4-LF Long Focus Laser Module :It’s high power and has a Compressed Laser Spot, so it’s good at cutting and better at engraving harder materials.
LU2-2 Laser Module:It’s high power and has a longer Depth of Field, so it’s good at engraving and better at cutting.
LU2-2 Laser Module:It’s high power and has a longer Depth of Field, so it’s good at engraving and better at cutting.
Disclaimer:
Ortur is advertising real Optical Power output in all the 2nd Generation Module Labels. There are in the market many products with impossible claims of power output. These are simply impossible with current diode technology. We give our users and customers the real specifications, in order to allow an informed purchase decision. Ortur Laser modules dot size are measured by engraving on real-world products and materials. The Laboratory results can be significantly better, but are of no consequence for the users. As
a rule of thumb: More power is not always better. Engraving results benefit from a finer/smaller dot size and less power. Cutting on the other hand requires the opposite: More power, which consequently forces the dot size to be bigger.
a rule of thumb: More power is not always better. Engraving results benefit from a finer/smaller dot size and less power. Cutting on the other hand requires the opposite: More power, which consequently forces the dot size to be bigger.
YRR
ORTUR Y-axis Roller Engraving Module Descriptions
Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans
Specifications:
Motor: 42 Stepper Motor
Material: Aluminum + Acrylic + Plastic
Control Cable: 500mm 4Pin Wiring Harness, with PH-06 Female Connector + PH-06 Male Connector
Width Adjustment: 7 Gear Positions
Available Laser Engravers: Most kind of Desktop Laser Engravers
Y-roller, can realize 7 gear adjustments to support cylinders of different sizes
Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans
Specifications:
Motor: 42 Stepper Motor
Material: Aluminum + Acrylic + Plastic
Control Cable: 500mm 4Pin Wiring Harness, with PH-06 Female Connector + PH-06 Male Connector
Width Adjustment: 7 Gear Positions
Available Laser Engravers: Most kind of Desktop Laser Engravers
Y-roller, can realize 7 gear adjustments to support cylinders of different sizes
|
Type:
|
Laser engraving machine rotation shaft
|
|
Material:
|
Aluminum + Acrylic + Plastic
|
|
Laser Power:
|
NO
|
|
Laser Reaching Range:
|
NO
|
|
Power By:
|
NO
|
|
Package weight:
|
1.3500 kg
|
|
Package size (L x W x H):
|
12.90 x 18.40 x 8.10 cm / 5.08 x 7.24 x 3.19 inches
|
|

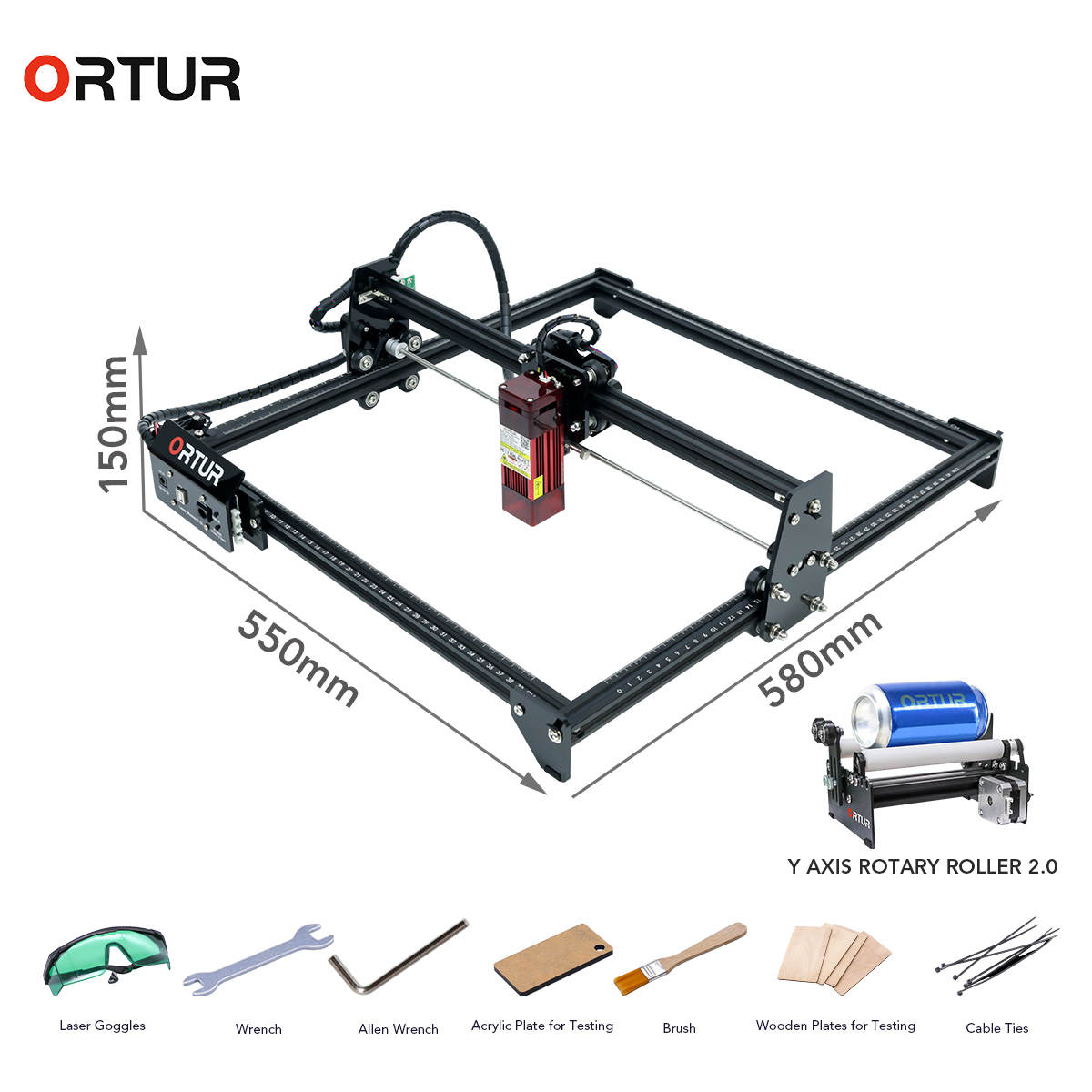

Package Contents:
|
1 x ORTUR Y-axis Engraving Module
|
