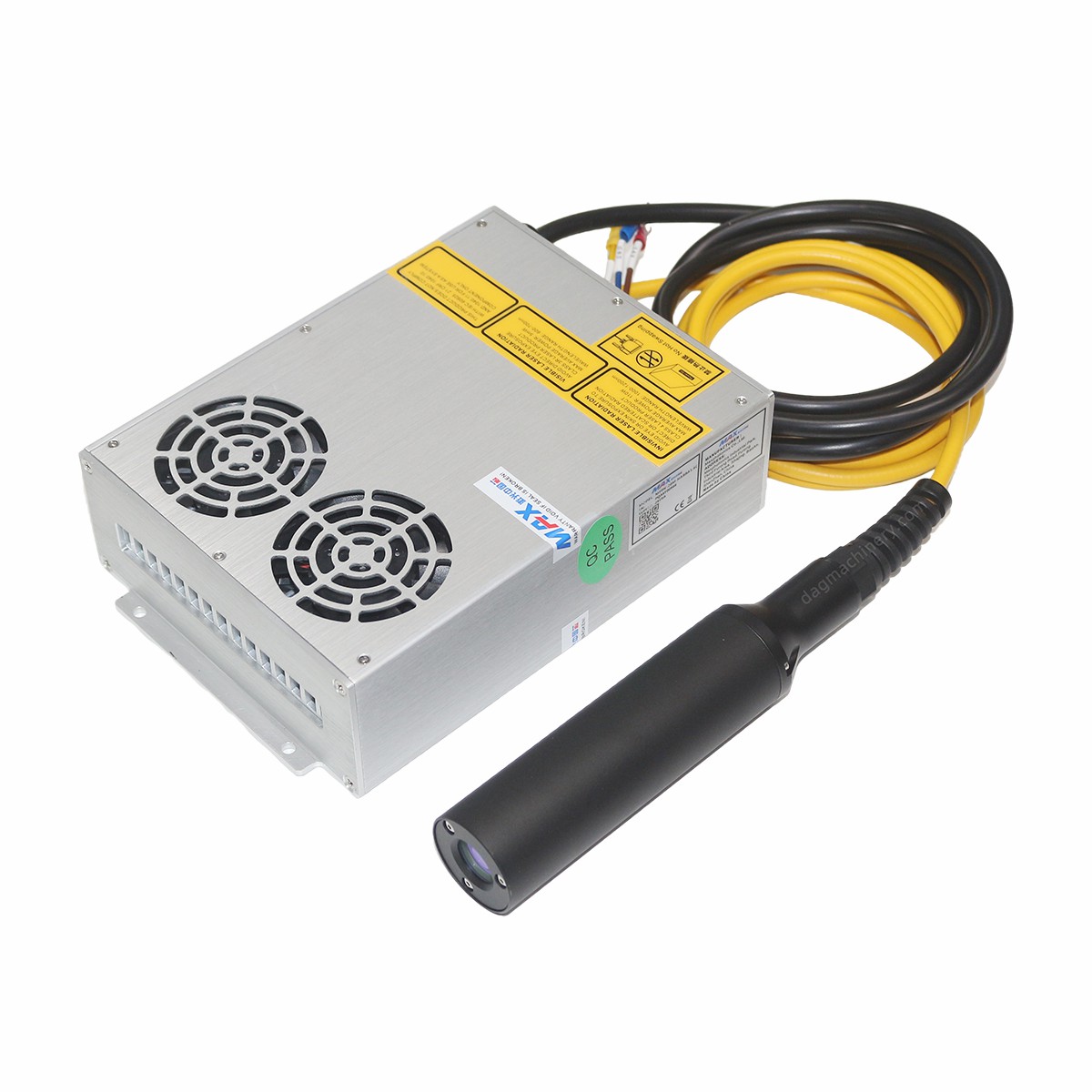

Factory Wholesale Mini Light And Handy MAX 20W Laser Module Laser Equipment Parts Lazer Module Faserlaser Fiber Laser Source
Products Descriptions
Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA, offer a variety models from 10W-70W. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.
Technical Parameters
General characteristic parameter
|
#
|
Characteristic
|
Test Conditions
|
Minimum
|
Typical value
|
Maximum
|
Unit
|
||
|
1
|
Working temperature
|
|
10
|
|
40
|
℃
|
||
|
2
|
Storage temperature
|
|
-10
|
|
60
|
℃
|
||
|
3
|
Storage temperature
|
|
Air-cooling
|
|
||||
|
4
|
Storage temperature
|
Reach to start operation
|
|
|
1
|
min
|
||
|
5
|
Relative humidity of working environment
|
|
10
|
|
95
|
%
|
||
|
6
|
Overall size
|
Q-switched standard version
|
202×139×55
|
min
|
||||
|
7
|
Total Weight
|
Q-switched standard version
|
2
|
kg
|
||||
|
8
|
Total Weight
|
|
23
|
24
|
25
|
VDC
|
||
|
9
|
Rated power consumption
|
Pout=Pnom，T=20℃
|
|
80
|
|
W
|
||
Optical characteristic parameter
|
#
|
Characteristic
|
Test Conditions
|
Minimum
|
Typical value
|
Maximum
|
Unit
|
||||
|
1
|
Operating mode
|
pulse
|
||||||||
|
2
|
Polarization state
|
random
|
||||||||
|
3
|
Beam quality M²
|
Pout=Pnom
|
|
|
1.4
|
|
||||
|
4
|
Beam quality M²
|
Pout=Pnom
|
1060
|
1064
|
1070
|
nm
|
||||
|
5
|
Spectral width (3dB)
|
Pout=Pnom
|
|
0.17
|
1
|
nm
|
||||
|
6
|
Average optical power(Pnom)
|
|
18
|
|
19
|
W
|
||||
|
7
|
Power adjustment range
|
|
10
|
|
100
|
%
|
||||
|
8
|
Maximum single pulse energy
|
27KHz
|
|
0.67
|
|
mJ
|
||||
|
9
|
Light pulse width (FWHM)
|
|
90
|
100
|
110
|
ns
|
||||
|
10
|
Repetition frequency range
|
|
27
|
|
62
|
KHz
|
||||
|
11
|
Unstable output power
|
Pout=Pnom
|
|
|
5
|
%
|
||||
|
12
|
Unstable output power
|
1/e2
|
5.5
|
|
6.5
|
mm
|
||||
|
13
|
Output beam ellipticity
|
|
90
|
|
|
%
|
||||
|
14
|
Optical fiber cable length
|
1.2
|
1.2
|
M
|
||||||
|
15
|
Laser opening time
|
Pout=Pnom， 10%~90%
|
70
|
80
|
130
|
μs
|
||||
|
16
|
Laser off time
|
Pout=Pnom， 90%~10%
|
20
|
30
|
60
|
μs
|
||||
Product Category
Product Advantages
✦Excellent Single Pulse Energy Higher single pulse energy makes our laser applicable to more types of materials and applications ✦New Compact and Rugged Design >40% reduction in volume Higher flexibility when integrated into system ✦Wide Application Even with Highly Reflective Material High performance isolator effectively reduces reflection damage to the laser source Smoothly marking on aluminum, copper and brass etc. ✦High Level Vertical Integration All key components are designed and produced in house Strict quality control, high consistency and reliability
Applications & Samples
Applicable Industries
✦Tools
✦Medical instruments
✦Charger
✦Power bank
✦Bearing
✦Hardware
etc.
Applicable Materials
✦Metal:
Stainless steel,
Carbon steel,
Aluminium,
Titanium,
Platinum,
Gold,
Silver,
Copper,
Brass,
Zinc…
✦Non-metal: ABS, PVC…
Samples
