Description
1. Warehouse in Netherlands,Poland,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders

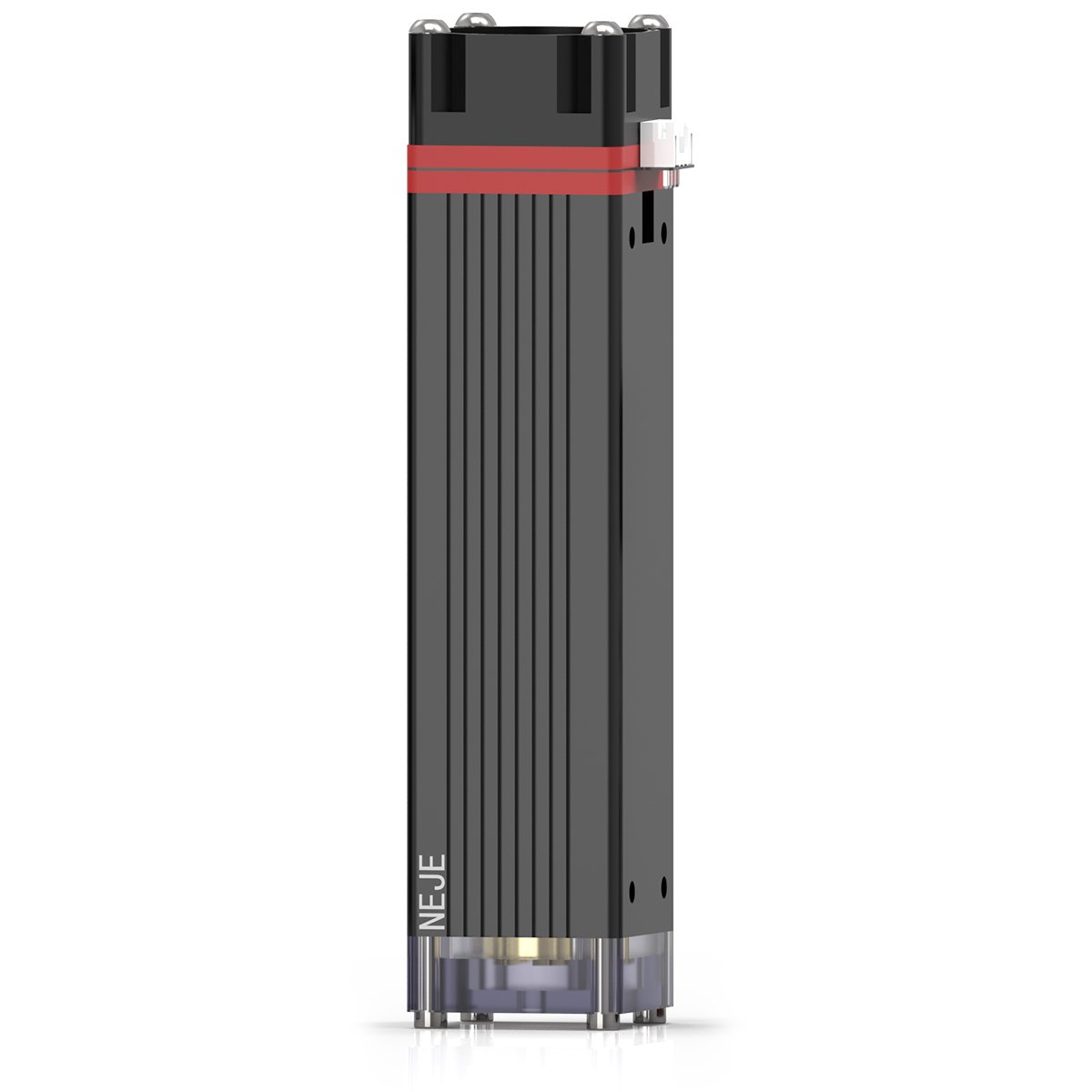

Factory supply 40W for cutting diode 40w neje laser module
Product details
| Dimension | 60 * 40 * 40mm |
| Product name | NEJE Master F30130 40w 450nm laser module kit |
| Cooling Mode: | Temperature sensor intelligent control + 10000 rpm 40mm cooling fan |
| Heatsink Material | Aircraft Aluminum + Brass Shell |
| life time | 10000 to 20000hours |
| Pixel | 2266 x 2266 px |
| Module Input | 40W |
| Wavelength | 445-450nm |
| Luminous Color | blue |
| Optical OUT PUT Power | 7.5W |
40W Laser Moudle Feature:
– Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
– 7.5W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

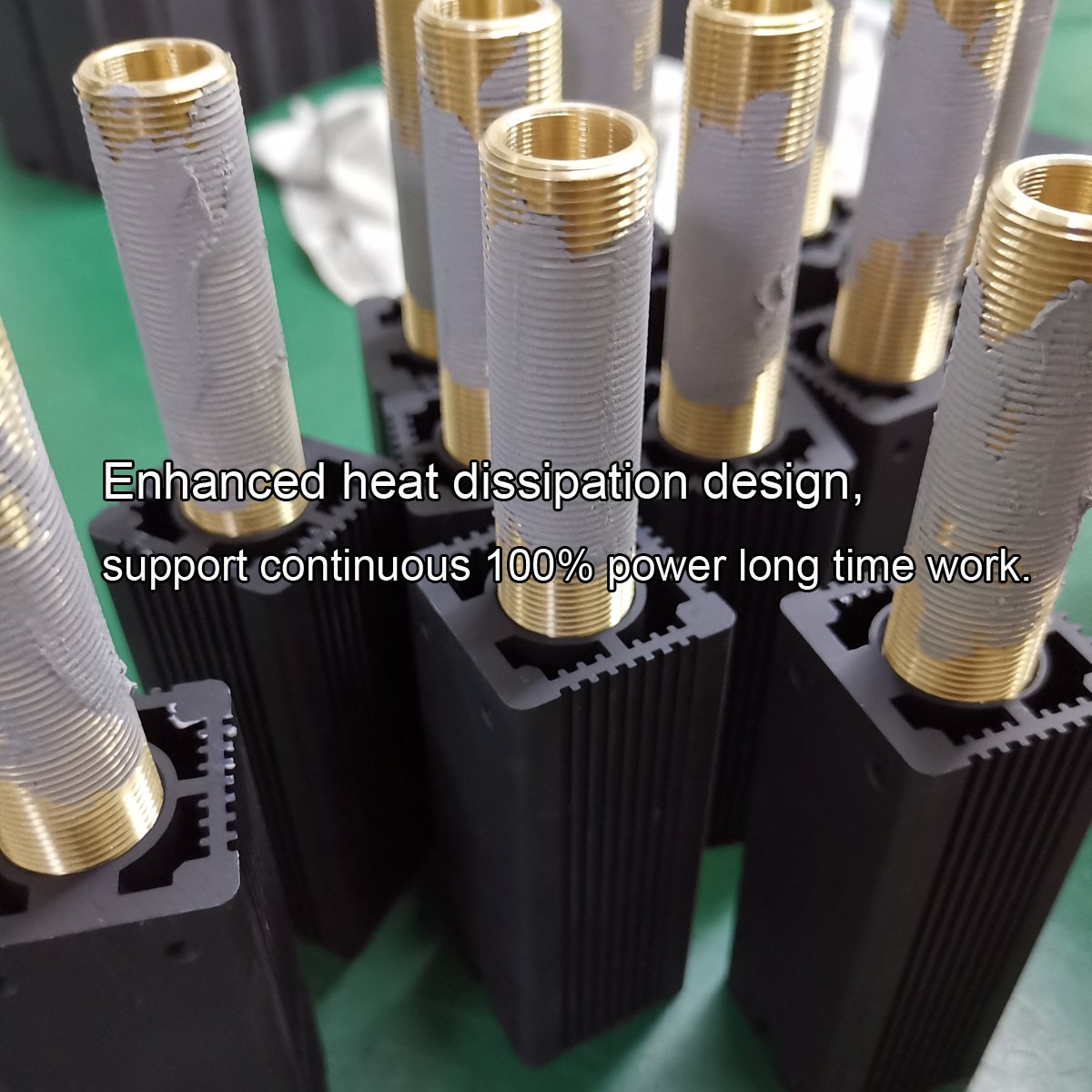

– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

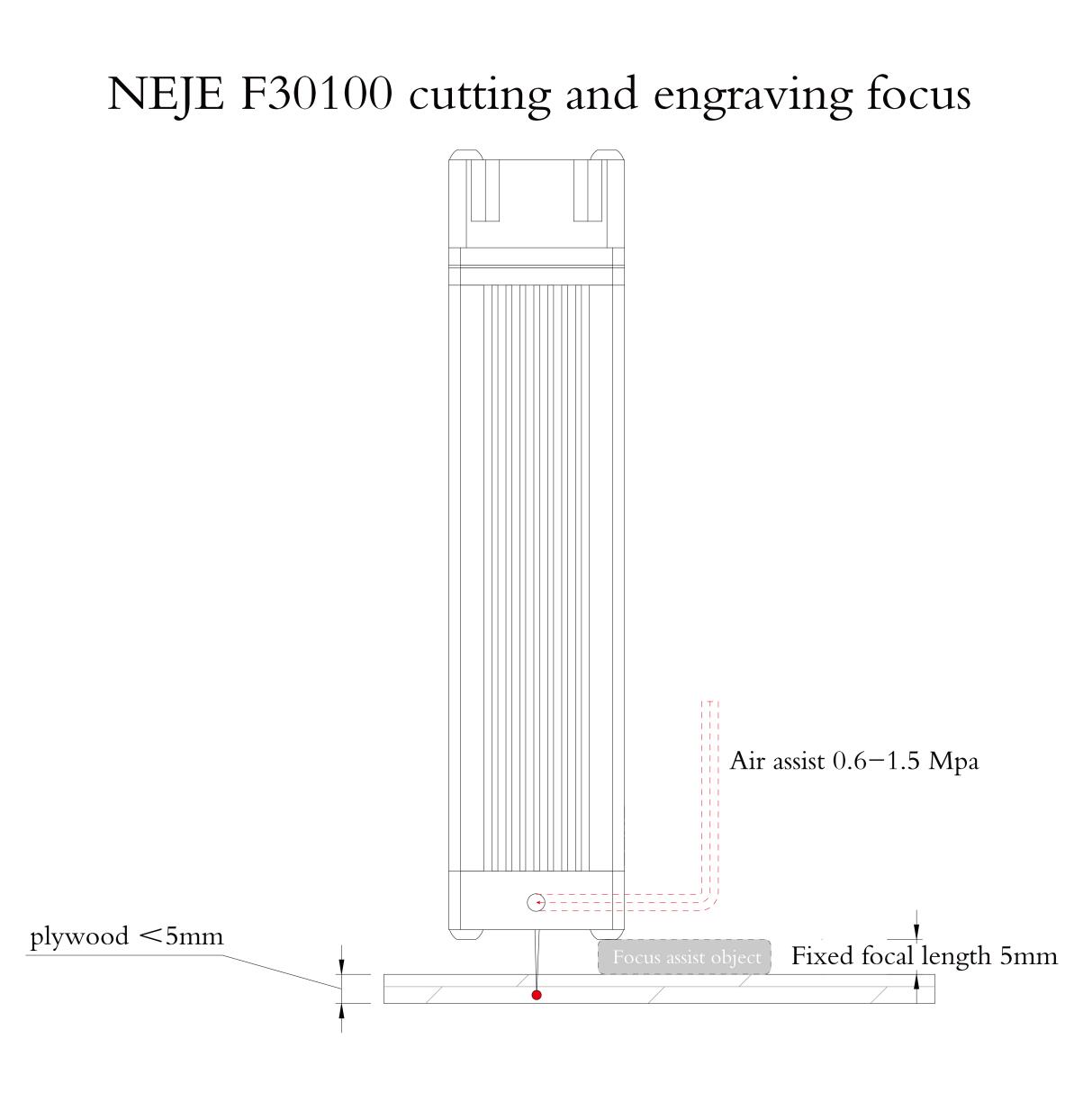

– slidable mounting fixture is provided for easy adjustment of focus.
40W General Specification:
Model:NEJE Module 40W
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:40mm x 40mm
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm
Adapter Plug:5.5 2.1 port

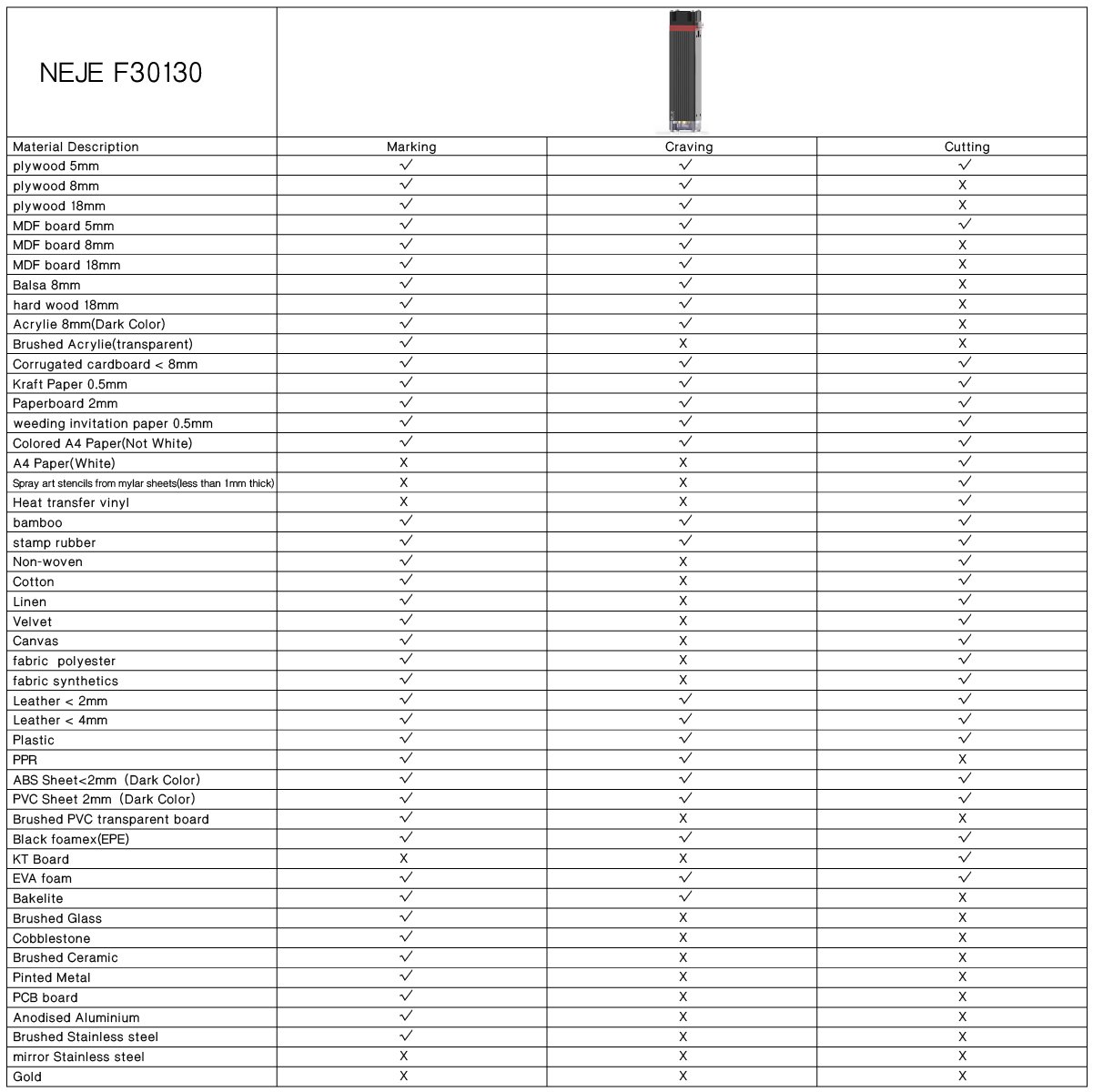

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

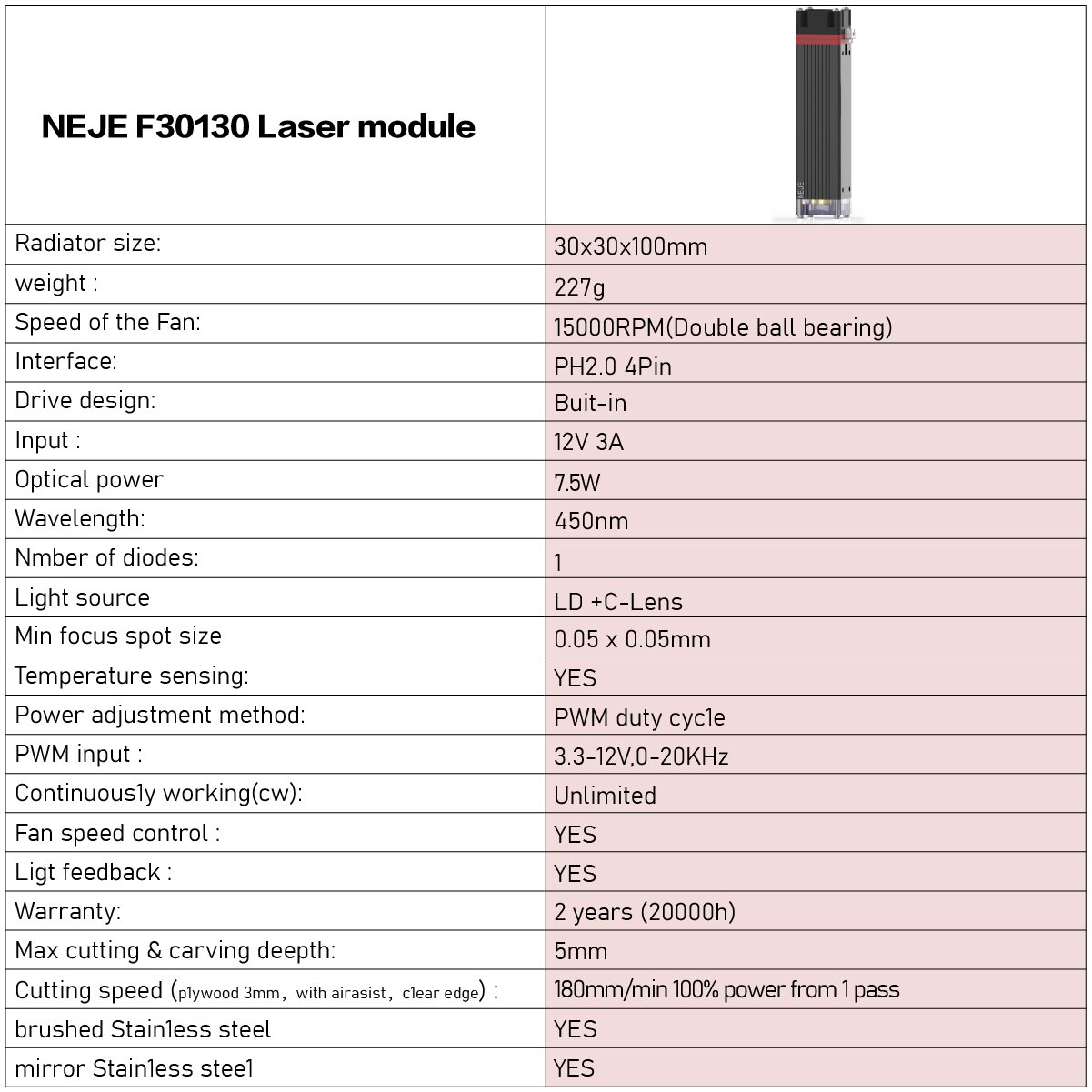

Technical Parameters:
Module Input:40W
Optical power output:7.5W
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V 4A
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20,000 hours
Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES
Are you a factory.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer since 2013.
Do you have warehouse overseas.
We have warehouse in Netherlands,UK,Poland,Gemany,Spain,USA, Russia,which can speed up the service all over the world. Delivery in 2-3 working days, arriving in 7 days.
What is the quality assurance policy.
1-2 year warranty according to different product series. please contact for more details
Can you customize the product for me.
Yes, we can provide customize service such as logo printing, packing design…
We welcome OEM or ODM orders. Let’s have win-win cooperation together.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
What are my payment options?
We accept payment by L/C, T/T, Western Union, Paypal, Credit Card and Cash.
