Description
- Brand Name: JIN ZHI YIN
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- CNC or Not: CNC
- Is Smart Device: YES
- Product name: fiber laser cleaning of metal 1000w laser rust cleaning machine
- Laser power: 1000W
- Pulse Energy: 100 mJ
- Frequency: 2-50KHz
- Scann speed: 0-7000mm/s
- Beam width: 10-70mm
Factory supply fiber laser cleaning of metal 1000w laser rust cleaning machine for metal paint oil
Main Feature
1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;
Parameter
|
Model |
LM50 |
LM100 |
LM200 |
QA-LC500 |
Max1000 |
|
Laser source |
MaxFiber |
MaxFiber |
Max/RaycusFiber |
Max/RaycusFiber |
Max Fiber |
|
Laser Power |
50W |
100W |
200W |
500W |
1000w |
|
Fiber cable L |
3 M |
3 M |
5 M |
20M |
20M |
|
Pulse Energy |
1.5mJ |
1.5 mJ |
1.5/5mJ |
100 mJ |
100 mJ |
|
Wavelength |
1060nm |
1060nm |
1060nm |
1060nm |
1060nm |
|
Frequency |
30-80KHz |
20-200KHz |
30-200KHz |
2-50KHz |
2-50KHz |
|
Clean speed |
≤5 M²/Hour |
≤10 M²/Hour |
≤15 M²/Hour |
≤50 M²/Hour |
≤95M²/Hour |
|
Scann speed |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
|
Cooling |
Air cooling |
Air cooling |
Air/Water cooling |
Water cooling |
Water cooling |
|

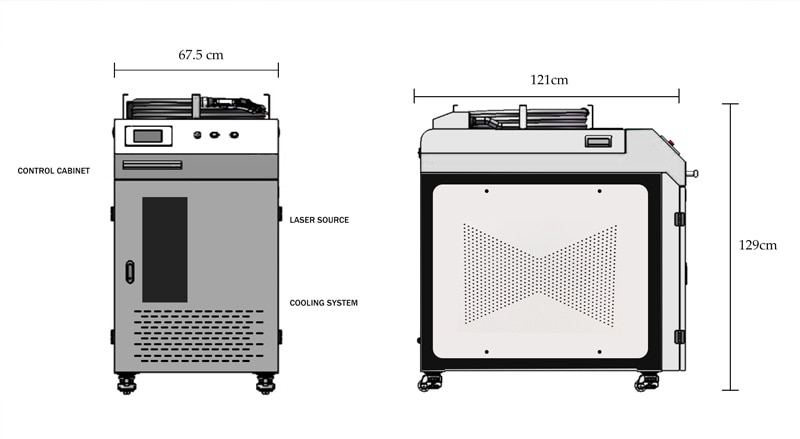

Dimension |
630*940*600 |
630*940*600 |
630*940*600 |
630*940*600 |
1140*670*1400 mm |
|
Weight |
120Kg |
130Kg |
180Kg |
260Kg |
270kg |
|
Beam width |
10-70mm |
10-70mm |
10-100mm |
10-170mm |
10-170mm |
|
Optional |
Manual |
Manual |
Manual |
Manual |
Manual |
|
Temperature |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
|
Voltage |
Single Phase 220/110V, 50/60HZ |
Single Phase 220/110V, 50/60HZ |
Single Phase 220/110V, 50/60HZ |
Single Phase 220/110V, 50/60HZ |
Single Phase 220/110V, 50/60HZ |
