Factory direct selling 20W 30W 50W Raycus high precision fast speed fiber laser source

$725.93$1,495.93

SKU: 3584188018651 Category:

Description

Max Raycus IPG JPT 20W 30W 50W fiber laser source

Product Description


      Raycus Laser has a world-class research and development team and strength, with a group of top experts and excellent engineers who have been engaged in the research of high-power fiber lasers and their key components and power supplies for many years

     Rayco laser has always been adhering to the market strategy of “based on domestic, expand the international”, adhere to the enterprise spirit of “forge ahead, scientific and technological innovation”, to research, develop and produce high quality and diversified high power fiber laser products suitable for all kinds of industrial processing as the mission.



Specification:

Product Name

Raycus 50W fiber laser source

Wavelength

1064 nm

Laser power

20W 30W 50W

Beam Quality M2

1.3

Power Range

10~100%

Single Pule Energy

0.67mj

Optical Pulse Width(FWHM)

100ns

Pulse Repetition Frequency (PRF.)

30~60KHz

Delivery Cable Length

2.5m

Working temperature

15-35℃

Power supply

24VDC

Dimensions

345.5*266.2*120mm

Weight

12kg




The Q-switched pulsed fiber laser series developed by Raycus Laser is an industrial-grade marking and micromachining laser developed by Raycus Laser. This series of pulsed lasers have the characteristics of high peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel In the fields of marking, precision machining, graphic engraving, etc., its application process in marking is lower in cost and more stable than traditional lasers.



Product Picture

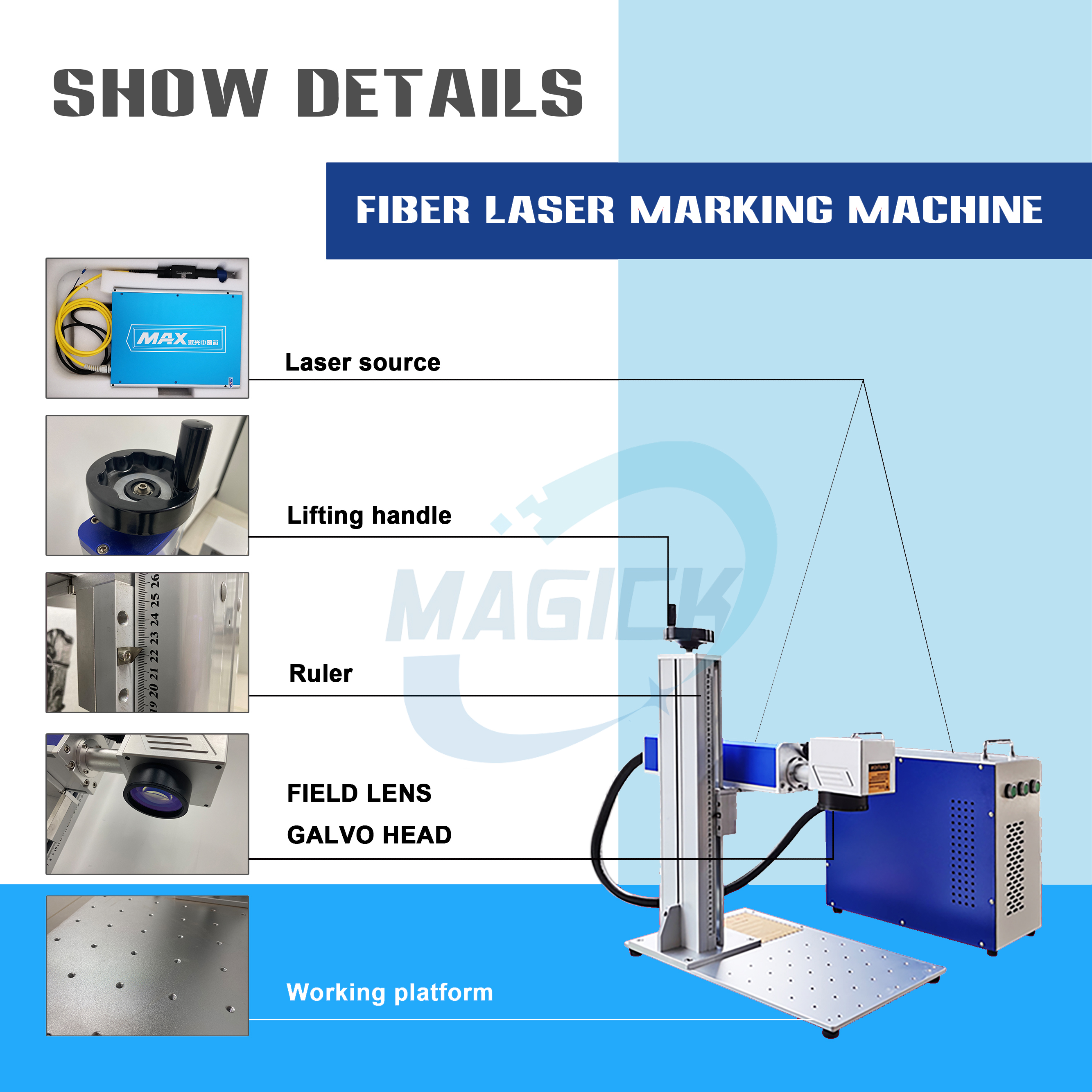

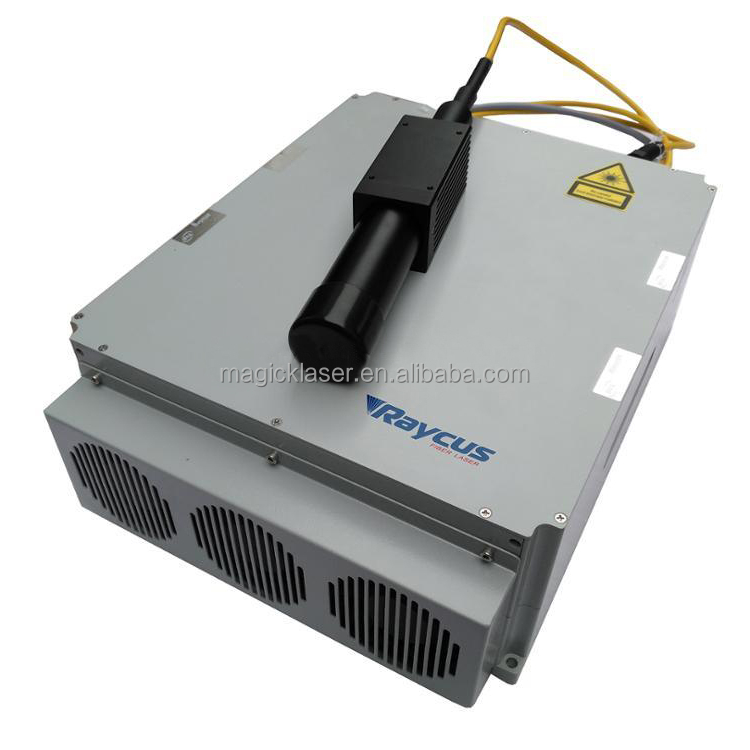

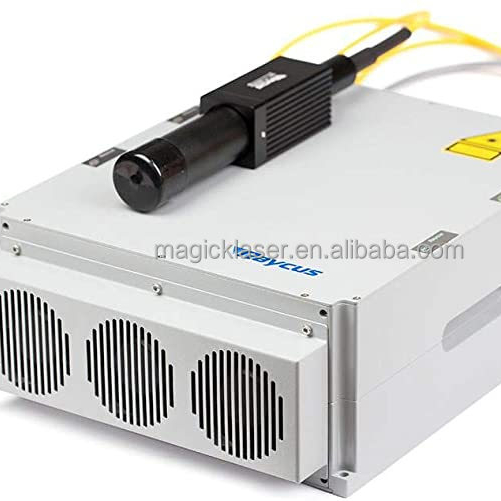

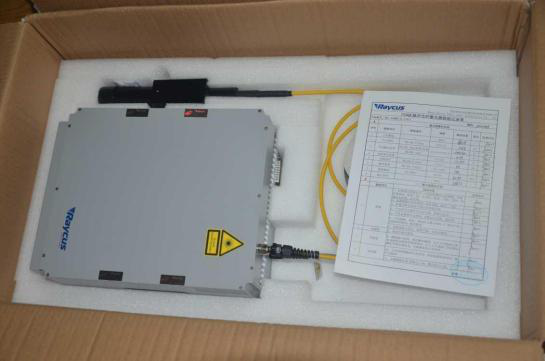

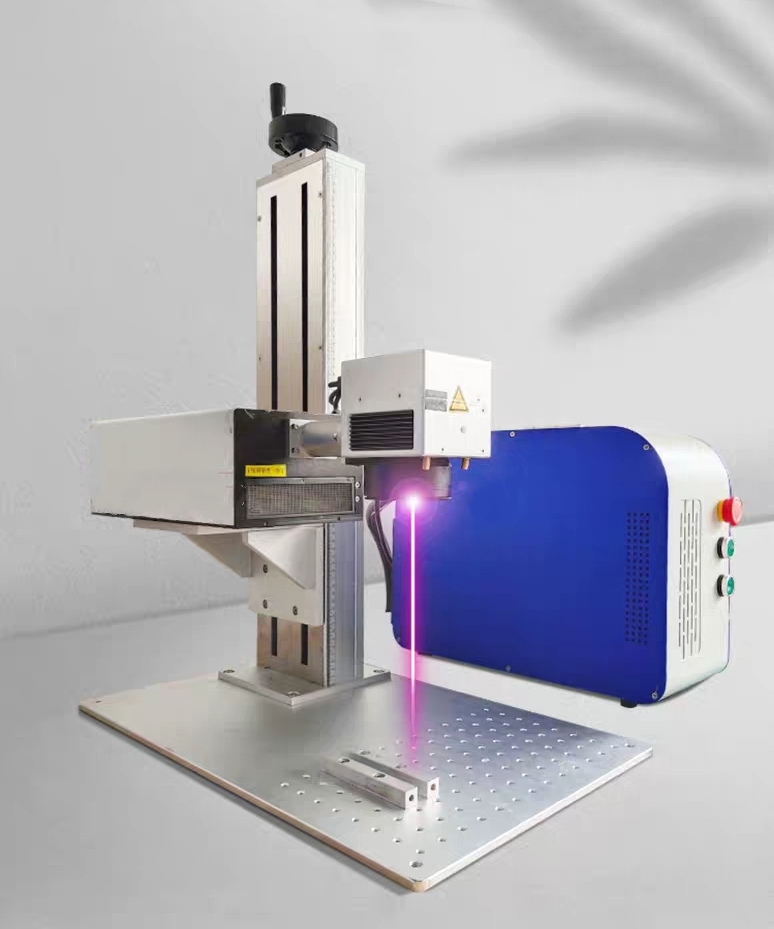

 50QB 2.jpgRaycus QB.jpg

markers hot sale-1



laser222






Additional information

Model Number

Raycus 50W, Raycus 20W, Raycus 30W
