Description

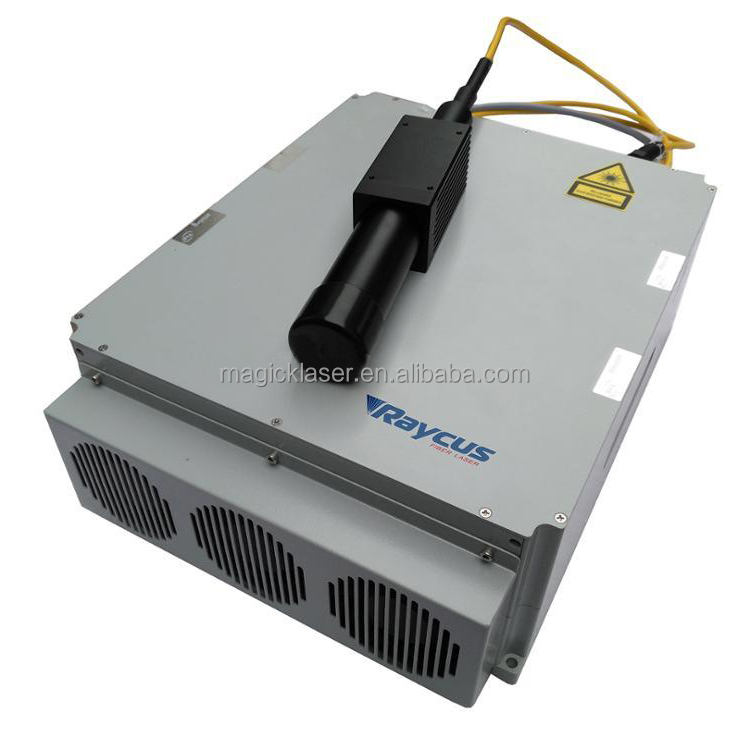

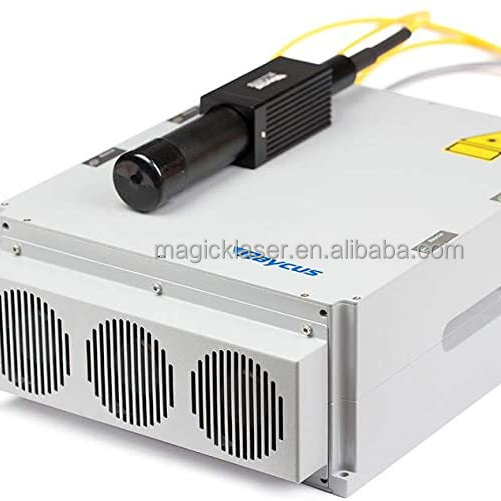

Max Raycus IPG JPT 20W 30W 50W fiber laser source
Raycus Laser has a world-class research and development team and strength, with a group of top experts and excellent engineers who have been engaged in the research of high-power fiber lasers and their key components and power supplies for many years
Rayco laser has always been adhering to the market strategy of “based on domestic, expand the international”, adhere to the enterprise spirit of “forge ahead, scientific and technological innovation”, to research, develop and produce high quality and diversified high power fiber laser products suitable for all kinds of industrial processing as the mission.
Specification:
Product Name |
Raycus 50W fiber laser source |
Wavelength |
1064 nm |
Laser power |
20W 30W 50W |
Beam Quality M2 |
1.3 |
Power Range |
10~100% |
Single Pule Energy |
0.67mj |
Optical Pulse Width(FWHM) |
100ns |
Pulse Repetition Frequency (PRF.) |
30~60KHz |
Delivery Cable Length |
2.5m |
Working temperature |
15-35℃ |
Power supply |
24VDC |
Dimensions |
345.5*266.2*120mm |
Weight |
12kg |
The Q-switched pulsed fiber laser series developed by Raycus Laser is an industrial-grade marking and micromachining laser developed by Raycus Laser. This series of pulsed lasers have the characteristics of high peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel In the fields of marking, precision machining, graphic engraving, etc., its application process in marking is lower in cost and more stable than traditional lasers.
