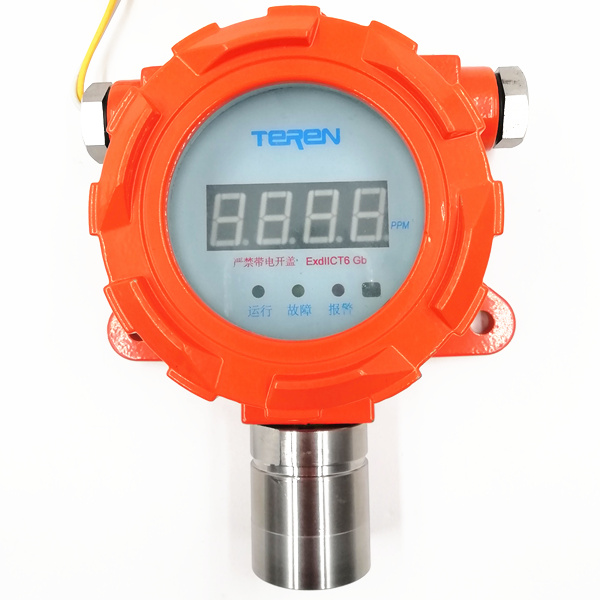

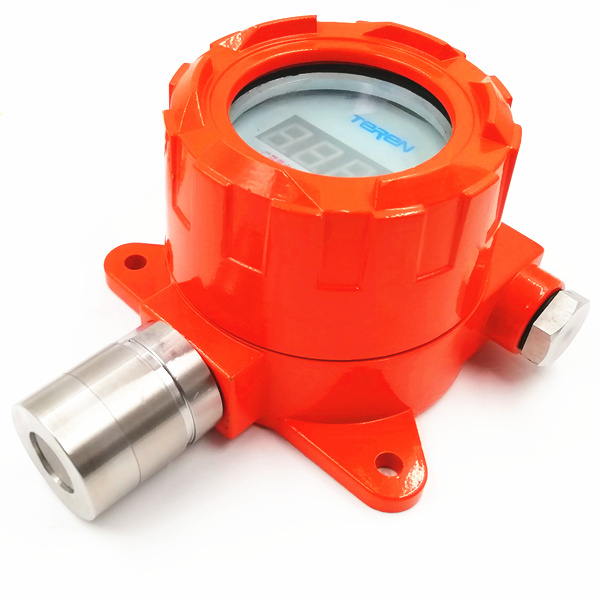

Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Type: Explosion Proof Gas Detector
- Place of Origin: Guangdong, China
- Brand Name: TEREN
- Model Number: G3Ex
- Gases and specifications: see the table below
- Power: 18~30VDC
- Output: 0~10V, 4~20mA (3 wires), RS485/Modbus
- Relay: SPST, 3A/30VDC
- Display: LED digital display, power/fault/alarm LED indicator

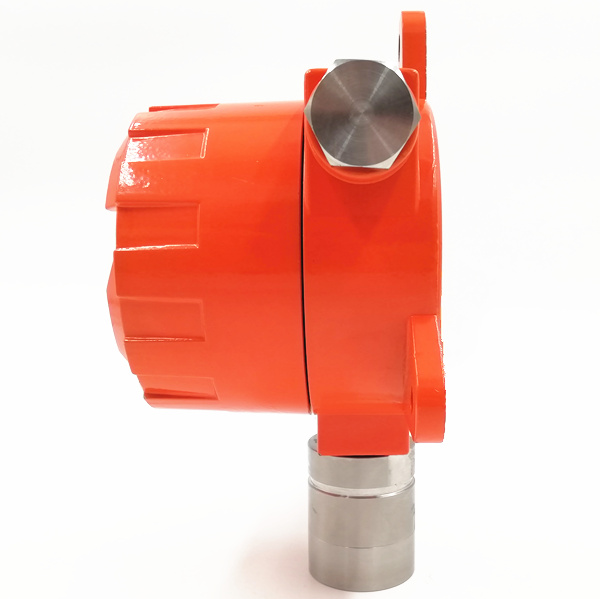

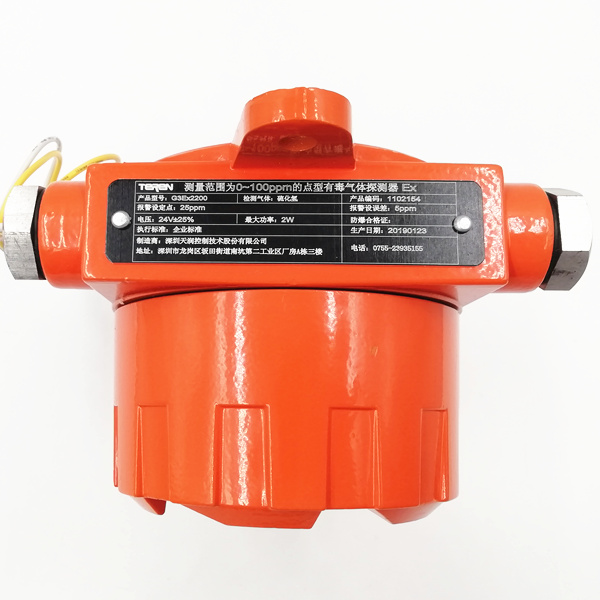

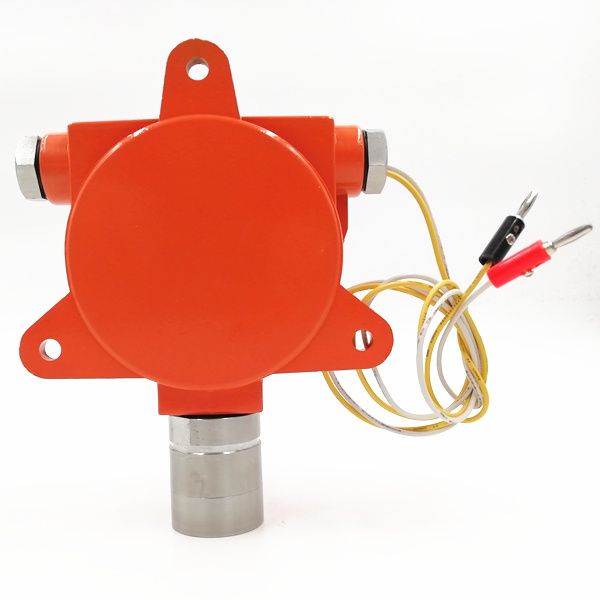

- Housing: die cast aluminum housing, SS probe and SS sintered mesh filter
- Protection: IP66
- Agency Approvals: Ex d II C T6 Gb, ATEX, EMC, CMC Metrological Certificate
- Explosion proof audible & visual alarm: model ASG24VDC, to be ordered separately

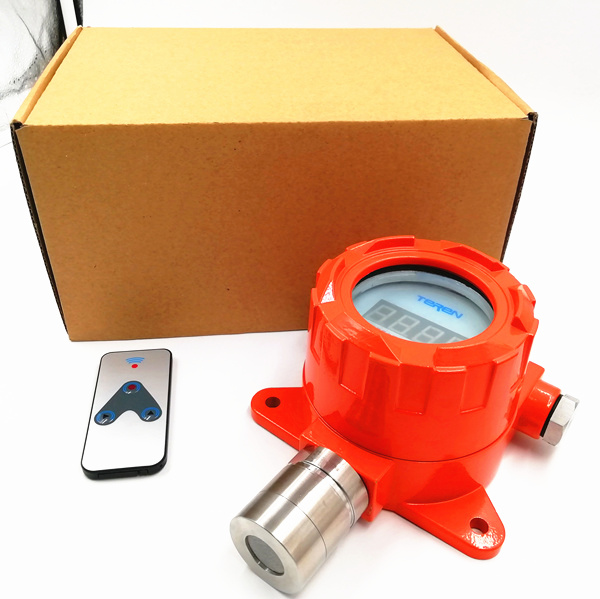

- Infrared remote controller: model YK-0/model FYF3, to be ordered separately
Applications & Features
- Industrial die cast aluminum explosion proof housing, with the sensor module placed in a separated metal probe chamber, ensure electrically isolated from the housing
- Moisture and corrosion resistant, IP66 protection rate, can be used in various harsh and hazardous environments
- Professional high sensitivity gas sensors, stable signal, high precision, wide measuring range and good linearity
- State of art housing, easy installation
- Modular sensor assembly, easy replacement and maintenance
- Optional explosion proof audible & visual alarm and remote controller
- Meet explosion proof standards GB 3836.1-2010 and GB 3836.2-2010 with certificate Ex d ⅡC T6 Gb. Apply for zone 1&2 hazardous area where there are explosive mixtures of IIA, IIB, IIC, T1-T6 combustible gas, vapor and air
Specifications
Gases and specifications: see the table below
Power: 18~30VDC
Output: 0~10V, 4~20mA (3 wires), RS485/Modbus
Relay: SPST, 3A/30VDC
Load: ≥2kΩ (0-10V), ≤500Ω (4-20mA)
Display: LED digital display, power/fault/alarm LED indicator
Operating condition: combustible gas -40~70°C, toxic gas -20~55°C, 10~95%RH(Non-cond.), pressure 86~106kPa
Housing: die cast aluminum housing, SS probe and SS sintered mesh filter
Protection: IP66
Agency Approvals: Ex d ⅡC T6 Gb, ATEX (2014/34/EU), EMC(2014/30/EU,EN50270),CMC Metrological Certificate
Weight: 1.4kg
Explosion proof audible & visual alarm: model ASG24VDC, sound intensity>=90dB 0.1m, light intensity 1800~2400mcd, to be ordered separately
Intrinsically safe infrared remote controller: model FYF3, for field programming, to be ordered separately
General infrared remote controller: model YK-0, for safe zone programming, to be ordered separately
Detected Gases and Specifications
|
Code |
GAS |
Sensor type |
Range |
Accuracy |
Repeatability |
Response time |
Sensor Life* |
Remark |
|
1 |
O2 |
Electrochemical |
0-30%VOL |
3%FS |
2% |
30S |
2-3year* |
Resolution 0.1% VOL |
|
2 |
H2S |
Electrochemical |
0-100 ppm |
3%FS |
2% |
30S |
2-3year* |
Drift<+/-10 ppm/year |
|
3 |
CH4 |
Catalytic Combustion |
0-100%LEL |
3%FS |
2% |
30S |
2-3year |
LEL:5.0V% Resolution 1% LEL |
|
4 |
CO |
Electrochemical |
0-100 ppm |
5%FS |
2% |
60S |
2-3year* |
Resolution 1 ppm |
|
5 |
CO |
Electrochemical |
0-500 ppm |
5%FS |
2% |
60S |
2-3year* |
Resolution 1 ppm |
|
6 |
CO |
Electrochemical |
0-1000 ppm |
5%FS |
2% |
60S |
2-3year* |
Resolution 1 ppm |
|
7 |
NO2 |
Electrochemical |
0-20 ppm |
3%FS |
2% |
60S |
2year * |
Resolution 0.1 ppm |
|
8 |
Combustible |
Catalytic Combustion |
0-100%LEL |
3%FS |
2% |
30S |
2-3year |
LEL:5.0V%(CH4) Resolution 1% LEL |
*: 23±3°C, 40±10%RH

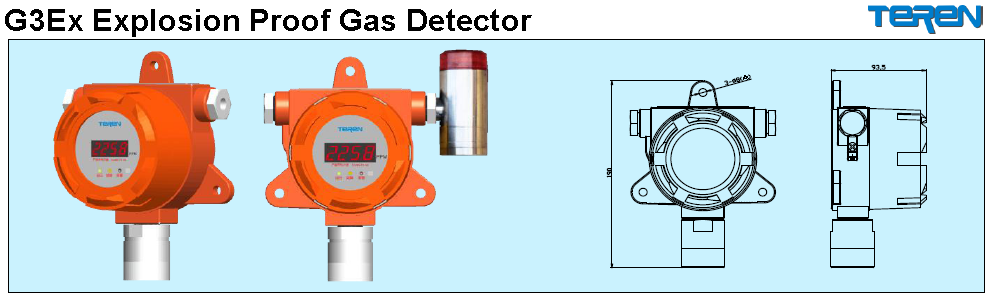

Models
| Model |
G3Ex |
Ex-proof Gas Detector |
|||
| Gas Type & Range |
1 2 3 4 5 6 7 8 9 |
O2, 0~30% VOL |
|||
|
Output |
|
1 2 8 |
0~10V 4~20m(3 wires) RS485/Modbus |
||
|
Relay Output |
0 1 |
N/A 1×SPST, 3A/30VDC |
|
Sample Order |
Order |
OEM Order |
| Three work days | 2 weeks | 3 weeks |
