Description

Brand Name: NoEnName_Null
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Operating Temperature: -20-55 degree
Model Number: ETCR2000
Accuracy Class: /-1% /-0.01
Testing Voltage: 220v
Dimensions: 285*85*56mm
Measuring Range: 0.01-1200 ohm

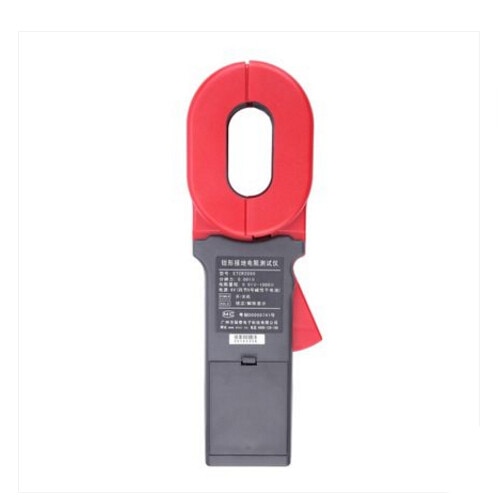

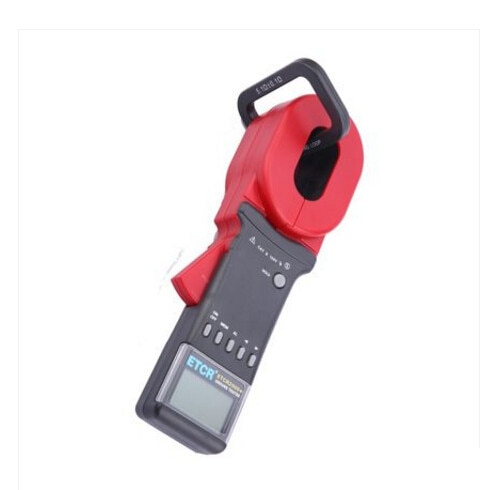

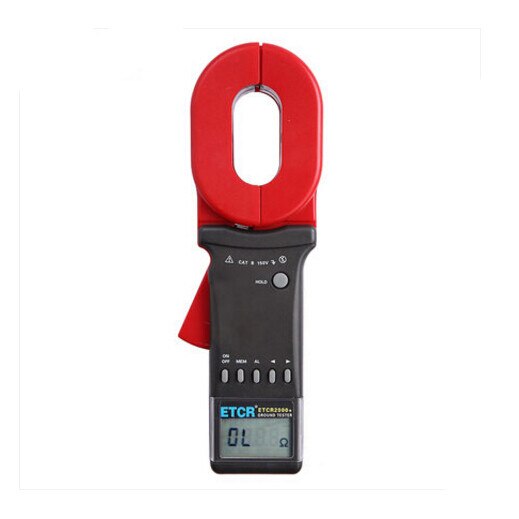

ETCR2000+ New Clamp On Ground Earth Resistance Tester Meter 0.01-1200ohm

Characteristic:

1. Wider range: 0.01Ω-1200Ω

2. Stored data: 99 groups.

3. Resistance Resolution: 0.01Ω

4. Size of Jaw: 65*32(mm) / ø32(mm)

5. Sound and light alarm, “beep – beep – beep -” alarm sound.

6. Breakthrough in self-test the boot a long time to wait, start immediately into the test.

7. Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, a fully intelligent.

8. Break the old product to heavy issues, more in line with characteristics of handheld devices.

9. The new design, panel 6 button operation, the performance through.

10. Lower power consumption: Maximum operating current not exceeding 50mA.

Brief Introduction:

ETCR 2000+ Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.

ETCR 2000+ Earth Resistance Tester, in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and no need auxiliary electrode. It is safe, fast and simple in use.

ETCR 2000+ Earth Resistance Tester can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods.

ETCR 2000+ Earth Resistance Tester can measure the integrated value of the grounding body resistance and the grounding lead resistance.

Technical specifications:

Function	Ground resistance test, Loop resistance test
Power Supply	6VDC 4 PCS of AA Alkaline batteries
Resistance Range	0.01-1200Ω
Resistance Resolution	0.001Ω
Highest Resistance Accuracy	±1%±0.01Ω
Data memory	99 Sets
Alarm Threshold Setting Range	Resistance: 1-199Ω
Alarm Sound and Light	“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
Interference Signal Recognition	“Beep-beep-beep” tone, NOISE symbol blinking
Working Temperature and Humidity	-20°c-55°c; 20%RH-90%RH
LCD Screen	4 Digits LCD display, Screen LW: 47mm28.5mm
Clamp Size	65mm×32mm
Clamp Opening Extent	32mm
Tester Weight	1160g (With batteries)
Clamp Dimension	L×W×T: 285mm×85mm×56mm
Protection Level	Dual Insulation
Structural Feature	Clamp CT
Shifting	Automatic shifting
External magnetic field	<40A/m
External electrical field	<1V/m
Single measurement time	0.5 second
Resistance measurement frequency	>1KHz
Measured current frequency	50/60Hz Automatic measurement
Low Battery Indication	Low battery symbol displays when battery is lower then 5.3V
Memory Full Indication	MEM symbol blinks when all 99 sets memory is full
Over Range Indication	Out of range indication “OLΩ”, “L0.01” or “OL A”
Auto Power-off	5 minutes after Boot up
Power Consumption	Max 50mA either in booting up or normally working, Continuously working for 30 hours
RS232 Interface (Optional)	The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

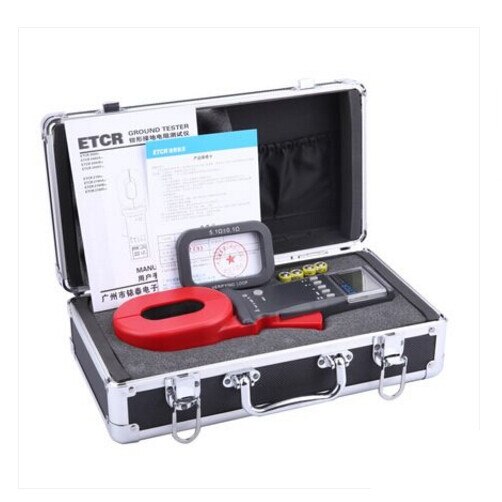

Accessories	Meter: 1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece
