Description

Brand Name: NoEnName_Null
DIY Supplies: ELECTRICAL
Measuring Inductance Range: Refer to Spec
Weight: 600g
Measuring Current Range: Refer to Spec
Operating Temperature: -20C~50C
Measuring Capacitance Range: Refer to Spec
Model Number: ETCR085K
Dimensions: 160mm*80mm*55mm
Measuring Resistance Range: Refer to Spec
Display Type: Analog Only
Measuring Voltage Range: Below 600V DC

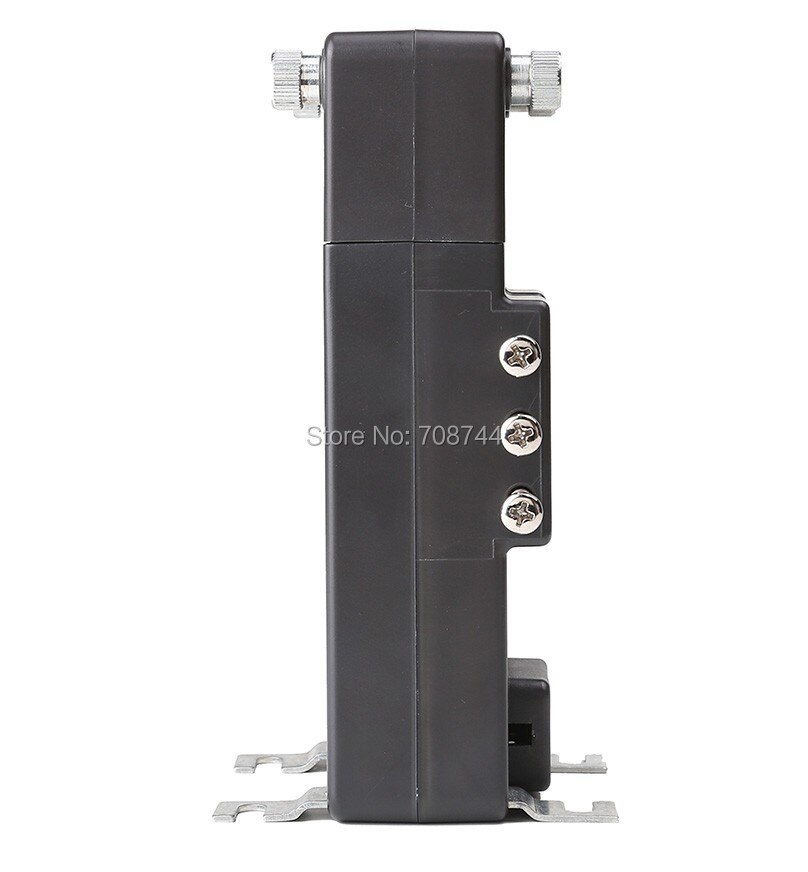

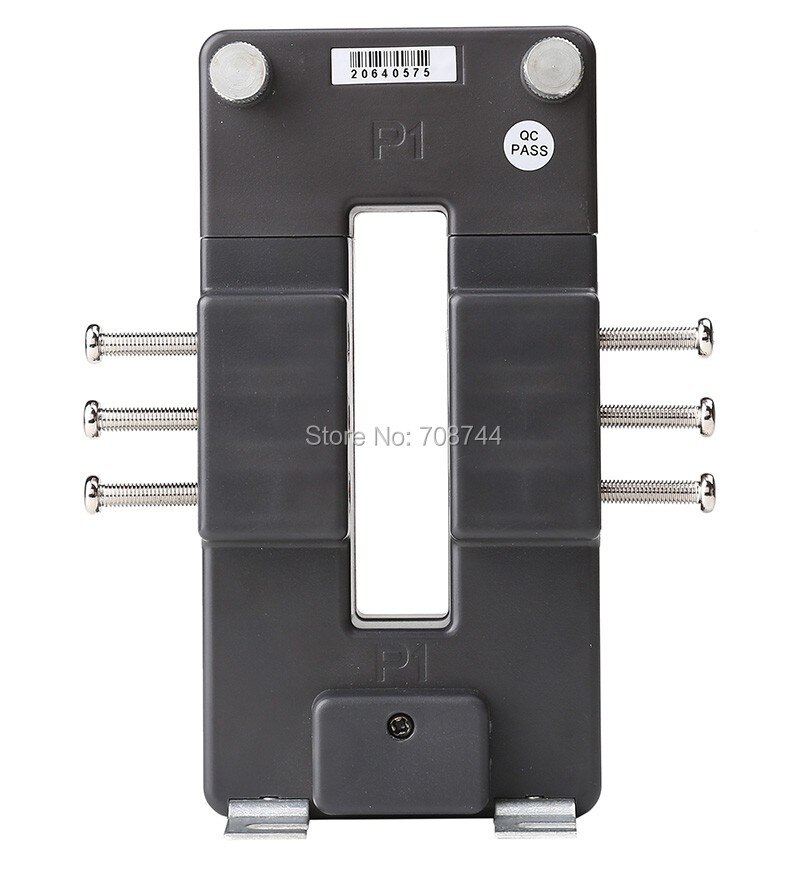

ETCR085K Clamp Type High Accuracy Leakage Current Sensor

1.Features:

ETCR085K Clamp Type High Accuracy Leakage Current / Current Sensor is widely used in the field of electric power, communication, meteorology, railway, oil field, military, measuring, teaching research unit, industrial mining enterprises, etc, for measurement of AC leakage current, current, frequency, phase sequence, power and electrical energy. It can be connected with high accuracy digital multimeter, data recorder, electric power quality analyzer, oscilloscope, industrial control instrument, etc. It adopts open jaws design, with opening size of 85mm×20mm, very suitable for the place of flat steel ground connection. No need to take apart measured wires, which make the field testing and maintenance more secure and convenient. The combination of two sensors can be used as the sensor of non-contact ground resistance online testing.

ETCR085K Clamp Type High Accuracy Leakage Current / Current Sensor adopts the latest CT technology, multilayer shielding techniques, least affection from external magnetic field, and capable of waterproof, rainproof, drip tight to make sure the high precision, high stability and high reliability of perennial uninterrupted measurement. Meanwhile, customizing is acceptable to meet more use of different places.

2.Specifications:

Function	High accuracy measurement of AC leakage current, current, frequency, phase sequence, power and electrical energy
Opening Type	Clamp type
Clamp Size	85mm×20mm
Coils Turn	1000 : 1
Input Range	AC 0.00mA-60.0A
Resolution	0.01mA
Induced Output	1mA/1A
Accuracy	±2%rdg±3dgt-23c±5c, below 80%RH)
Load Resistance	0mA-2000mA: ≤50Ω
Load Resistance	0A-60A: ≤5Ω
Wire Identification	S1, S2—coil tap; GND—shield
Line Voltage	Below AC 600V line measurement

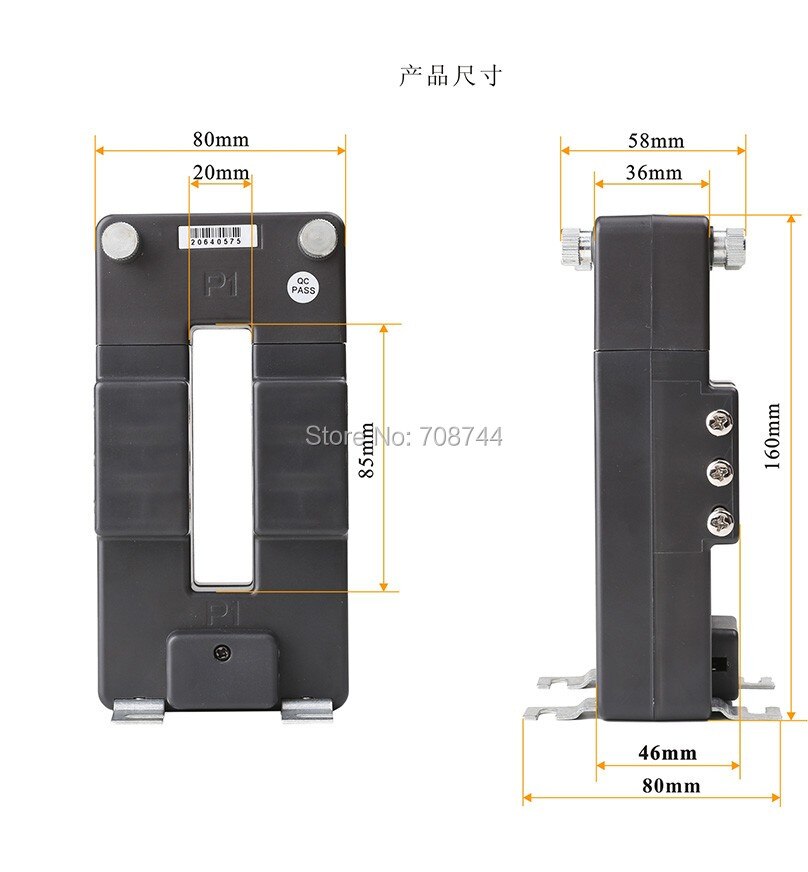

Overall Dimension	160mm×80mm×55mm
Weight	600g
Installation Direction	P1 side is upward
Installation Type	2 types
Working Temperature and Humidity	-20c-50c, below 80%rh
Storage Temperature and Humidity	-10c-60c, below 70%rh
Structure	Drip tight ii, rainproof
SafetySpecifications	IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT iii(600V)
Accessories	Current Sensor: 1 pc; Connecting Bolt: 2 pcs; Connecting Nut: 2 pcs; Support: 4 pcs; Fixed Screw: 6 pcs.
