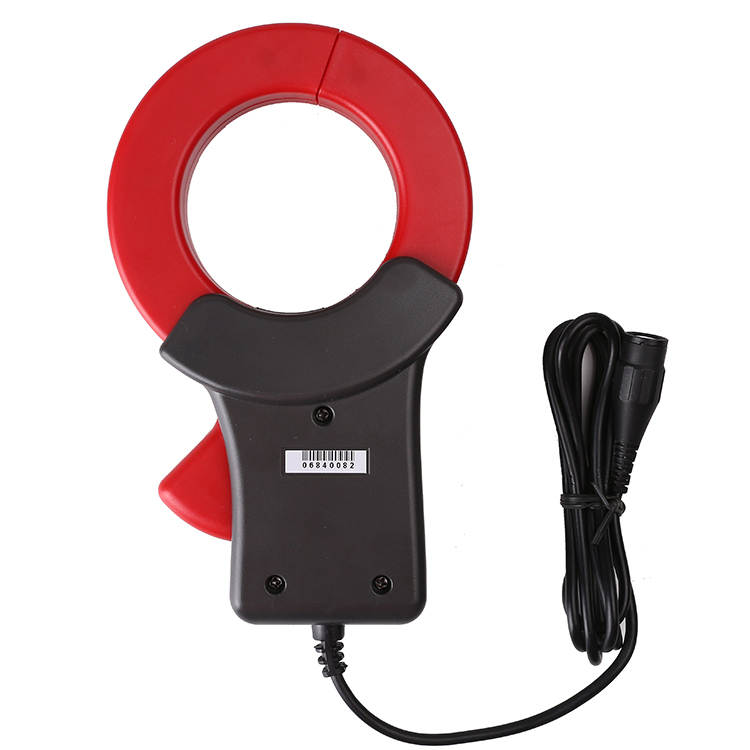

technical specifications

Function

AC current, leakage current, harmonic current, phase, power, power, power factor and so on.

Detection method

CT forcipated

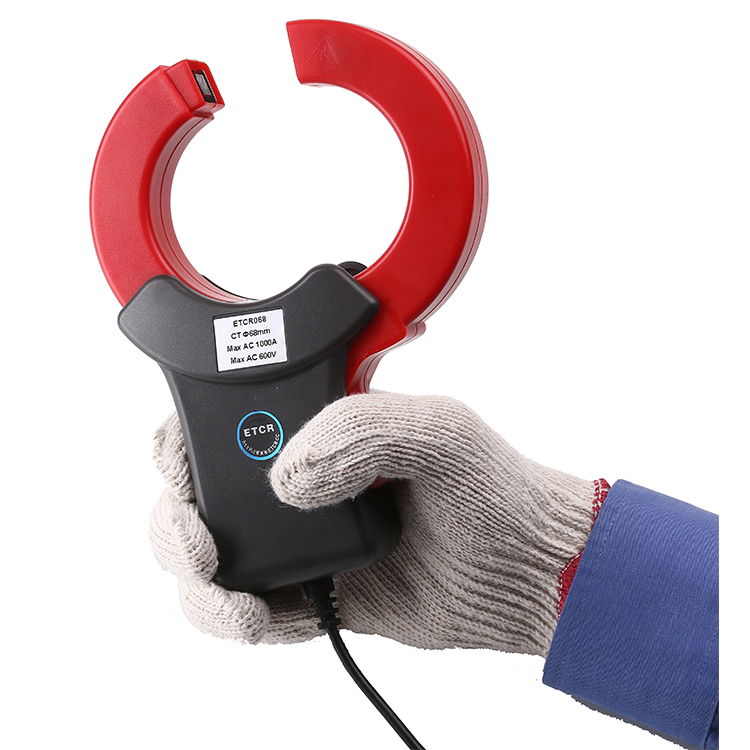

Jaw size

Phi 68mm

Measuring range

0.00mA ~ AC 1000A

Resolution

0.01mA

Precision grade

2.0%FS (50Hz/60Hz; 23 + – 2 Deg. C, 70%RH, wire in the center of the jaw position)

Turn ratio

Standard 2400:1 (can be customized according to the needs)

phase error

Less than or equal to 3 degrees (50Hz/60Hz; 23 – 2 Deg. C)

Reference load

RL:0 ~ 100mA = 3K ~ 10A = 30 ohm; 0 ohm; 0 ~ 1000A is less than or equal to 0.3.

shield

The clamp head has a shielding layer, which is suitable for complex interference environment.

Output mode

Current output

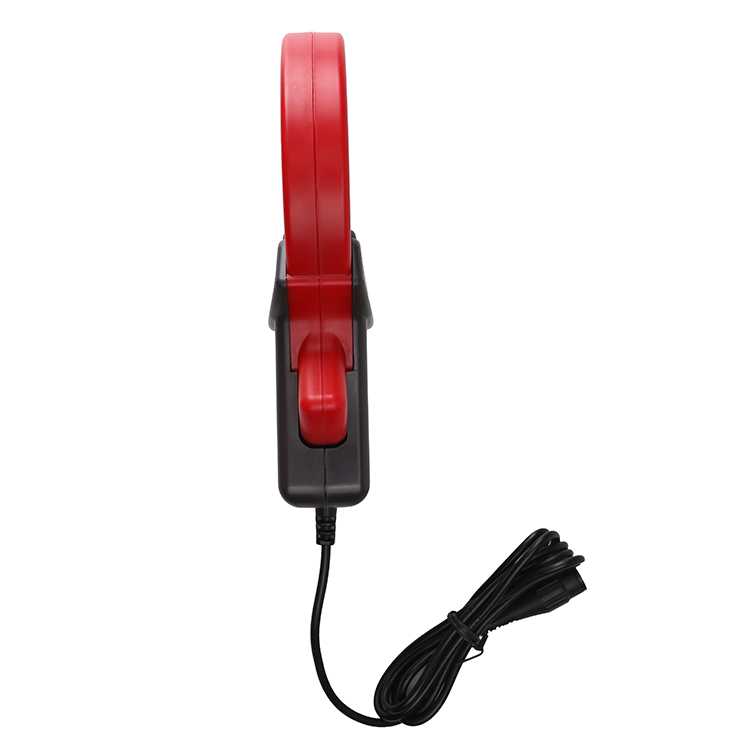

Output line and plug

Output line: 2 core shielding wire, wire length 2m; plug: 3.5mm plug (plug can be assembled according to customer requirements)

Electric field interference

With shielding layer, the external electric field 100A is close to 10mm when it is about 10mA

Wire position

Is located at the center of the jaw wire test

Current frequency

45Hz ~ 60Hz (measured current frequency)

frequency characteristic

10Hz ~ 100kHz

Line voltage

600V AC following line test

Outline dimension

Length 185mm * width 115mm * thickness 43mm

Quality

530g

Working temperature and humidity

-20 degrees Celsius to 50 degrees C; 80%rh below

Storage temperature and humidity

-10 degrees Celsius to 60 degrees C; 70%rh below

Insulation strength

3700V/rms AC (between the core and the shell)

Suitable for safety

IEC1010-1, IEC1010-2-032, pollution, etc. 2, 600V III (CAT)
