Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Customized support: OEM
- Place of Origin: Guangdong, China
- Brand Name: Mindwi
- Model Number: ET54 series
- Power: 400W
- Power voltage: 220Vac±10%,110Vac±10%,45-65Hz
- Operating temperature: 0℃ to 40℃
- Display: 2.8-inch TFT LCD screen with resolution of 480*320
- Storage temperature: -10℃ to 70℃
- Service environment: 0°C-40°C
- Relative humidity: < 80%

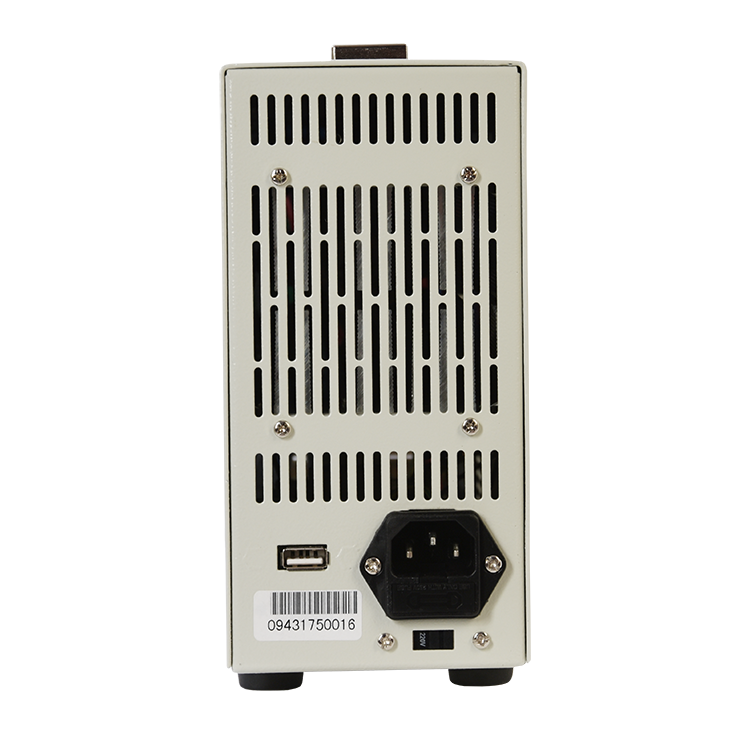

- Interface: standard USB
- Size: 90mm*190mm*300mm (width * height * depth)
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-2{text-align:center}#detail_decorate_root .magic-3{font-weight:normal;font-size:32px}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:632px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:632px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:231.023px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{font-size:24px}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:70px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:178.898px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:114.867px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{font-size:20px}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:107.789px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:102.234px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:82.2422px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:314.766px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:30px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:462px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:39px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:26.777px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:24px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{text-align:left}#detail_decorate_root .magic-31{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:26px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:82px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:716.117px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:68.367px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:122.594px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:33.77px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:34.004px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:90.1328px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:34.707px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:90.3672px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:28px;padding:5px 10px;width:34.941px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:91.0703px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:28px;padding:5px 10px;width:35.645px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:91.3047px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:34.473px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:34.238px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:89.8984px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:35.176px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px;padding:5px 10px;width:72.586px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:133.043px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:28px;padding:5px 10px;width:38.223px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-53{min-height:28px;padding:5px 10px;width:105.93px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-54{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-55{min-height:28px;padding:5px 10px;width:106.656px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-56{min-height:28px;padding:5px 10px;width:108.32px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-57{min-height:28px;padding:5px 10px;width:107.594px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-58{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-59{margin-bottom:0}#detail_decorate_root .magic-60{position:relative;width:100%}#detail_decorate_root .magic-61{overflow:hidden;width:750px;height:833.5443037974684px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:750.0000000000001px;height:833.5443037974684px}#detail_decorate_root .magic-63{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-64{overflow:hidden;width:750px;height:703.4810126582279px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-65{margin-top:0;margin-left:0;width:750.0000000000001px;height:703.4810126582279px}#detail_decorate_root .magic-66{overflow:hidden;width:750px;height:1260.7594936708863px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-67{margin-top:0;margin-left:0;width:750.0000000000001px;height:1260.7594936708863px}#detail_decorate_root .magic-68{overflow:hidden;width:750px;height:722.4683544303798px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-69{margin-top:0;margin-left:0;width:750.0000000000001px;height:722.4683544303798px}#detail_decorate_root .magic-70{overflow:hidden;width:750px;height:622.7848101265823px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-71{margin-top:0;margin-left:0;width:750.0000000000001px;height:622.7848101265823px}#detail_decorate_root .magic-72{font-size:16px}#detail_decorate_root .magic-73{overflow:hidden;width:750px;height:93.98734177215191px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-74{margin-top:0;margin-left:0;width:750.0000000000001px;height:93.98734177215191px}

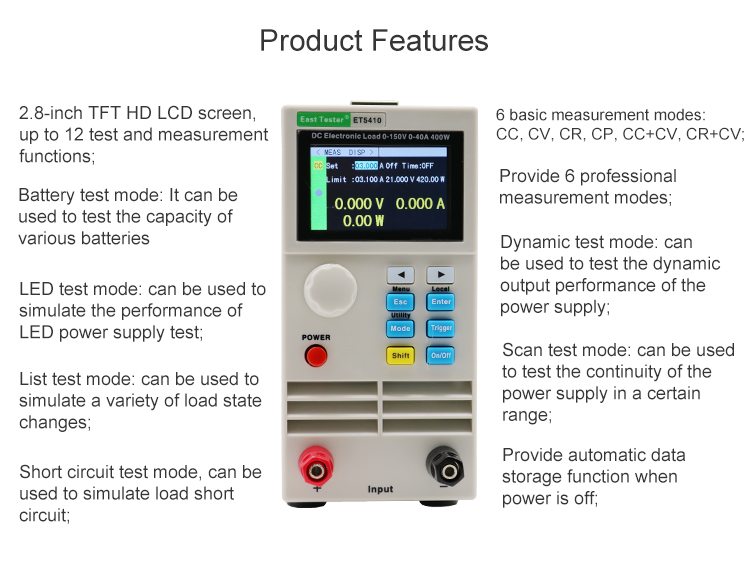

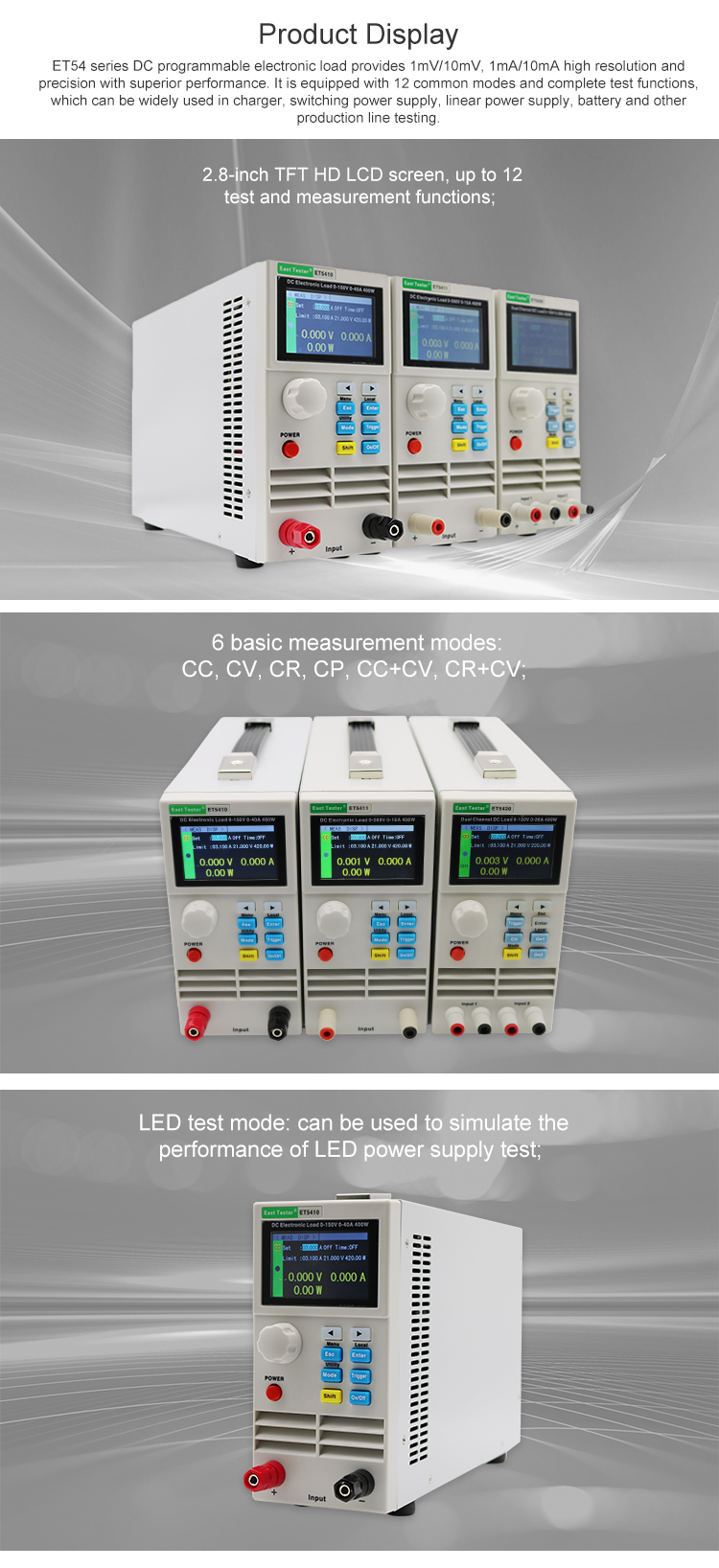

Key Features: 2.8-inch TFT HD LCD screen, up to 12 test and measurement functions; 6 basic measurement modes: CC, CV, CR, CP, CC+CV, CR+CV; Provide 6 professional measurement modes; Battery test mode: It can be used to test the capacity of various batteries LED test mode: can be used to simulate the performance of LED power supply test; Dynamic test mode: can be used to test the dynamic output performance of the power supply; Scan test mode: can be used to test the continuity of the power supply in a certain range; List test mode: can be used to simulate a variety of load state changes; Short circuit test mode, can be used to simulate load short circuit; Provide automatic data storage function when power is off; Built-in buzzer alarm function; Standard interface: USB Device more convenient to use, support Chinese and English display; With key lock function to prevent misoperation; Reverse protection with output polarity connection; With intelligent fan speed control function, effectively reduce fan noise at work; With over voltage, over current, over power protection functions, to achieve effective protection of load; It has two levels of overtemperature protection function, realizing double overtemperature protection of software and hardware. Dimensions: 90mm×190mm×300mm (width × height × depth) Power supply voltage: 220V.AC±10%, or 110V.AC±10%, 45-65Hz

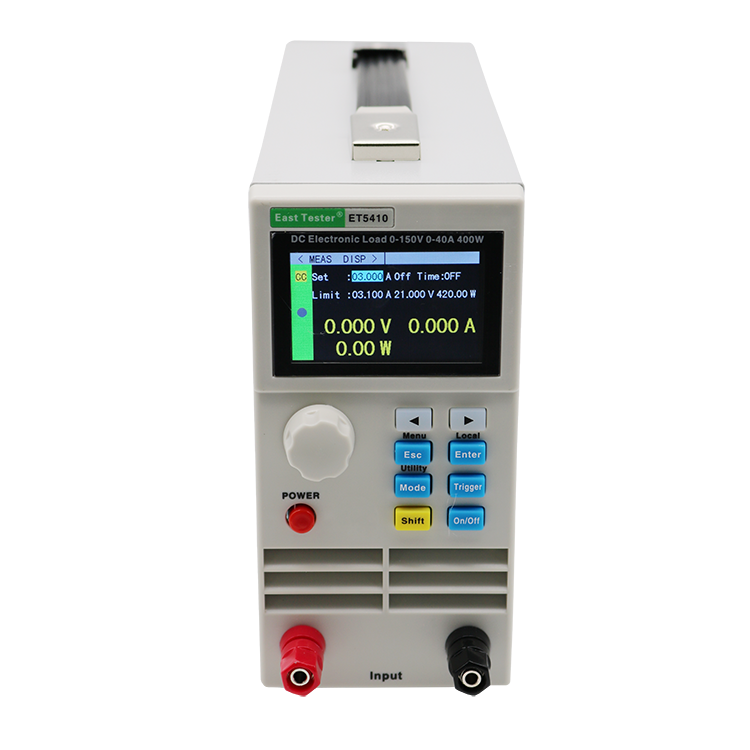

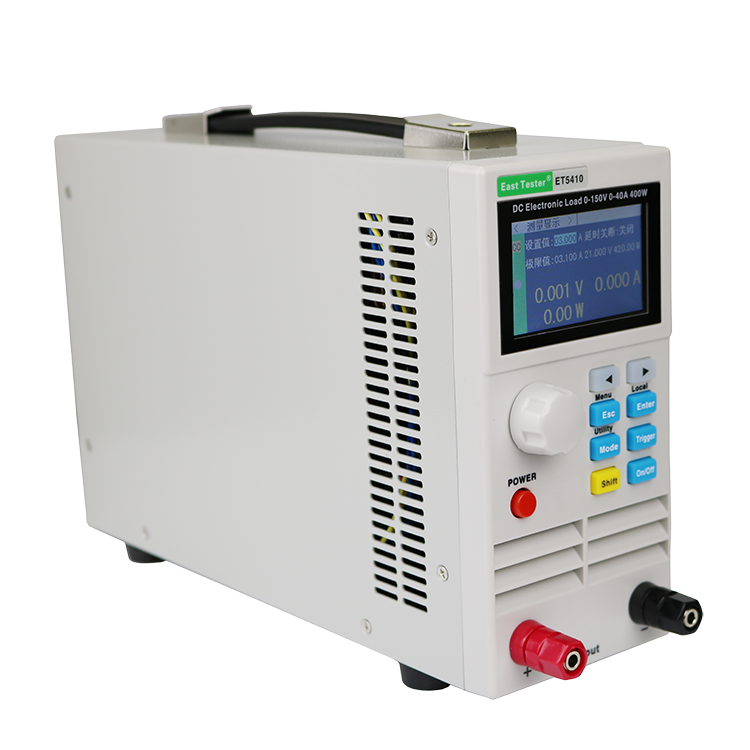

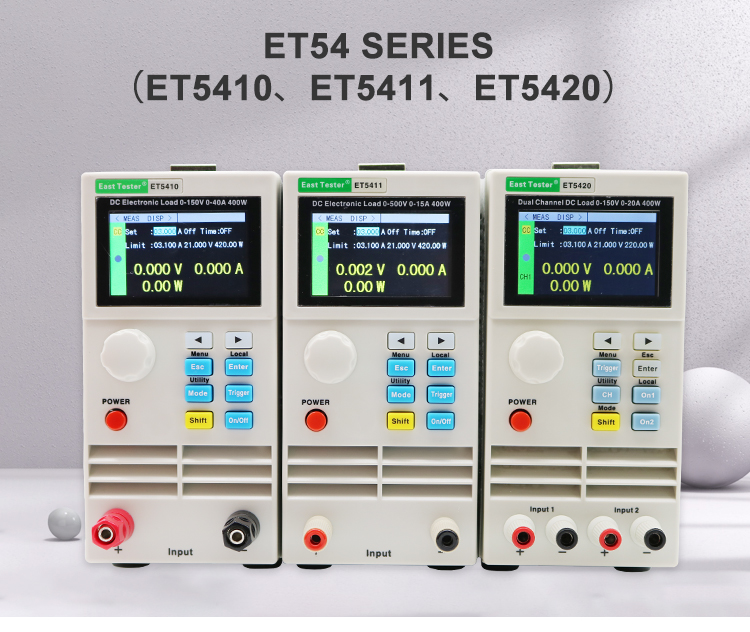

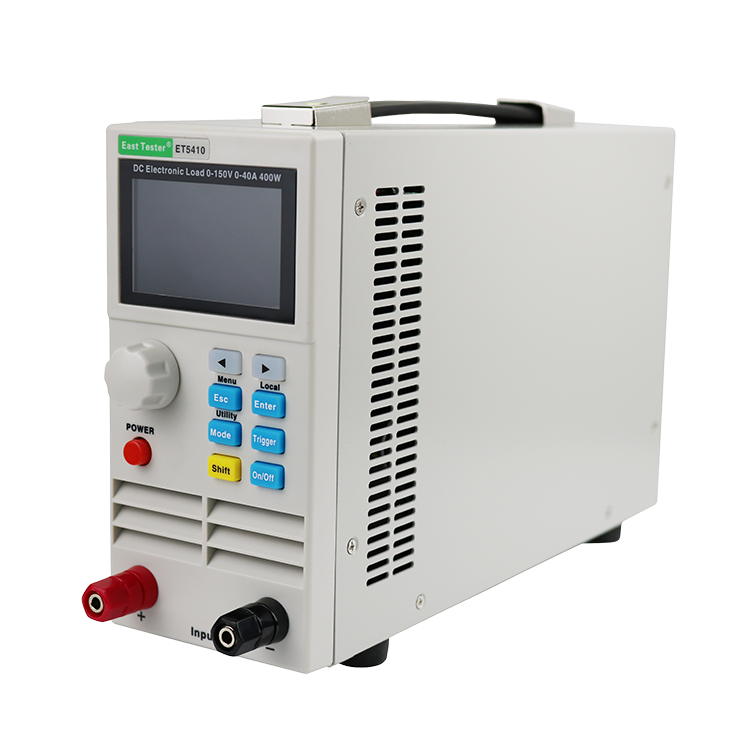

ET54 Series DC Programmable Electronic Load
Key Features: 2.8-inch TFT HD LCD screen, up to 12 test and measurement functions; 6 basic measurement modes: CC, CV, CR, CP, CC+CV, CR+CV; Provide 6 professional measurement modes; Battery test mode: It can be used to test the capacity of various batteries LED test mode: can be used to simulate the performance of LED power supply test; Dynamic test mode: can be used to test the dynamic output performance of the power supply; Scan test mode: can be used to test the continuity of the power supply in a certain range; List test mode: can be used to simulate a variety of load state changes; Short circuit test mode, can be used to simulate load short circuit; Provide automatic data storage function when power is off; Built-in buzzer alarm function; Standard interface: USB Device more convenient to use, support Chinese and English display; With key lock function to prevent misoperation; Reverse protection with output polarity connection; With intelligent fan speed control function, effectively reduce fan noise at work; With over voltage, over current, over power protection functions, to achieve effective protection of load; It has two levels of overtemperature protection function, realizing double overtemperature protection of software and hardware. Dimensions: 90mm×190mm×300mm (width × height × depth) Power supply voltage: 220V.AC±10%, or 110V.AC±10%, 45-65Hz
|
Model
|
ET5410
|
ET5420
|
ET5420
|
|||||
|
Number of channel
|
Single channel
|
Dual channel
|
Single channe
|
|||||
|
Rated input |
Power
|
400W
|
400W (200W×2)
|
400W
|
||||
|
Input voltage
|
0-150V
|
0-150V
|
0-500V
|
|||||
|
Input current
|
0-40A
|
0-20A×2
|
0-15A
|
|||||
|
CV mode |
Range
|
0.1~19.999V，0.1~150.00V
|
0.1~19.999V，0.1~500.00V
|
|||||
|
Resolution
|
1mV，10mV
|
|||||||
|
Accuracy
|
±(0.05%+0.02%FS)
|
|||||||
|
CC mode |
Range
|
0~3.000A，0~40.00A
|
0~3.000A，0~20.00A
|
0~3.000A，0~15.00A
|
||||
|
Resolution
|
1mA，10mA
|
|||||||
|
Accuracy
|
±(0.05%+0.05%FS)
|
|||||||
|
CR mode |
Range
|
0.05Ω~1 kΩ，1 kΩ~4.5kΩ
|
||||||
|
Resolution
|
10mΩ，100mΩ
|
|||||||
|
Accuracy
|
±(0.1%+0.5%FS)
|
|||||||
|
CP mode
|
Range
|
0~400W
|
0~200W
|
0~400W
|
||||
|
Resolution
|
10mW
|
|||||||
|
Accuracy
|
±(0.1%+0.5%FS)
|
|||||||
|
Tran Test
Battery Test |
Mode
|
CC，CV
|
||||||
|
T1&T2
|
1ms~60s
|
|||||||
|
Accuracy
|
0.1%+1ms
|
|||||||
|
Rated input |
Discharge mode
|
CC，CR
|
||||||
|
Maximum discharge capacity
|
9999Ah
|
|||||||
|
Powe
|
1mA，10mA，10mΩ，100mΩ
|
|||||||
|
Range of measurement
|
||||||||
|
Voltage read-back value
|
Range
|
0~19.999V，0 ~150.00V
|
0~19.999V，0~500.00V
|
|||||
|
Resolution
|
1mV，10mV
|
1mV，10mV
|
||||||
|
Accuracy
|
±(0.05%+0.1%FS)
|
|||||||
|
Current read-back value
|
Range
|
0~3.000A，0~40.00A
|
0~3.000A，0~20.00A
|
0~3.000A，0~15.00A
|
||||
|
Resolution
|
1mA，10mA
|
|||||||
|
Accuracy
|
±(0.05%+0.1%FS)
|
|||||||
|
Power read-back value
|
Range
|
0~400W
|
0~200W
|
0~400W
|
||||
|
Resolution
|
10mW
|
|||||||
|
Accuracy
|
±(0.1%+0.5%FS)
|
|||||||
|
Scope of protection
|
||||||||
|
Overvoltage protection
|
＞21V 155V or 510V overvoltage protection
|
|||||||
|
Overcurrent protection
|
＞3.1A 16A 22A or 42A input cut off
|
|||||||
|
Overpower protection
|
420W
|
220W
|
420W
|
|||||
|
Over-temperature protection
|
85℃
|
|||||||
