Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Model Number: ESMZL-3
- Type: force sensor
- Place of Origin: Shaanxi, China
- Brand Name: kexlimice
- Usage: Silk thread, gauze, steel wire tension sensor
- Theory: Resistance strain sensor
- Output: mv
- Description: tension sensor
- Product name: tension measuring transducer for 0~50N yarn tension sensor
- range: 0~50N,100N,500N,1000N,2000N
- Sensitivity: 1-2.0 mv/V
- Accuracy: 0.05 %FS
- Excitation voltage: 9 ~ 15 VDC
- load: 150 %FS
- Protection level: IP67
- Material: alloy steel
 |
 |
 |
 |
 |
 |
 |
 |

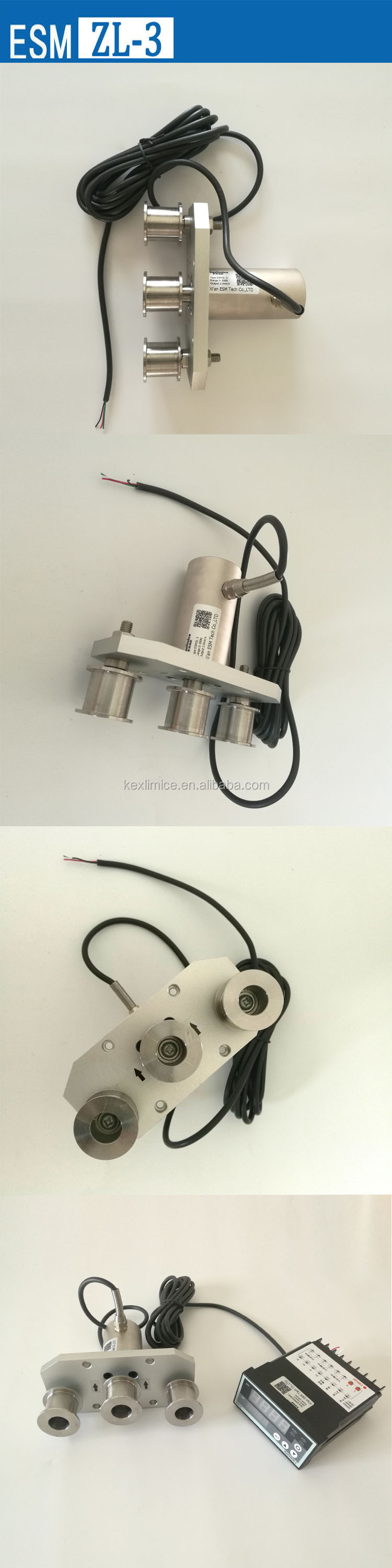

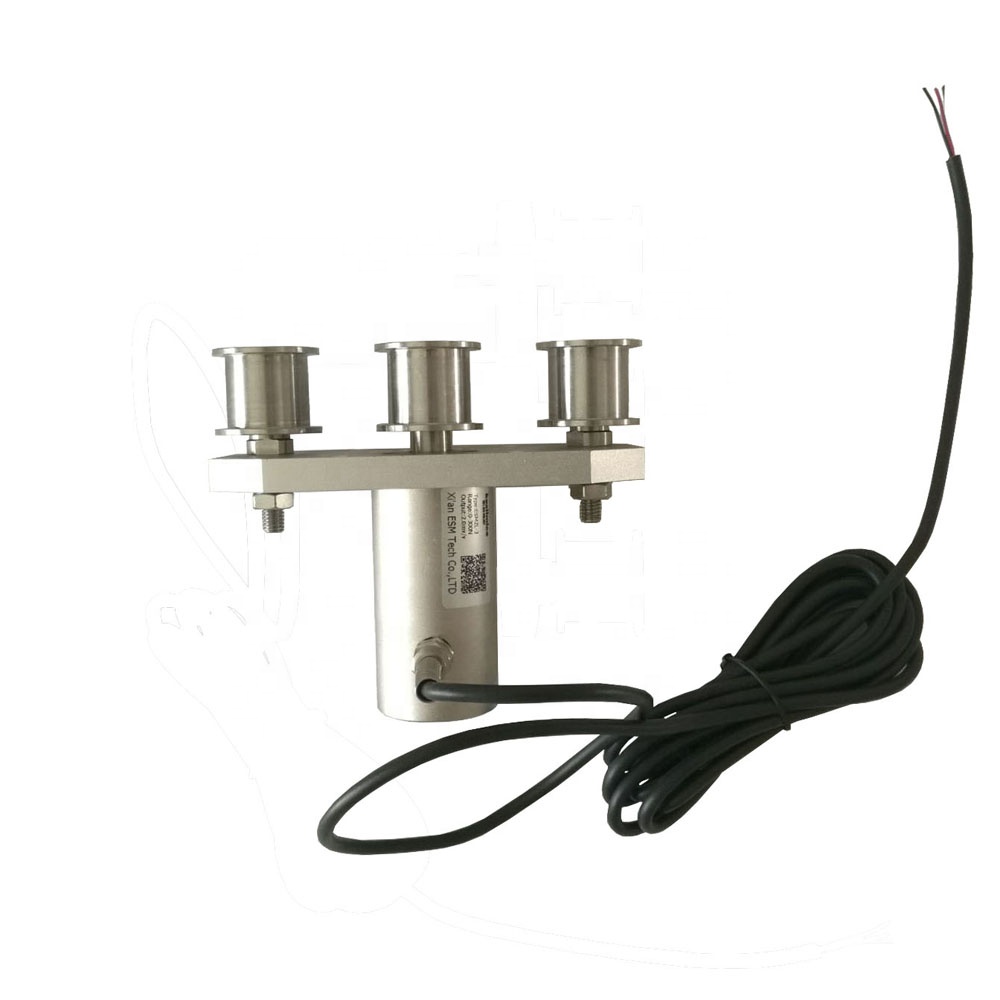

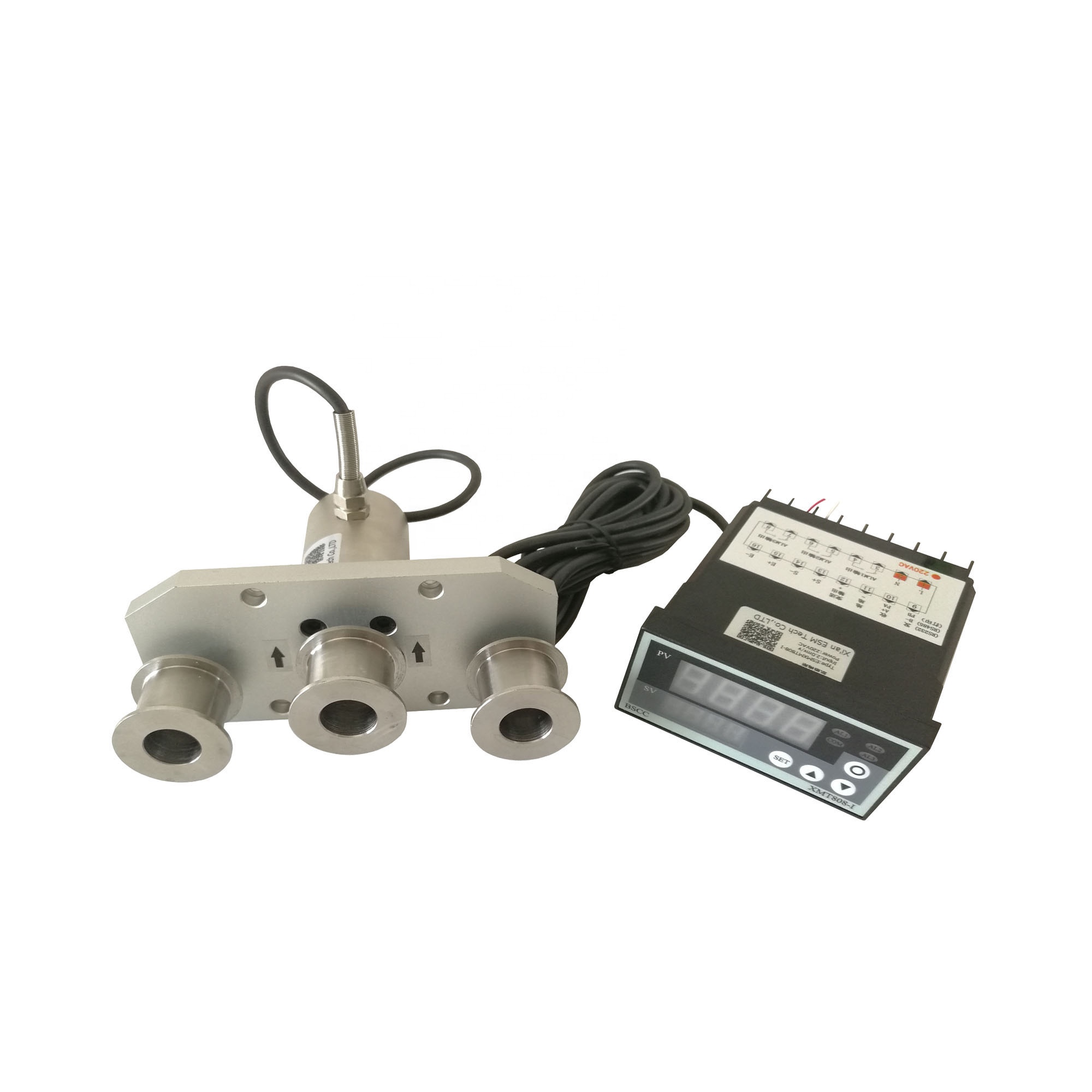

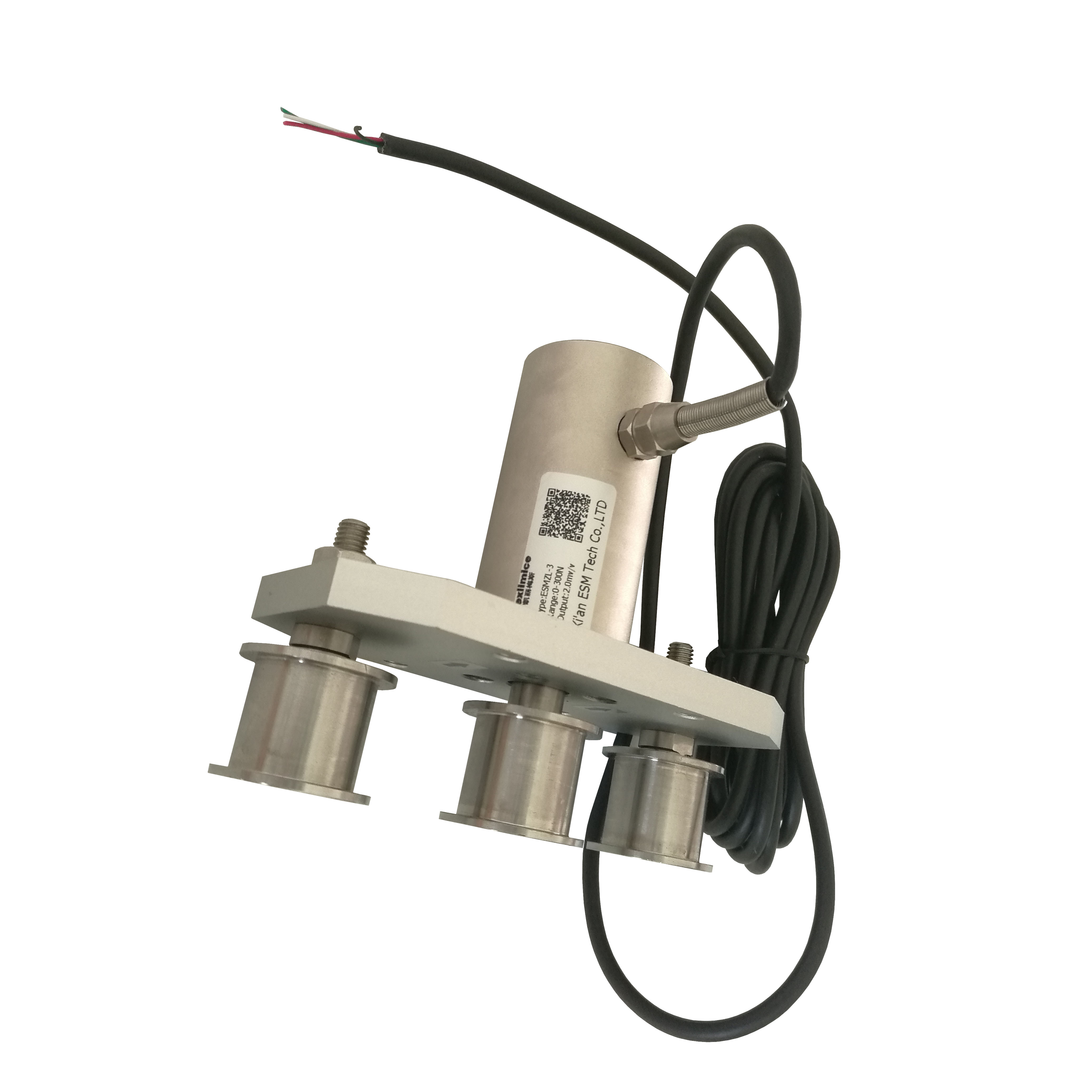

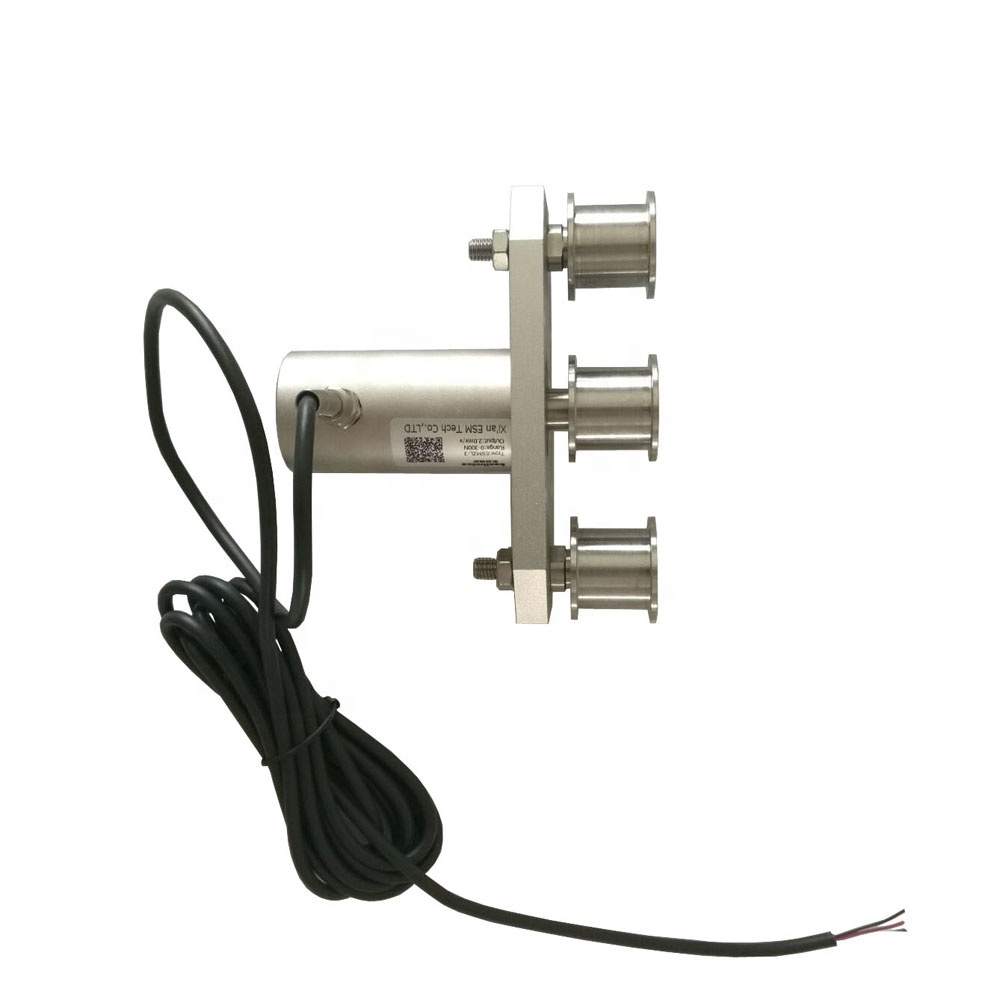

ESMZL-3 three pulley tension measuring transducer for 0~50N yarn tension sensor
ESMZL-3 Suitable for tension measurement of various optical fibers, yarns, chemical fibers, wires, wires, cables, tapes, and steel strips. Widely used in electronics, chemical, textile, paper, machinery and other fields. High precision, low drift, hand-held, compact structure, reliable sealing, easy installation
Technical Parameters:
|
Measure: |
0~50N,100N,500N,1000N,2000N |
|
|
Output: |
1.5mV/V |
0~5V,1~5V,0~10mA,4~20mA |
|
Non-linear: |
0.03F·S |
0.1, 0.3% F·S |
|
After lag: |
0.03%F·S |
0.1, 0.3% F·S |
|
Non-repetition: |
0.03%F·S |
0.1, 0.3% F·S |
|
Warm drift: |
0.003%F·S/oC |
0.01, 0.03 % F·S/°C |
|
Zero output: |
≤2% F·S |
≤2% F·S |
|
Excitation voltage: |
10V |
12V,15V,24V(DC) |
|
output signal: |
Mv |
0-5V 0-10V 0-10mA 4-20mA |
|
Operating temperature: |
-20~80°C |
|
|
Overload capability: |
150%F·S |
|
|
Material quality: |
alloy steel |
|

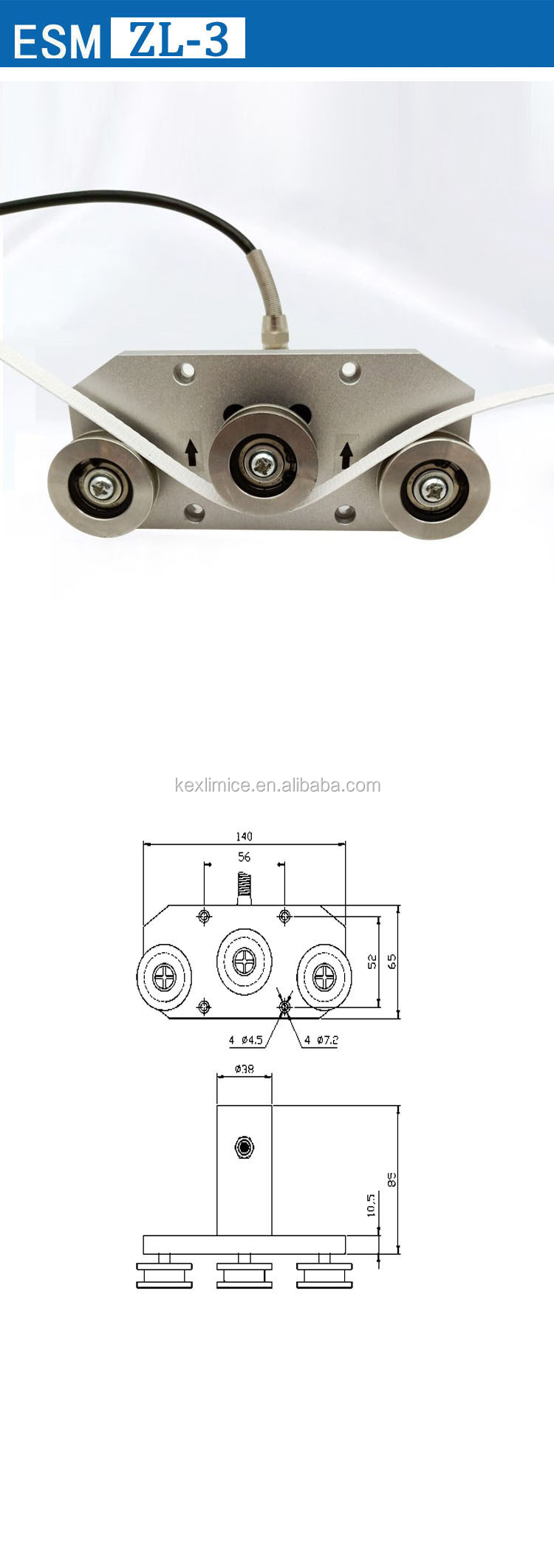

Remarks: Roller can be customized according to customer requirements, width and material.
Can be customized within 100mm width range, the material can be customized ceramic, stainless steel, nylon.
 |
 |
 |
 |
