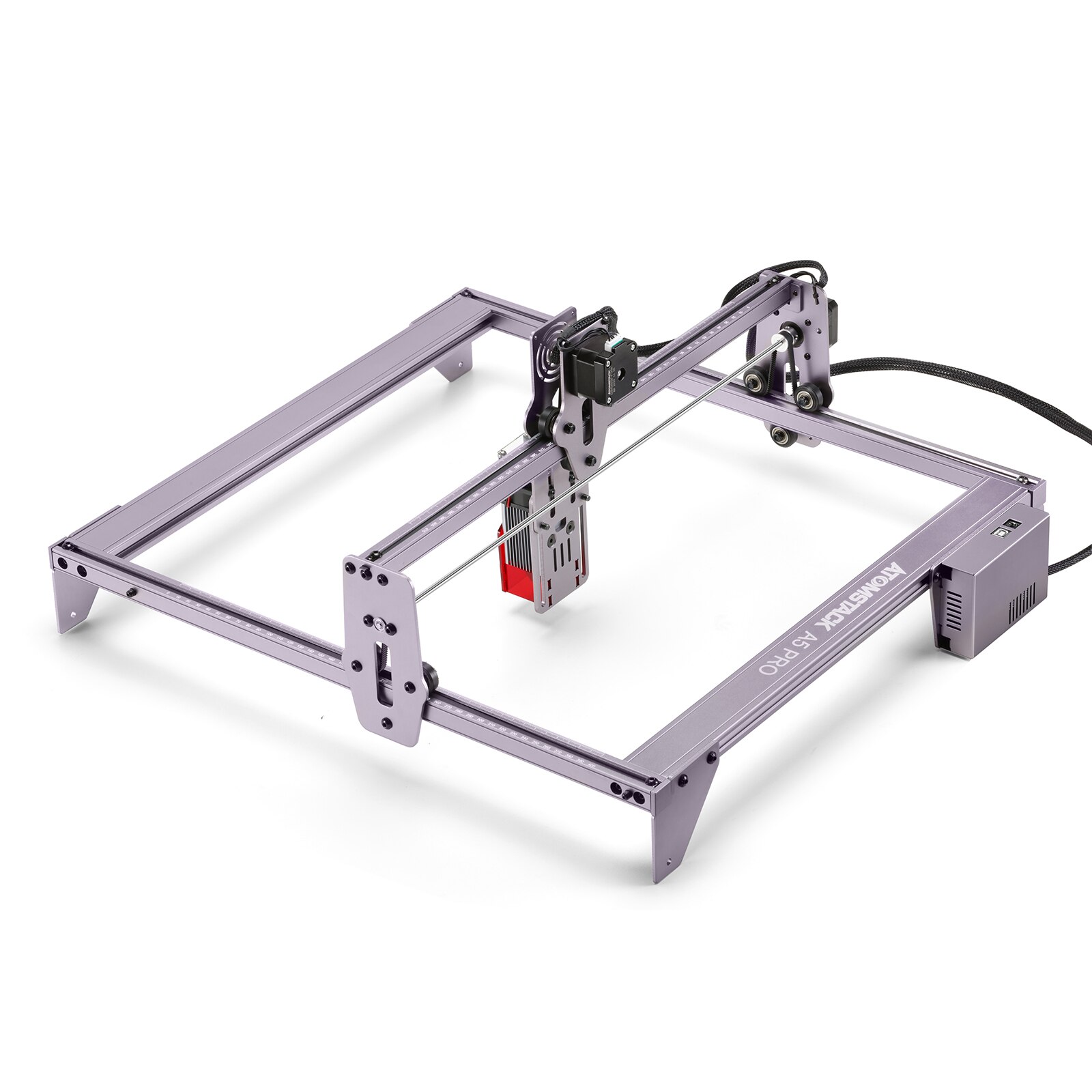

ATOMSTACK A5 PRO Laser Engraving Machine Wood Cutting Design Desktop DIY Laser Engraver New Eye Protection Design Ultra-Fine Laser Focal Area

41*40cm Engraver Area 40W Fast Speed New
Laser Technology Ultra-Fine Focal Area Cut Engraving Wood/Leather/Metal/Acrylic

Original Genuine

Seller’s Shipping Method:China to your door Aliexpress Office Shipment or DHL/FEDEX/UPS
Have CE ,FCC,ROHS,FDA certifications, High quality guarantee, purchase without any worries（
The certificate is below）Multinational goods require tariffs and taxes

Features:

●Fixed-focus Laser:
No need to rotate lens to focus, the focal length of the laser is a fixed value, move the lens up and down close to the surface of the object to start carving.

●High-energy, Ultra-fine Laser:
laser power is 5.5W, ultra-fine laser focal area is reduced to 0.23mm^2, high-density laser can easily cut 12mm thick wood, black acrylic; can engrave stainless steel metal, ceramics.

●Wide Compatibility:
The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support macOS system (LIGHTBURN/GRBL), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

●Solid ＆ Easy Installation Structure Design:
The full-metal structure design makes the machine more solid, it will reduce the vibration of the machine and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

●Precise Scale Lines Axis:

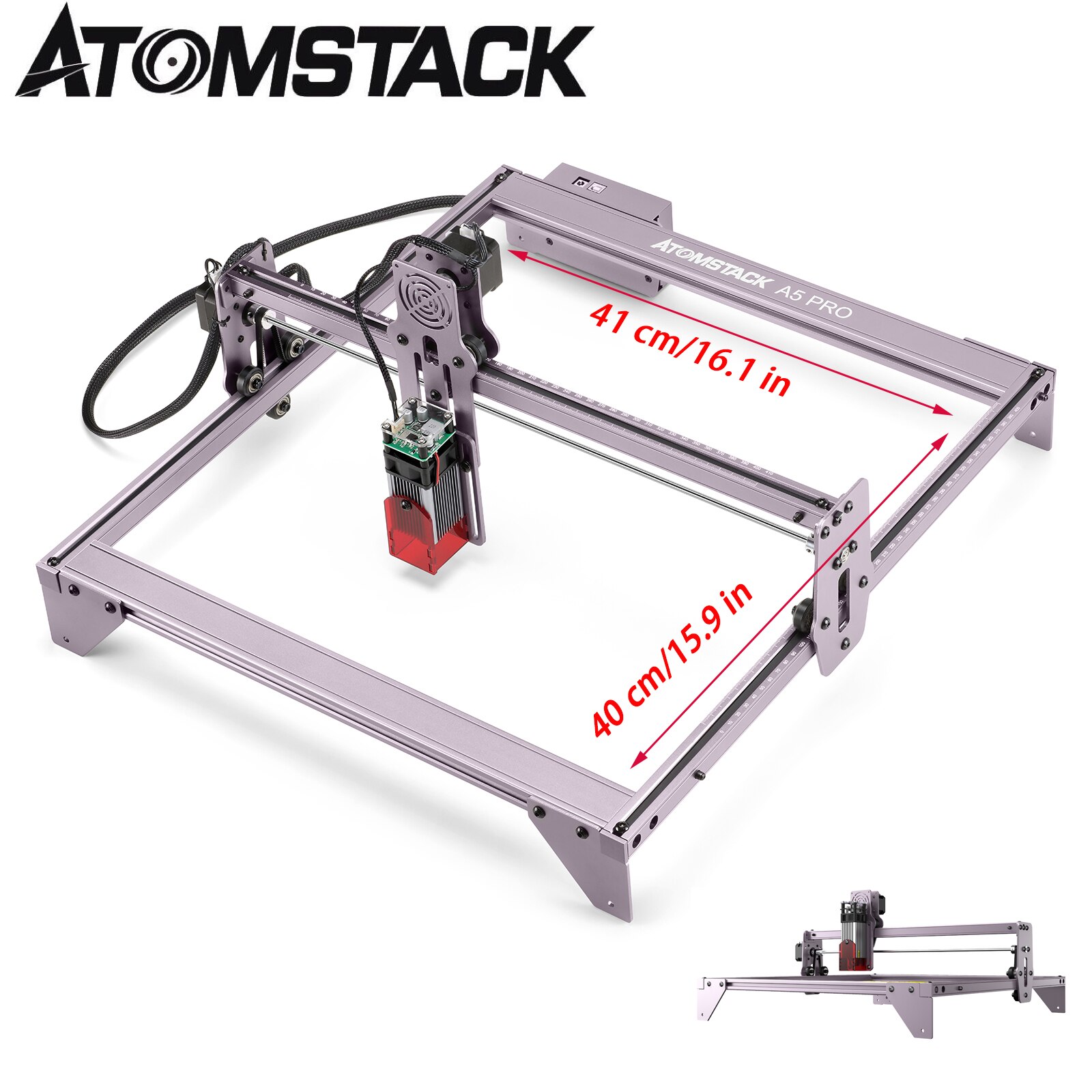

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

●Integrated Stepper Motor and Shaft:
The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser

●New Eye Protection Design:
The laser protective cover perfectly protect your eyes,filter UV light for 95%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

A5 Pro Specification:

Item model number:ATOMSTACK A5 PRO
Print Size:Recommend Print Size 410*400mm
Carving Objects:All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal,ceramics（Should be painted black）
Cutting Objects:Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Laser power:40W
Laser output power:5.5W
Working time:1000 hours
Wave Length:445 ± 5nm
Engraving accuracy:0.01mm
Focusing method:Fixed focus laser, no need to focus
Laser protective cover:Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating software:LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format:NC, BMP, JPG, PNG, DXF, etc.
Data transmission method:USB connection.
Input Voltage:AC100-240V, 50/60Hz
Output Voltage:DC12V, 5A
Equipment net weight:4.0kg
Package weight:5.2kg
Equipment size:570*600*270mm
Packing size:618*342*129mm
Certification:CE/FCC/RoHS/FDA/Weee

ATOMSTACK M40 40W Laser Module

Upgraded fixed-focus laser engraving cutting module,compatible compressed spot laser focusing-free eye-protecting laser 5.5w laser module,can be used for laser cutting machine, laser engraving machine, CNC, DIY laser,compatible with 95% of laser engraving machines on the market. Including Atomstack, ortur, Neje, twotree, etc.
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.

3. Made of aluminum, strong and durable.

4.Fixed focus laser, no need to focus.

5. Aviation aluminum TTL driver boardwith cooling fan can ensure continuous long time work.

6.Engravable materials: wood, bamboo,cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackeningUtility knife.

7.Cutable material: cardboard,non-woven fabric, veneer, acrylic, some thin plastic board.

8.The transfer circuit board is compatible with 95% of laser engraving machines on the market. IncludingAtomstack, ortur, Neje, twotree, etc

M40 Specification

Model Number:M40
Optical Parameters:TC=25℃
Optical Output Power: 5.5W-6W
Working current: 1.8A
Operating Voltage: 12V
Laser Beam Mode: Spot
Working Mode: Pulse work
Lightspot Size: 30mm＜1mm
Working Temperature: 0℃~70℃
Divergence Angle: /
Storage Temperature: 40℃~85℃
Working Time: 10000H
Enclosure Polarity: /
Housing size: 40*40*90mm
Optical Lens: φ6/glass
Circuit Board Size: 40*40mm
Fan: 12V
Circuit Board: 12V/PWM modulation board
Product Material: Aluminum 6061 anode
Wire Rod: 22# 2P2.54 terminal reverse wire 80mm
Product Net Weight: 295g

A5 Pro Package Included:

1 × X-axis assembly
2 × Section 57CM
2 × Section 48CM
1 × control box
3 × support legs
1 × Goggles
1 × 40W Laser
1 × 24V2A power adapter
1 × power cord
1 × USB cable
Step 1~5 installation package
1 × M5 wrench
10 × rolled belt
3 × small wood
1 × focal length film
1 × M3 wrench
1 × marker
1 × brush
3 × small acrylic

M40 Included:

1 x New Design 40W Laser
1 x PCB circuit board
1 x Fixed focus plate
1 x Power supply
1 x Compatible plate
1 x Connection line
1 x Wrench and screws
