Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 years
- Customized support: OEM, ODM, OBM
- Place of Origin: China Hebei
- Brand Name: Weisheng
- Model Number: VS-2082
- Power: Electronic
- Fault location of outer sheath: 0Ω~5MΩ
- Conductor circuit resistance: 0Ω~2KΩ
- Maximum Output Power: 5W
- Operating temperature: -20℃~ 50℃
- Maximum depth: 8 meters
- Data interface: USB 2.0
- Sounding accuracy: ±2.5% 5cm (0m~2m) ±5% 5cm(2m~3m)±7.5% 5cm(3m~8m)
- Dual frequency signal output function: Dual frequency signal output function
- Output power setting: Low, medium and high
- RX Frequancy: Active signal:98kHz,9.8kHz,82kHz
- Certification: pcoc, IECEE
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:358px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:358px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:266px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:750px;height:266px}#detail_decorate_root .magic-5{vertical-align:top}#detail_decorate_root .magic-6{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-7{font-size:24px}#detail_decorate_root .magic-8{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-9{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-10{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-11{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{font-size:18px}#detail_decorate_root .magic-17{display:none}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:489px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:218px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:488px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:422px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:422px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:483px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:483px}#detail_decorate_root .magic-28{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-29{position:relative}#detail_decorate_root .magic-30{position:absolute;left:12px;top:12px;height:24px;z-index:3;overflow:hidden;background-color:#3a3531;display:flex;align-items:center;border-radius:12px;font-size:12px;color:white;padding:2px 6px}#detail_decorate_root .magic-31{height:24px;width:24px;background-image:url(“https://img.alicdn.com/tfs/TB1fYbeJ4z1gK0jSZSgXXavwpXa-144-144.gif”);background-repeat:no-repeat;background-size:cover}#detail_decorate_root .magic-32{margin-left:4px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-35{overflow:hidden;width:247.33333333333334px;height:130.17543859649123px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:-9.012145748987855px;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-37{overflow:hidden;width:247.33333333333334px;height:130.17543859649123px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-39{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-40{margin-bottom:0}#detail_decorate_root .magic-41{position:relative;width:100%}#detail_decorate_root .magic-42{width:750px;height:100px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-43{position:relative;left:0;top:-9px;width:750px;height:1014px}#detail_decorate_root .magic-44{position:relative;left:0;top:-9px;width:750px;height:633px}#detail_decorate_root .magic-45{width:750px;height:740px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-46{position:relative;left:0;top:0;width:750px;height:754px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:600px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:600px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:709px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:709px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:150px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:750px;height:150px}
Introduction

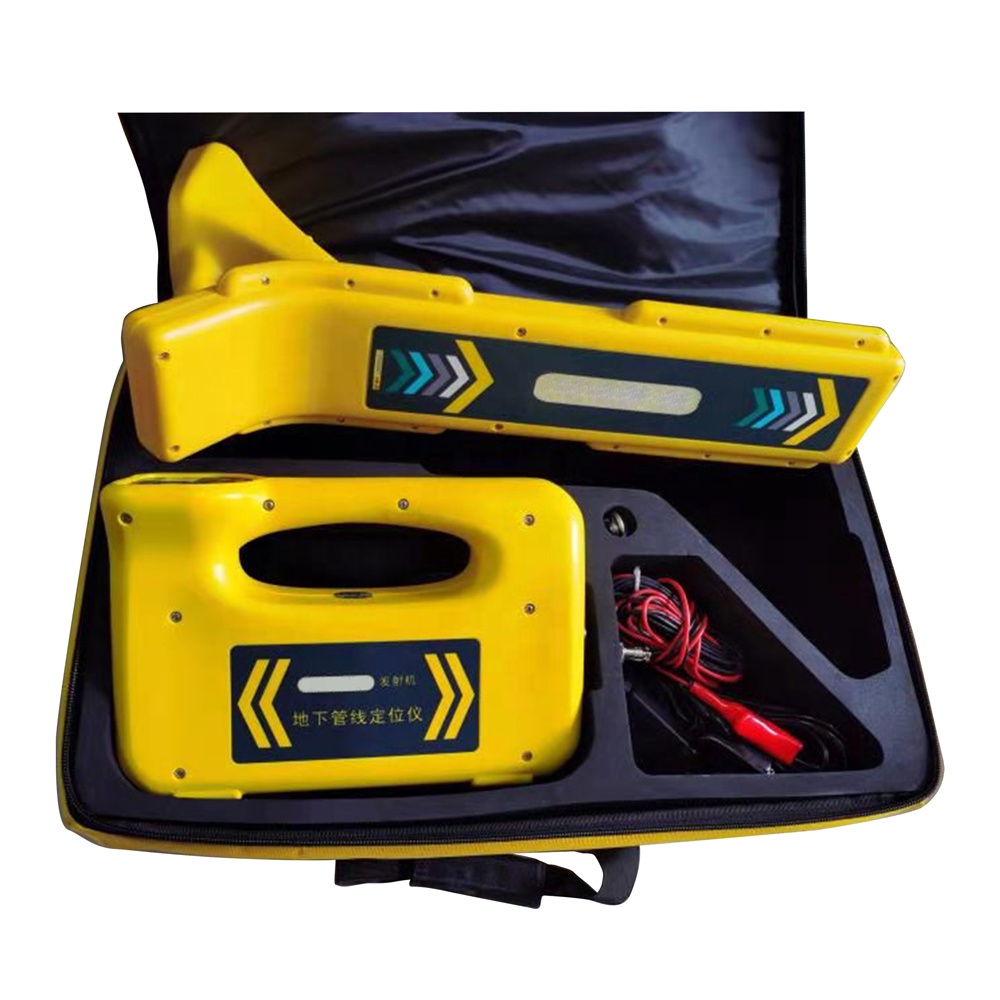

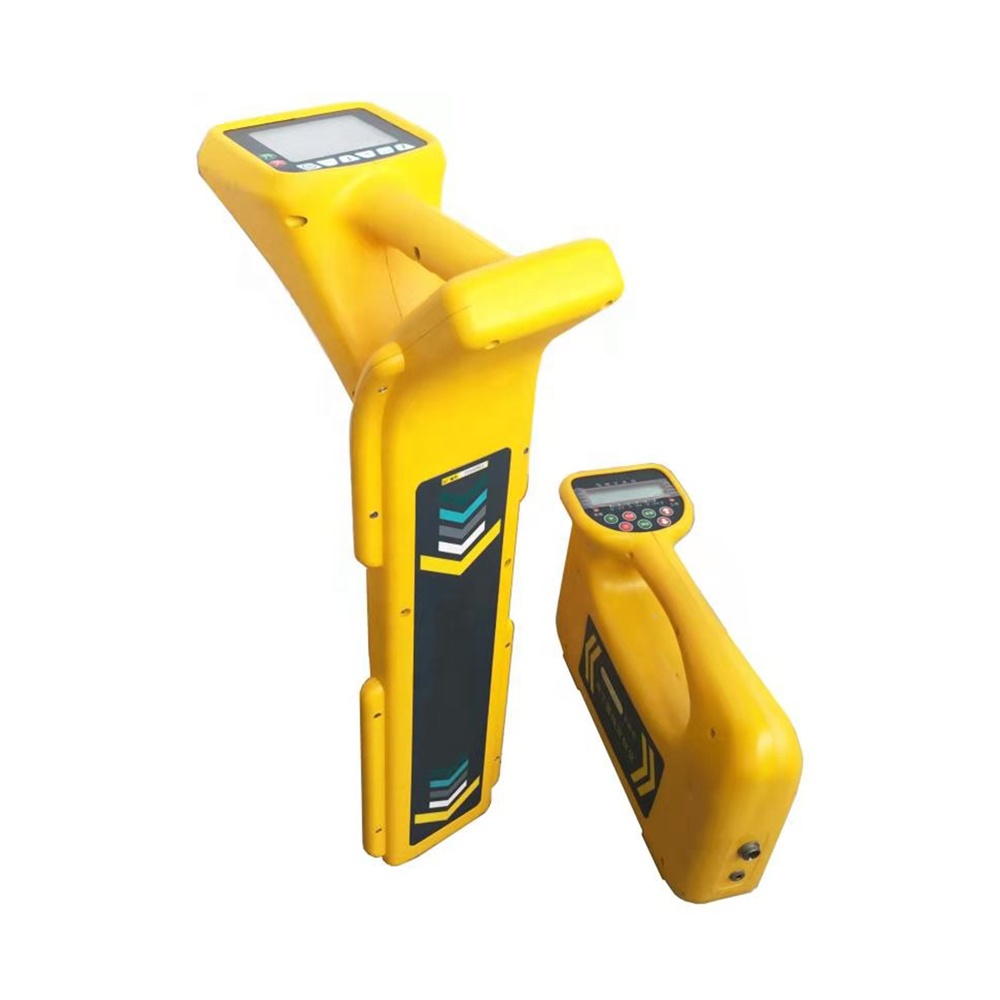

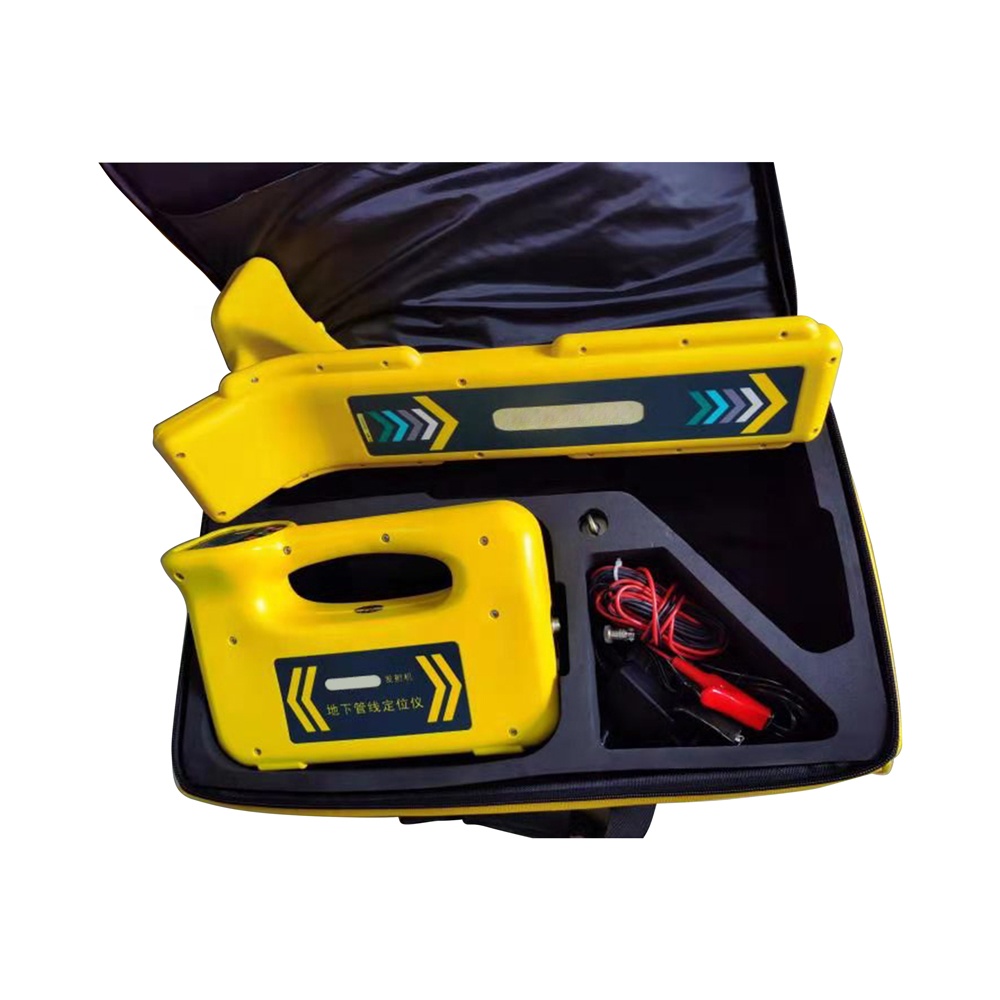

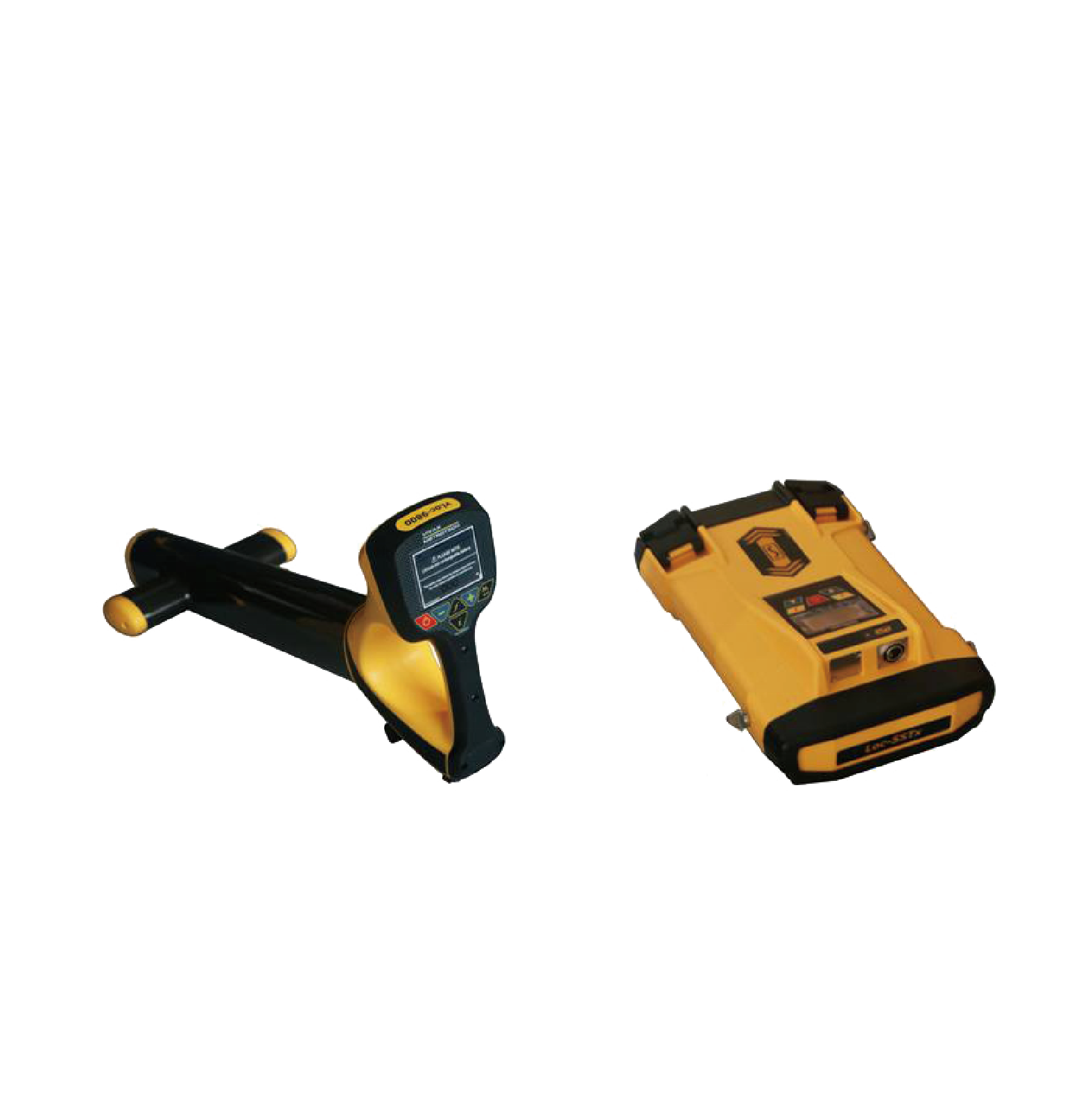

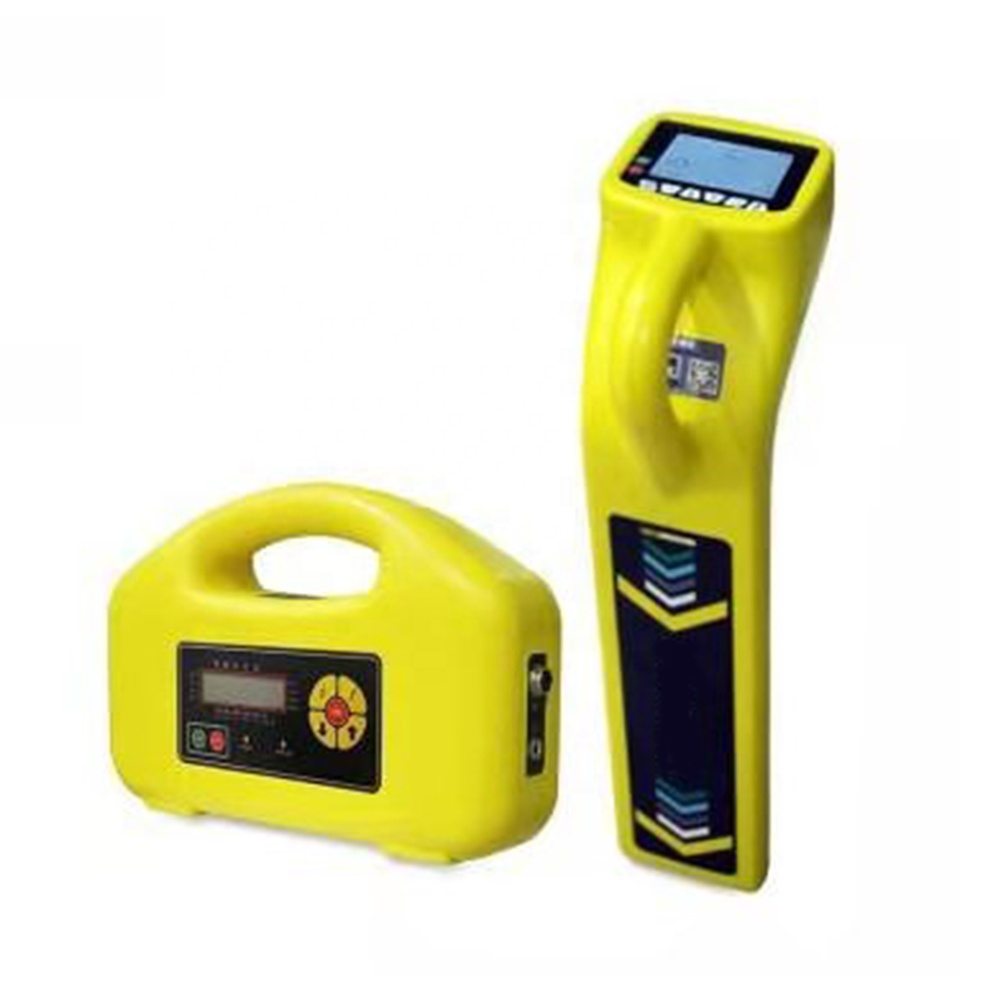

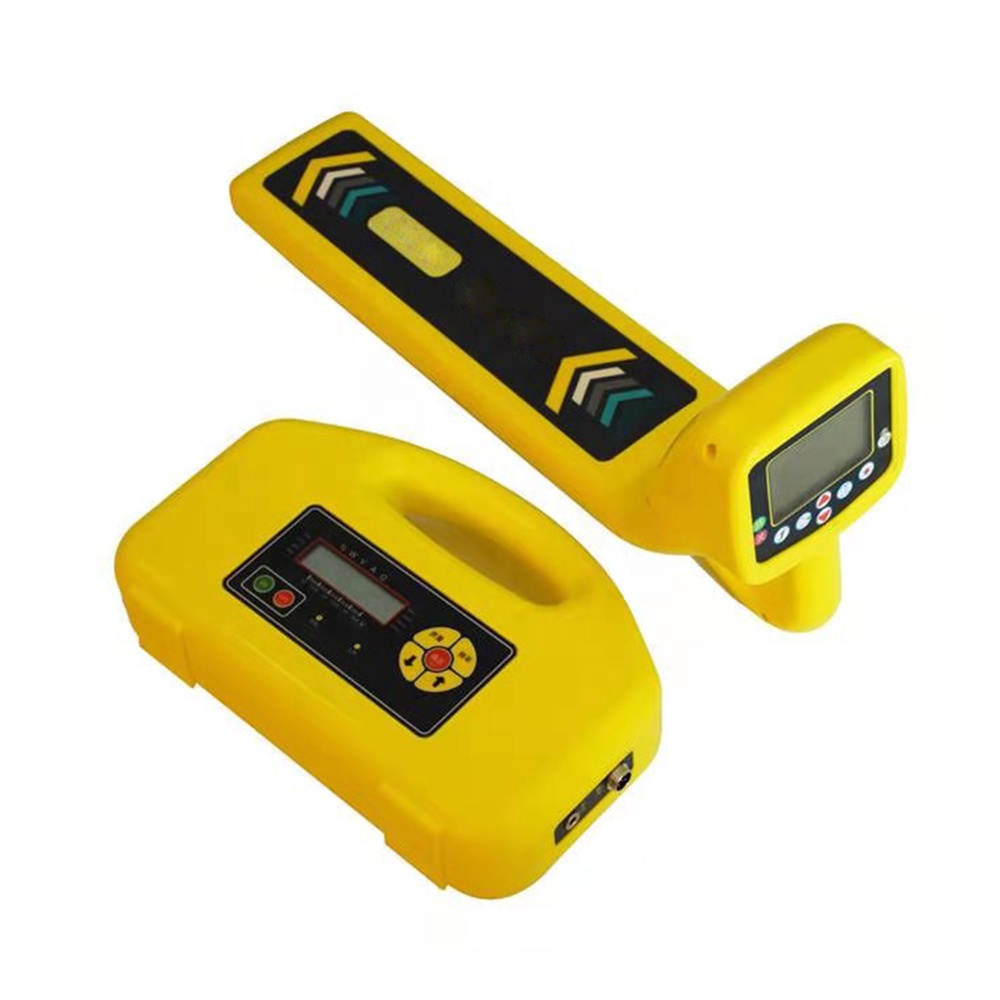

Pipe Locator is specially designed to detect pipes, sondes, telecommunication lines buried utilities. This device may detect buried power cables, CATV cables, gas and water pipes, sewer lines, telephone cables, fiber optic cables with sheath, sondes, inspection camera transmitters. The Transmitter emits a signal. The Receiver detects the signal. You can locate the relative position of the buried utility, sonde or camera by following the tracing signal.
Specification
|

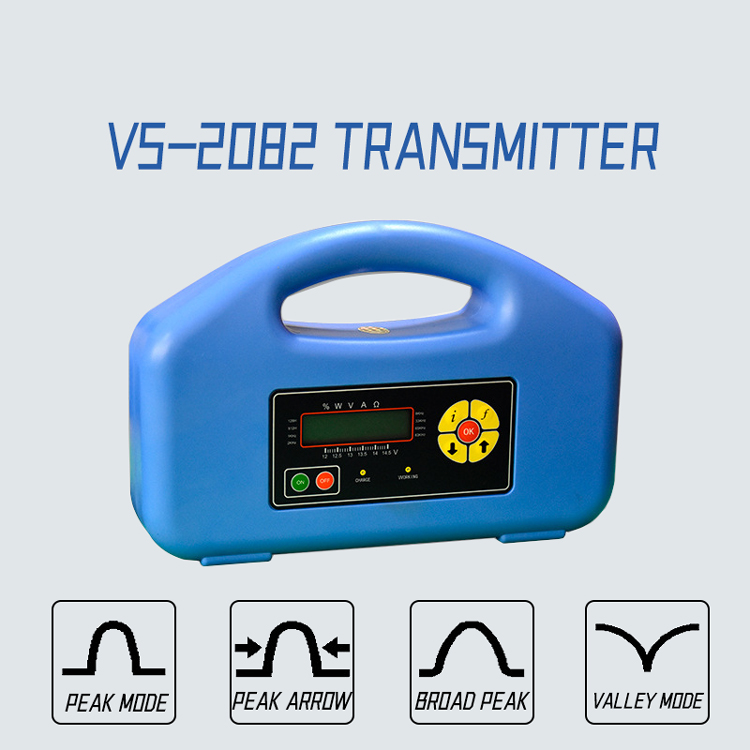

Transmitter Specifications
|
|
|
|
Operating Frequency
|
low • medium • high • radio
|
|
|
Operating Temperature
|
-4°F to 133º (-20ºC to +55ºC)
|
|
|
Hook-up Method
|
Direct Connection
Inductive Coupling (with optional coupler) Transmitter Induction |
|
|
Load Matching
|
automatic from 5 Ω to 25,500 Ω
|
|
|
Output Power
|
10 Watts (High) 250 Milliwatts (Low)
|
|
|
Battery Types
|
7.2 V lithium-ion battery pack
8 amp-hour maintenance |
|
|
Battery Life
|
greater than 4-8 hours
depending on load, frequency and power setting |
|
|
Dimensions
|
23 x 28 x15 cm
|
|
|
Weight
|
2.6Kg
|
|
|

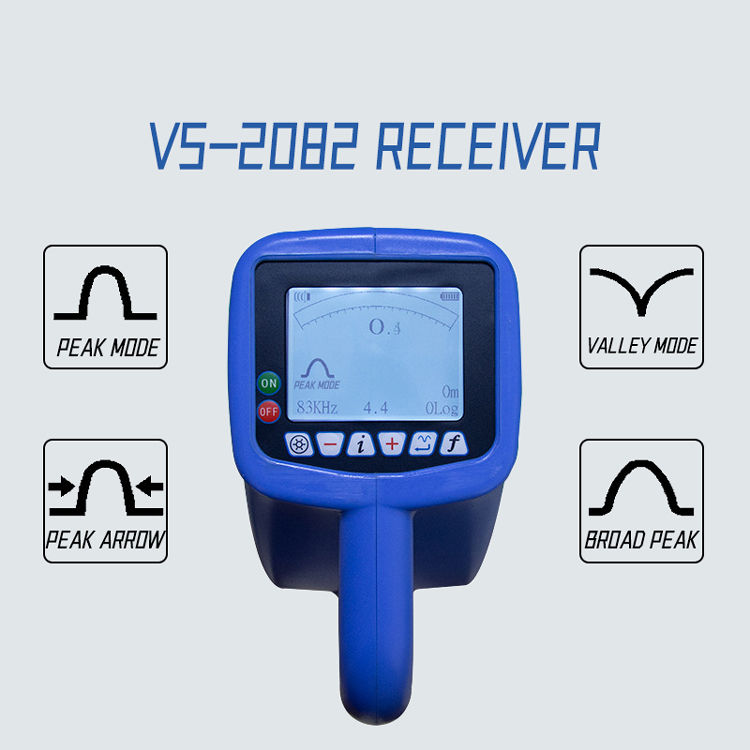

Receiver Specifications
|
|
|
|
Operating Frequency
|
low • medium • high • radio• 50/60Hz
|
|
|
Antenna Mode
|
Null (vertical coil)
Peak (horizontal coil) |
|
|
Audio Indication
|
Variable pitch audio
|
|
|
Operating Temperature
|
-4°F to 133º (-20ºC to +55ºC)
|
|
|
Battery Types
|
7.2 V lithium-ion battery pack
8 amp-hour maintenance |
|
|
Battery Life
Continuous Intermittent |
12 hours
24 hours |
|
|
Dimensions
|
68 x 25 x11 cm
|
|
|
Weight
|
1.6Kg
|
|
|
Signal Strength
|
LCD bar graph
Absolute Signal Strength readout 0-999 |
|
|
Gain Control
|
up/down button for automatic
centering and manual control |
|
|
Dynamic Range
|
100 dB
|
|
|
Depth Measurement
Automatic Manual |
Digital depth readout to 2.5m
Triangulation for verification of automatic readout in congested environments |
|

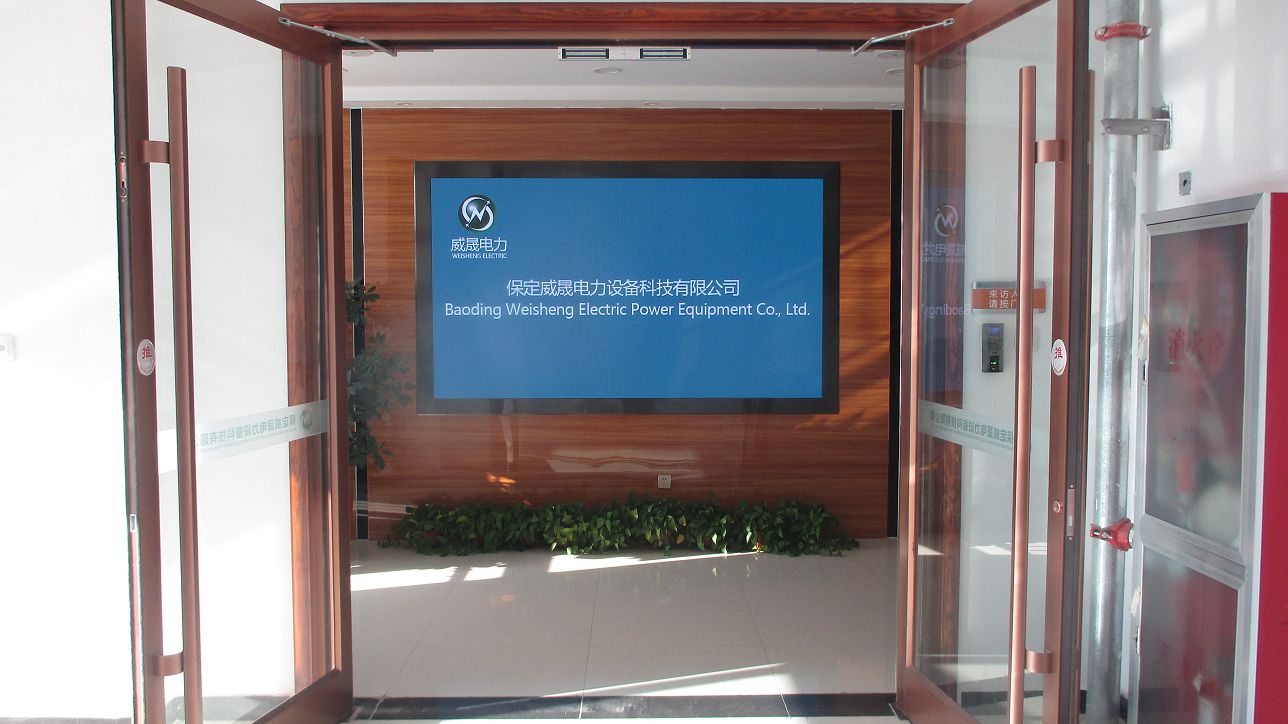

Company Profile
VR
FAQ
Are you a factory or trading company ?
We do both. We have 7 production lines and also have a sales team.
How does your factory do regarding quality control?
“Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
We do both. We have 7 production lines and also have a sales team.
Can I make a OEM order?
Sure thing, we accept OEM orders, MOQ is just 1. Congratulations on becoming a local best selling agent.
How does your factory do regarding quality control?
“Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Do you send installation team to job site?
We have installation guide to help you to get a easy installation. And we can send our installation team to job site if it is
necessary.
We have installation guide to help you to get a easy installation. And we can send our installation team to job site if it is
necessary.
How can I trust you?
We can provide you with all the certificates you need. And welcome to Baoding factory inspection, or video connection at any time, We take you to experience Weisheng in all aspects.
We can provide you with all the certificates you need. And welcome to Baoding factory inspection, or video connection at any time, We take you to experience Weisheng in all aspects.
How is your company’s technology?
Take the megohmmeter for example, the voltage level is above 5kV, and the short-circuit current can still reach 5mA. We are THE ONLY MANUFACTURER that can produce such an instrument in China.
Take the megohmmeter for example, the voltage level is above 5kV, and the short-circuit current can still reach 5mA. We are THE ONLY MANUFACTURER that can produce such an instrument in China.
What about your packages?
We have been exporting lots of products to overseas, no any clients make any complains on our packages. Please contact us and we will send photos to show you the details of our secure packages.
We have been exporting lots of products to overseas, no any clients make any complains on our packages. Please contact us and we will send photos to show you the details of our secure packages.
Thanks for being interested in our products and services.
Feel free to contact us if you need any assistance, please.
