Description
- Origin: Mainland China
- Model Number: FZ4045A
- Item: EAI YDLIDAR X4
EAI YDLIDAR X4 360 Degree 2D Laser Range Lidar Sensor 10M Scanner Scanning Radius Ranging Sensor Module with UART Communication Interface

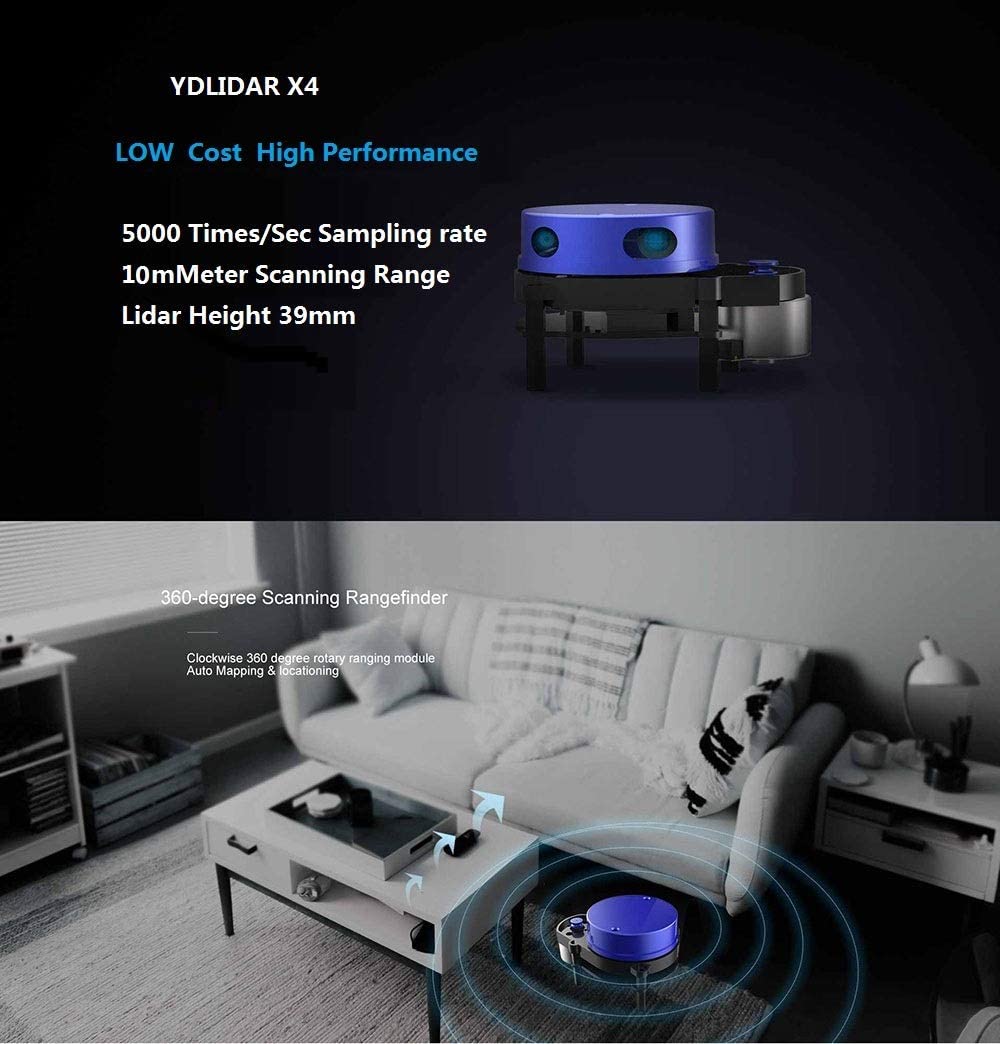

OVERVIEW
The YDLIDAR X4 Lidar is a 360-degree two-dimensional distance measurement product (hereinafter referred to as X4) developed by the YDLIDAR team. This product is based on the principle of triangulation, and is equipped with relevant optics, electricity, and algorithm design to realize high-frequency and high-precision distance measurement. At the same time as the distance measurement, 360 degrees of scanning distance measurement is achieved by continuously obtaining the angle information through the 360 degree rotation of the motor.

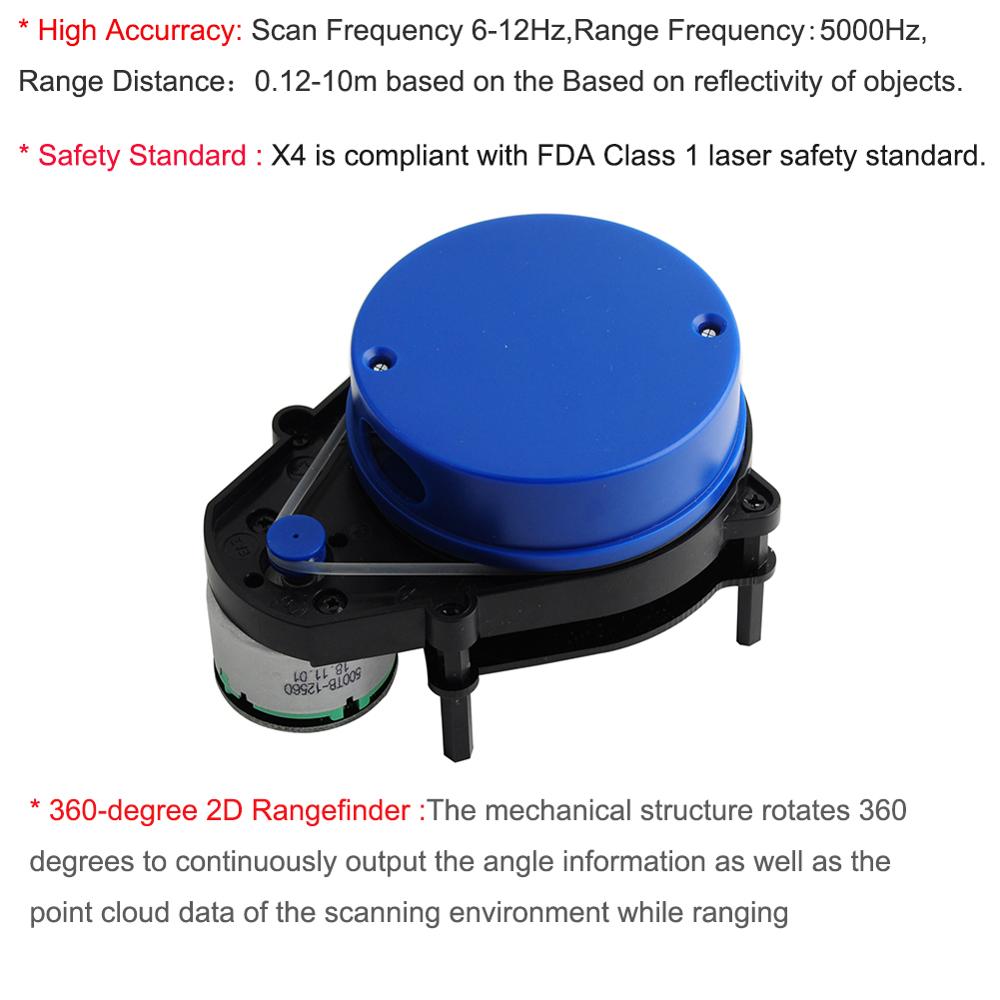

Product Features
360-degree scanning distance measurement
Small distance error; stable distance measurement and high accuracy
Wide ranging range, not less than 10m
Strong resistance to ambient light interference
Industrial grade brushless motor drive, stable performance
Laser power meets Class I laser safety standards
360 degree omnidirectional scanning; 6-12Hz adaptive scanning frequency
High-speed ranging, ranging frequency up to 5000hz

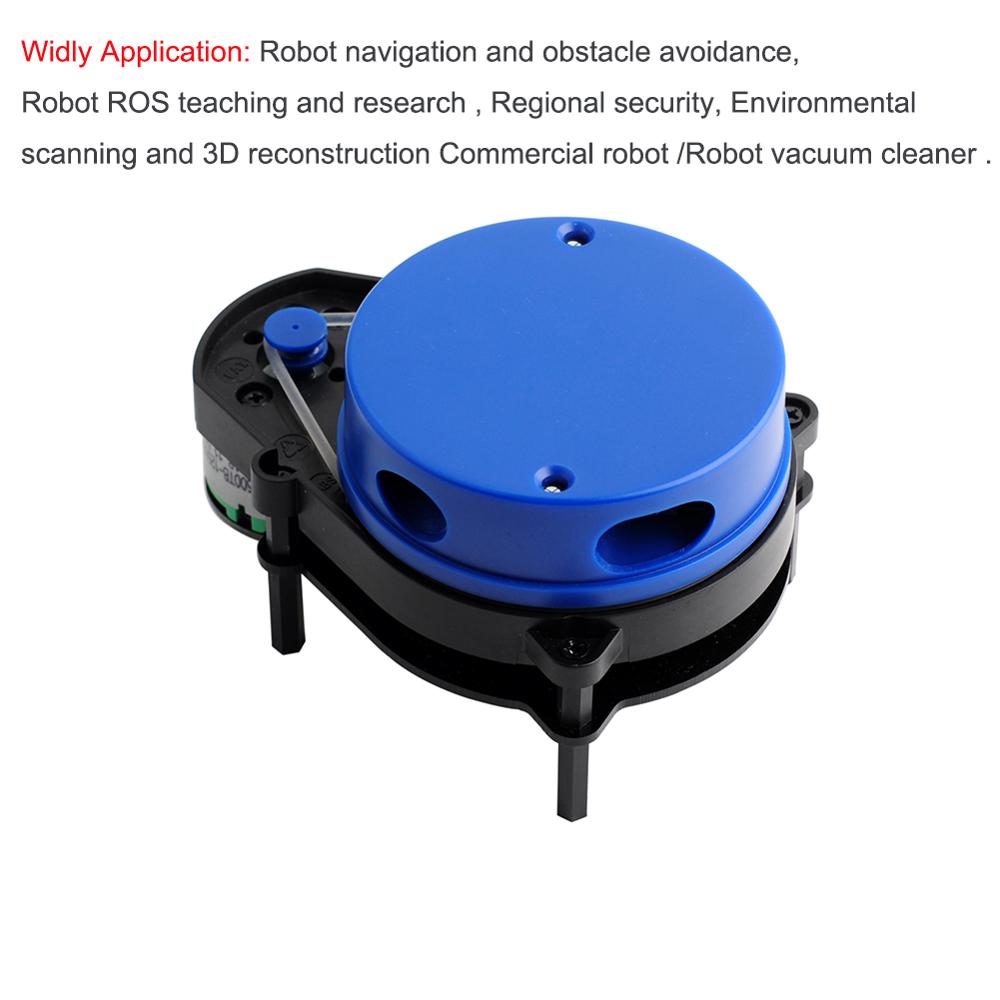

Applications
Robot navigation and obstacle avoidance
Robot ROS teaching and research
Regional security
Environmental Scan and 3D Reconstruction
Home service robot/sweeping robot navigation and obstacle avoidance

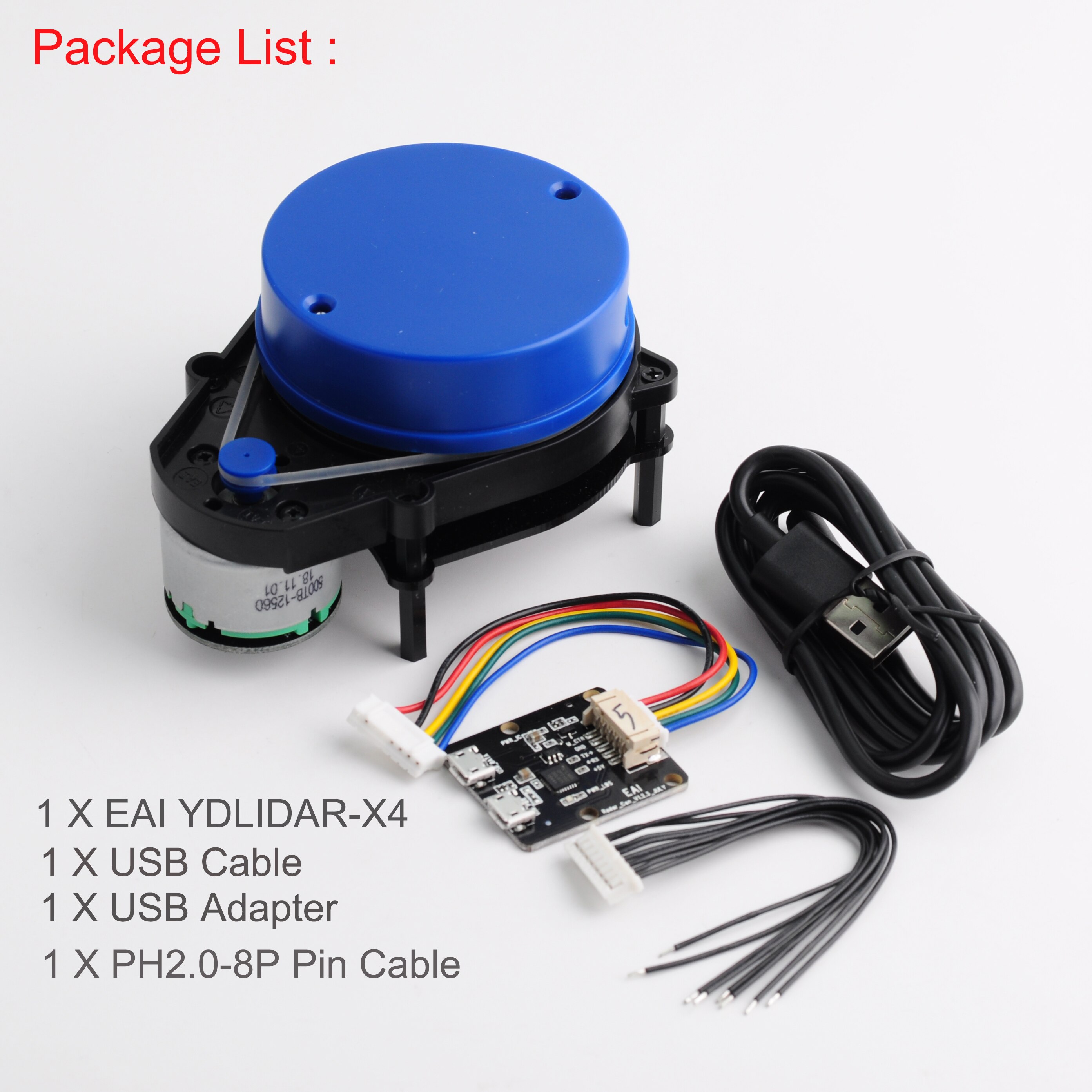

Package List :
1 X EAI YDLIDAR-X4
1 X USB Cable
1 X USB Adapter
1 X PH2.0-8P Pin Cable
