Description
- Item Type: Stage Lighting Effect
- Brand Name: DYUE
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: ST-A-RL500S
- Power: 12W
- Voltage: DC3.3V
- Color: Red
- Wavelength: 638nm
- Outpower: 500mw
- Application: stage laser light

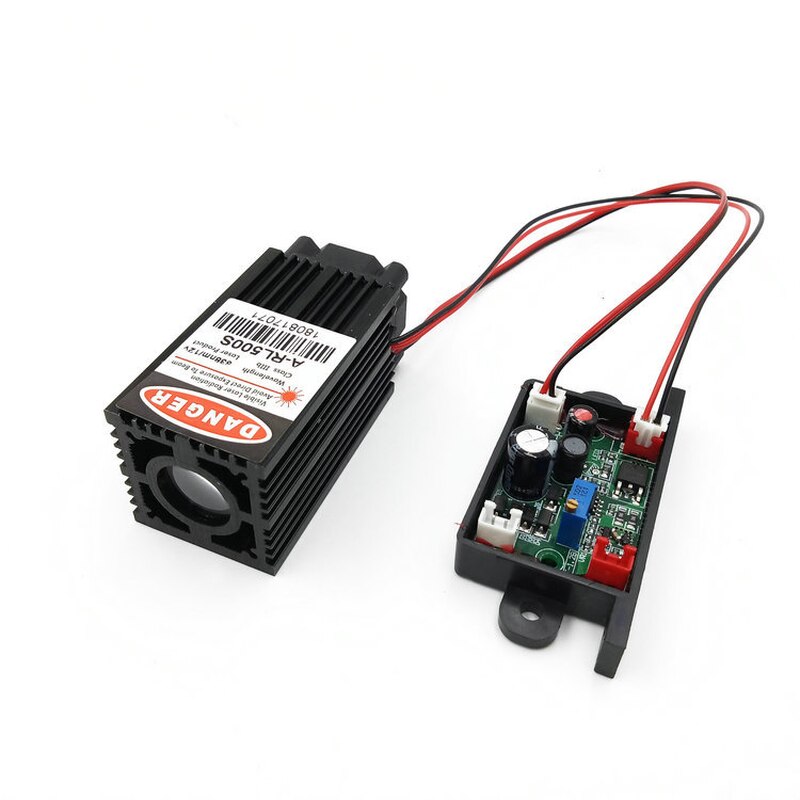

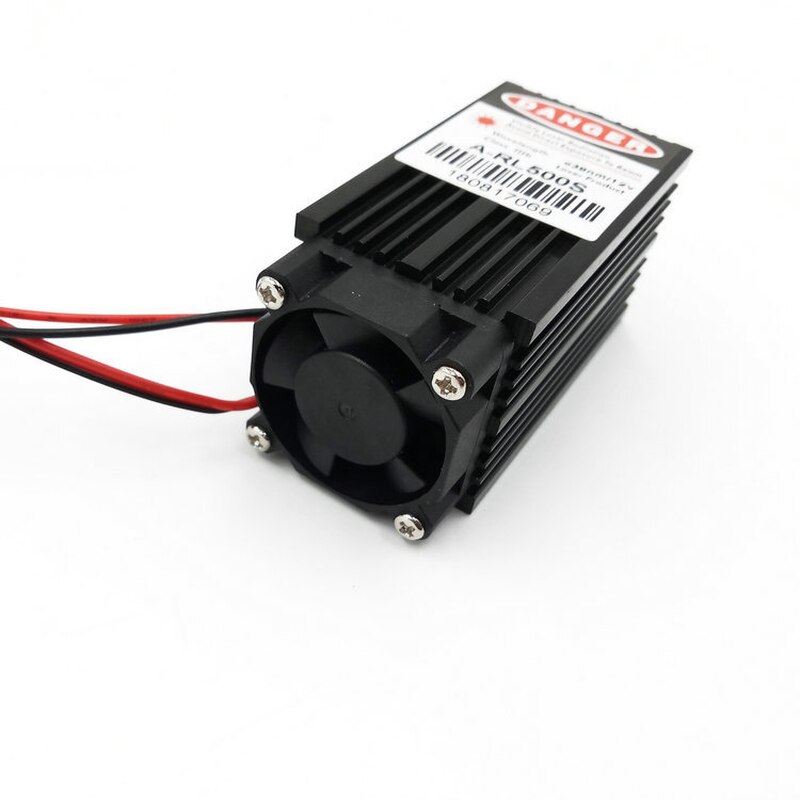

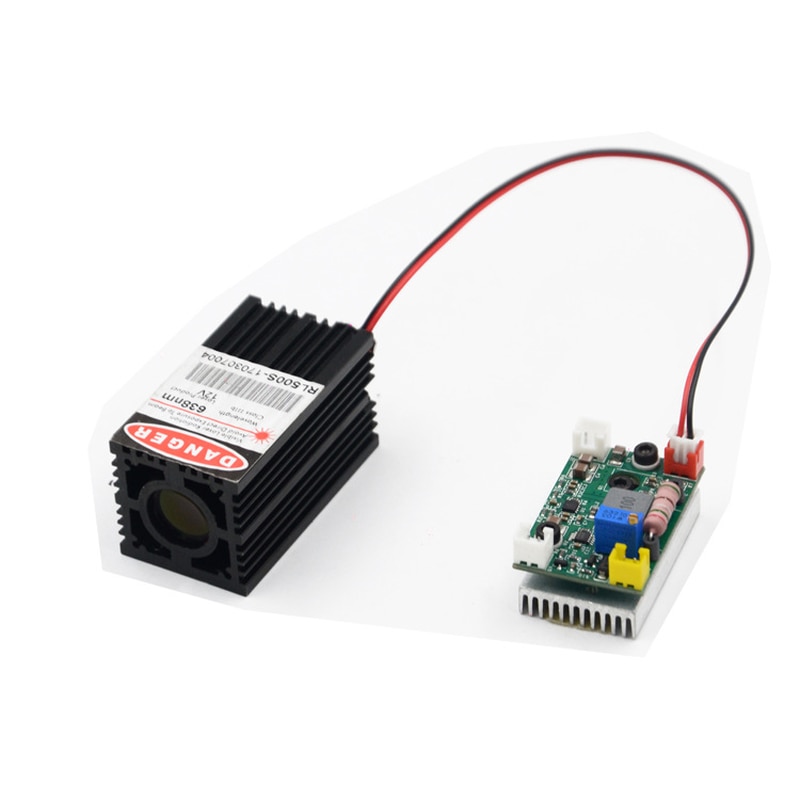

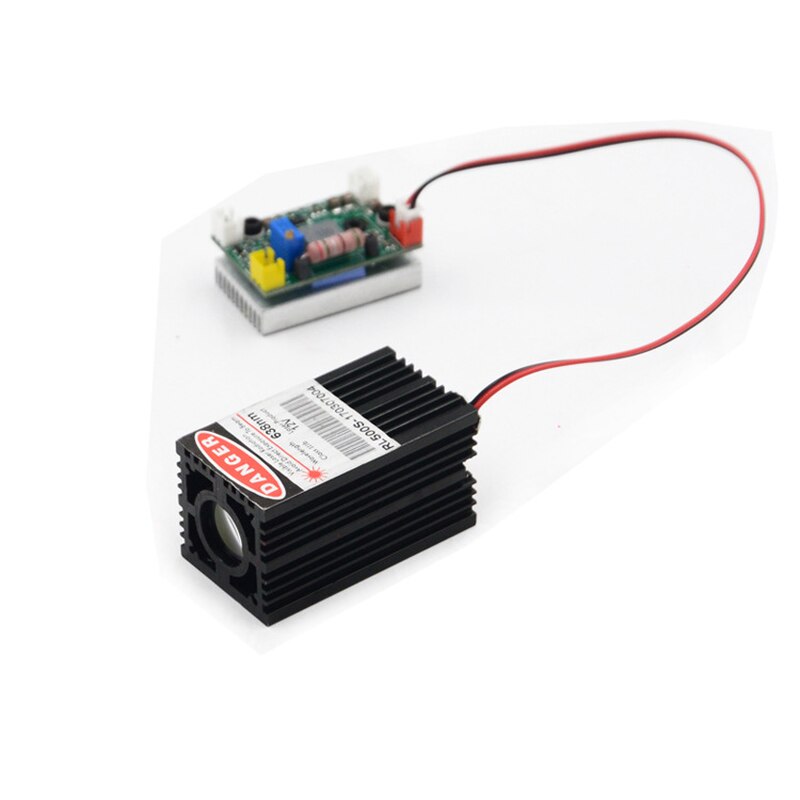

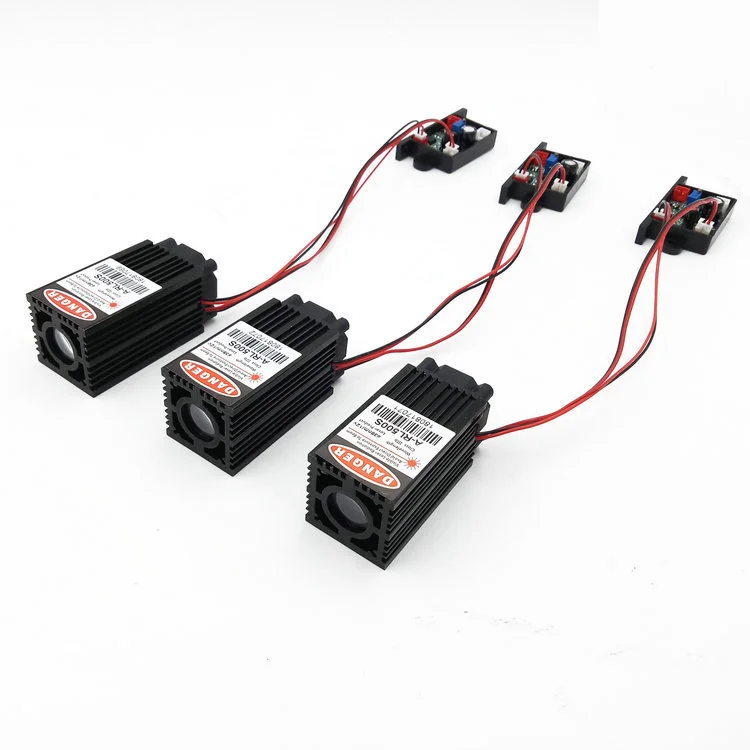

Dyue Laser Module red laser diode 500mW 638nm laser head add fibber high brightness laser with driver board for DIY stage laser light
Specification
Item name: 500mW 638nm laser diode
Model:ST-A-RL500S
Wavelength: 638nm
Outpower:500mw (more than or equal to 500mW)
Beam mode: dot
Beam divergence: 1 mrad (less than or equal to 1 mrad)
Laser class: class 3
Modulation mode: TTL (Analogue is optional)
Input stability: 5% (plus or minus 5%)
LD input voltage: DC3.3V
LD input current: 900mA
Power consumption: 12W
Working Temperature: -10~40 degrees celsius
Lifetime: 10,000 hours
Wire Length: 100mm
Size: 33X33x75mm
Weight: 0.5kg
Packing listing
1pcs laser diode
1pcs driver board
Warm note: (Because the product will continue to upgrade and improve,the above datas and pictures are just for your reference, specific please in kind prevail, before place your order, please contact us,tell us your specific requirements, we will try our best to meet your requirements )
