Description

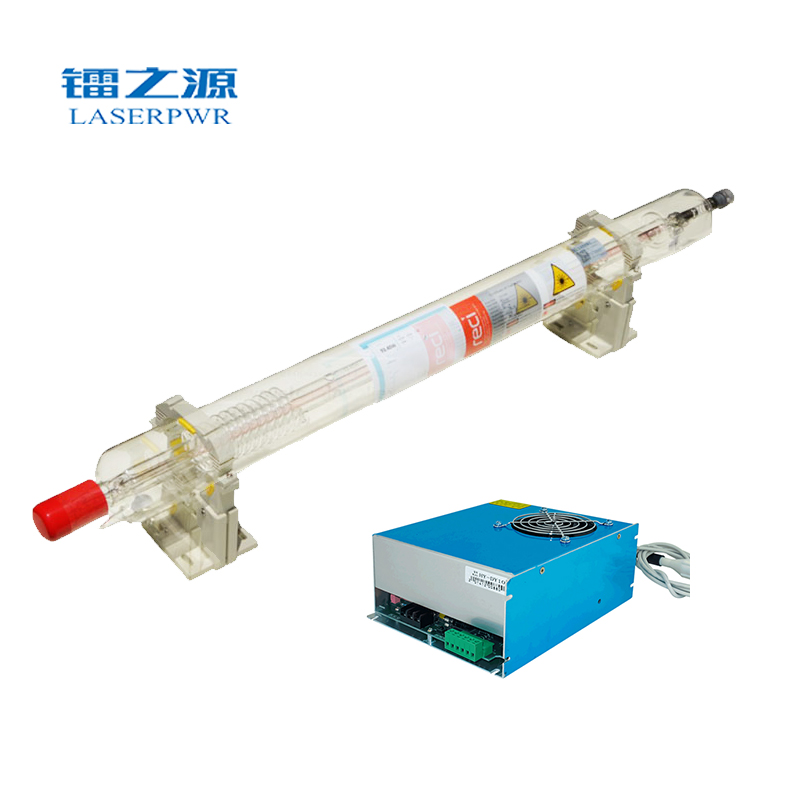

DY10 50W-80W Original Power Source + RECI 75w 1100mm Co2 laser tube device 110v 220v applicable to laser engraver/cutter machine
Product features
1) Good compatibility: It can be applicable to 80W laser tubes manufactured by different factories.
2) 2 Types can be selected:
Cutting type: Good power stability and strong adaptability;
Sculpture type: Fast response, Good engraving effect , it can prolongs the service life of laser tubesignificantly
Easy Control: High or low level all suitable
Open circuit protection Function: when the earth connection is under good situation,Power can be short time work in open state, it Can avoid the laser tube burst damage caused by laser power supply, prolong the laser tube’s service life.
One button to test the output laser manually.
2) 2 Types can be selected:
Cutting type: Good power stability and strong adaptability;
Sculpture type: Fast response, Good engraving effect , it can prolongs the service life of laser tubesignificantly
Easy Control: High or low level all suitable
Open circuit protection Function: when the earth connection is under good situation,Power can be short time work in open state, it Can avoid the laser tube burst damage caused by laser power supply, prolong the laser tube’s service life.
One button to test the output laser manually.
Specification
|
Type
|

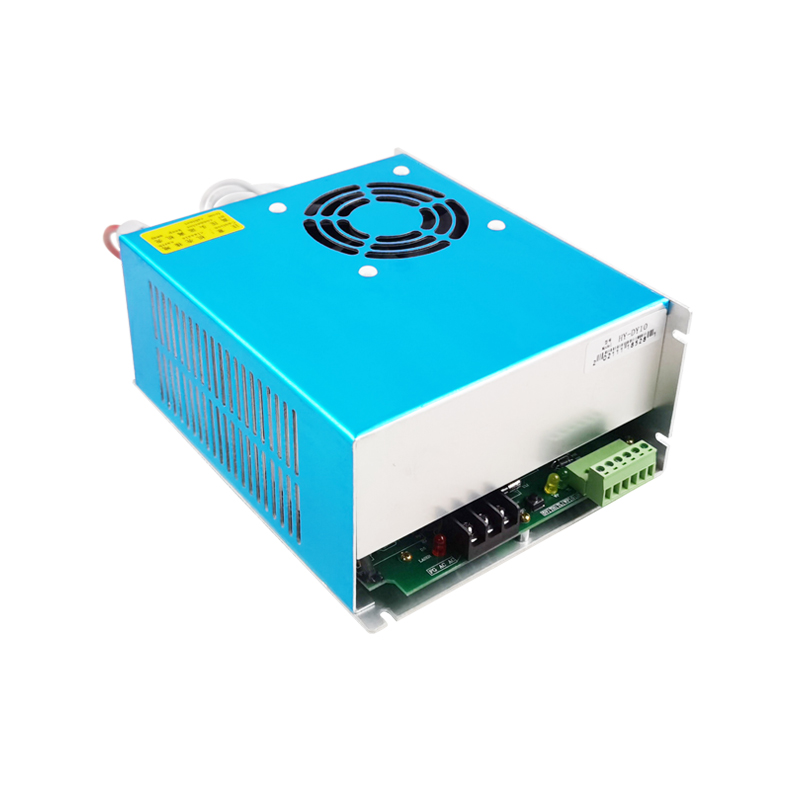

HY-DY10
|
HY-DY10
|
|
|
Input
|
Input voltage
|
AC220V or 110V(please specify when placing order)
|
|
|
AC frequency
|
47-440HZ
|
||
|
Max input power
|
450W
|
||
|
Max input current
|
5A
|
||
|
Output
|
Max output voltage
|
35KV
|
|
|
Max output current
|
24mA
|
||
|
Efficiency
|
>=90%(full load)
|
||
|
MTBF(Mean time between failure)
|
>=10000hours
|
||
|
Response speed
|
<=1ms(from the TTL signal is given to the output current up to
90% of setting current)
|
||
|
Withstand voltage
|
Input-output,input-enclosure:AC1500V 10mA 60s,
output cathode is connected with enclosure.
|
||
|
Environment
|
Operating temperature:-10~40degrees, relative humidity:<=90%
|
||
|
Cooling
|
Force air cooling(FAC)
|
||
|
Dimension
|
78*155*75mm
|
||
|
Weight
|
1.75kg
|
||
Product Description

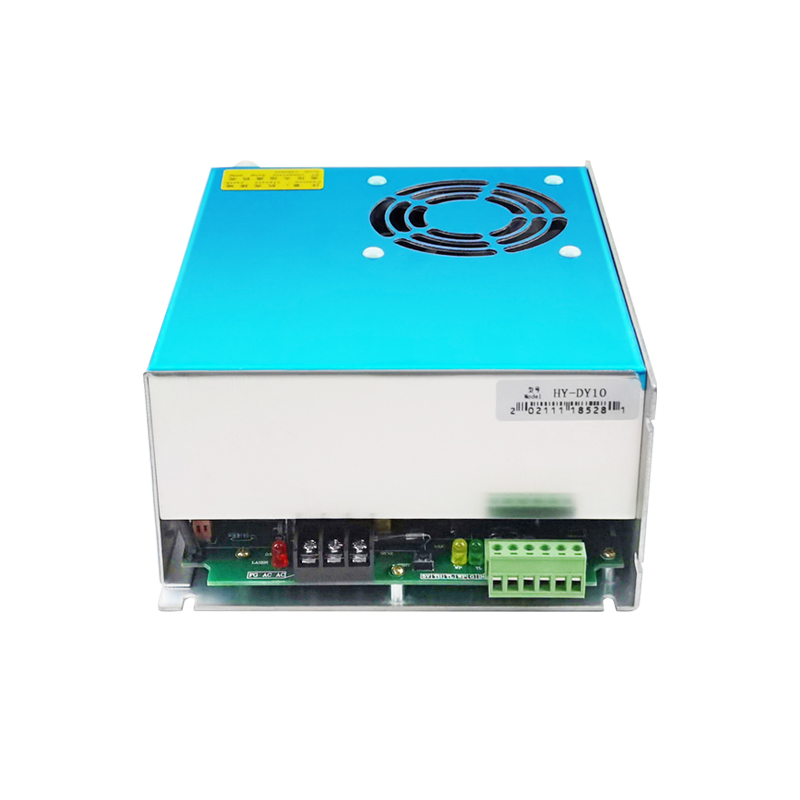

HY-DY10 power supply Manual Test Method Frstly make sure HY-DY10 power supply and laser tube correct well, disconnect the control terminal and press the button” TEST” on HY-DY10 power supply for 5- 10seconds to check if there is laser output from laser tube. This method is easily to judge if power supply is ok.

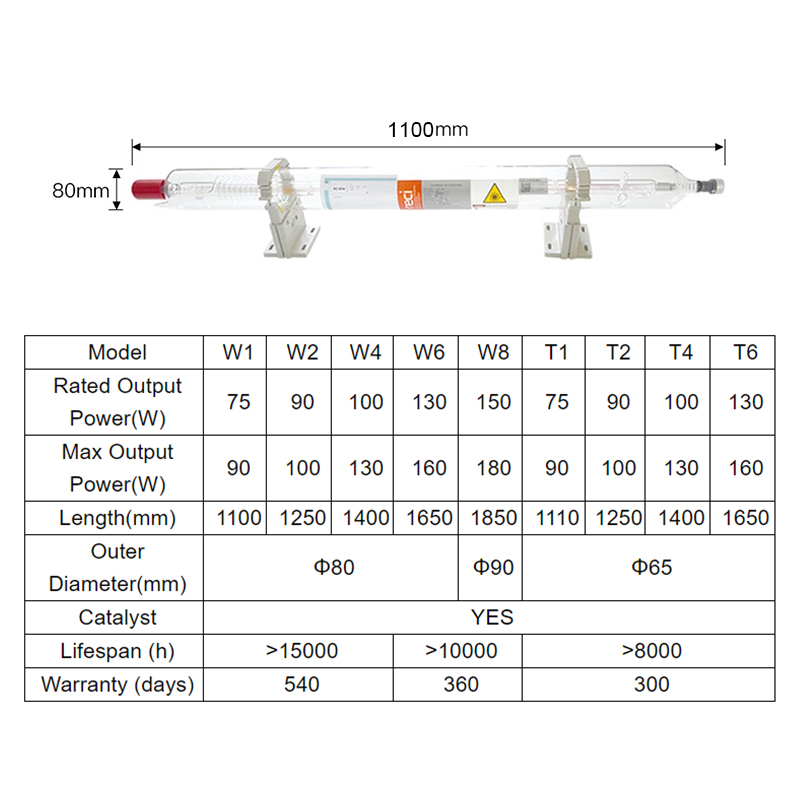

RECI W1
Sample display
