Description
- Origin: CN(Origin)
- Certification: CE
- Application: LASER CUTTING, APP Wireless Control by phone or PC
- Condition: New
- Laser Type: DIODE
- Cutting Area: 420*255mm
- Cutting Speed: 0-100
- Graphic Format Supported: DXF, BMP, nc .jpg .png
- CNC or Not: Yes
- Cooling Mode: Air Cooling
- Place of Origin: Guangdong, China
- Laser Source Brand: Original
- Weight (KG): 3.2 KG
- Key Selling Points: High-accuracy
- Warranty: 2 years
- Machinery Test Report: Provided
- Video outgoing-inspection: Not Available
- Warranty of core components: 2 years
- Core Components: laser module

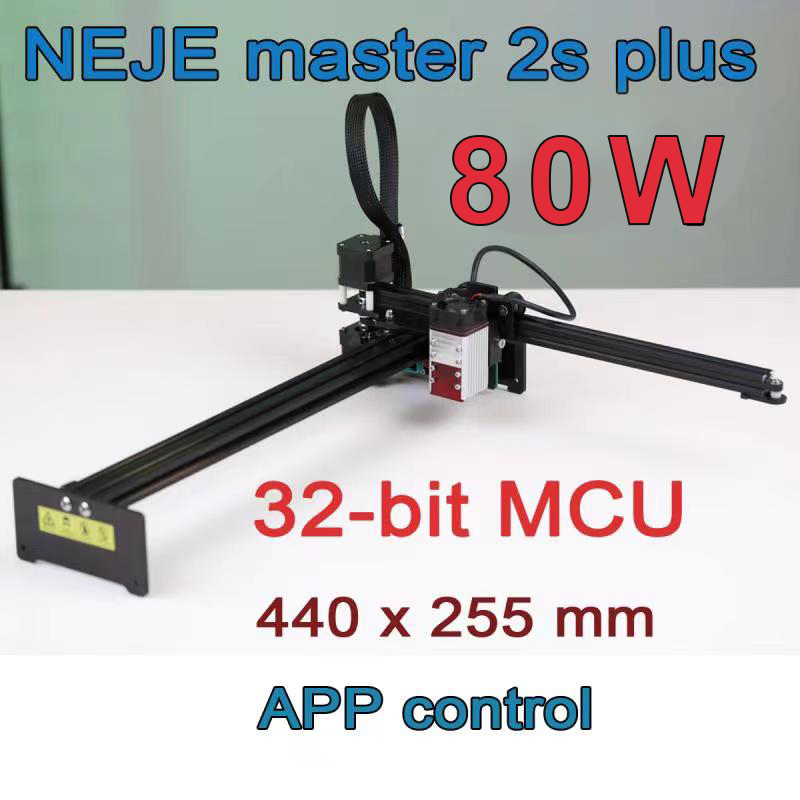

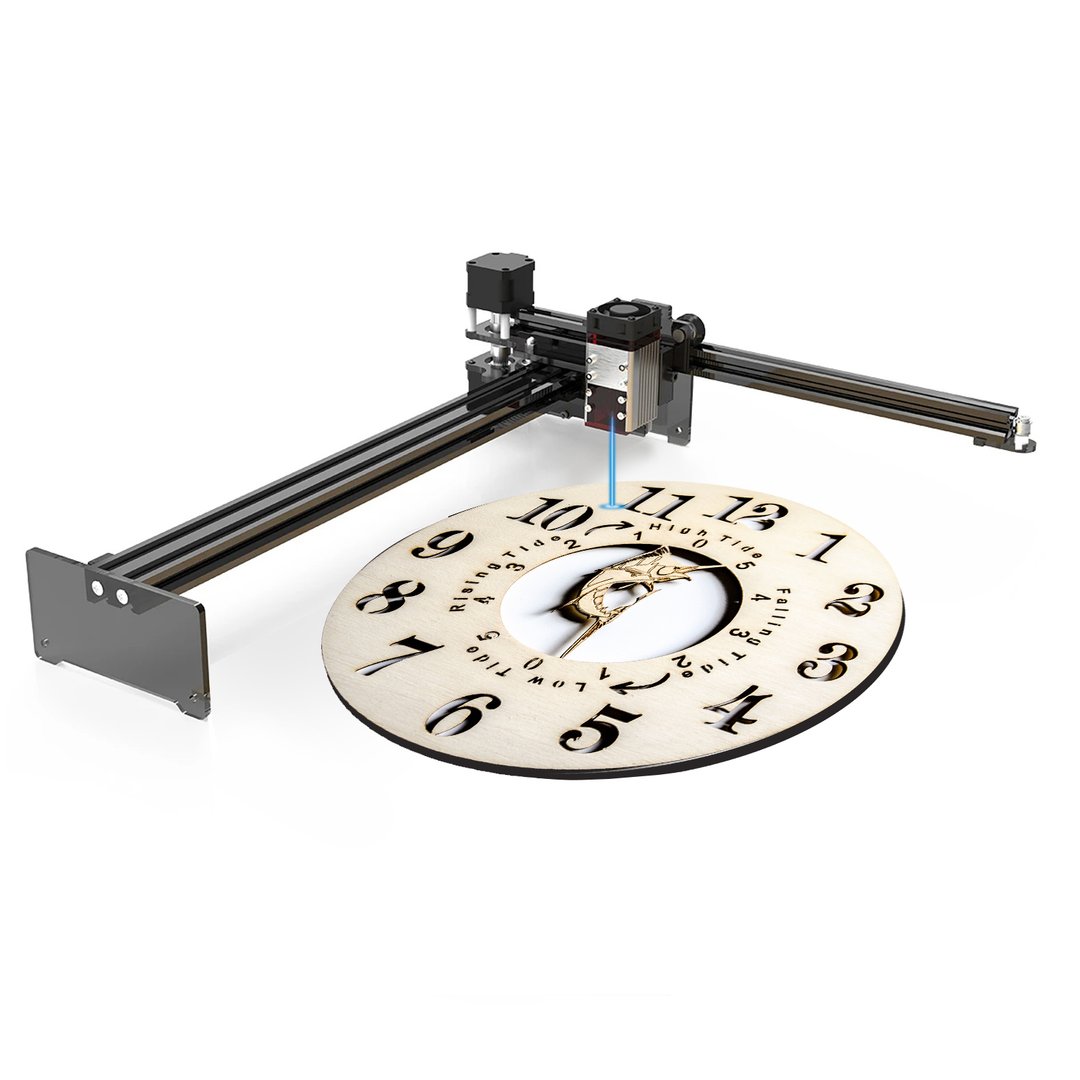

- Product name: NEJE Master 2S plus 255 x 420 mm engraving machine, laser cutter
- Model: NEJE Master 2S plus A40640 80w
- Control Board: 1 x MCU Wireless control MEMS
- Optical Power: 450nm 15W
- Dot pitch: 0.075mm
- Luminous Color: blue
- Satety Protection: MEMS
- features: High Speed
- system supported: windows/ android / iOS / macOS
- Showroom Location: None
- Marketing Type: New Product 2021
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:289.20549084858567px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:289.20549084858567px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#bbb;font-family:Roboto;font-size:24px;color:#000;background-color:#bbb;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-5{vertical-align:top}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:24px}#detail_decorate_root .magic-10{font-size:22px}#detail_decorate_root .magic-12{font-size:22px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:166px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:540px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:166px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:540px;box-sizing:content-box}#detail_decorate_root .magic-18{font-size:20px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-19{font-size:18px}#detail_decorate_root .magic-20{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-21{margin-bottom:0}#detail_decorate_root .magic-22{position:relative;width:100%}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:846.5425531914893px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:846.5425531914893px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:739.627659574468px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:739.627659574468px}#detail_decorate_root .magic-29{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-30{font-size:20px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:758.8614393125671px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:758.8614393125671px}#detail_decorate_root .magic-33{font-size:16px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:563.0136986301369px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:563.0136986301369px}#detail_decorate_root .magic-36{overflow:hidden;width:373px;height:209.8125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:373px;height:209.8125px}#detail_decorate_root .magic-38{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:434.2857142857142px;height:208.99999999999997px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:560.7421875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:560.7421875px}#detail_decorate_root .magic-44{overflow:hidden;width:247.33333333333334px;height:347.85383244206776px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:247px;height:347px}#detail_decorate_root .magic-46{overflow:hidden;width:247.33333333333334px;height:347.4682860998651px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:247px;height:439px}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:256px;height:347px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:576.9230769230769px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:576.9230769230769px}#detail_decorate_root .magic-51{font-weight:bold;font-size:18px}#detail_decorate_root .magic-52{font-weight:bold}
Related Products
Selling points:
1. Warehouse in Netherlands,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders
4.Accept OEM/ODM orders
Product Description
Portable Mini Laser Marker 80W pro 450nm Diode Laser Marking Machine Qr Code Laser Engraving Machine

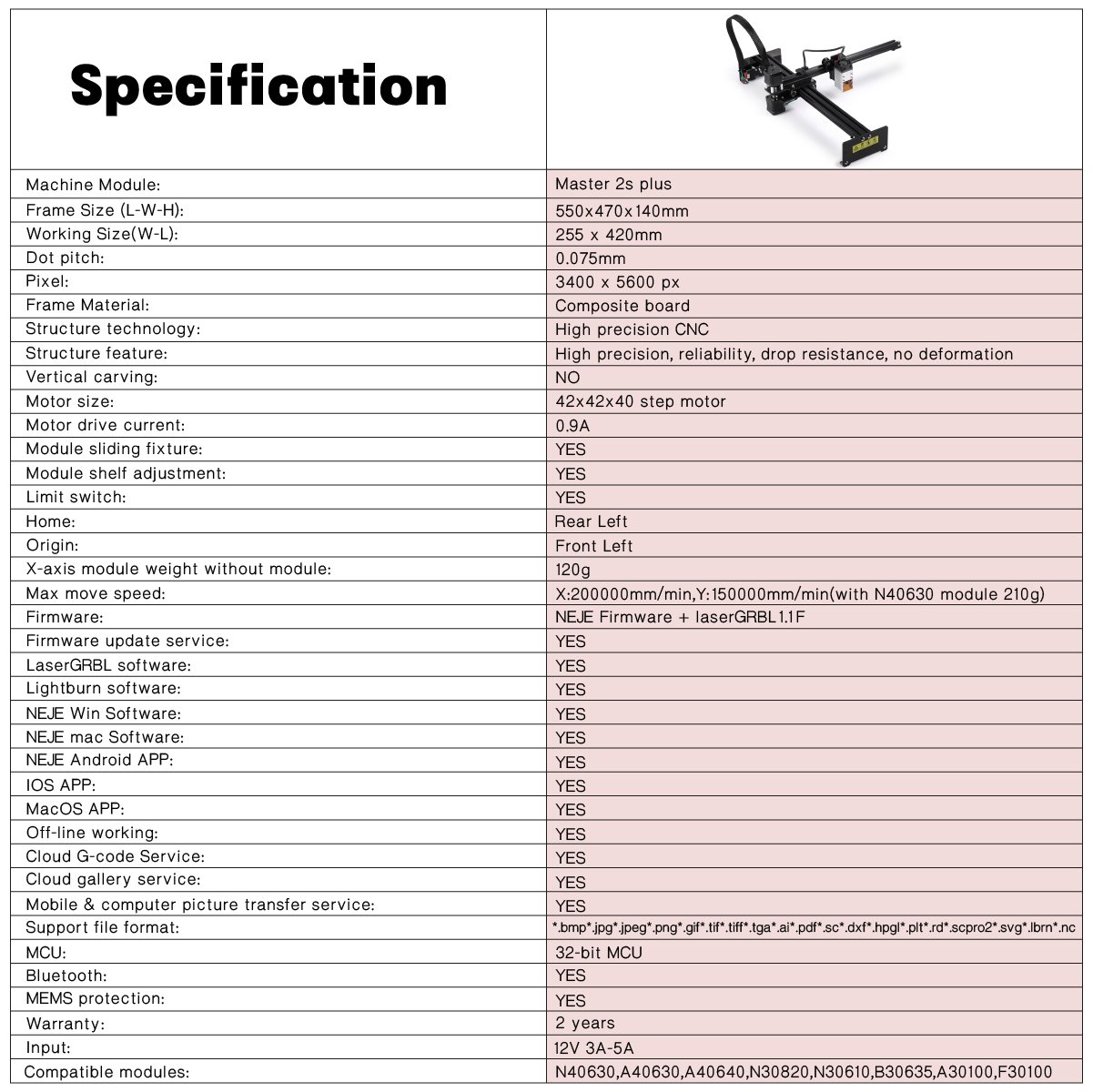

Specifications:
Specifications:
|
Product name
|
NEJE Master 2S plus A40640 80W pro 255 x 420 mm engraving machine, laser cutter
|
|
Model
|
NEJE Master 2S plus A40640 80W pro
|
|

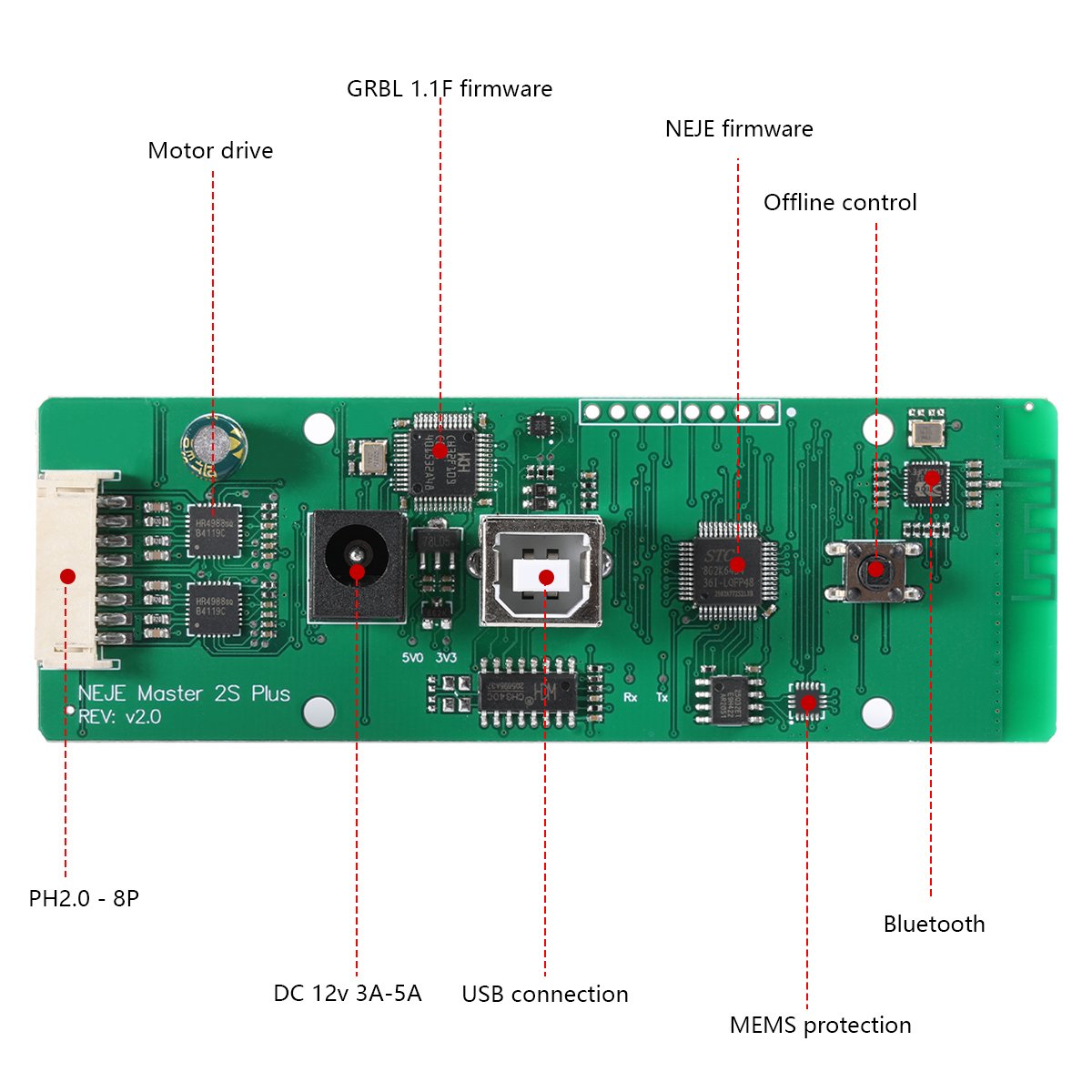

Control Board
|
1 x MCU + Wireless control + MEMS
|
|
Optical Power
|
450nm 15W
|
|
Dot pitch
|
0.075mm
|
|
Luminous Color
|
blue
|
|
Satety Protection
|
MEMS
|
|
Application
|
APP Wireless Control by phone or PC
|
|
features
|
High Speed
|
|
system supported
|
windows/ android / iOS / macOS
|
|
Material
|
Aircraft Aluminum + Brass Shell
|
|
Working area
|
420*255mm
|
|
Luminous Color
|
Blue
|
|
Section Size:
|
40mm x 40mm
|
|
Cooling Mode:
|
Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
|
|
Dimension
|
60 * 40 * 40mm
|
|
Adapter Plug:
|
5.5 2.1 port
|
|

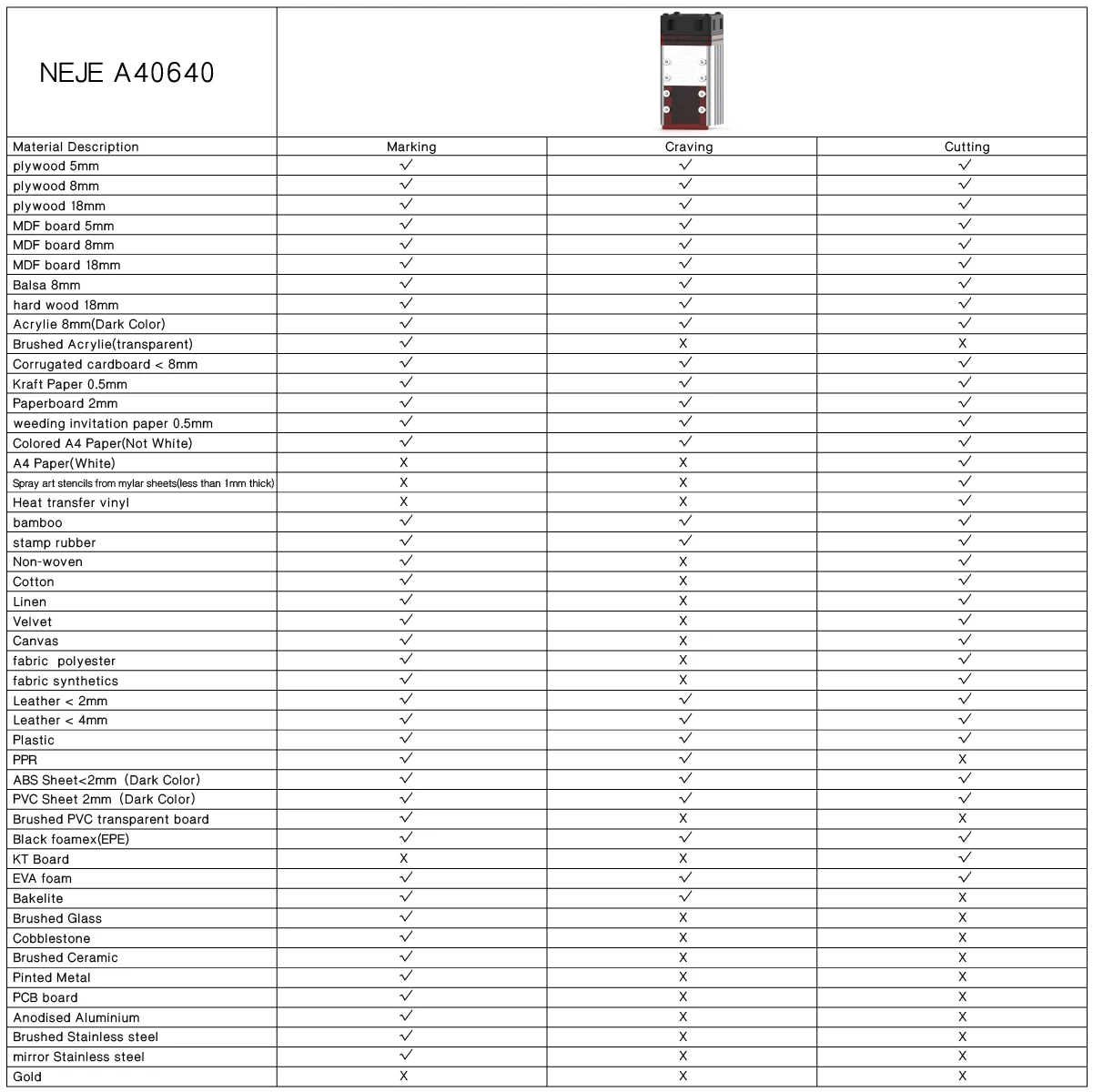

Can Engrave
|
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam
Paper/Anodized Aluminum |
|
Can Not Engrave:
|
Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
|
|
Module Input
|
80W
|
|
Life Time
|
10000-20,000 hours
|
|
Wavelength
|
445-450nm
|
|
Optical power output
|
15W (1500mW)
|
Feature:

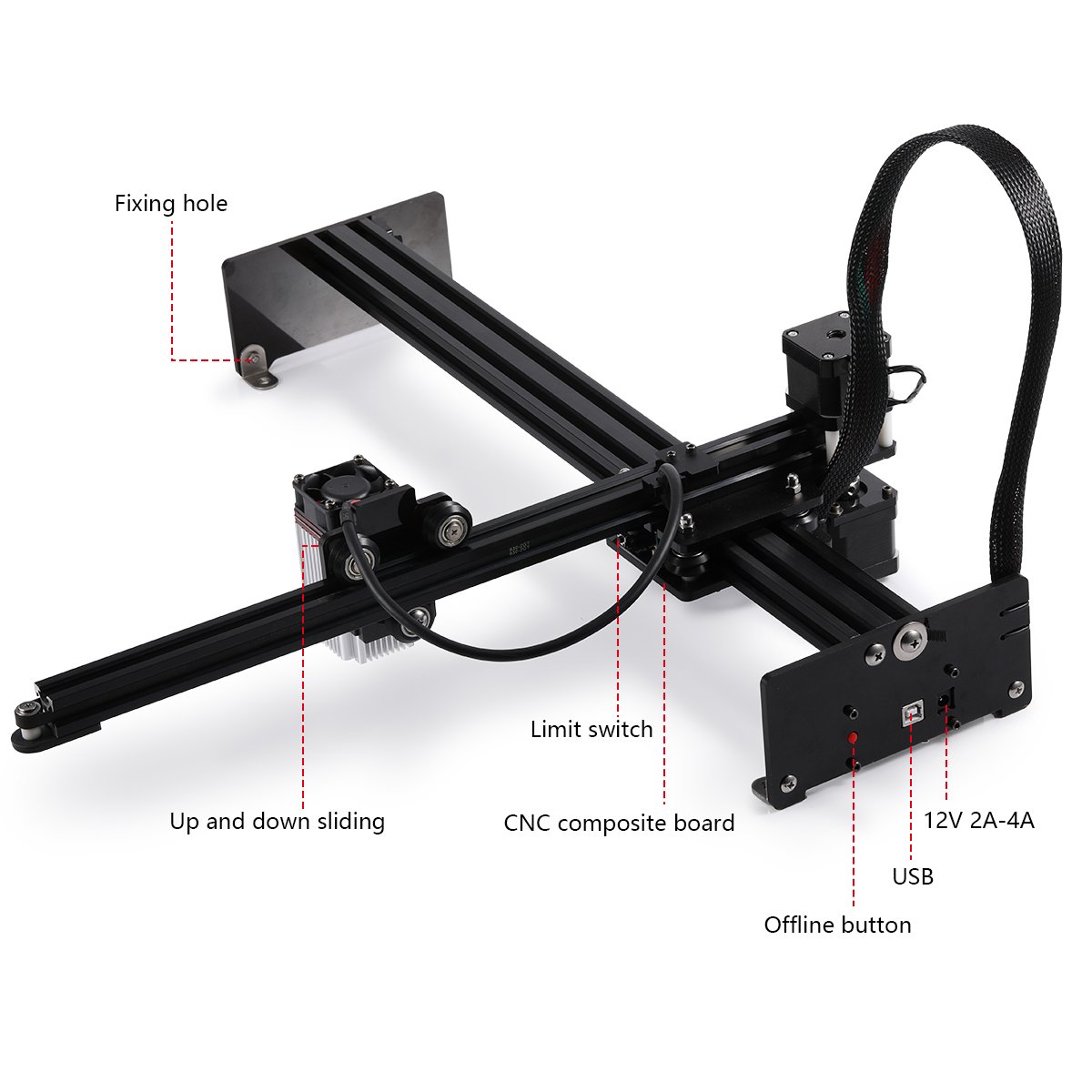

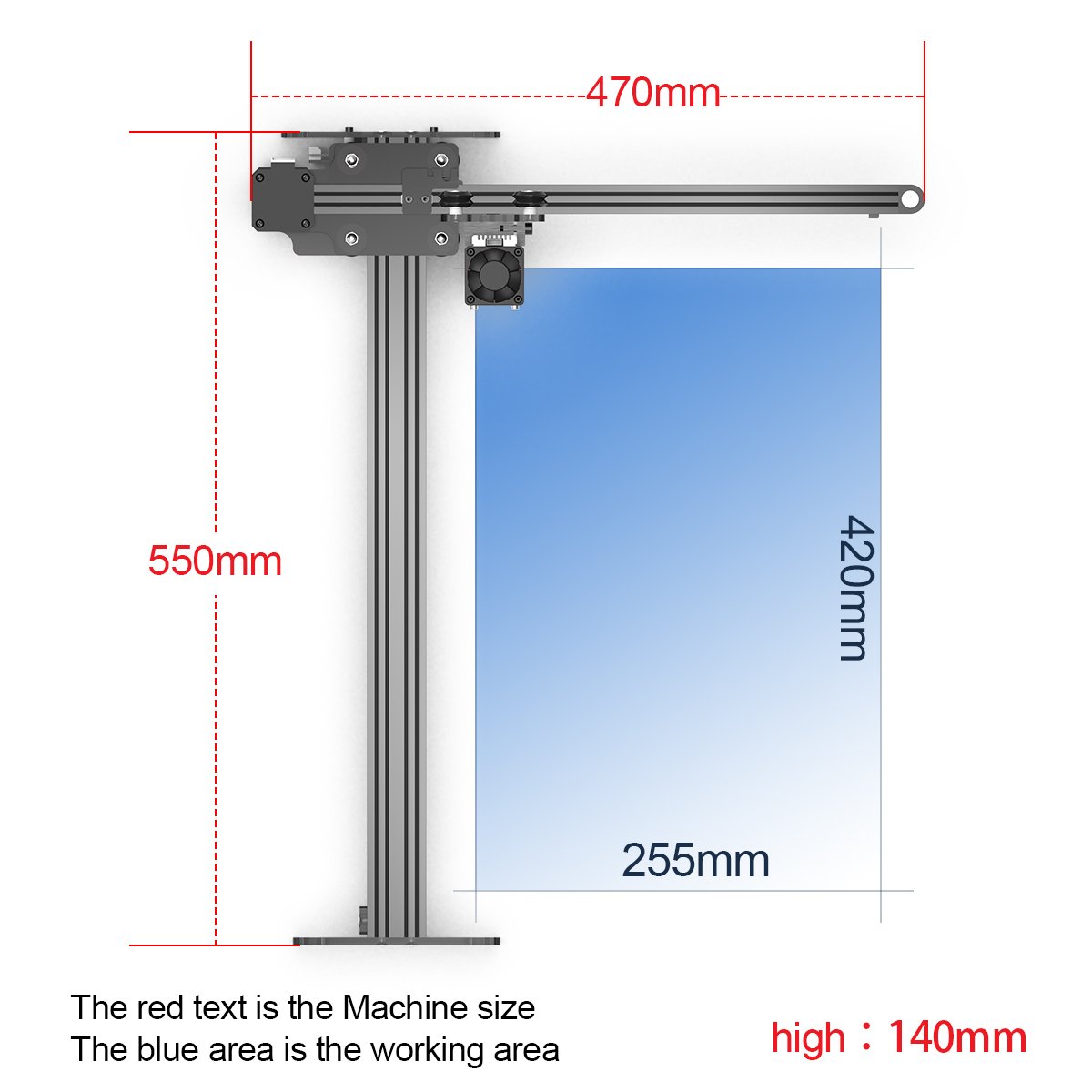

– 【420 x 255 mm】Just fit on a desktop with a width of 600mm, and the left side of the machine is not limited by the size of the
material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the
engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm
thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels,
engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the
installation.
material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the
engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm
thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels,
engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the
installation.

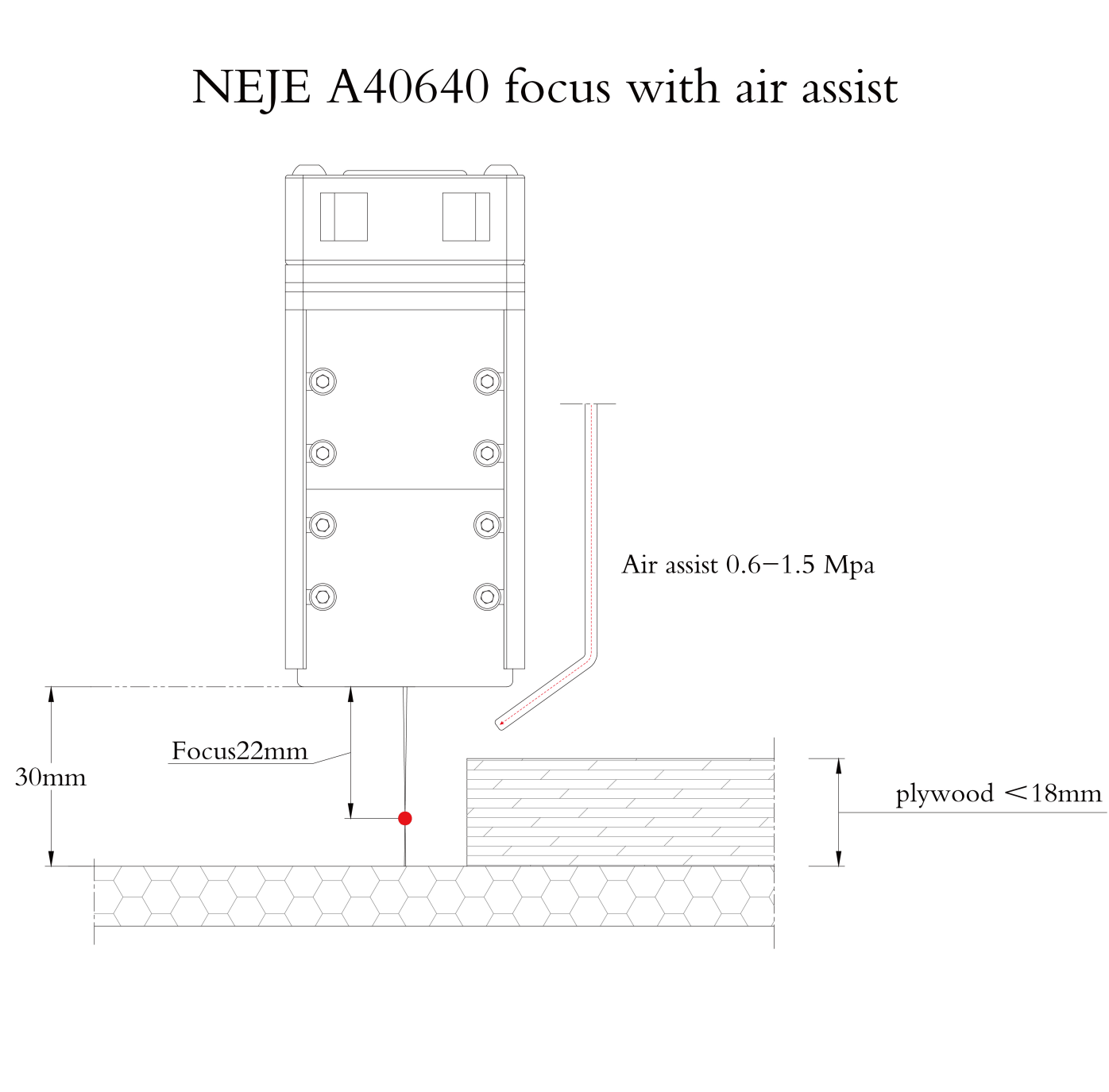

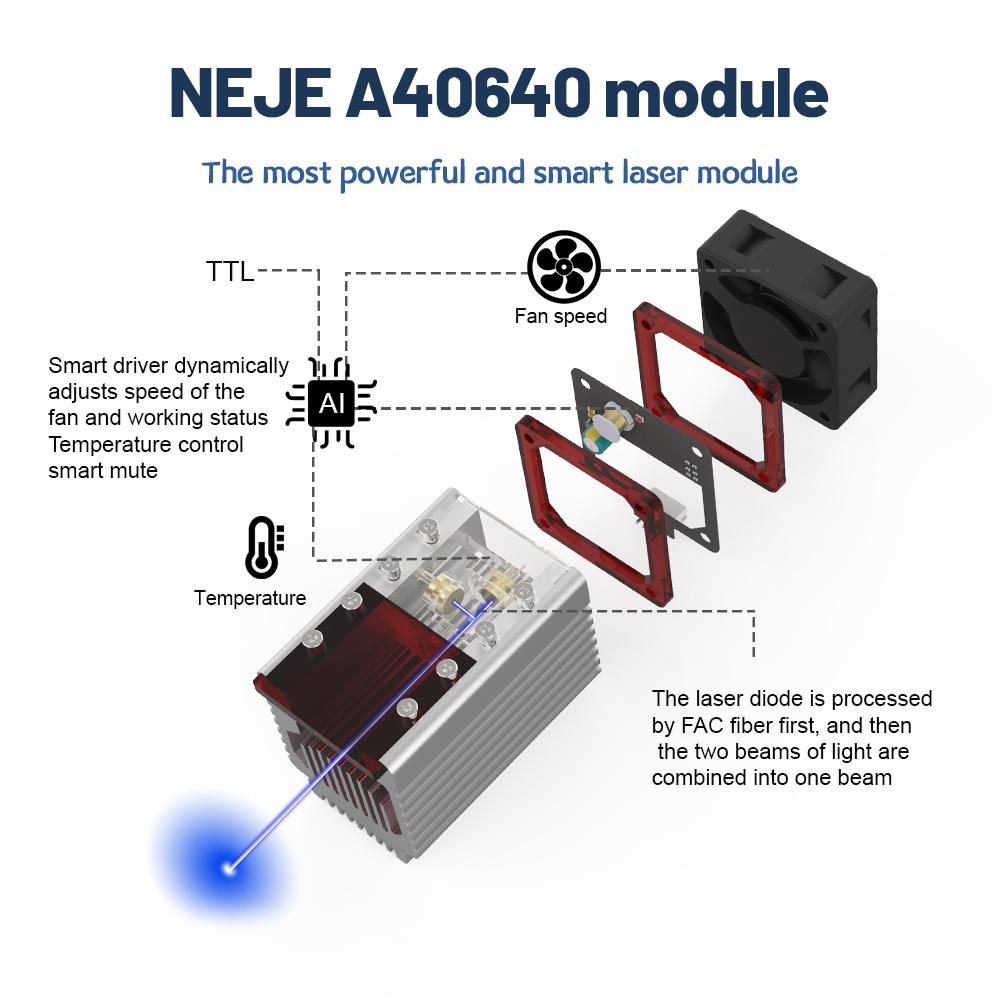

-【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum
focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature
feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

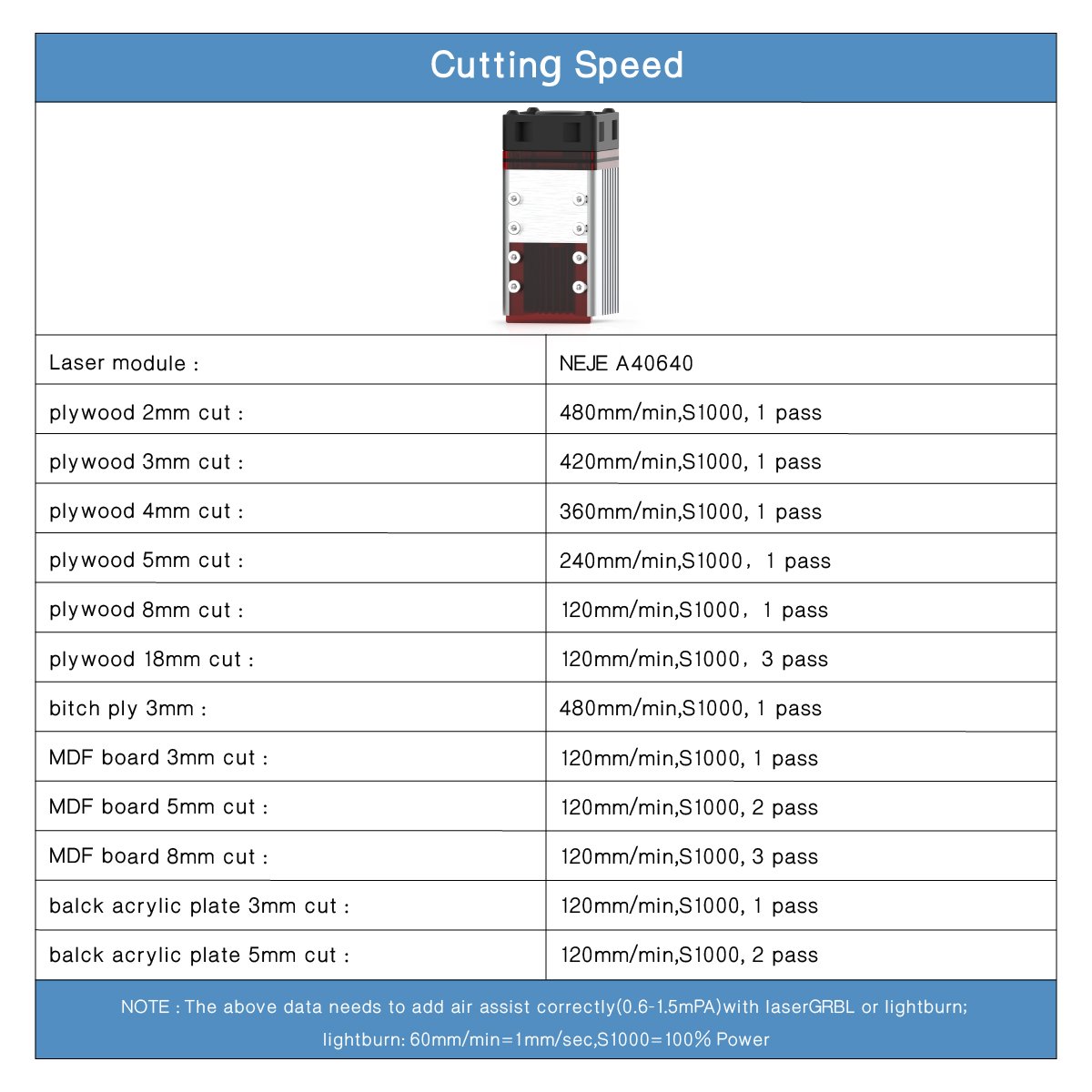

-【More materials, clearer】 Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs air-assisted cutting
once (A40640), and the cutting is very clean. Can directly engrave stainless steel, glass, transparent acrylic and so on.

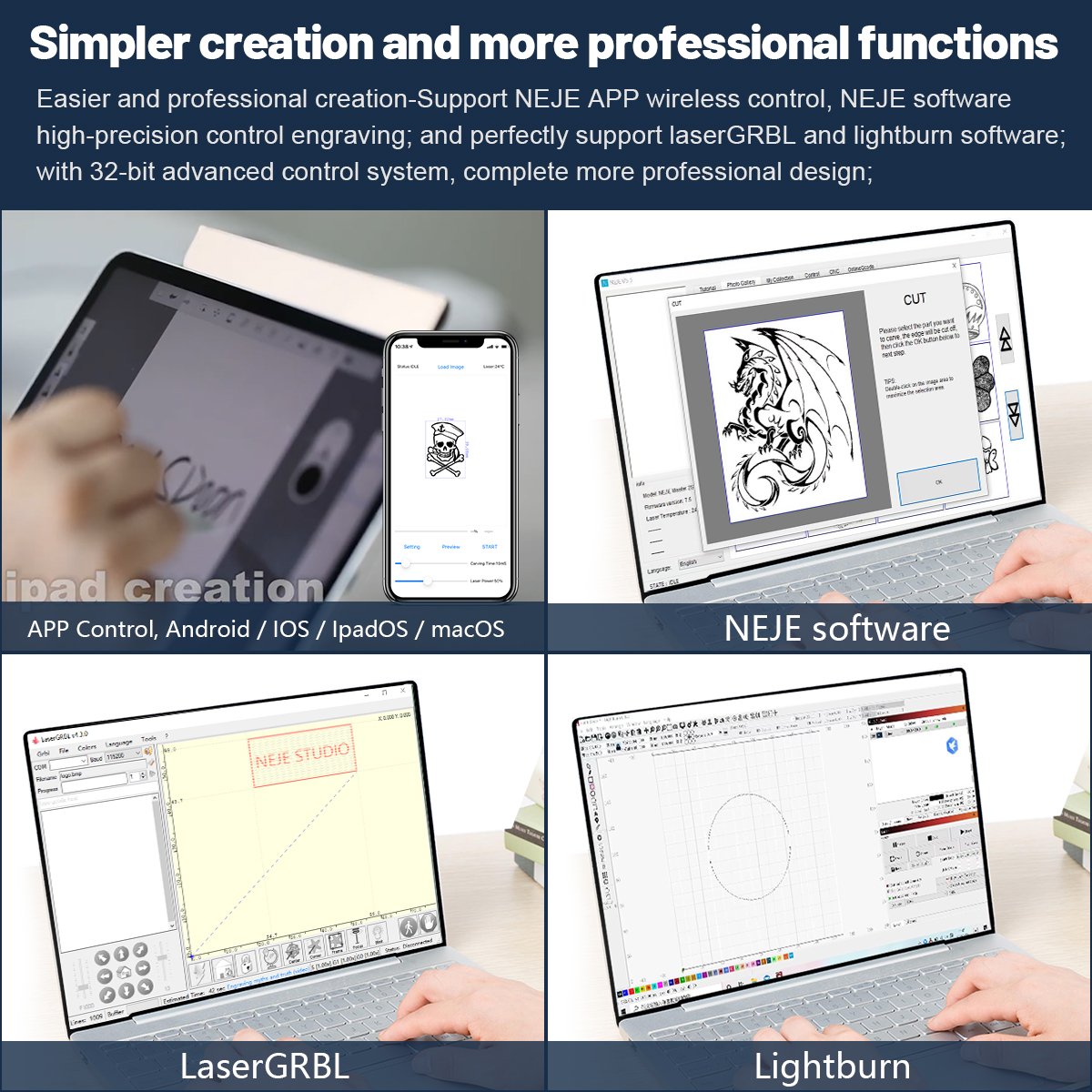

-【Portable professional control software]】32-bit control system, the fastest speed can reach 200,000mm/min, supports LaserGRBL,

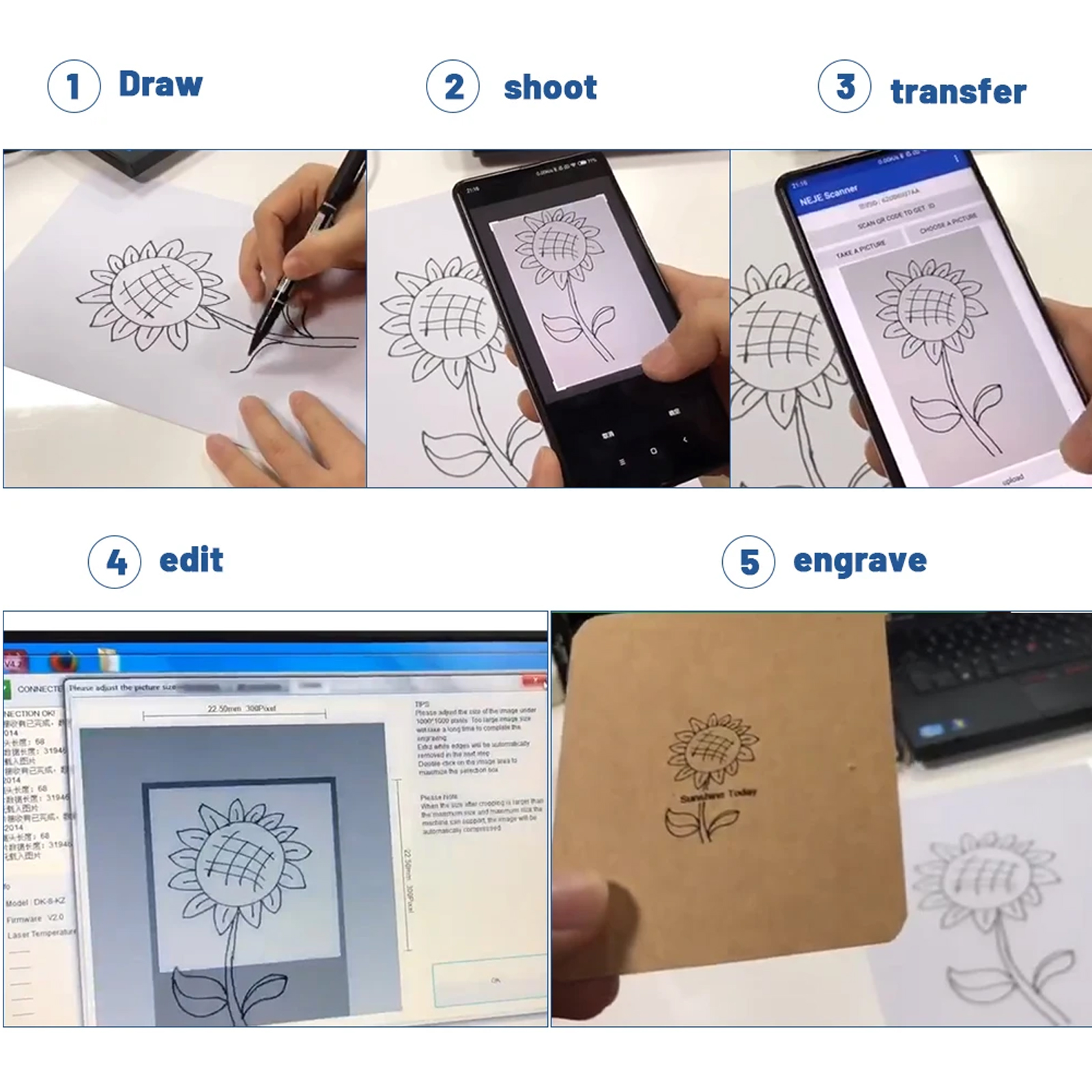

Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS), you can change it by taking photos with your mobile phone or
selecting images from the album To complete the work quickly, NEJE provides free software upgrade services.
-【Perfect after-sales service]】The whole machine is guaranteed for free for 2 years (laser module: 2 years and 20,000 hours
warranty), and vulnerable parts are shipped worldwide within 24 hours.

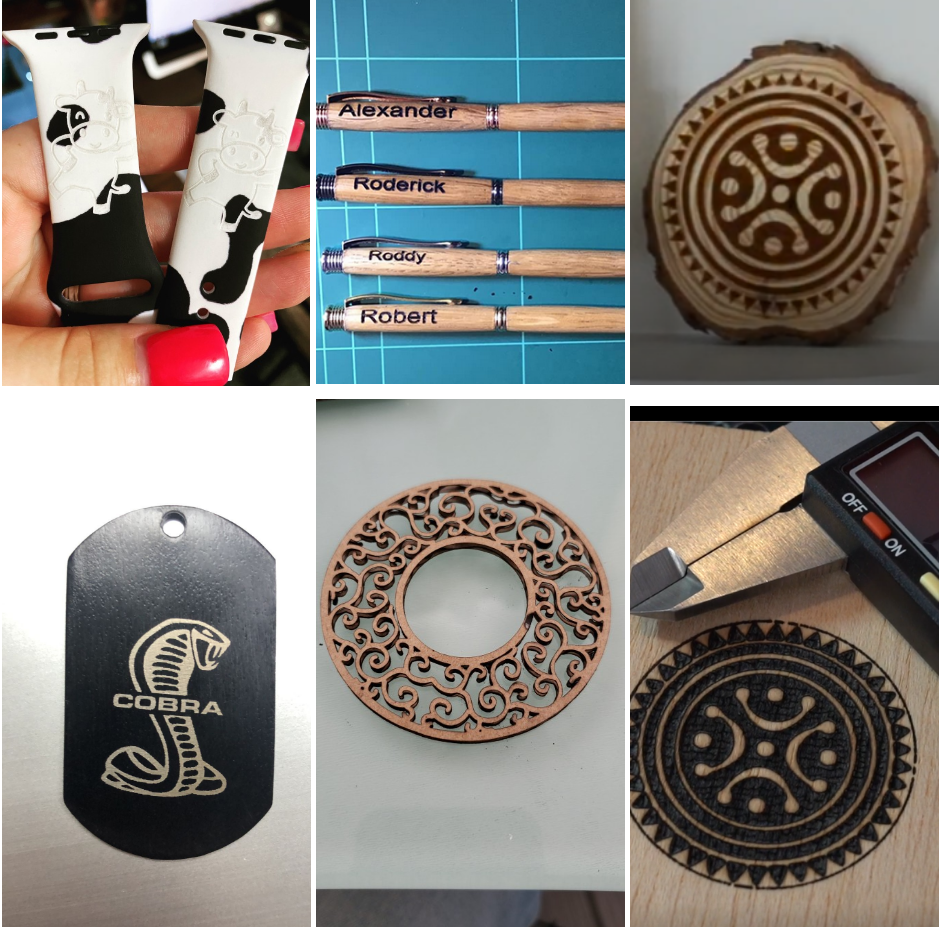

Users feedback

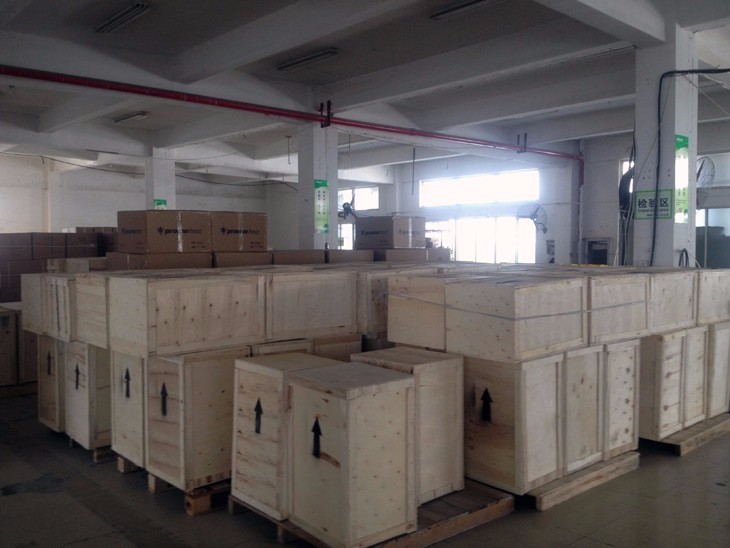

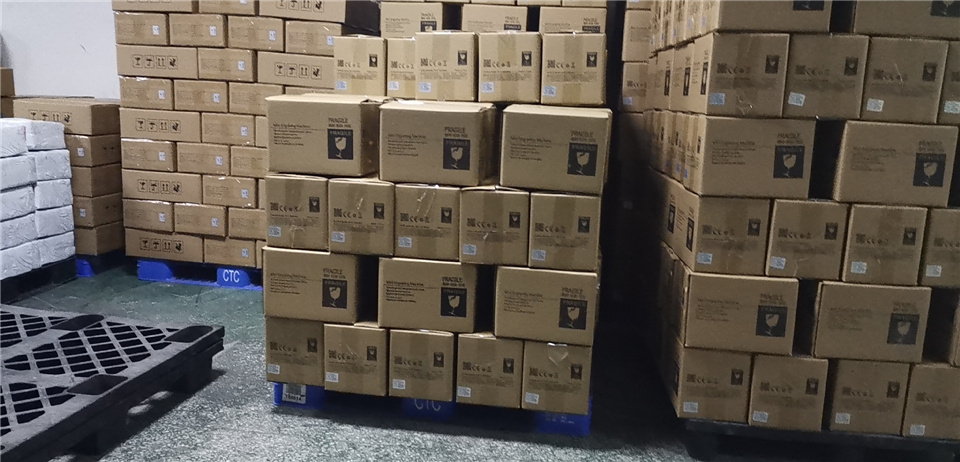

Packing&Shipping

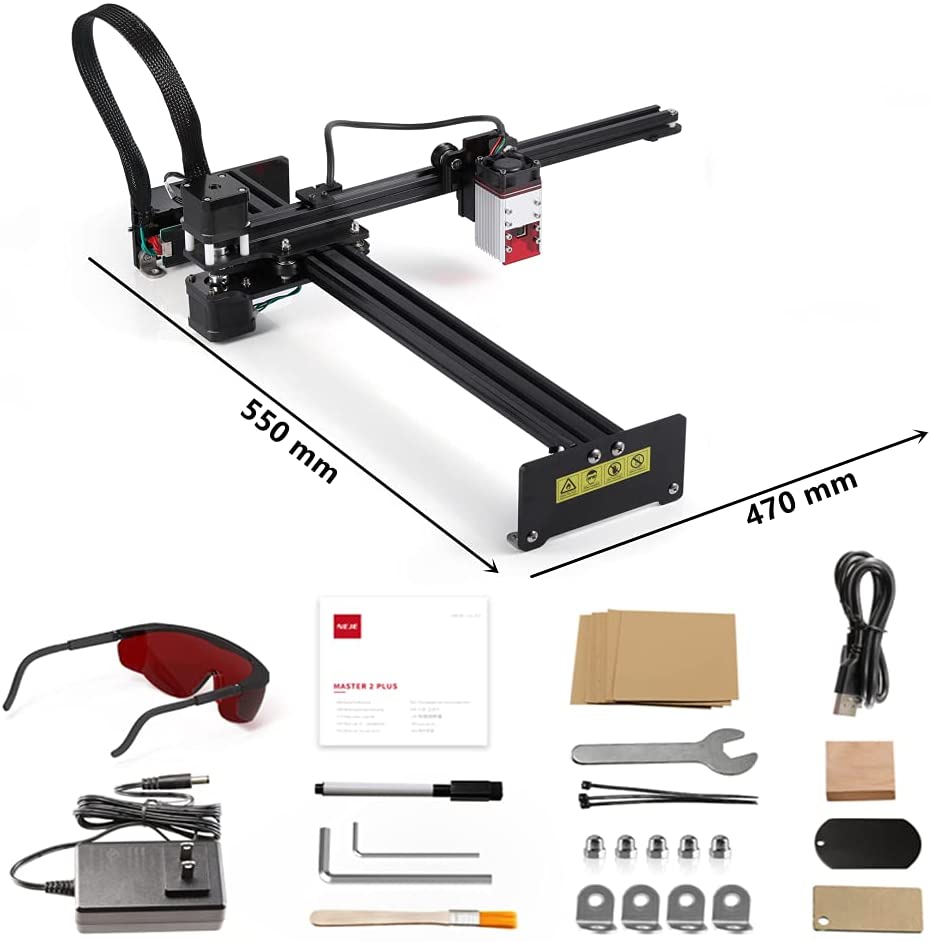

Package List:
* Laser engraving machine x1
* Laser Module x1
* 12V4A power supply x1
* Manual x1
* Goggles x1
* (Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5,large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)
* Laser Module x1
* 12V4A power supply x1
* Manual x1
* Goggles x1
* (Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5,large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)

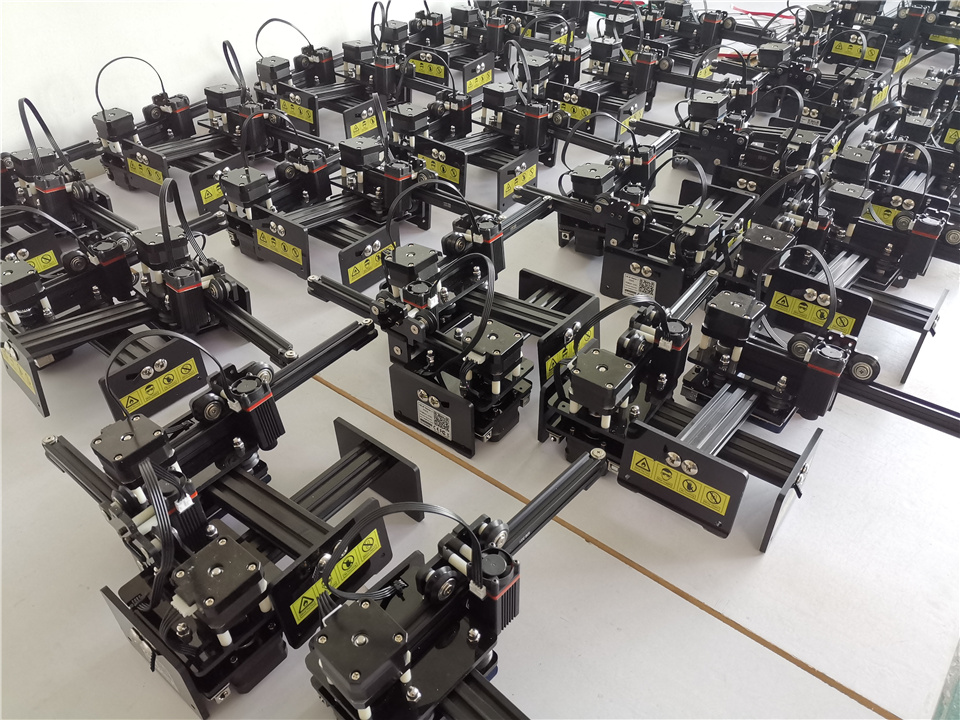

Company Introduction
As an integrated enterprise, Shenzhen Xinghuan Trade Co., Ltd. is a professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer since 2013. Factory covers over 3000 square metres with 5 senior product engineers for new research and development.
Xinhuan has a professional team consisting of sales, international trade experts, and e-commerce experts. Our factory has been engaged in the manufacturing fields of USB Laser Engraver more than 6 years. Our product exported over 1000,000USD each year.
We have developed and kept over five leading products with independent intellectual property rights and put them to the market every year. The products are sold all over the world and are well received by customers.

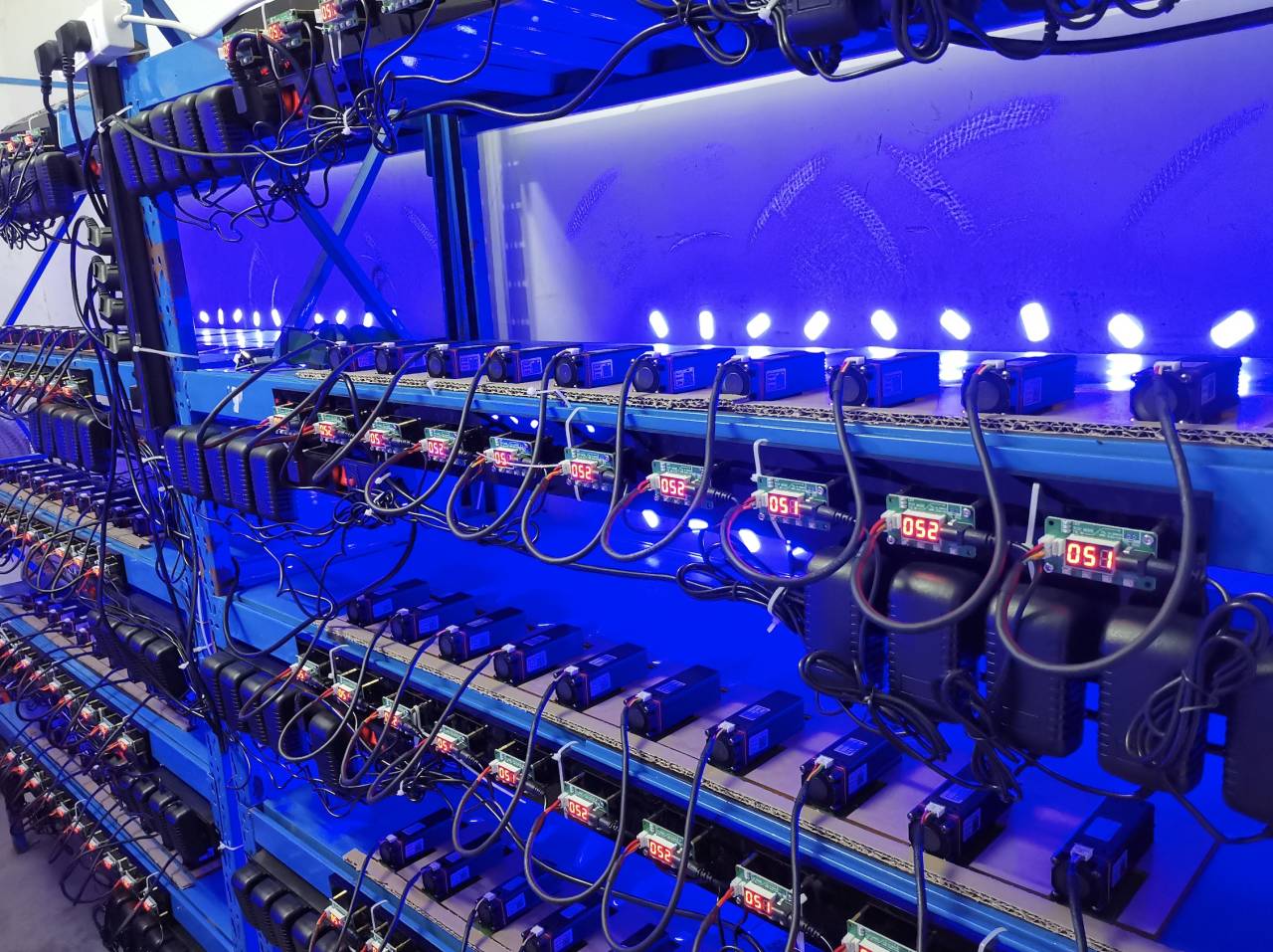

Quality Guarantee
Located in Shenzhen, we have our own production line, global distribution network and supply system, and strong technical strength. We have 3 domestic and foreign invention patents,30 utility model patents, and 28 design patents. Our factory is certified by ISO9001 quality system and ISO140001 environmental management system. All products have passed CE,ROHS, FCC,UL,SDS certificates and so on.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

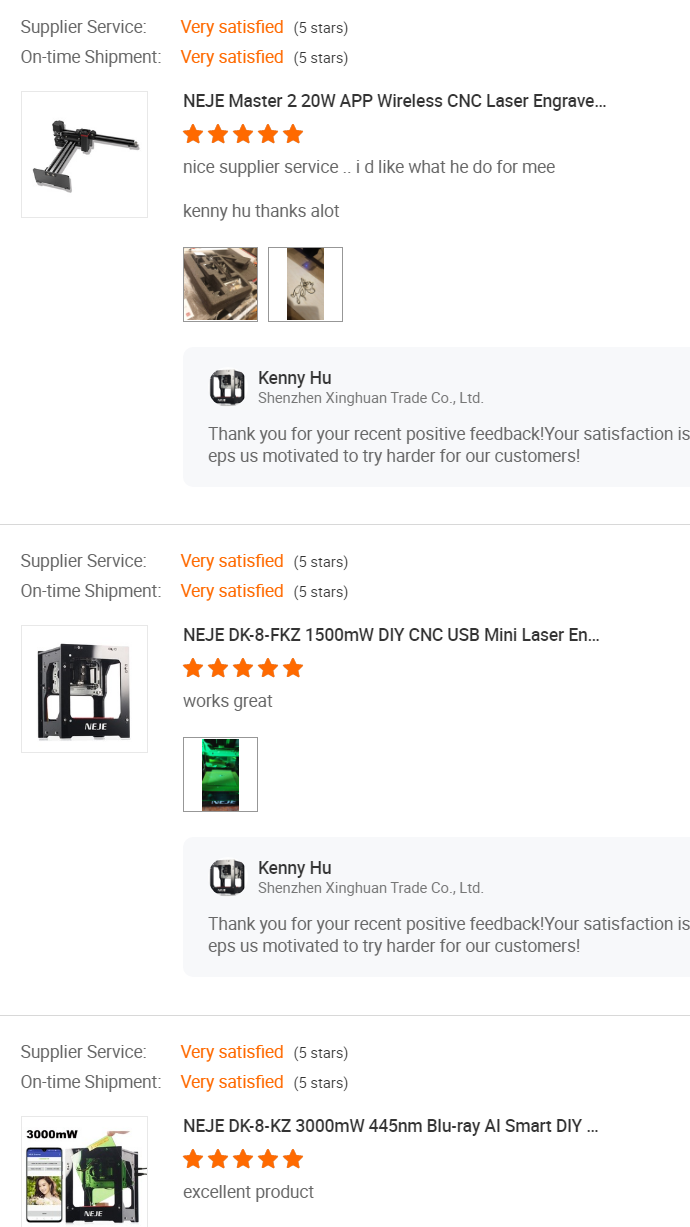

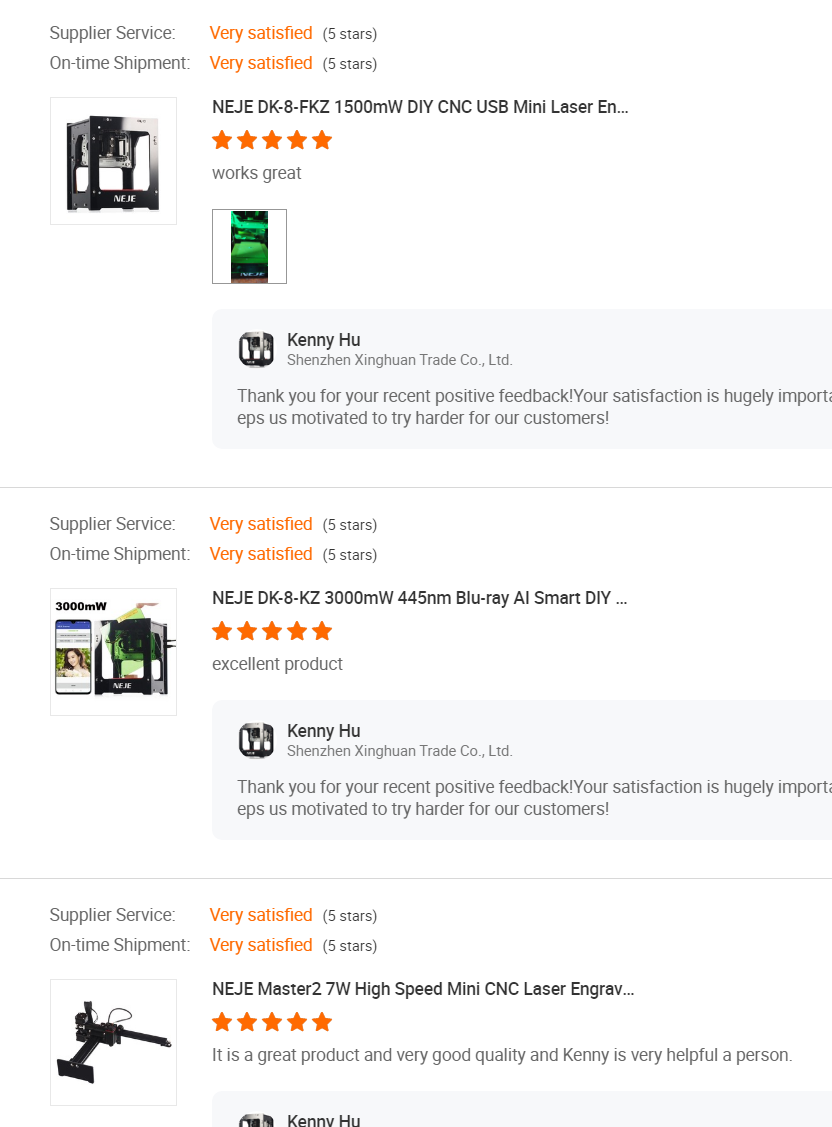

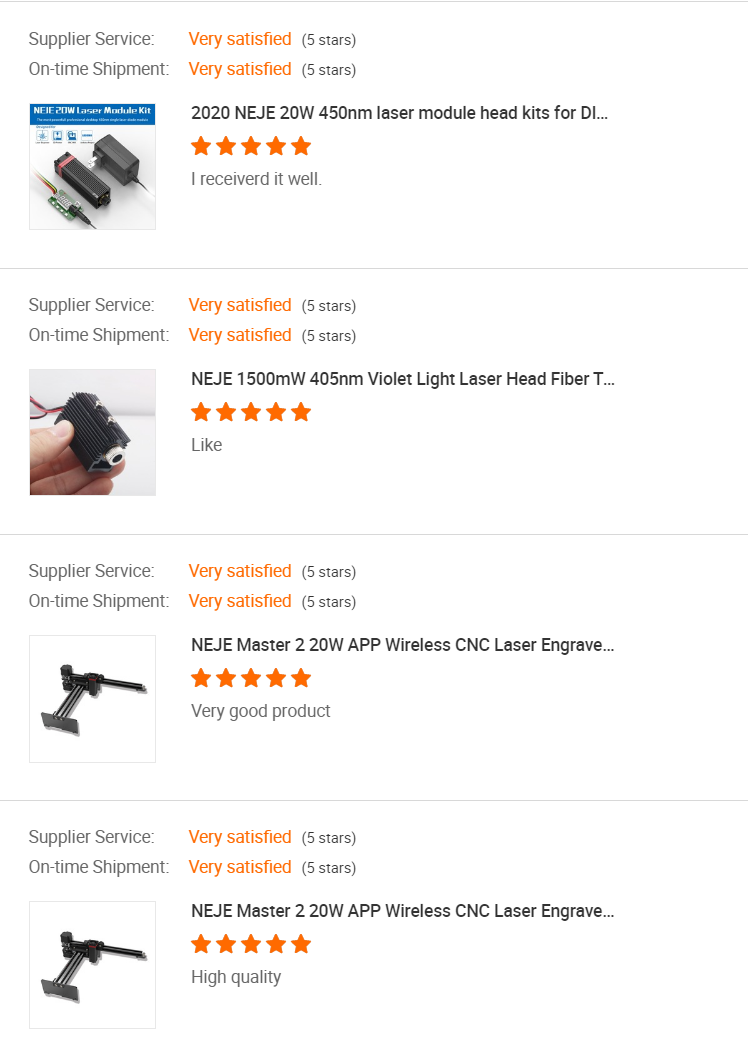

Customers review
Certifications
FAQ
Are you a factory.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.

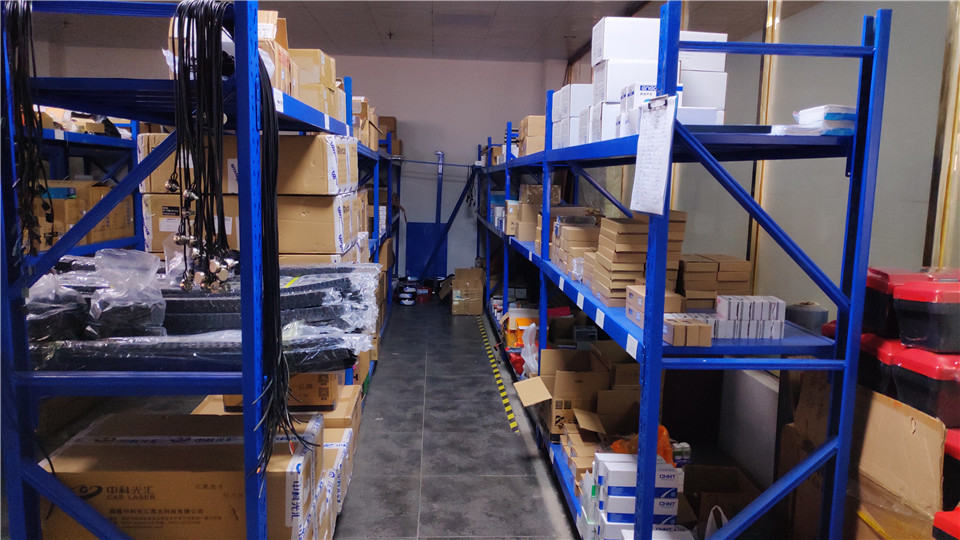

Do you have warehouse overseas.
