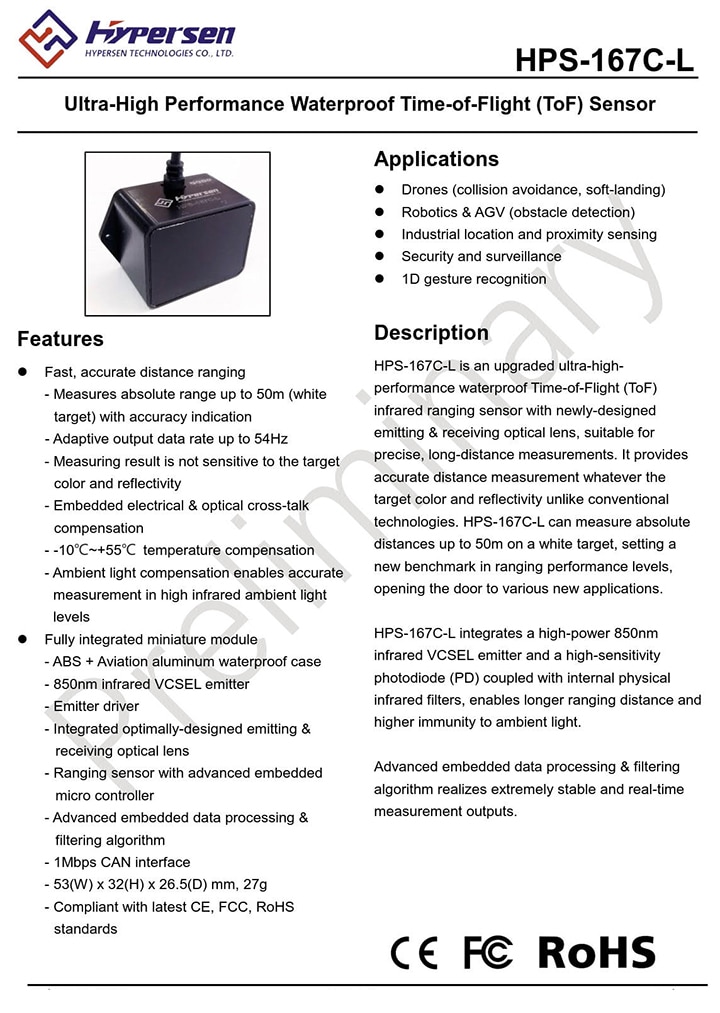

ToF distance measuring sensor HPS-167C-L

CAN interface, waterproof case, 850nm infrared VCSEL transmitter, newly upgraded optical lens

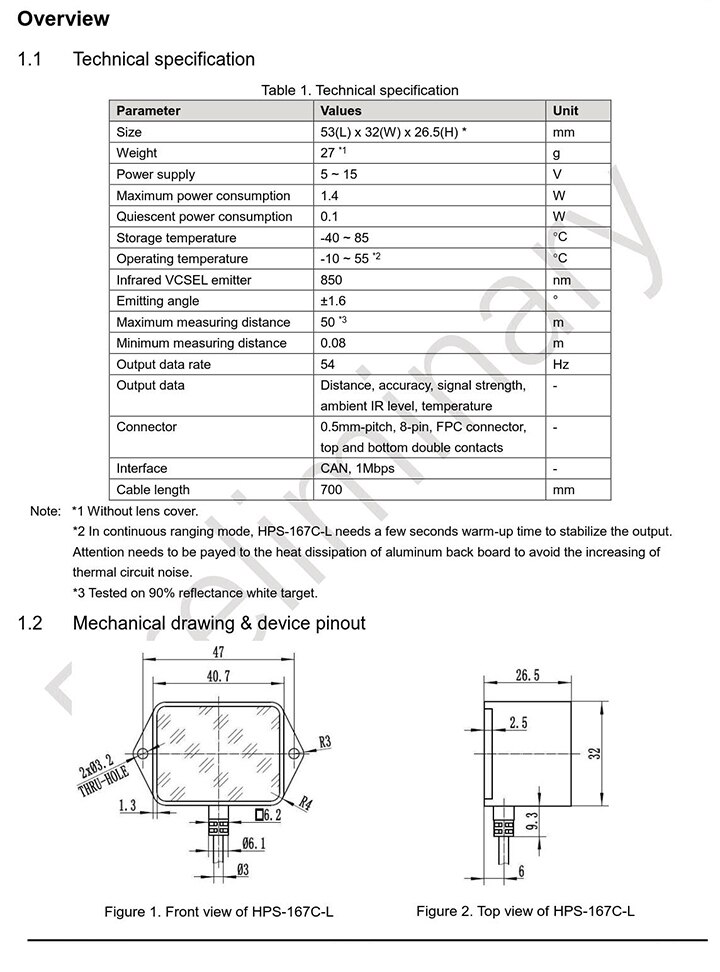

Parameters:

Size :53 (long) x32 (wide) x26.5mm

Weight: 27g

Power supply: 5 to 15 v

Maximum power consumption: 1.4w

Static power consumption: 0.1w

Storage temperature :-40-85℃

Operating temperature :-10-55℃

Infrared LED emission wave: 850nm

Launch Angle :±1.8°

Maximum measured distance :50m

Minimum measured distance :0.08m

Adaptive output data frequency: 54hz

Output data: distance, precision indication, signal strength, ambient light intensity, temperature

Socket :MX3.0 spacing, 4- pin,WITH Card buckle plug

Interface :CAN, 1Mbps

Cable length:700mm
