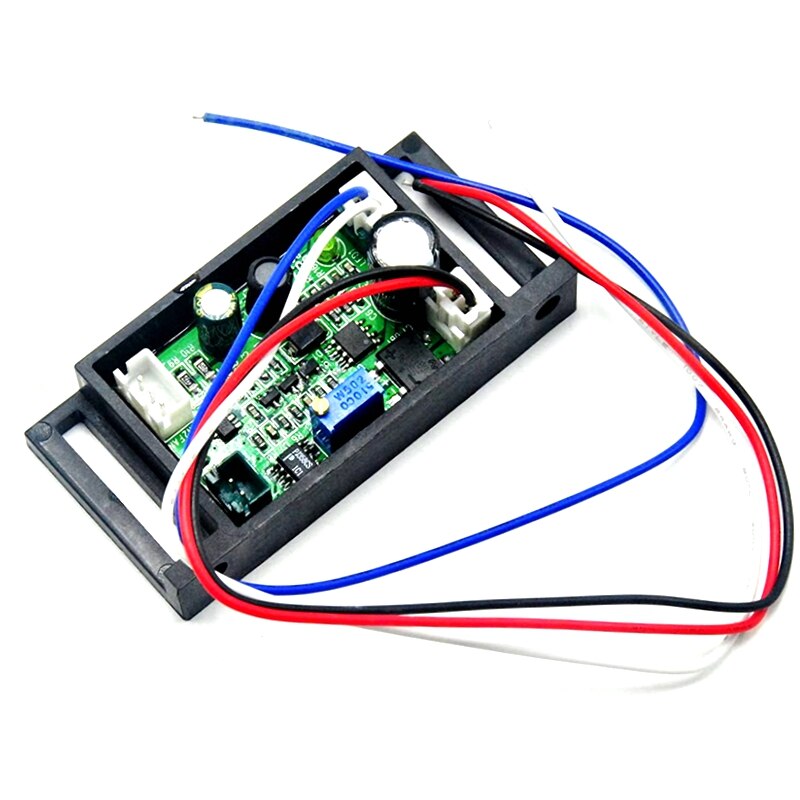

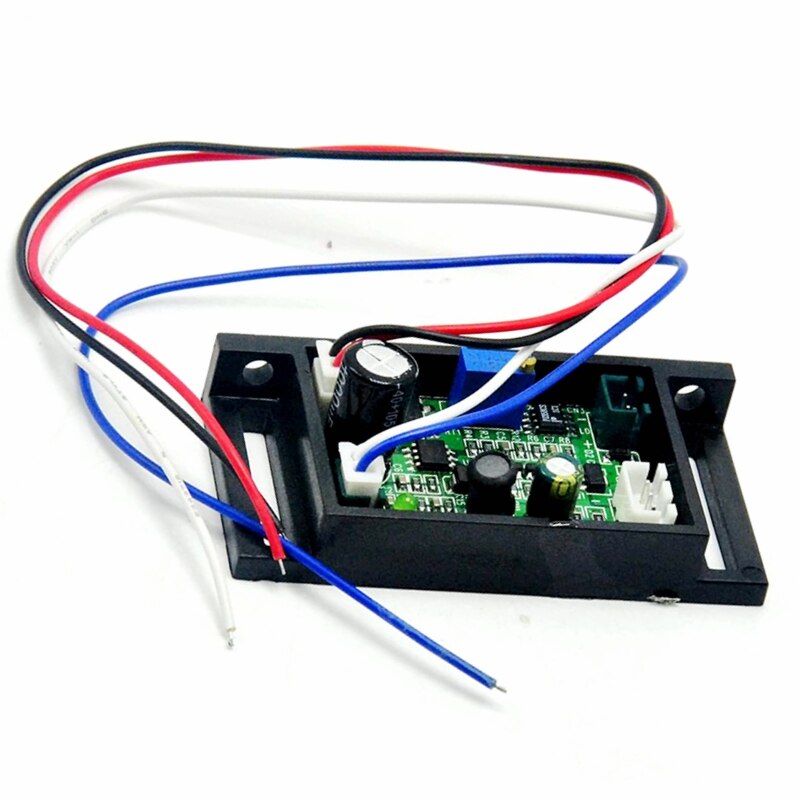

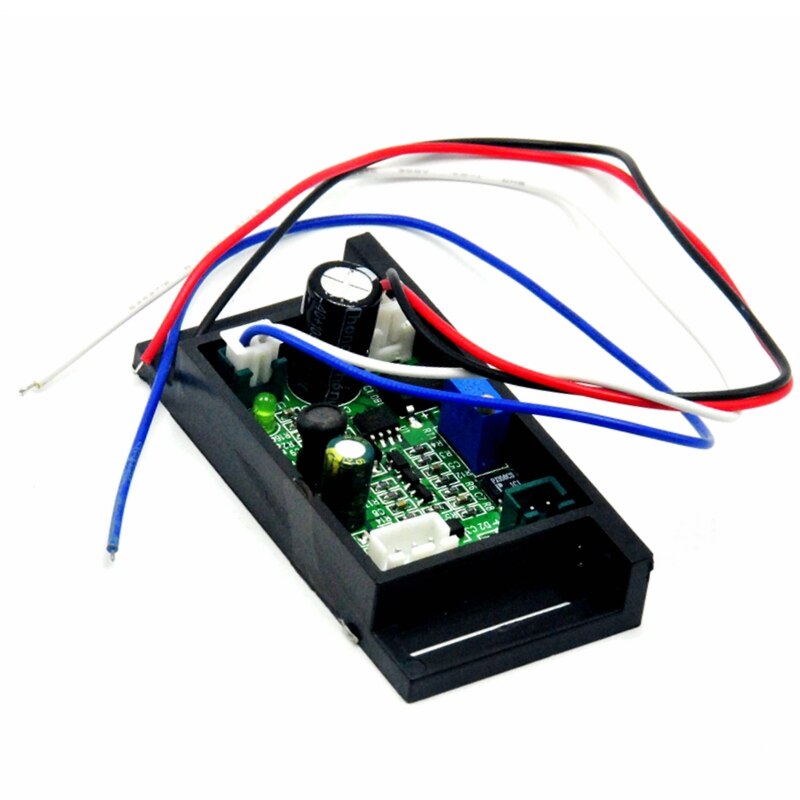

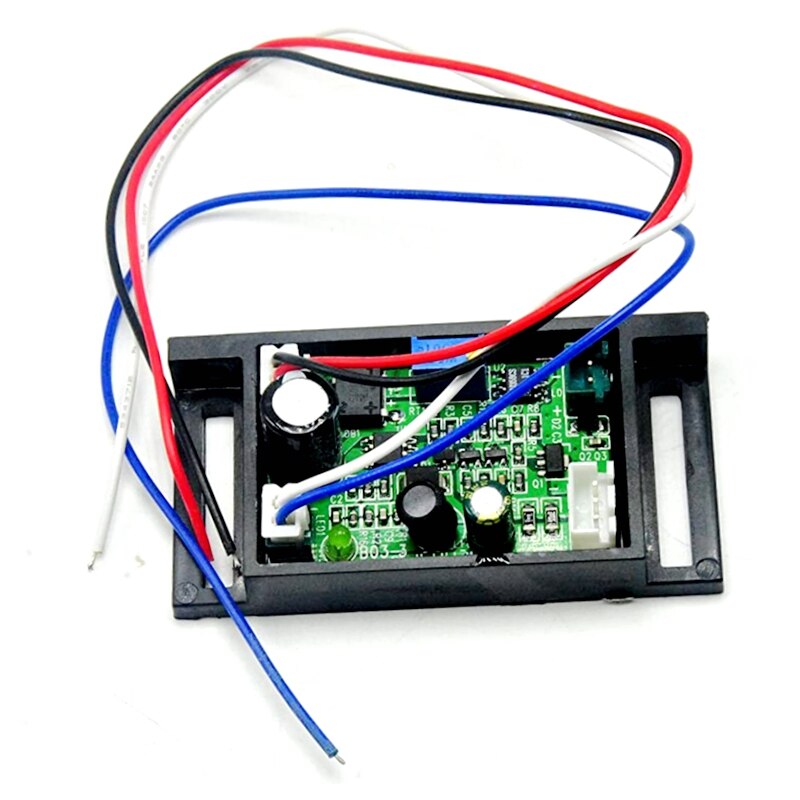

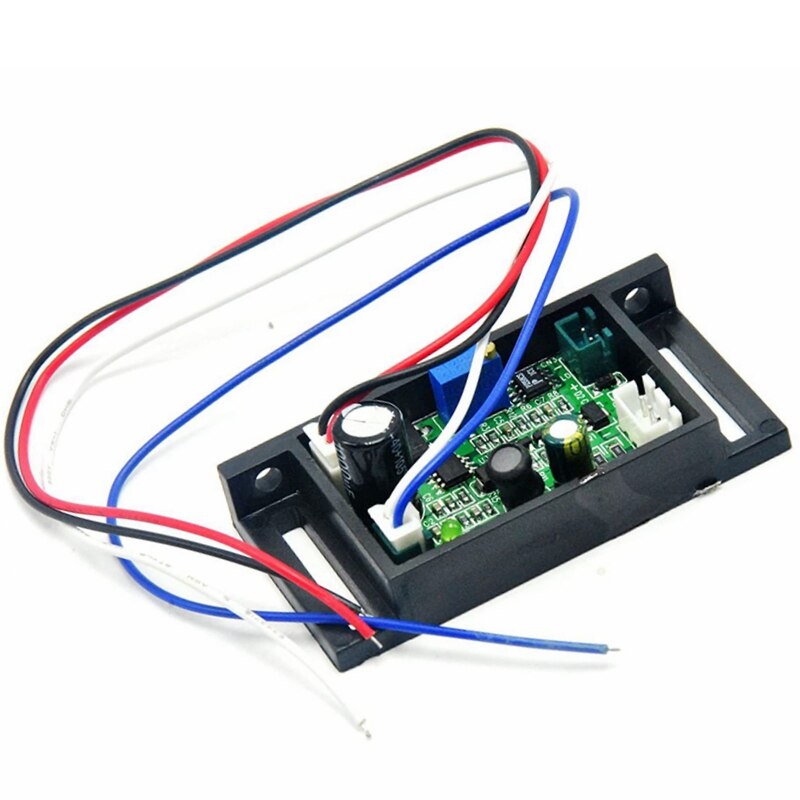

Driver Board 12V for 635nm 638nm 50mW-500mW Laser Diode Module Circuit TTL 20KHz

$49.00

245 in stock

SKU: 1005001971055945 Category:

Description

Driver Board 12V for 635nm 638nm 50mW-500mW Laser Diode Module Circuit TTL 20KHz

  • Brand Name: Jolooyo
  • Certification: NONE
  • Item Type: Stage Lighting Effect
  • Model Number: DB635-50-500-12V

Specifications:

Input Voltage: 12V
Constant-current drive
With TTL modulation 0-5V 0-20KHZ
Built-in Multiple-turn potentiometer, can adjust the current and control the output power
laser component

Features:

Built-in Multiple-turn potentiometer, can adjust the current and control the output power.
This is a power driver for 808nm 850nm 980nm 100mw-1000mw laser diode/module!Widely industrial and LAB use!

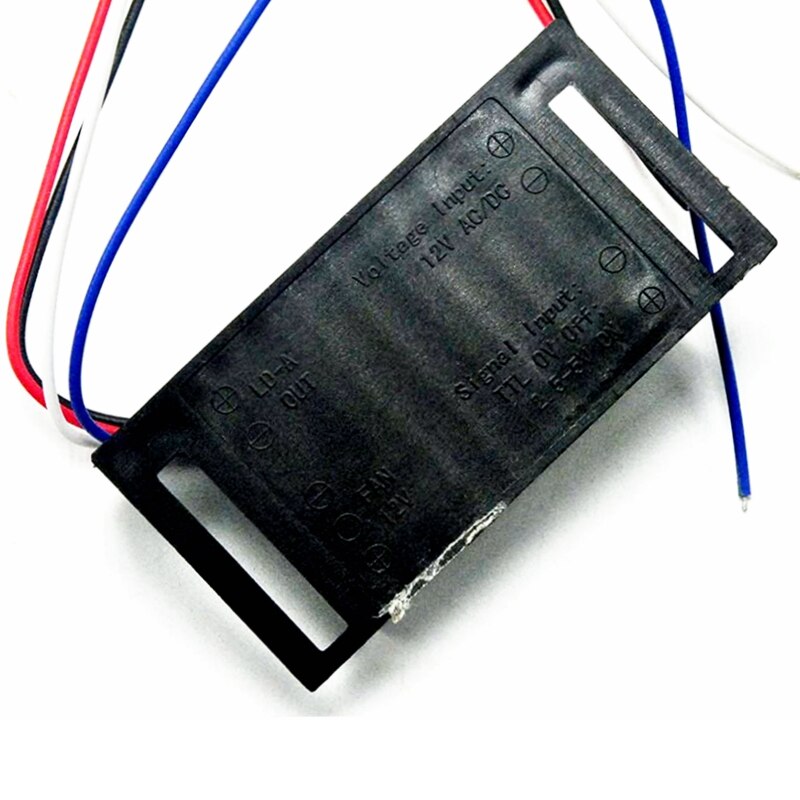

You can find the signal on the back of the driver:
1. Fan: it is for fan. If you do not want to add a fan on your laser, please ignore it
2. TTL: it is for frequence, if you do not want to add ttl on your laser, please ignore it.
3. LD: this place is for connecting your ld. You can also find the – and + pole for your ld
4. The most important thing is the last one for input voltage. You can also find – and + for the input 12vdc voltage.
5. A blue resistor for controlling the input current. Normally, this part depends on your ld.

Package:

1 x 635nm Laser Diode Driver Board
