Description
- Condition: New
- Technology: Carbon Film
- Model Number: Slide Potentiometer
- Type: Slide Potentiometer
- Resistance Tolerance: Please Check Description
- Rated Power: Please Check Description
- Max. Operating Voltage: 5V
- Operating Temperature: -55 -125℃
- is_customized: Yes
- Brand Name: diymore
Description:

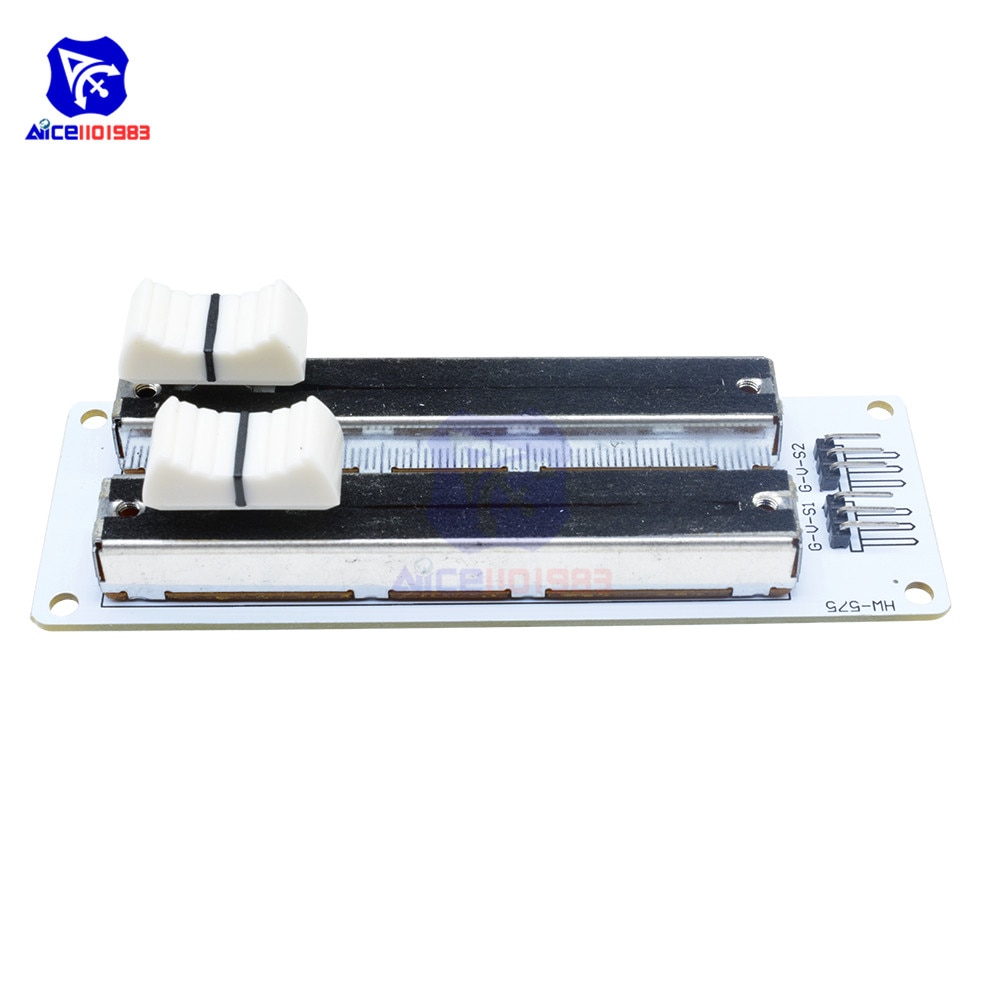

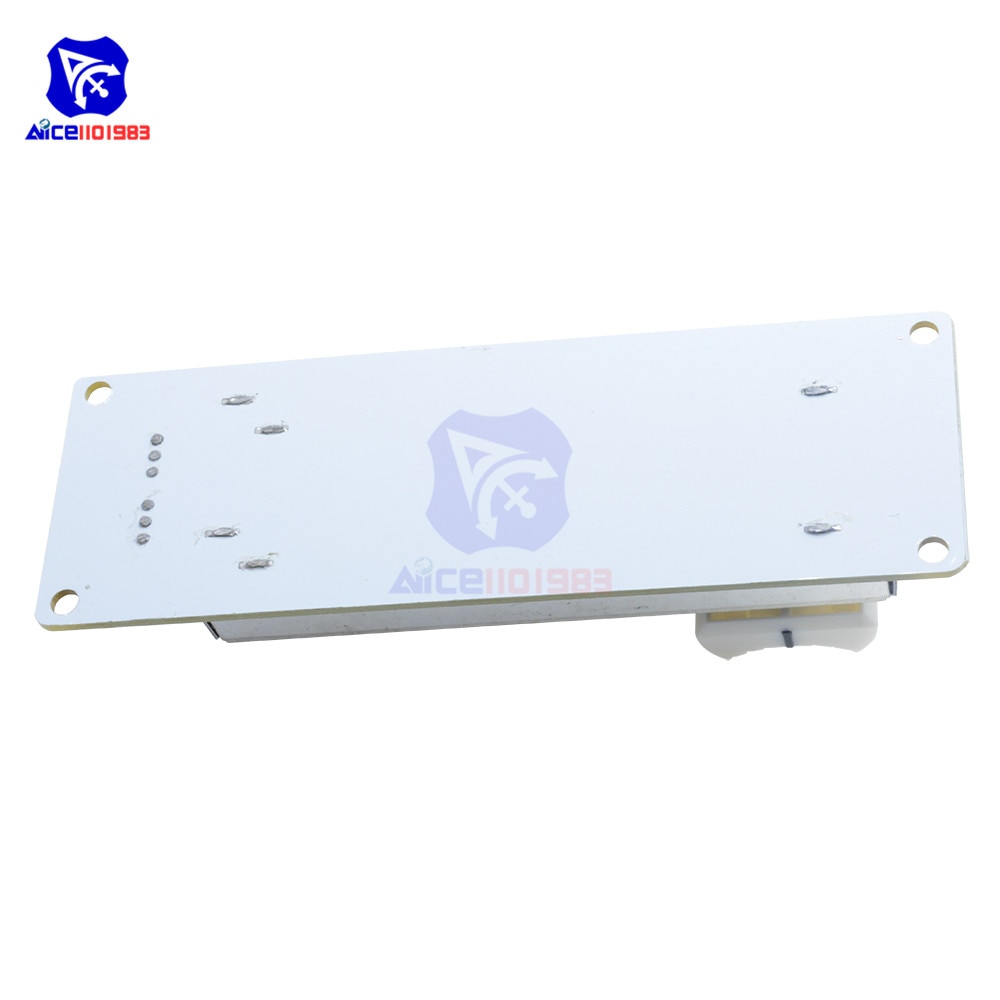

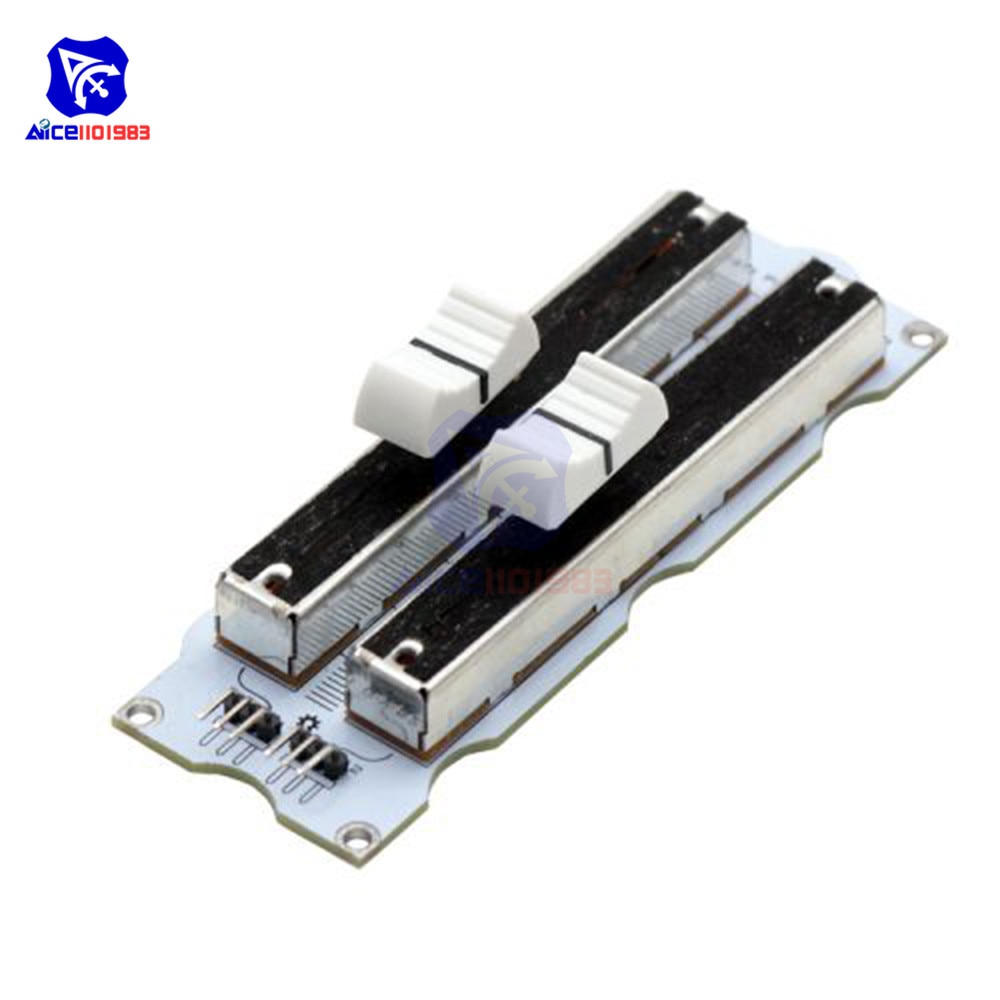

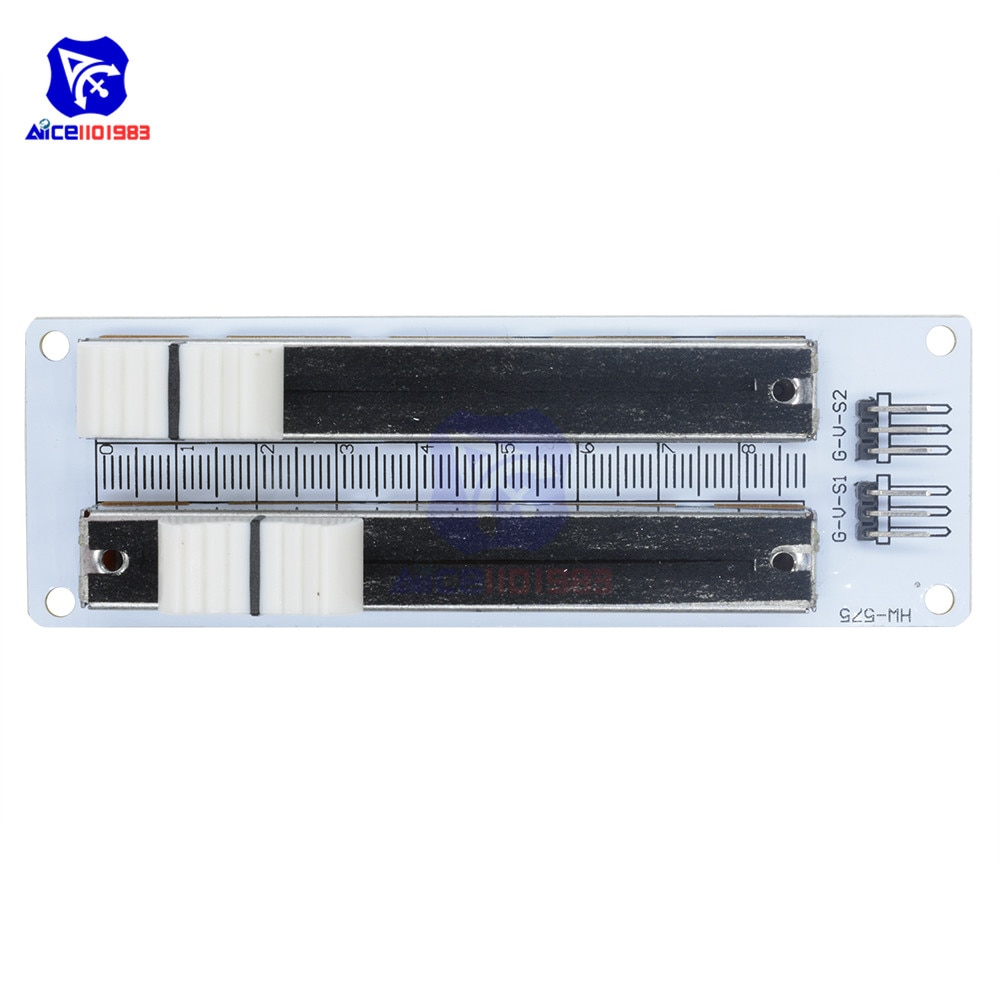

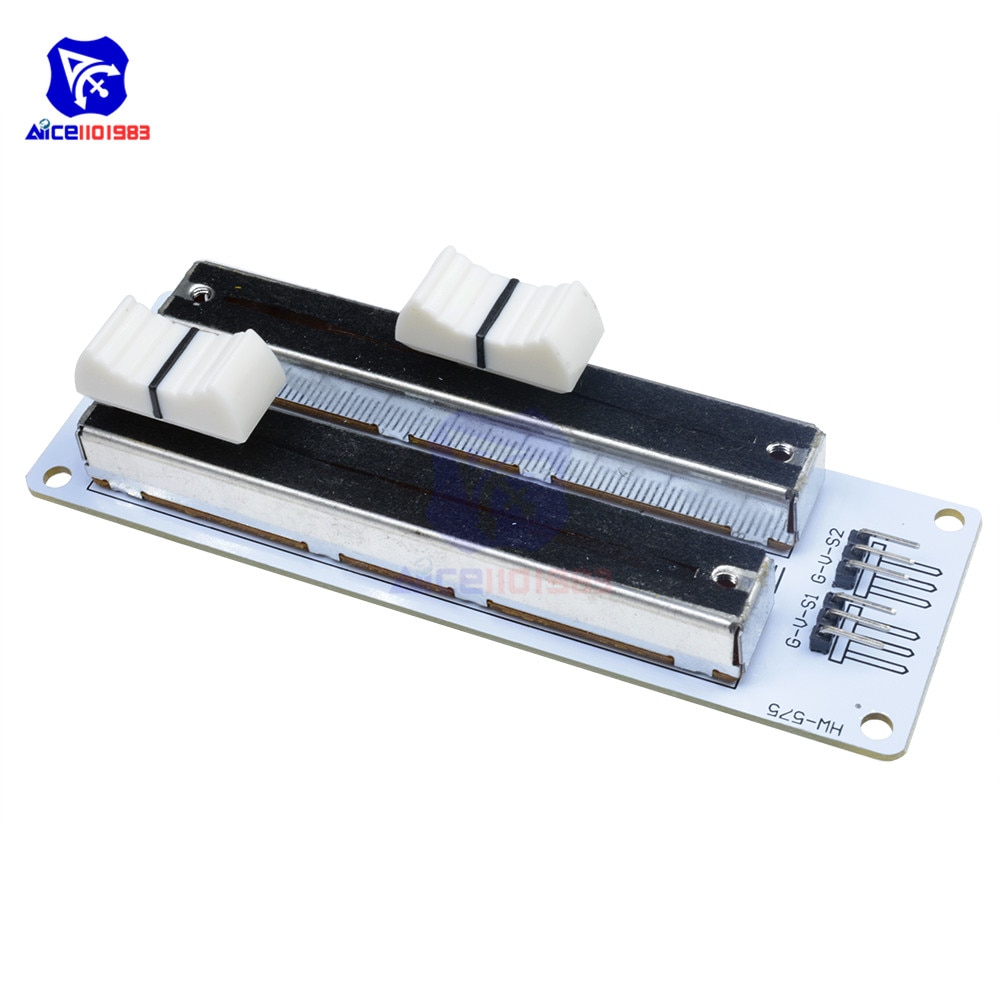

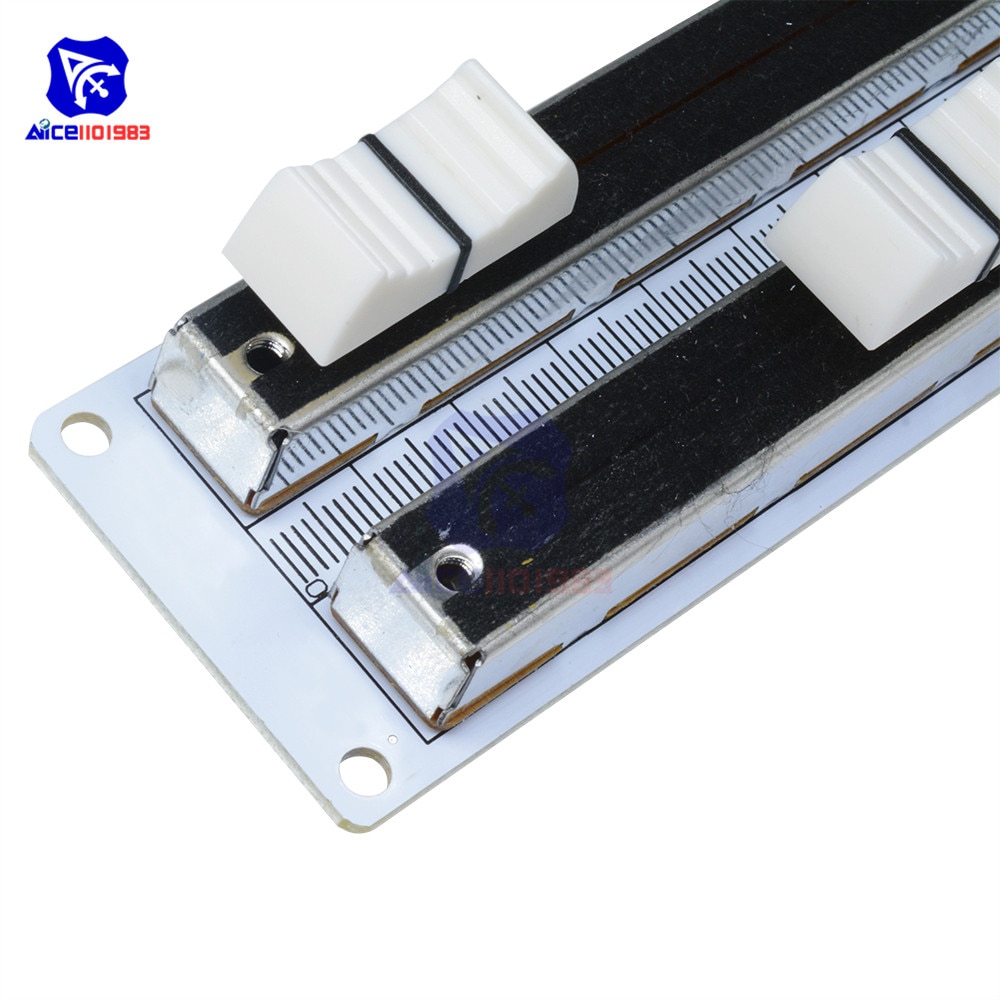

Electronic building block double linear potentiometer module For Arduino mixer linear sliding resistance
Wiring instructions: Connect the main controller to the main controller according to the standard interface of the sensor module. The symbol “G” is connected to the “ground”, “V” to “5V” and “S” to the “For Arduino” A0 and A1 pins of the main controller. Burn the test program.
Test program:
void setup ()
{
Serial.begin (9600);
}
void loop ()
{
Serial.print (“NUM1 —“);
Serial.print (analogRead (0));
Serial.println ();
Serial.print (“NUM2 —“);
Serial.print (analogRead (1));
Serial.println ();
}
Open the serial monitor, you can see the value changes with the slider slide change
Package Included:
1 x 10K Double Row Slide Potentiometer Simulation Electronic Block Module
