Description

Item Type: Stage Lighting Effect
Style: Mini
Occasion: Home Entertainment
Model Number: 650MD-5-1230-TTL
Brand Name: Jolooyo
Power: 5MW
Voltage: 5V

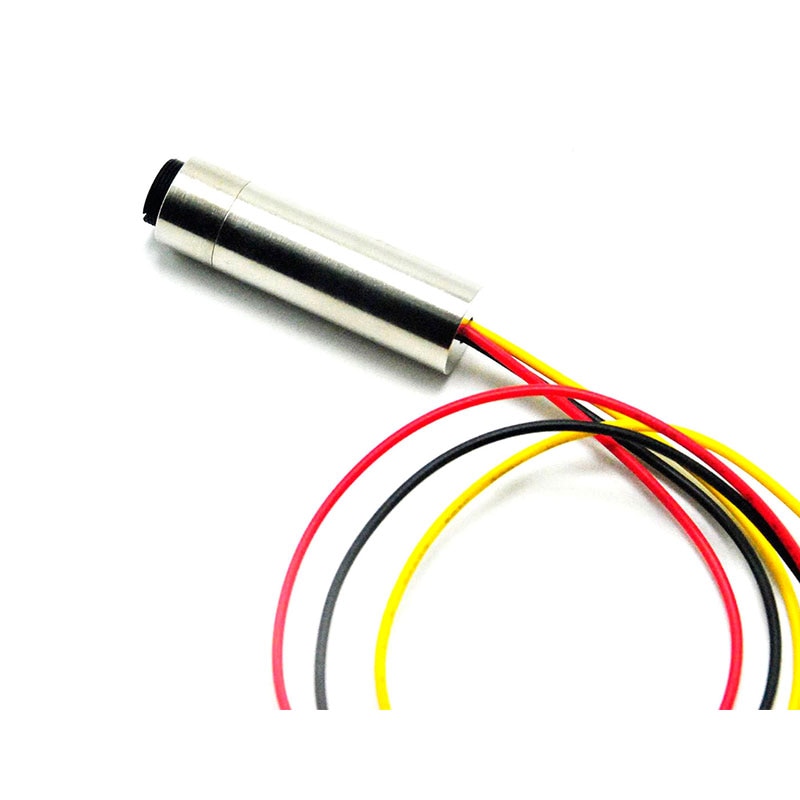

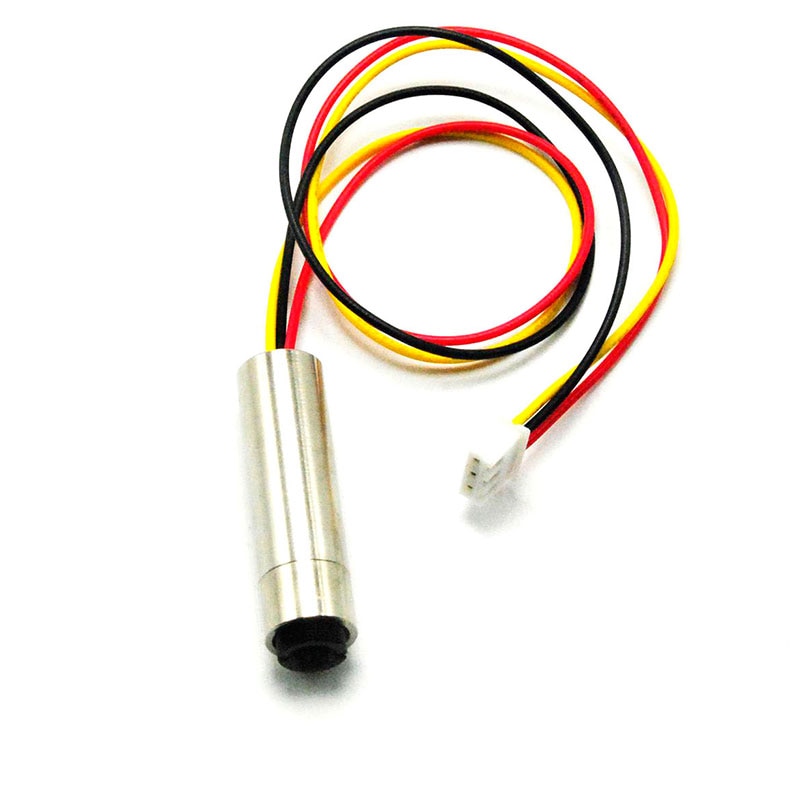

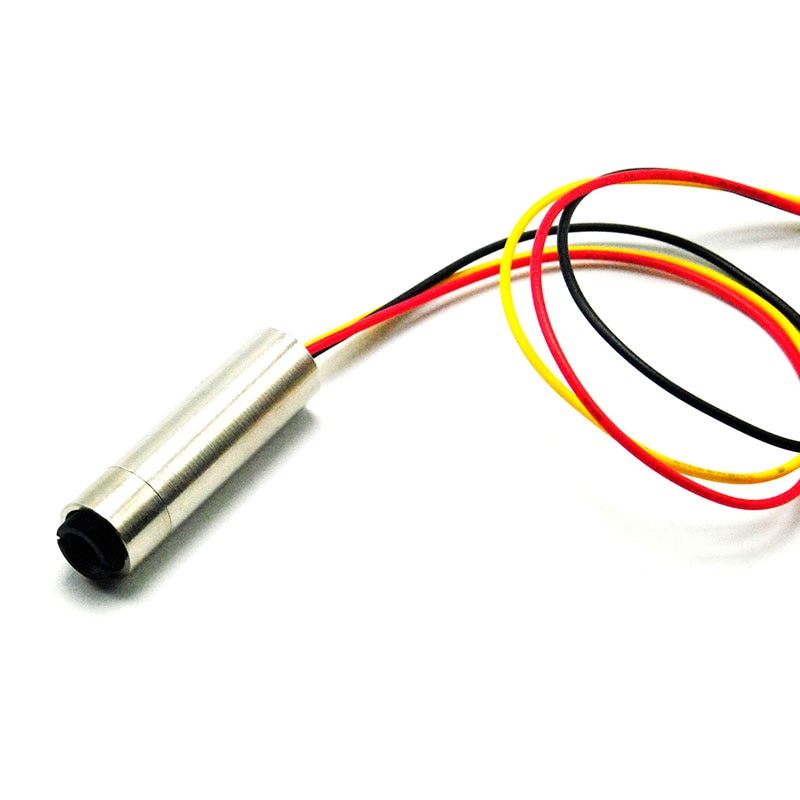

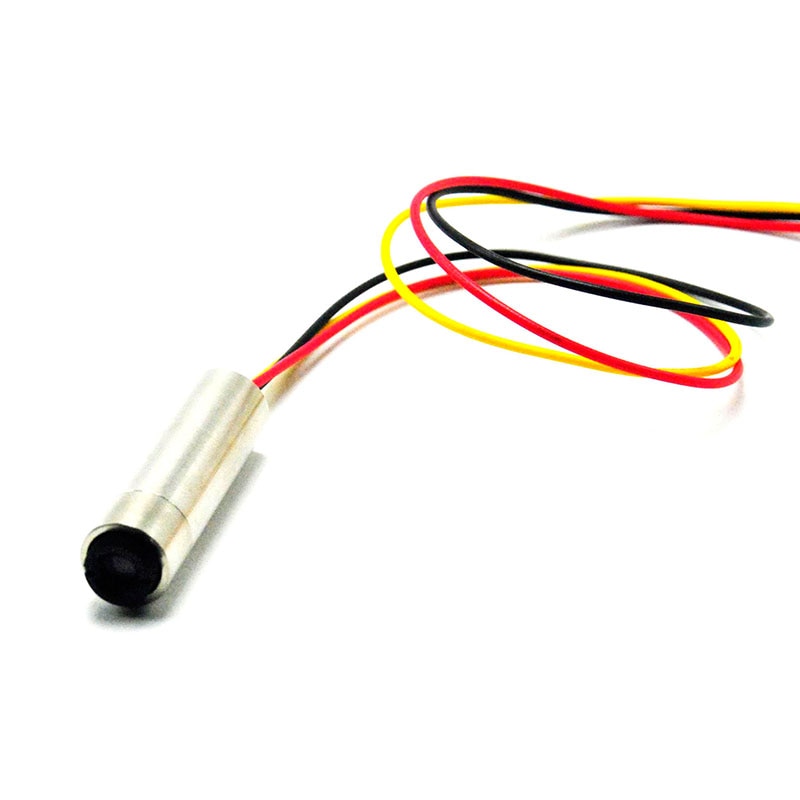

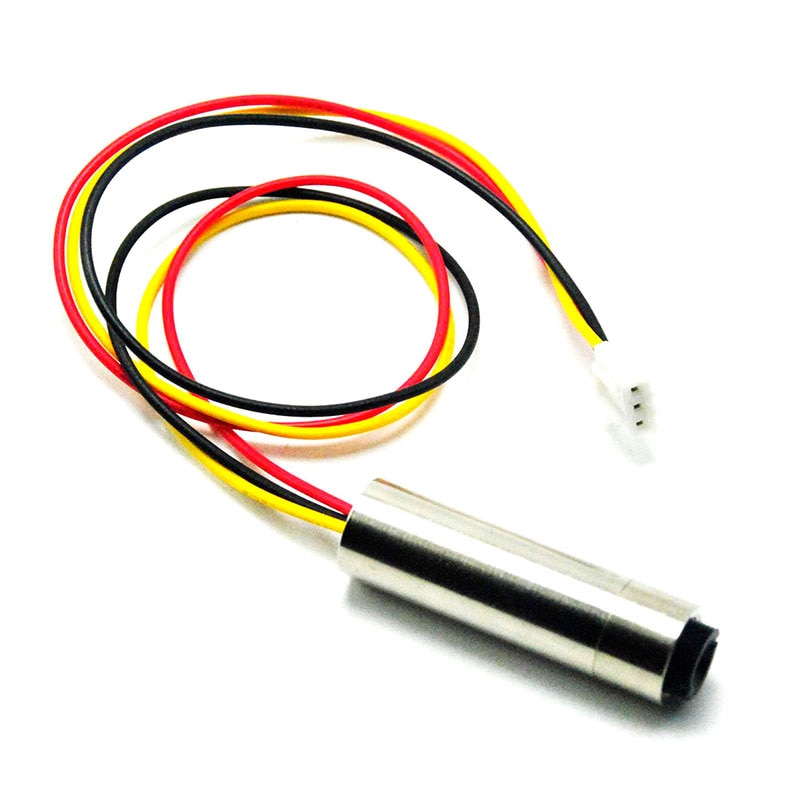

**Dot Focusable 650nm 5mW Red Laser Diode Module 12mm*30mm w TTL 0-15khz**

Parameters

Output Power 5mw

Wavelength 650nm

Working Voltage 5V

Working Temperature +10 ℃~＋40 ℃

Laser Shape Dot

Working Current 18mhA

TTL modulation Voltage 0-5V Off low, high open, normal status open

TTL frequency 0-15KHz

Focusable Yes

Material and Color Metal

Lens Plastic

Dimensions 12x35mm or 12x40mm

Material: Metal

Color: Silver

Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive

Features

1.Please keep the lens clean to make the laser beam clear and bright.

2.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

3.Be sure the operator has experience in optics DIY or testing.

4.Please protect your eyes when you work with this red module.

5.Working Voltage is 5V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+. When the TTL signal is connected, the higher the frequency is , the less brighteness the laser will have. when it is >15KHZ, the laser cannot be seen.

Packag

1pc Dot Focusable 650nm 5mW Red Laser Diode Module 12mm*30mm w TTL 0-15khz
