Parameter

Laser head size: 50mmx33mmx33mm
Circuit Board size: 45mm*34mm
Wavelength: 635nm 638nm
Output power: 180mW
Laser shape:Dot
Focusable:YES
Modulation frequency: Adujstable TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

Note:
1.The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly,
if you have any technical problems, please contact us in advance!
2.This laser module brings TTL modulation, can work long time, is really industry laser module!!
3. Please wear 600nm-780nm laser protection goggles to protect your eyes when working on this module.

Package

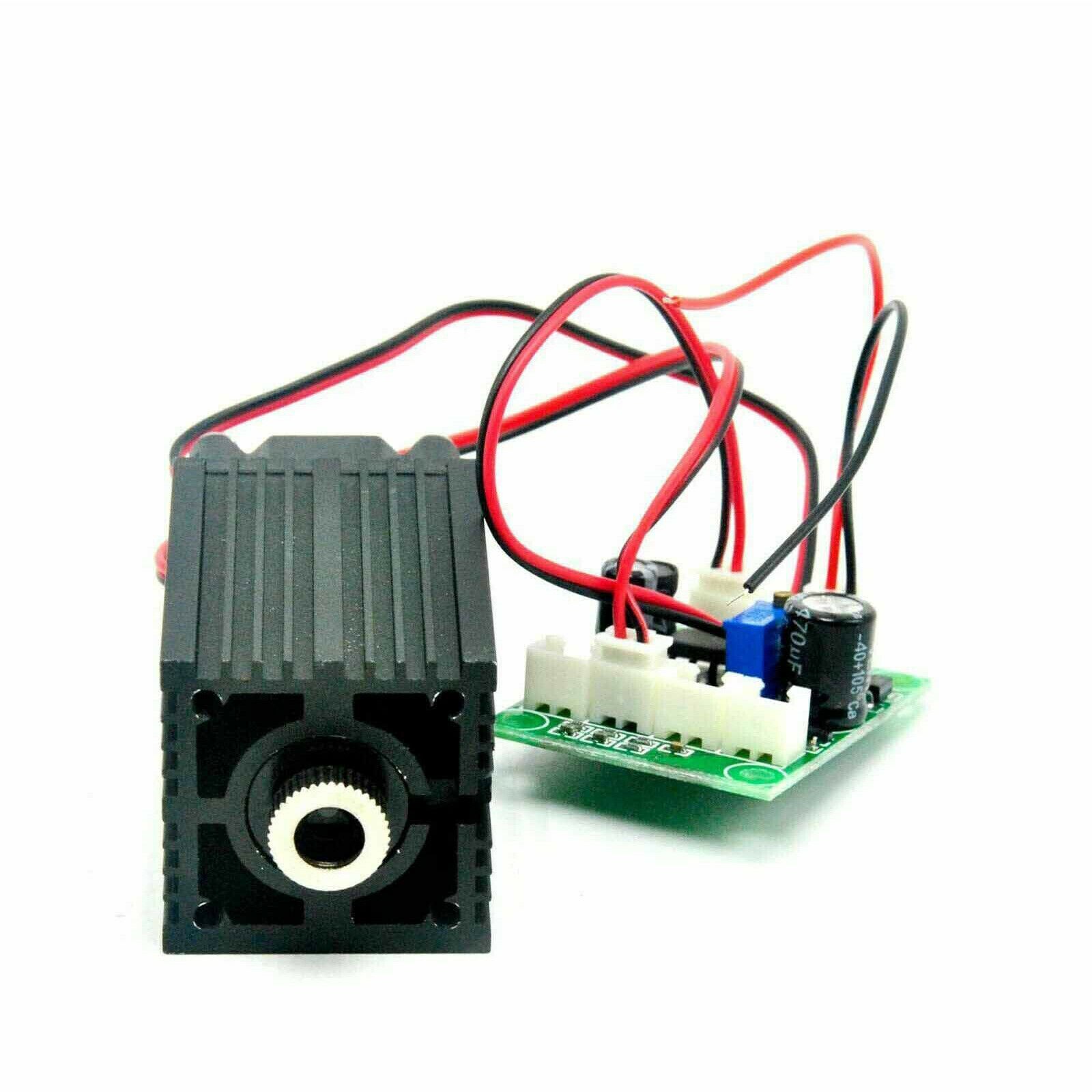

1pc 638nm 180mW Dot Laser Diode Module w/ TTL & Fan
