7500mw 15000mw Laser Head for CNC3018 CNC2418 CNC1610 Engraving Machine 15W 7.5W Wood Router Carving Machine PCB Milling

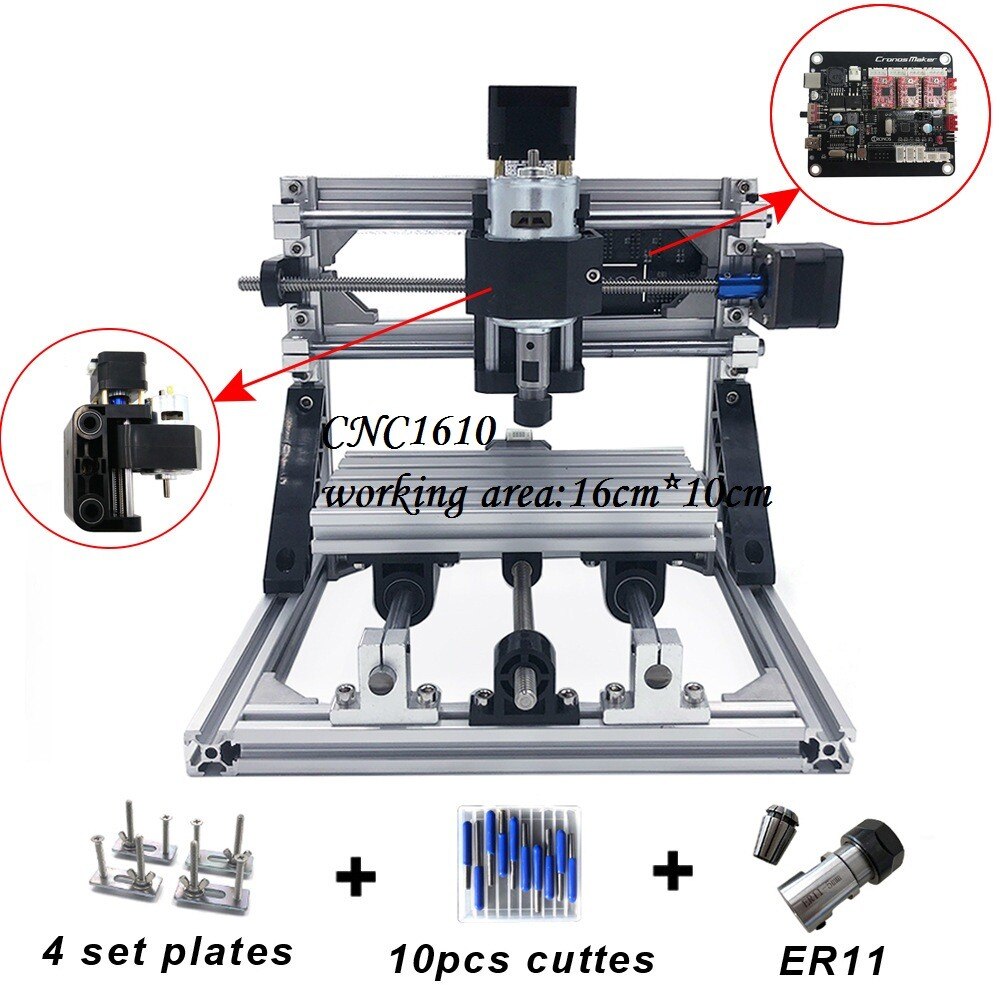

Suitable for CNC3018, CNC2418, CNC1610:

1,Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it will cause permanent blindness, the consequences at your own risk.

2,Do not use in flammable and gas atmospheres to avoid fire and explosion

3,Prohibit children from exposure to this laser product.

4,Do not open the module to avoid damage.

5,Friendly Tip: This 7.5W and 15W fixed focus product can be engraved on stainless steel surface and anode colored aluminum surface.

Product parameters:

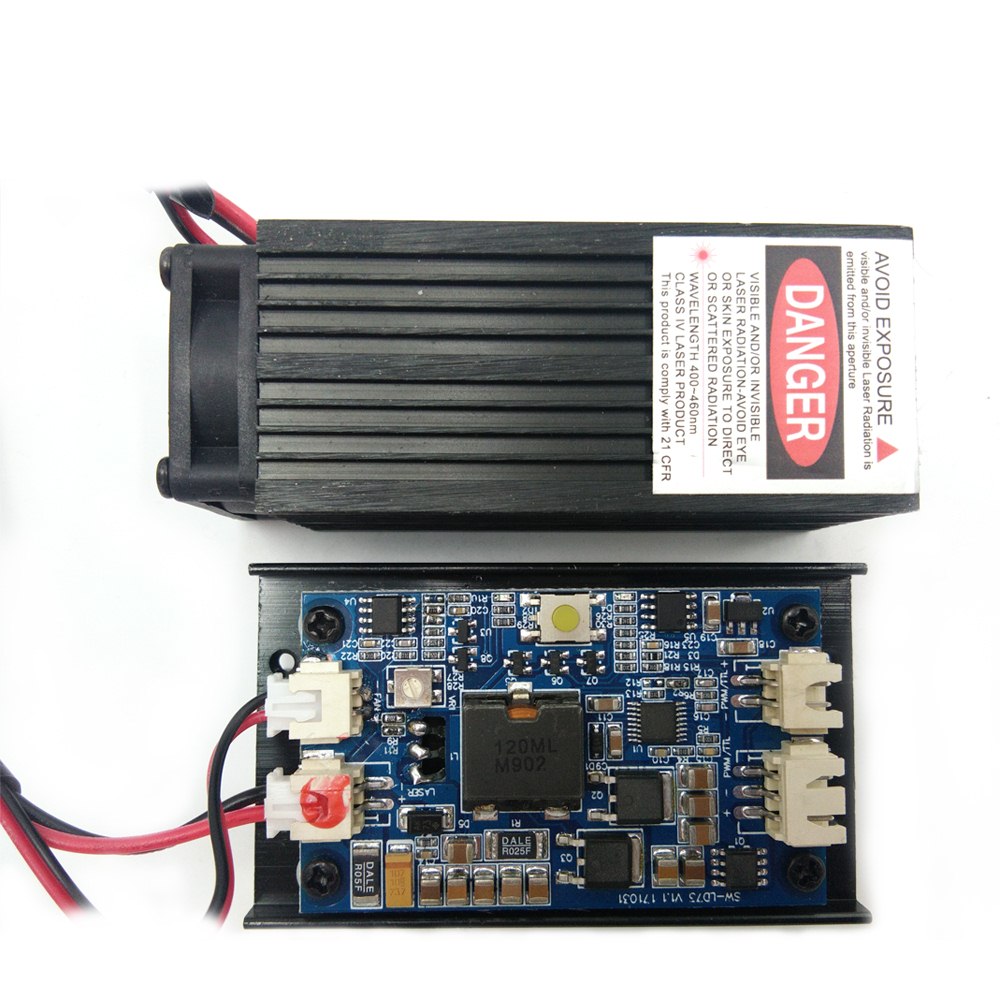

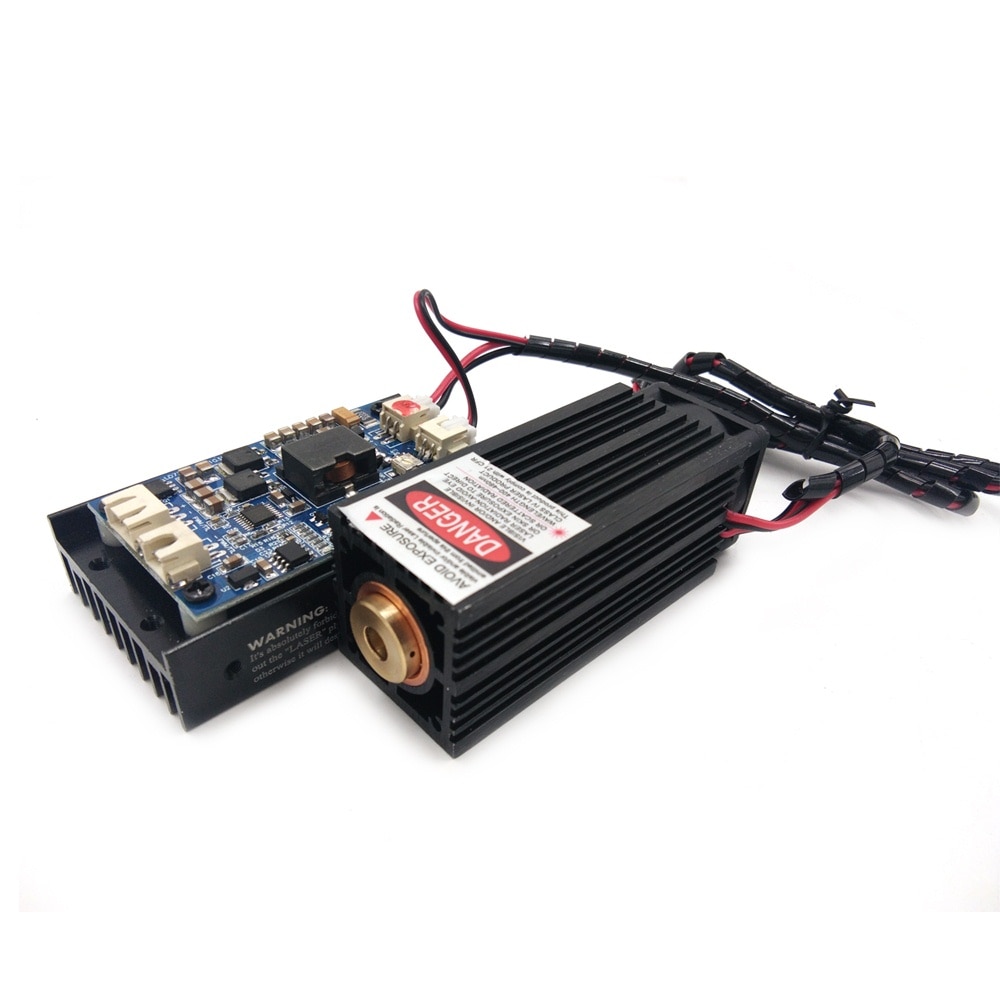

7500MW Laser:

• Size: 33x33x85mm
• Laser wavelength: 445nm (blue light)
• Supply voltage: DC 12 V~36V.constant output power does not change with voltage
• Power Control: TTL/PWM Real-Time Control
• Supply current: >2A
• Interface mode: 3*2.54 interface (power supply + PWM), 2 * 2.54 interface (TTL)
• Light output form: point shape fixed focus (not adjustable)
• Lens material: optical glass plated high anti-reflection film
• Shell material: module copper, shell aluminum anode black
• Cooling method: forced air cooling
• Working mode: continuous light can work for a long time,
• Other function interface: can be selected by TTL or PWM interface by button

15000MW Laser:

• Material: hard aluminum + brass
• Working voltage: DC 12 V~36V.
• Wavelength: 450nm 33mm (blue light)
• Output power: pulse 15 W average 8 W
• Modulation frequency: ttl can be modulated
• Working current: <3A
• Focal length: 18mm (non-adjustable)

Packing list:

1 *laser head

1 * power supply

Product Display:
