Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±10%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -10 -85℃
- is_customized: Yes
- Max. Operating Voltage: Variable Resistors
- Model Number: RV24YN20S
- Rated Power: 2W

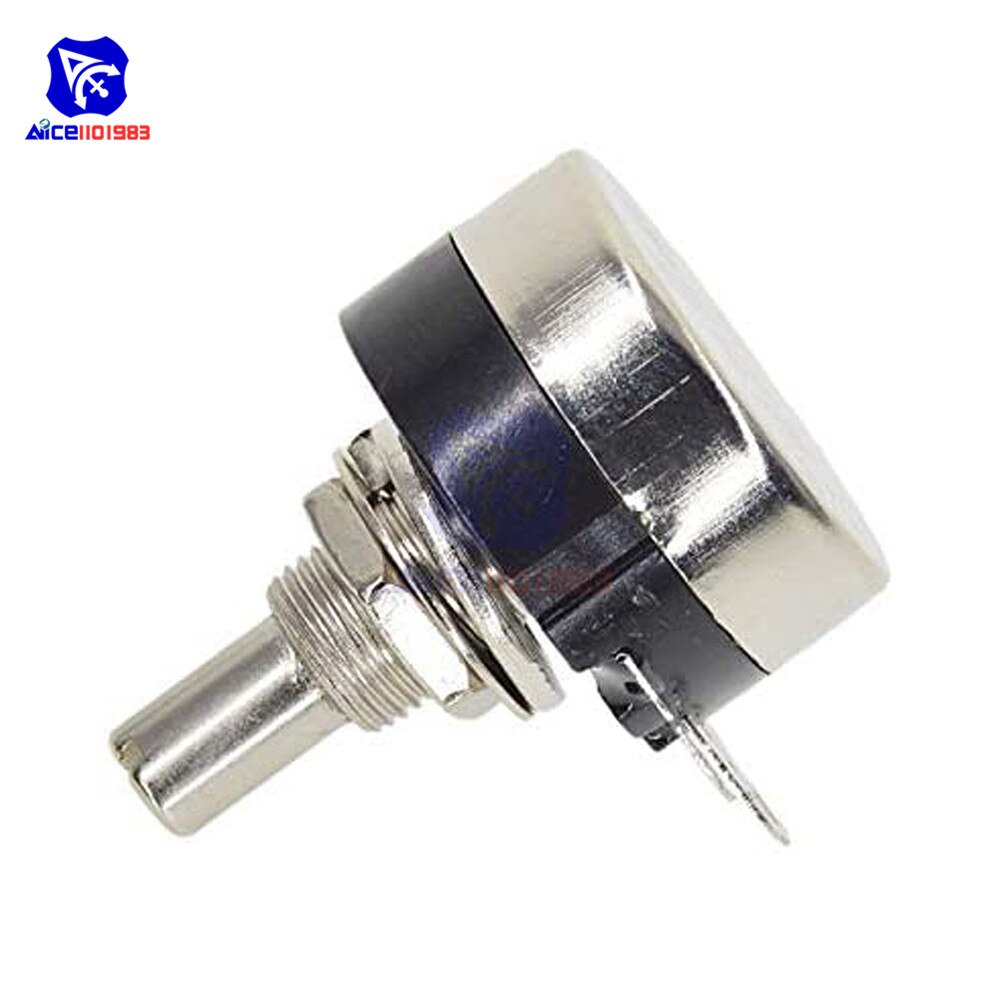

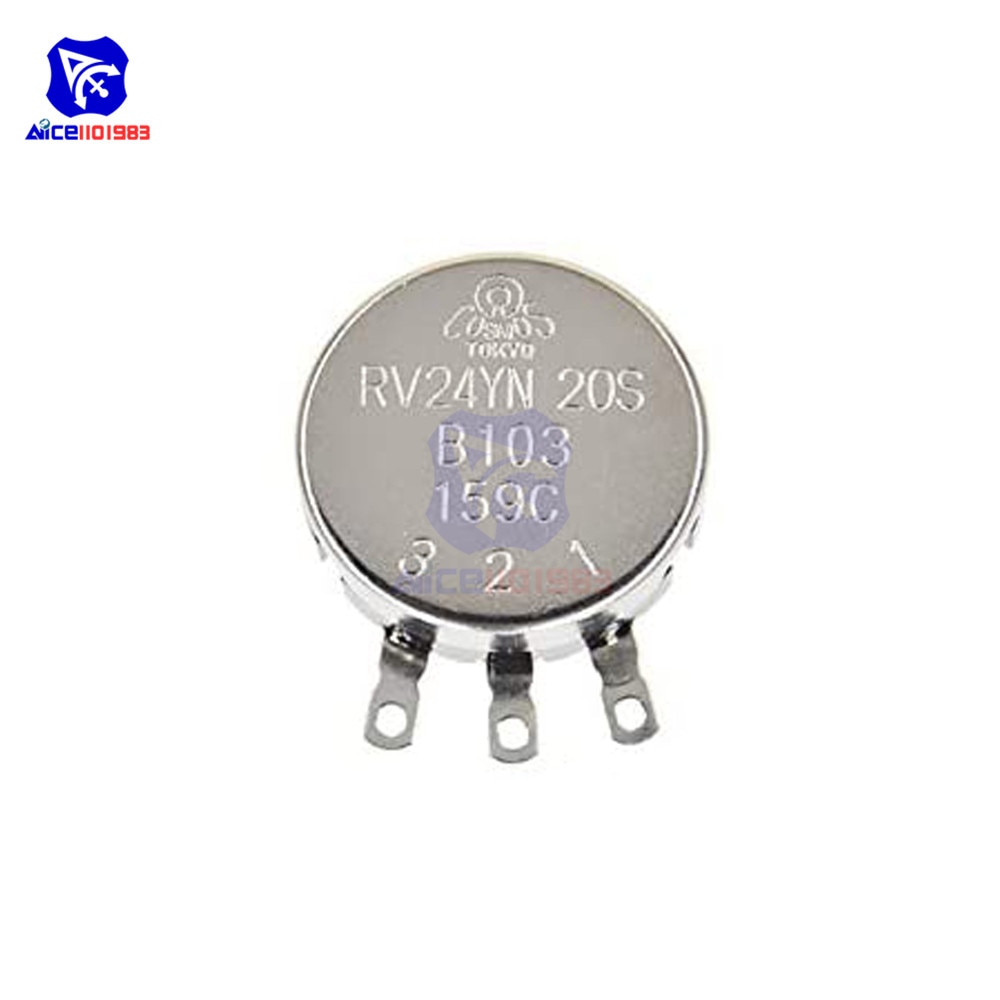

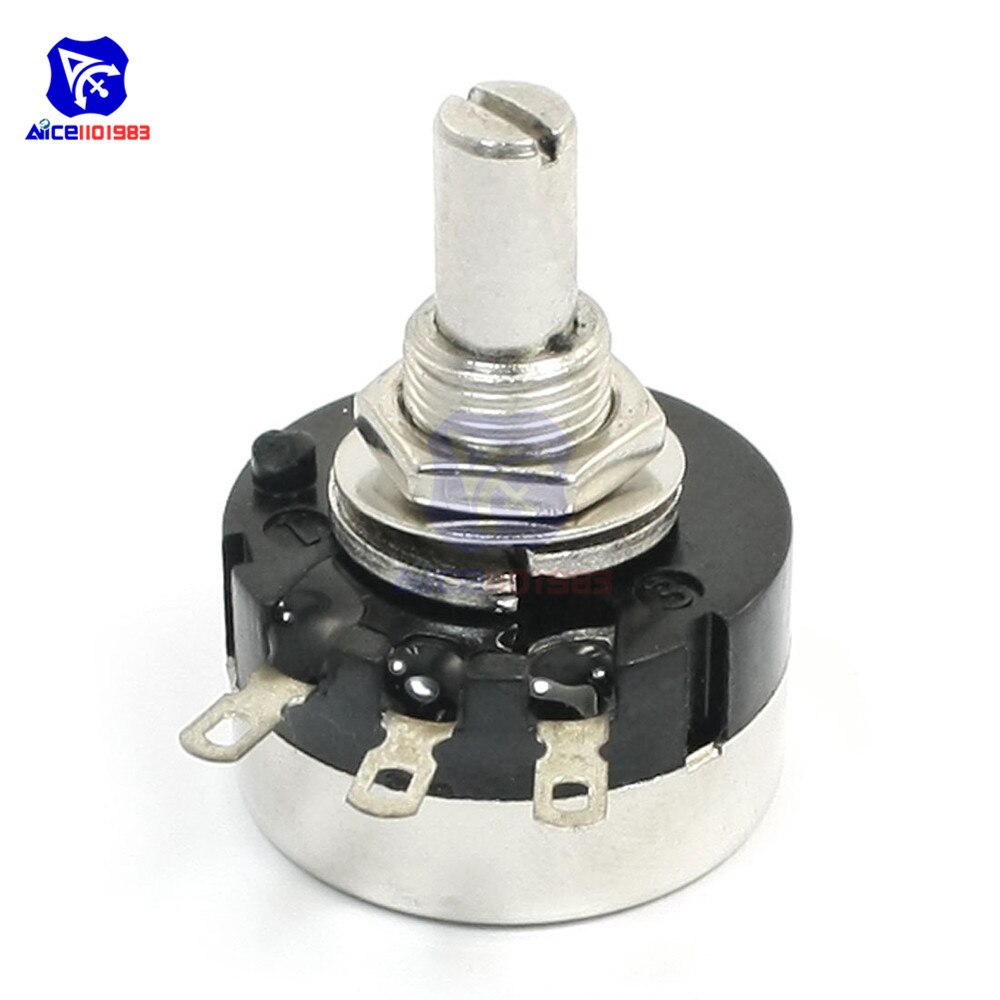

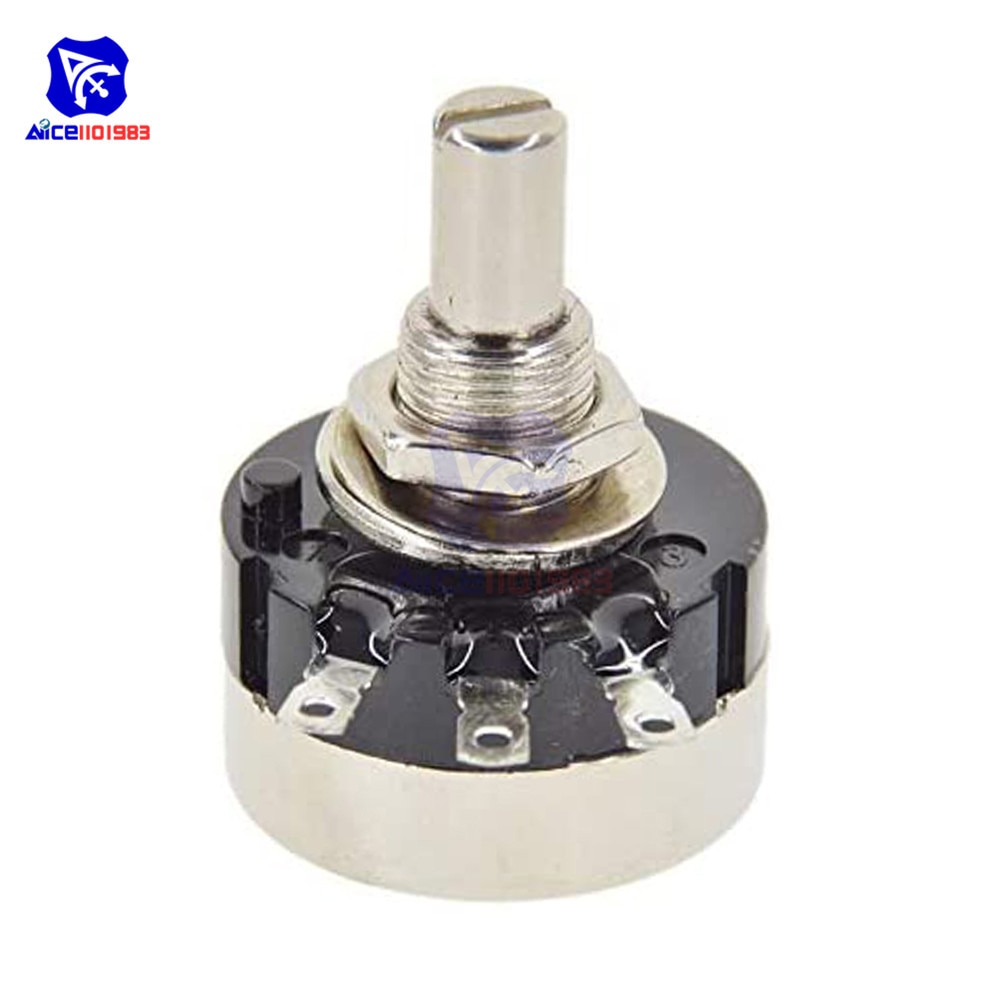

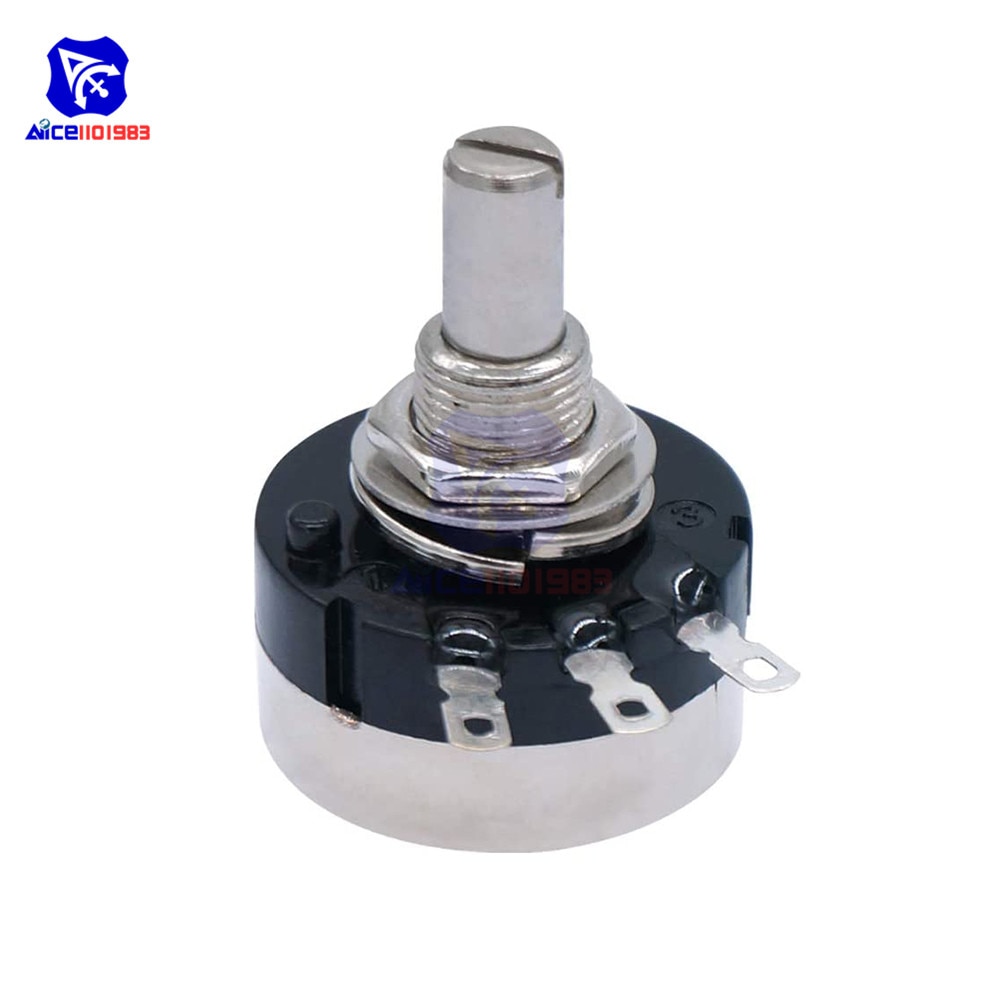

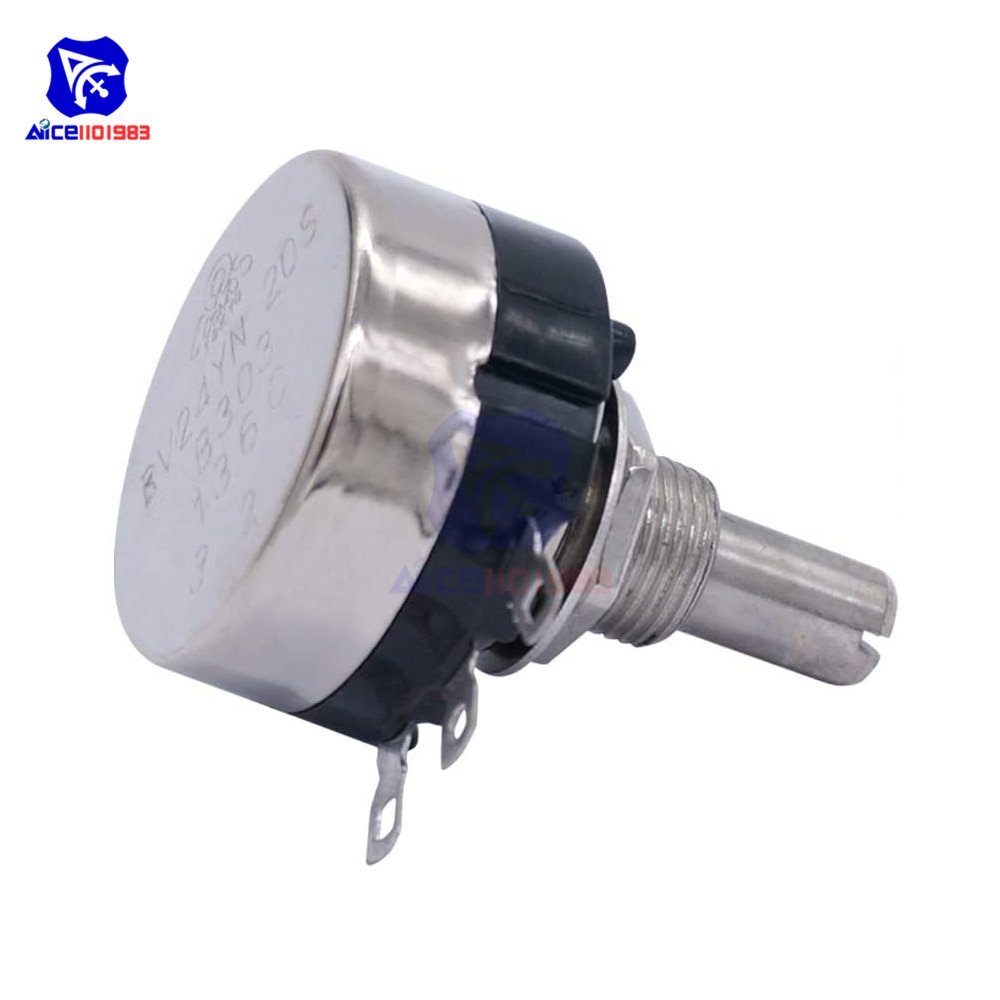

RV24YN20S 1K Ohm-1M Ohm Variable Resistor Single Turn 3 Terminals Carbon Film Linear Rotary Taper Potentiometer for Car
Feature:
3 Terminals, Single turn, Linear
Top adjustment type and knurled shaft for easy operate in daily use.
Main used to control electrical devices such as volume controls on audio equipment.
Specification:
Type: Rotary Potentiometer
Model: RV24YN 20S
Material: Carbon film Metal
Resistance Value: 1k Ohm, 2k Ohm, 5k Ohm, 10k Ohm, 20k ohm, 50k Ohm, 100k Ohm, 200k Ohm, 500k Ohm, 1M Ohm
Power: 2W
Tolerance: ±10%
Mechanical angle : 300°
Temperature range : -10°C -85°C
Rotational life : 100000 rpm
Turn Number: Single Turn
Terminals Number: 3

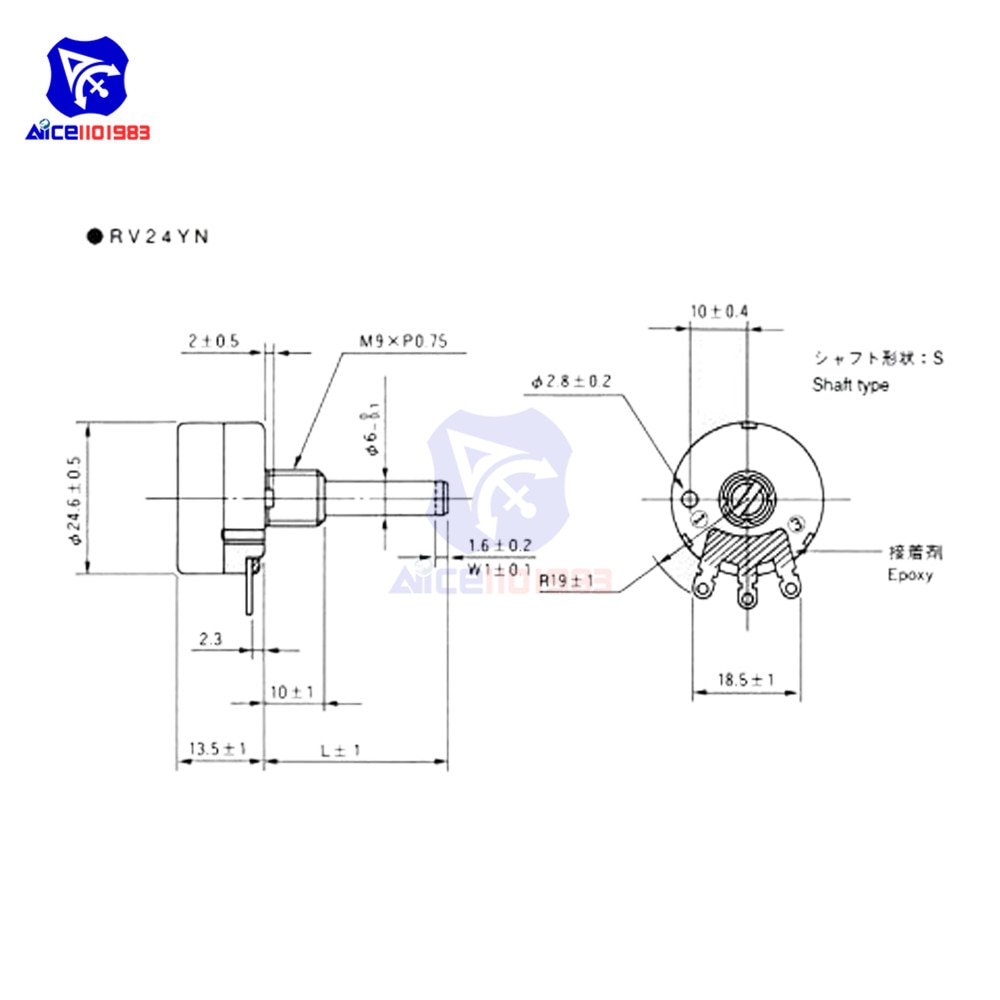

Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
Screw Thread Dia.: 8.7mm/0.34 inch
Shaft Diameter: 6mm / 0.24 inch
Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
Shaft Total Length 20.5mm/0.8 inch
Color: Black, Silver Tone
Application:
Generally used in mixers, toys, audio, car audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
Package Included:
1 x Carbon Film Potentiometer
