Description

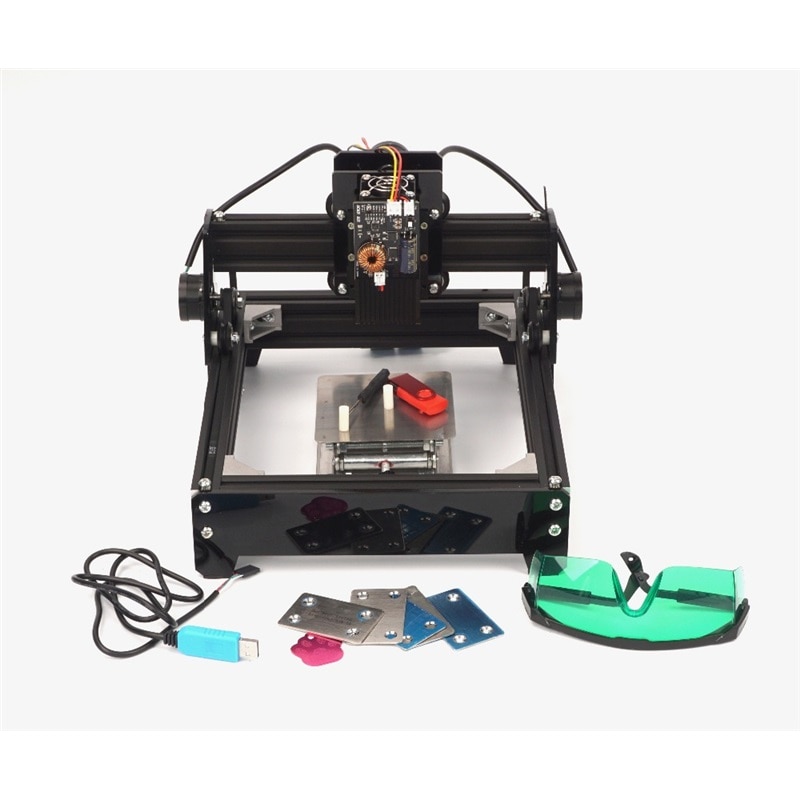

Assembled 10W 15W DIY laser engraving machine 2014

metal engraver marking machine metal carving cnc router machine

Specification:

Construction: mobile gantry, body Aluminum + Acrylic

Drive system: stepper motor, stepper precision: 0.00625mm

Engraving area:20*14cm

Engraving speed: 0.02 to 0.2 sec / pixel

Laser power: pulse 10w/15w (100ns Duty 50%)

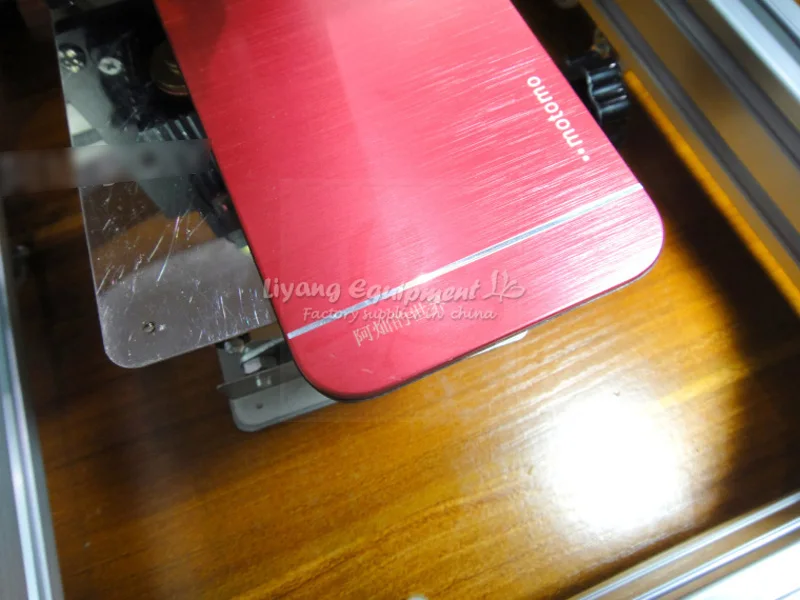

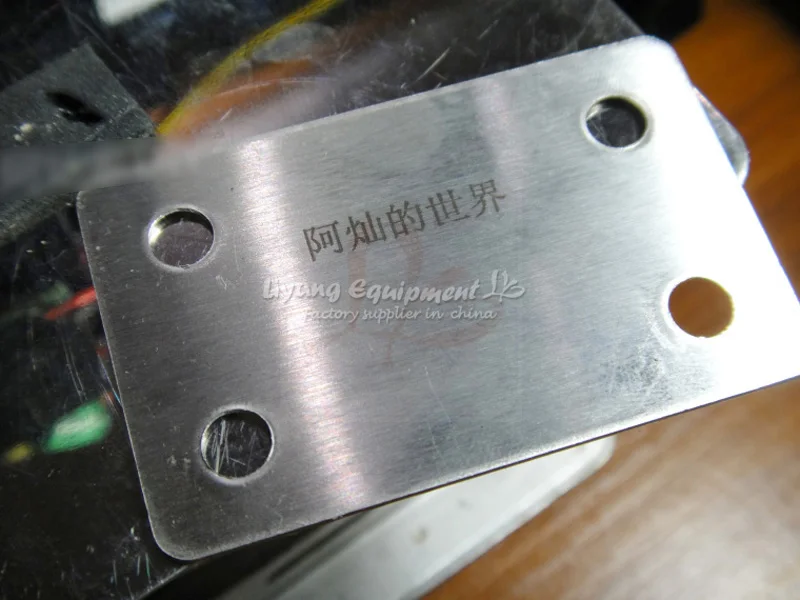

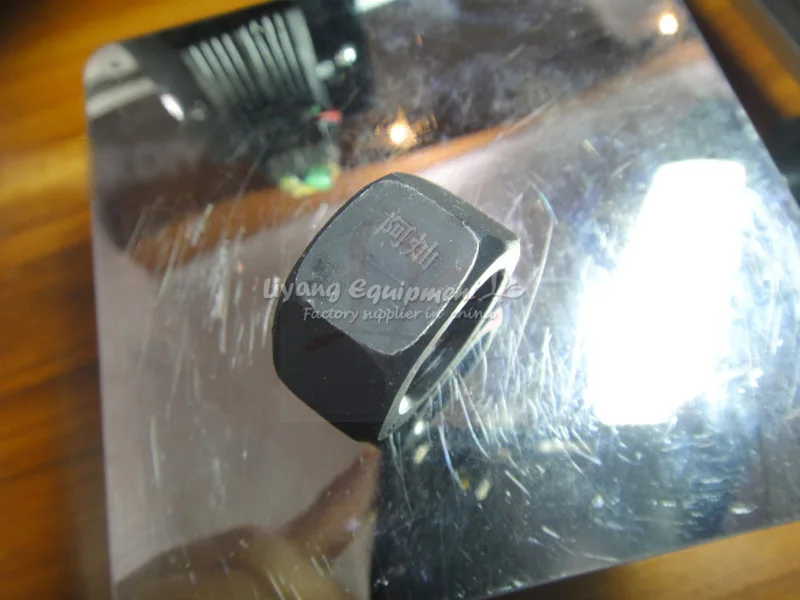

Carving materials: stainless steel, iron, anodised aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.

Height restrictions: no

Interface: USB

Features: Software 255 adjustable laser power, low-light positioning, positioning freedom, gray, shortest path algorithm

Power supply: external adapter, DC 12V 4A, input AC 100V-240V, 47Hz-66Hz

Dimensions: 28 * 32 * 23cm

Weight: 2.4kg

Software: machine developed specifically for use ac master software, support Chinese, English, Russian, 4 languages

Support win7, win8, win10

Super-reduced instruction, 1 byte of instruction accounted for more than 40%

Explain arduino + grbl faster than the speed more than 30 times, and instantly be able to complete the task of interpretation active instruction; shortest path algorithm can shorten the time.



Parameter:

    1. Interface: USB

    2, Power: 12v4A

    3, the laser power: 10W/15W

    4, the appearance size: 28cm * 32cm * 23cm

    5, Engraving area: 140mm * 200mm

    6, Weight: 3.6KG

    7, package size: 37 * 34 * 21cm

    8, can be carved material: stainless steel, iron, anodised aluminium, ceramics, stone, wood, bamboo, leather, plastic, etc.

9, features: nanosecond timing of serial data transmission substantially without delay, power adjustable, high power pulsed laser, lifts fast focusing, targeting low light gray print!

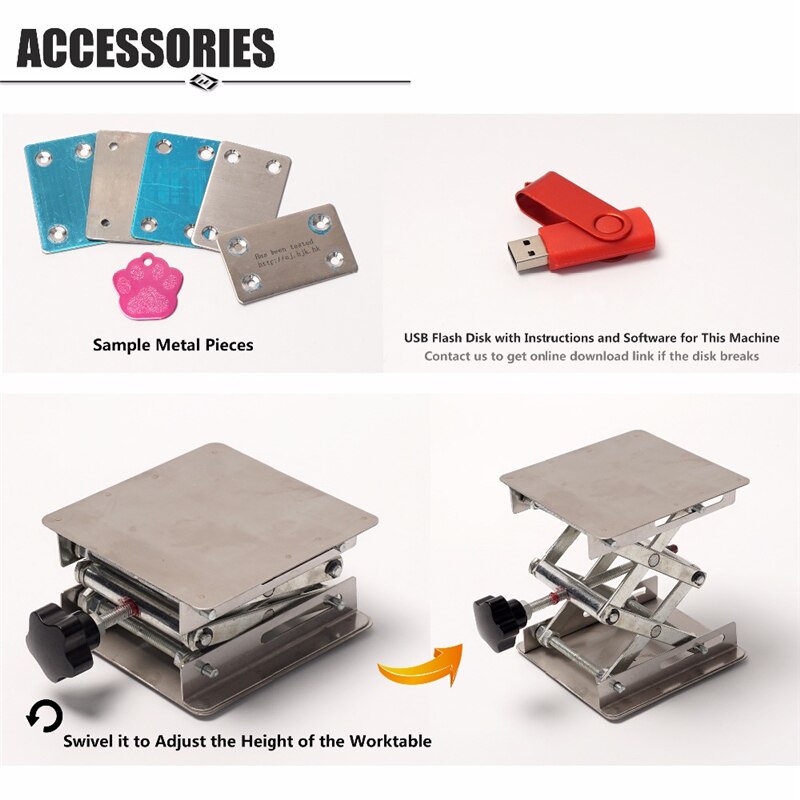

Packing List:

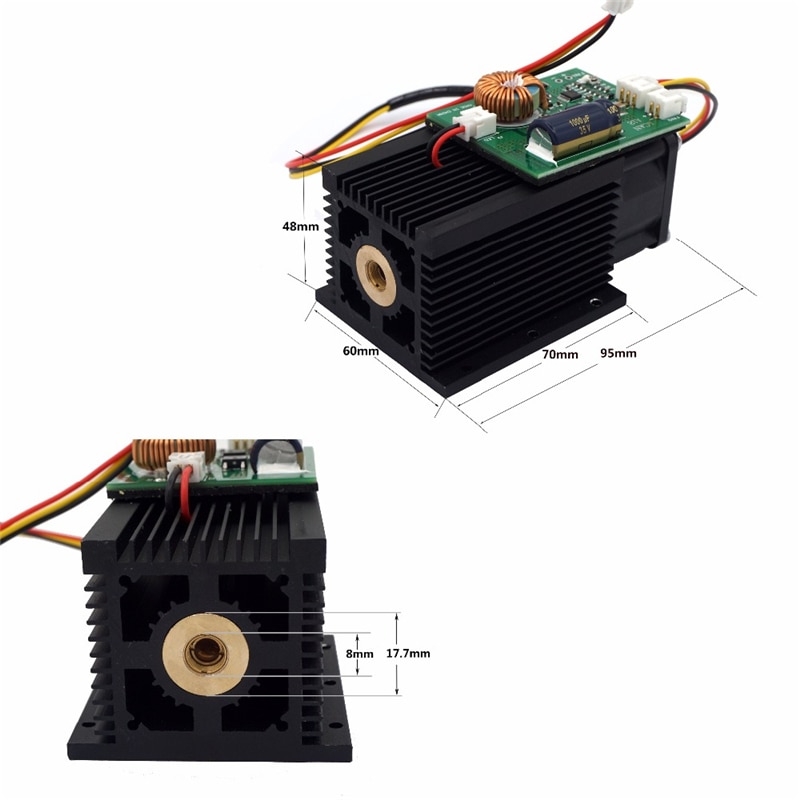

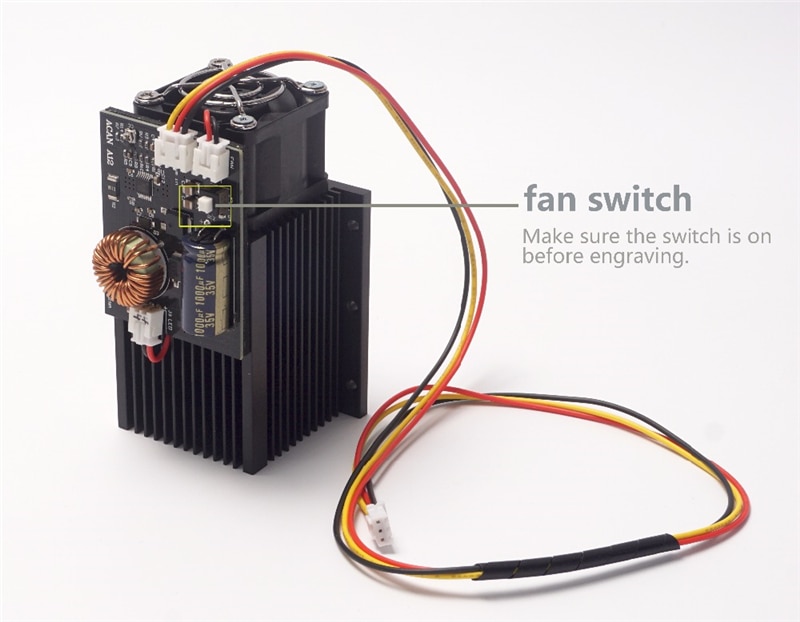

Laser 2014 10W or 15W X 1

Power cord x 1

Metal lift platform 10*10cm x 1

Glasses x 1 pair

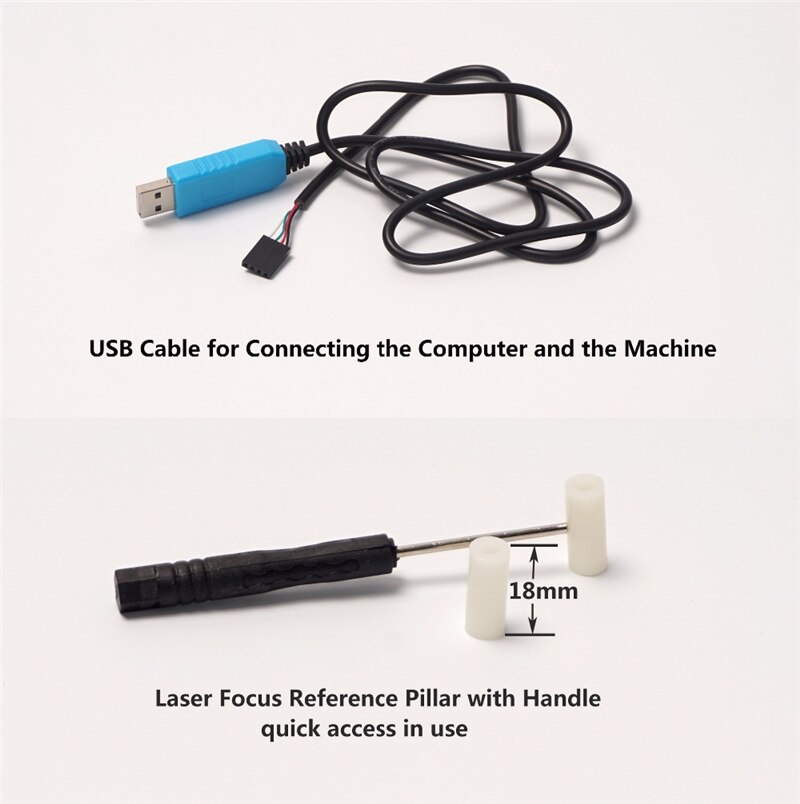

USB line x 1

(Software can download via our link)
