Description
- Brand Name: Nakupenda
- Condition: New
- Model Number: DIY Laser 4050
- CNC or Not: CNC
- Is Smart Device: YES

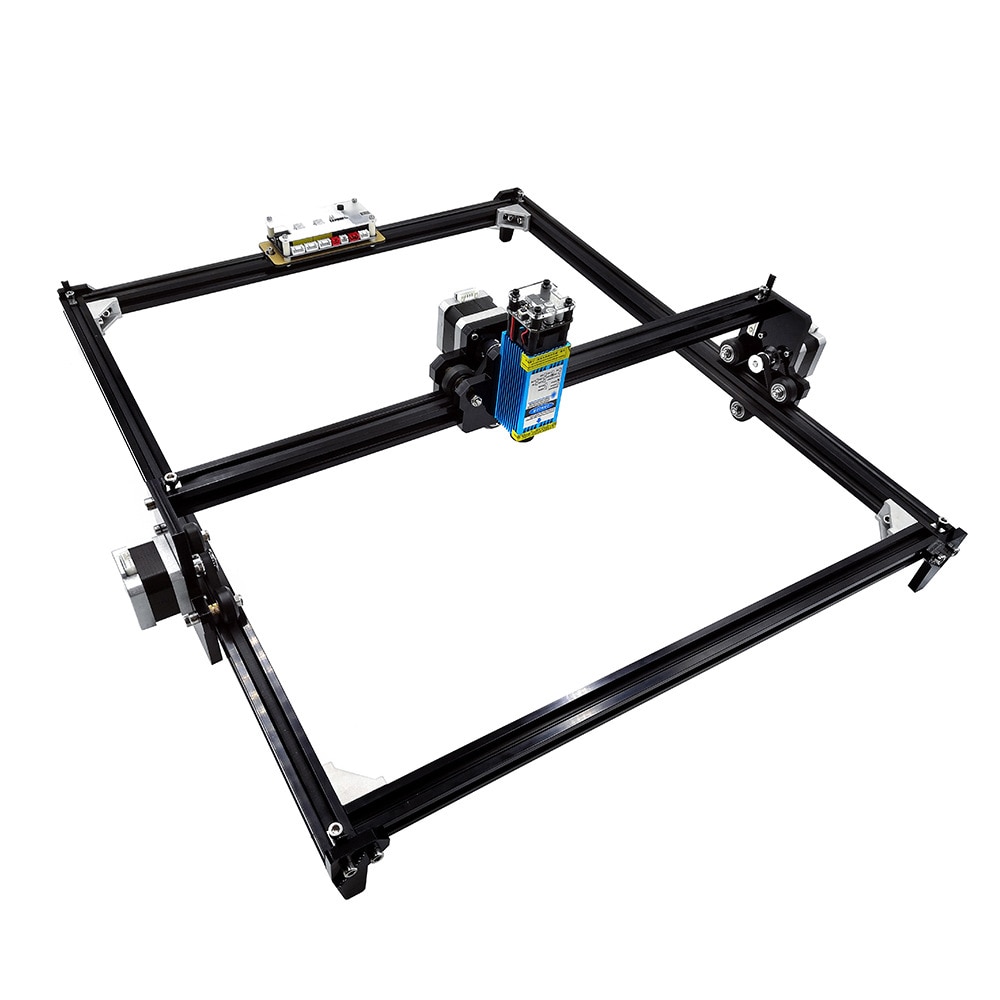

DIY Laser 4050 Engraver Mini CNC Laser Engraving Machine With 500mW 2500mW 5500mW 15W Lazer Cube
- Working area: 40 * 50cm
- Laser power: 500mw / 5500mw / 15W fixed focus
- Laser power: 12V 5A
- Input voltage: 12V
- Number of axes: 2 Axis (X axis double Y axis)
- Accuracy: 0.1MM
- Main features: weak light positioning test, dot matrix engraving, gray engraving, engraving contour, solid engraving
Product advantages
- Software power adjustment, support 500 mw / 2500 mw / 3500 mw / 55000 mw / 15000 mw
- Fast laser head design + adjustable focal length design
- The biggest working area is 40 * 50 cm
- all aluminum + thick acrylic materials
- The software is easy to use and free to upgrade for life.
- dual motor design which is lighter and more accurate.
- the height of the sculpture object is unlimited, you can directly work on it * (such as carving on the table directly on the table)
- DIY Kits package,you need to assemble it
Installation:
This Laser engraver is shipped in bulk.Buyer is required to install on yourself.We’ll provide you softwares and
instructions.

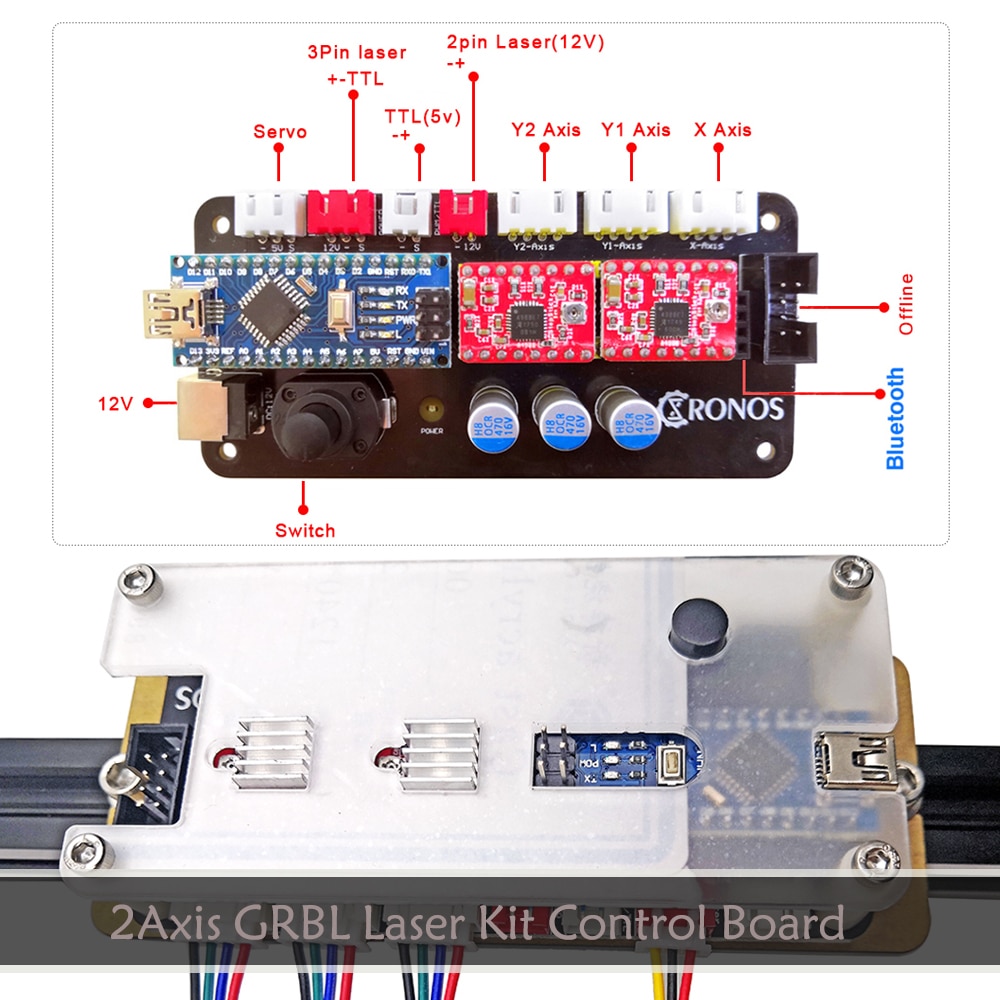

Upgraded Control Board
- A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.
- Metal power interface: the old plastic interface changed to all metal shielded interface.
- USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

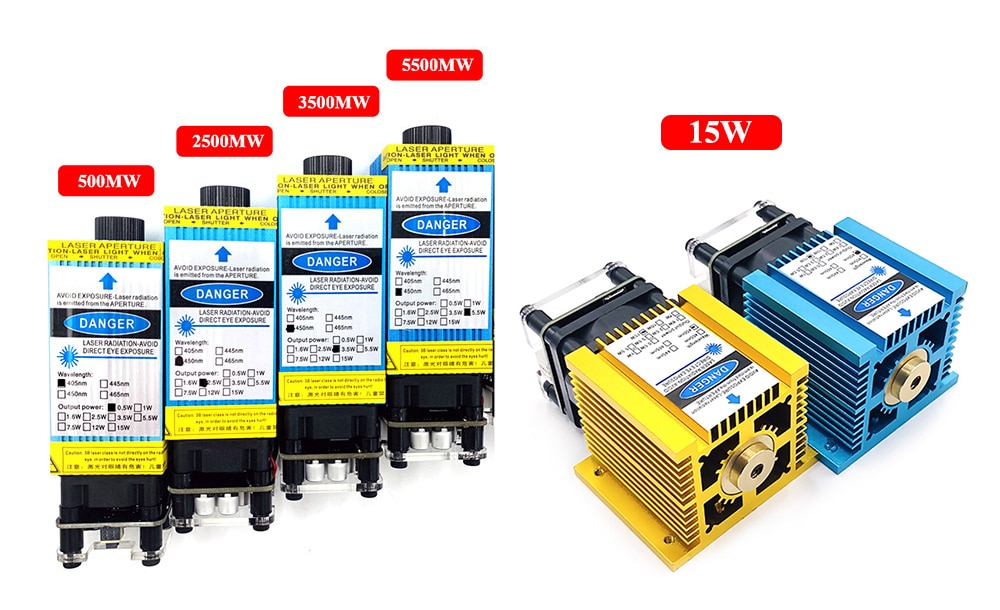

Laser Module 500mW/2500mW/5500mW/15W
- Blue-violet module, 33mm(15W,51MM), 3P/2P-2P connection, supports PWM/TTL
- Laser wavelength: 405nm-450nm blue laser
- Drive mode: external ACC constant current drive
- Cooling method: forced air cooling
- Operating voltage: 12V DC
- Control interface: 2 * 2.54 (TTL control switch, PWM control power)
- Shell material: aluminum, surface anodized
Detail Pictures

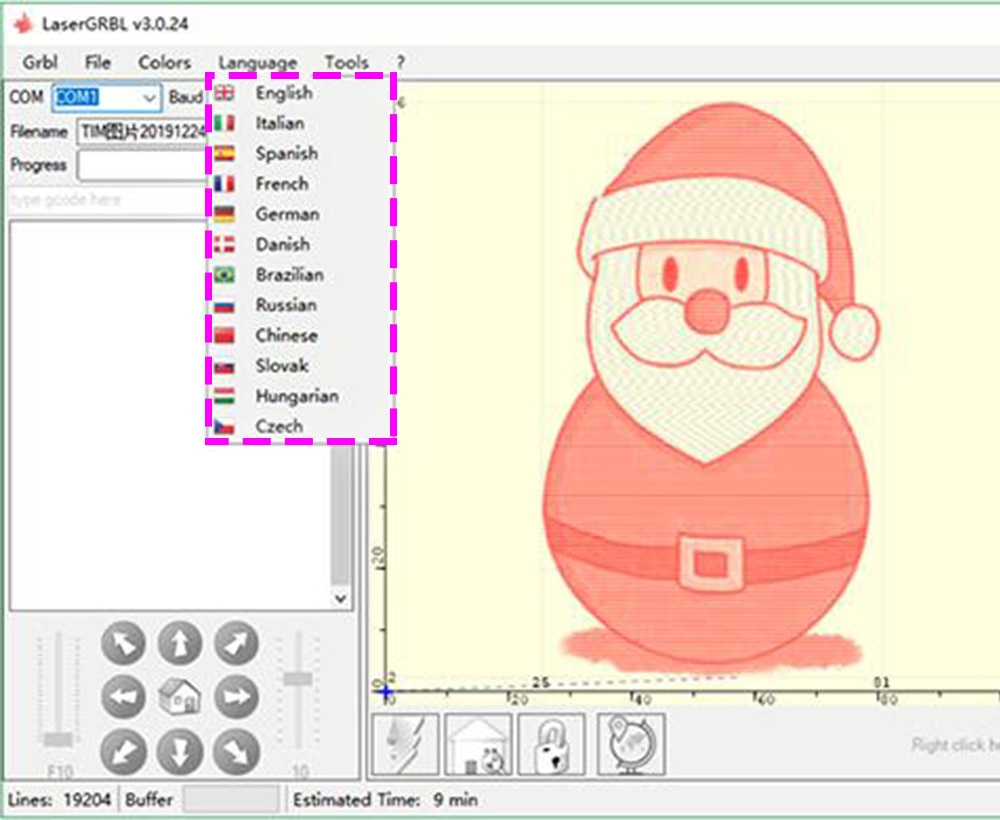

Software and instructions
-
Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment). -
Or tell me your email address, we'll send you the software and installation instruction
Brief introduction
A. What area it can used for?
- Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.
B. What materials it can used for?
- Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
- Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
C. Samples
