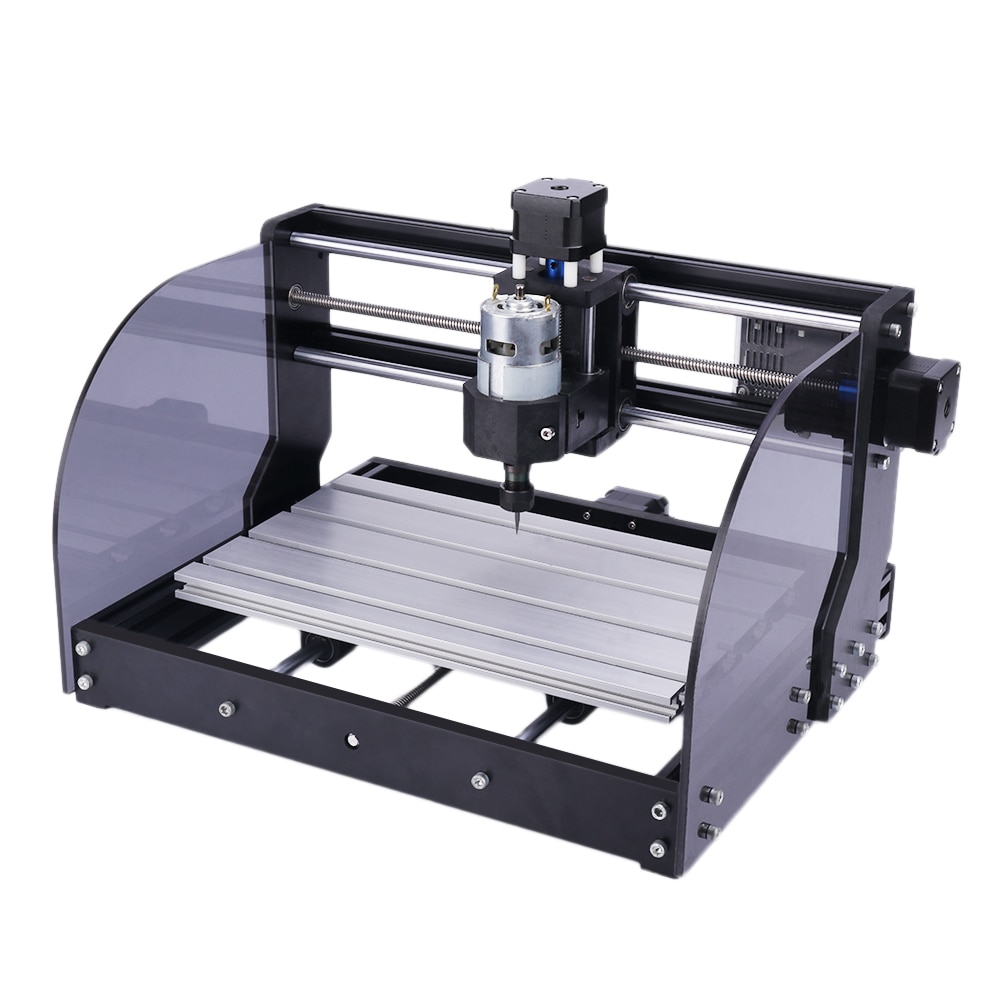

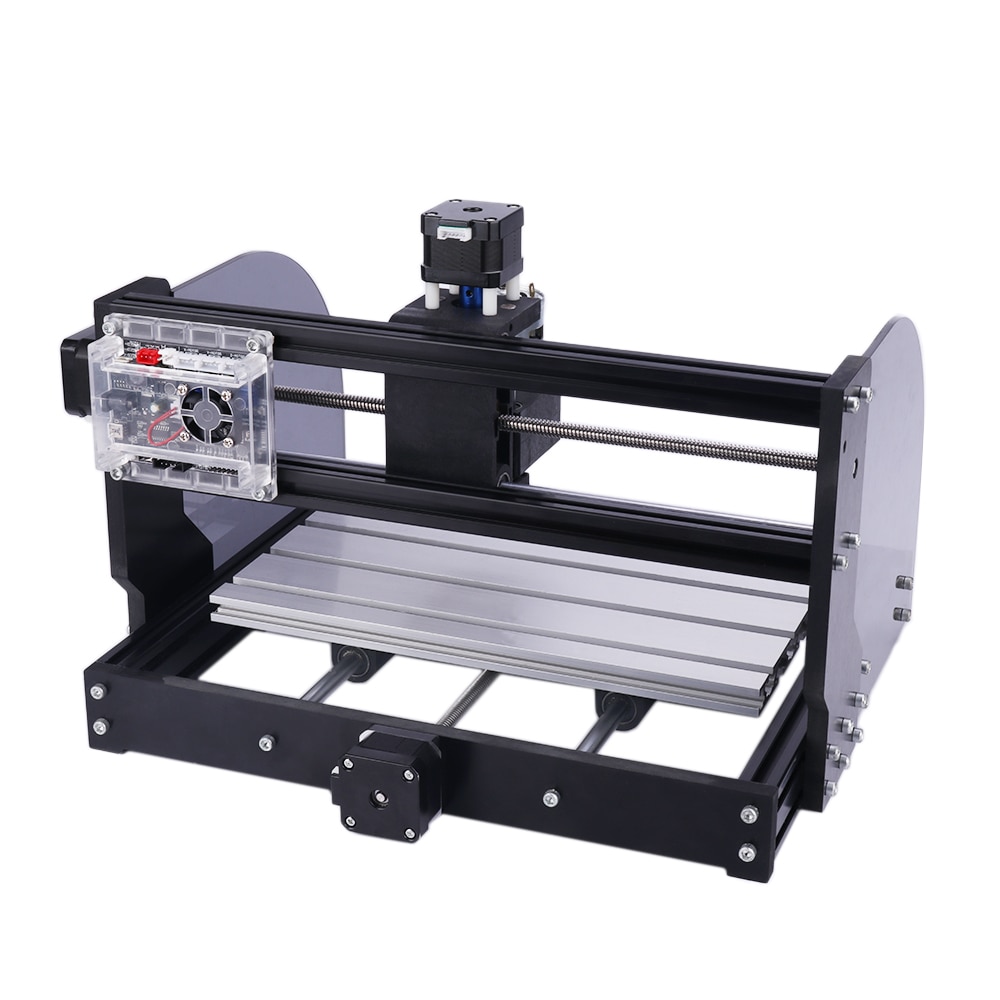

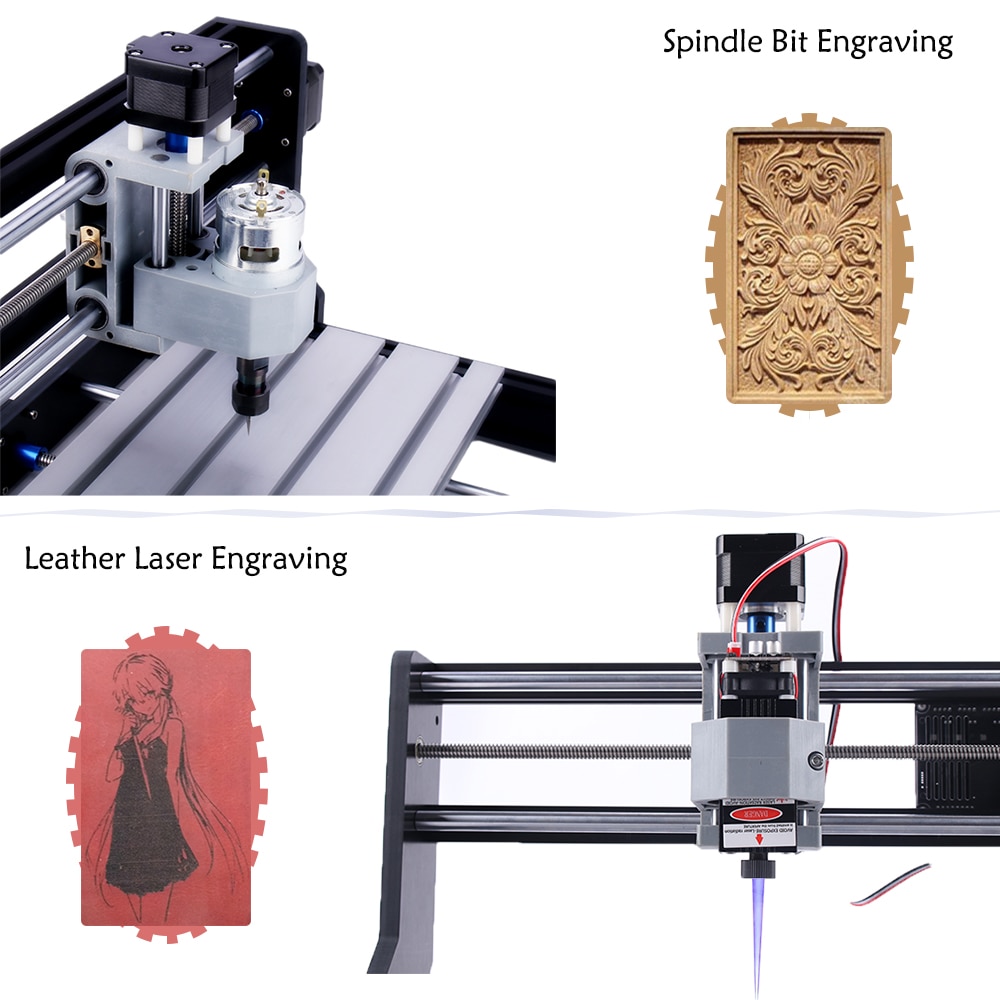

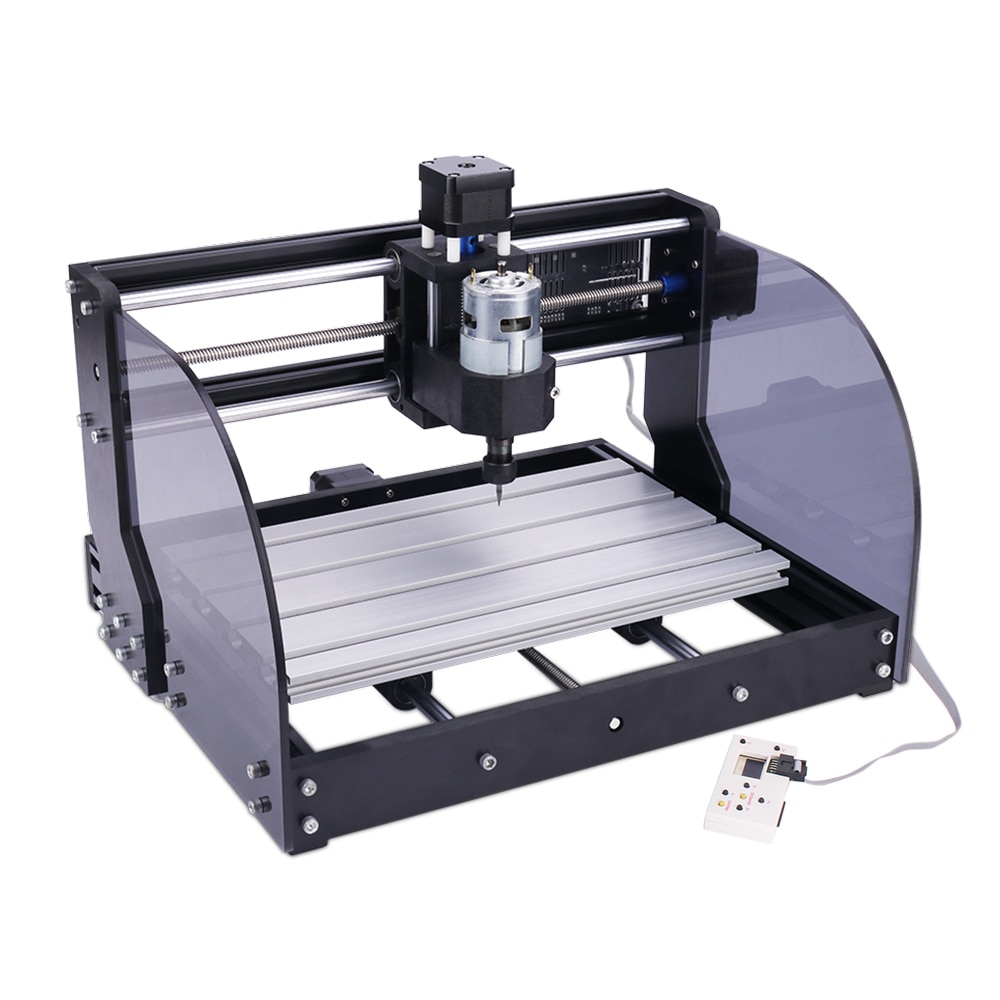

DIY CNC 3018 Pro MAX Mini CNC Laser Router Engraving Machine with GRBL Offline Controller 1000mW 2500mW 5500mW 7W 10W 15W Module

• Control board:Three-axis drive,X Y Z Axis

• Laser:Support offline laser output 3P, Support PWM TTL function

• PVC Frame: Durable, beautiful appearance, high precision and long life

Applications

Warranty service

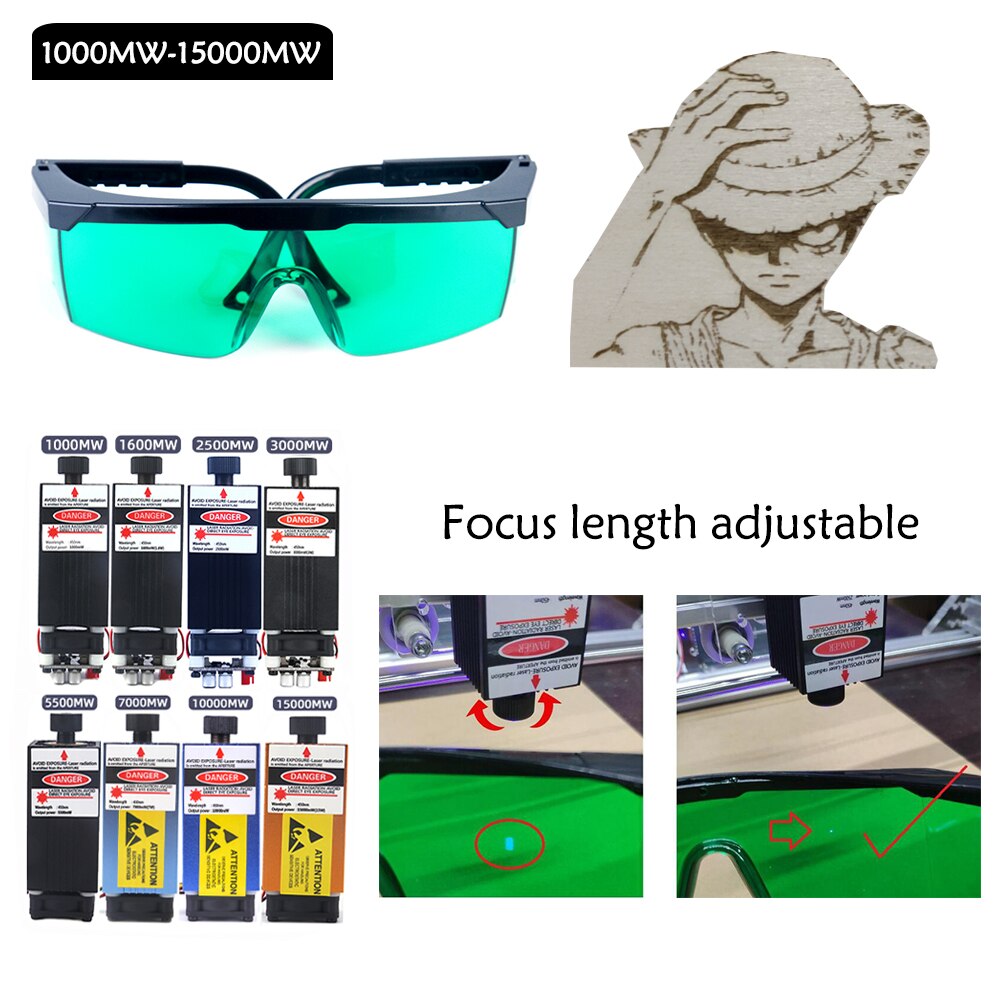

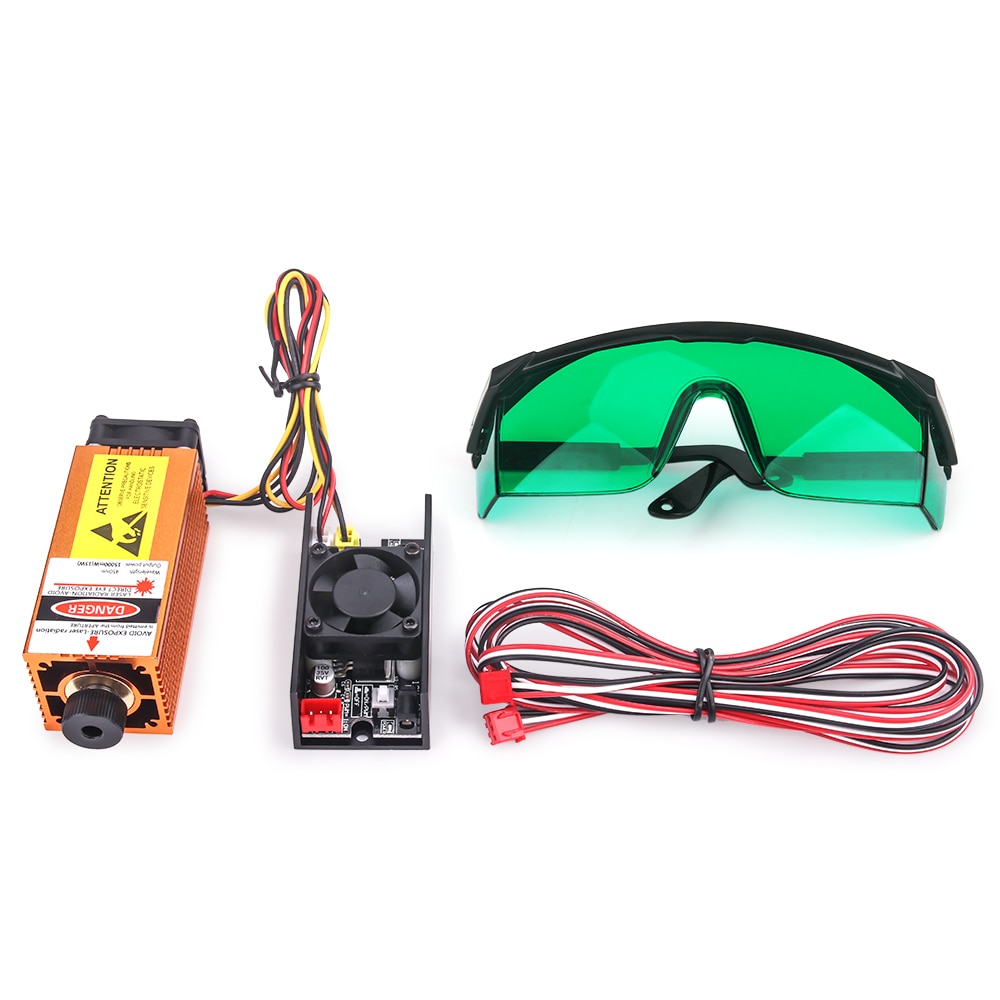

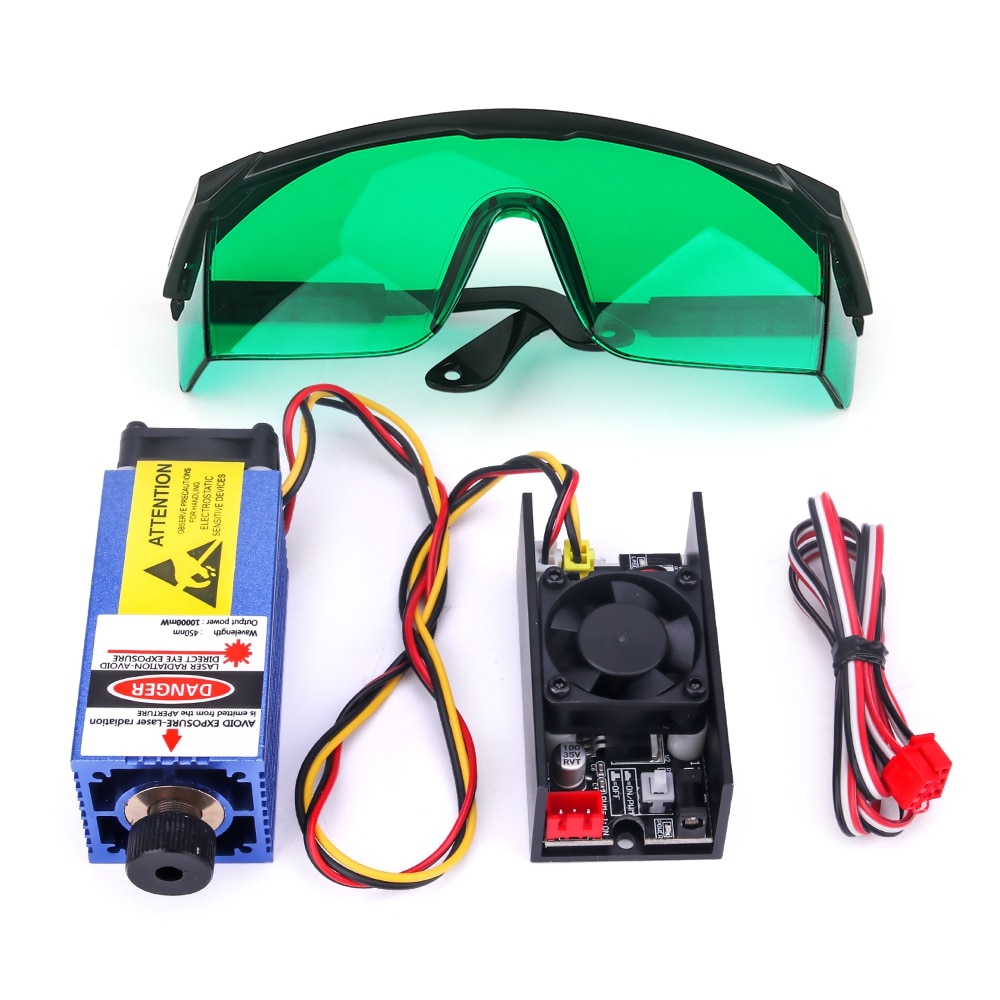

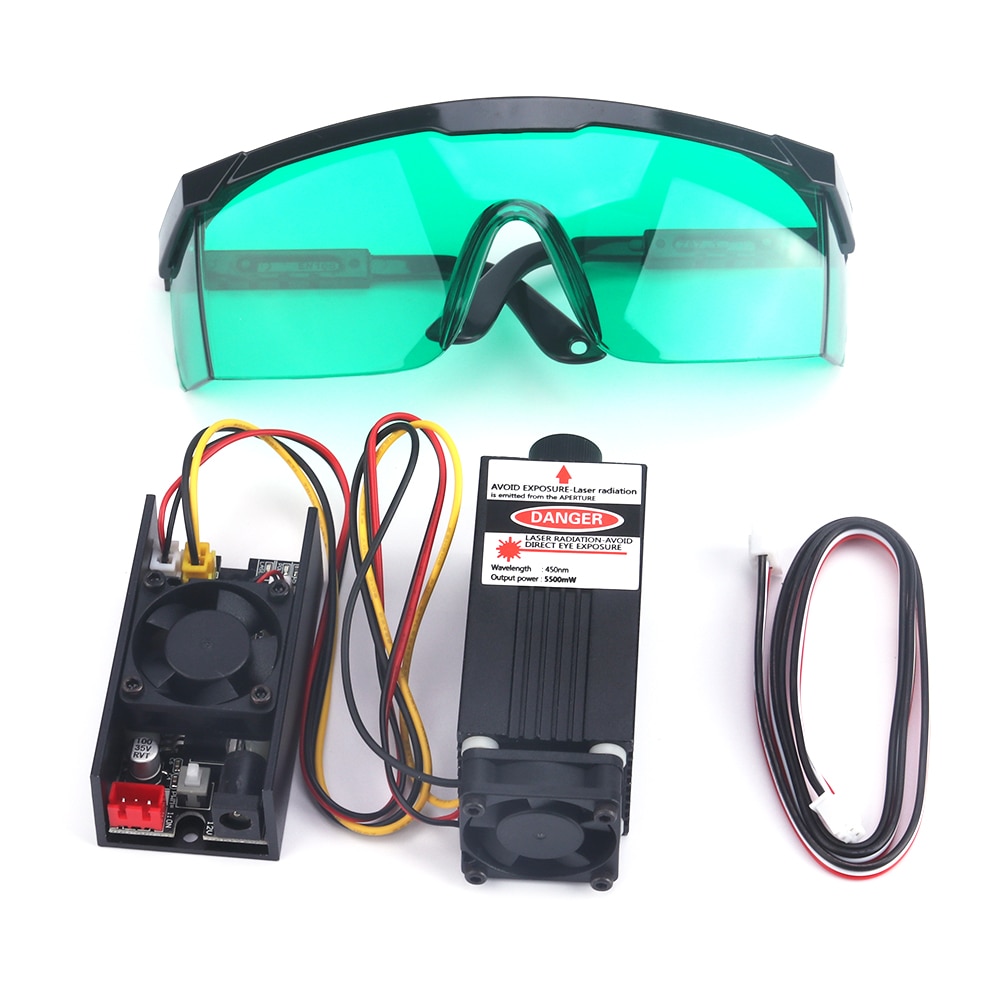

• Upgraded 1000mW/ 2500mW/ 5500mW / 7000mW/ 10W/ 15W Laser

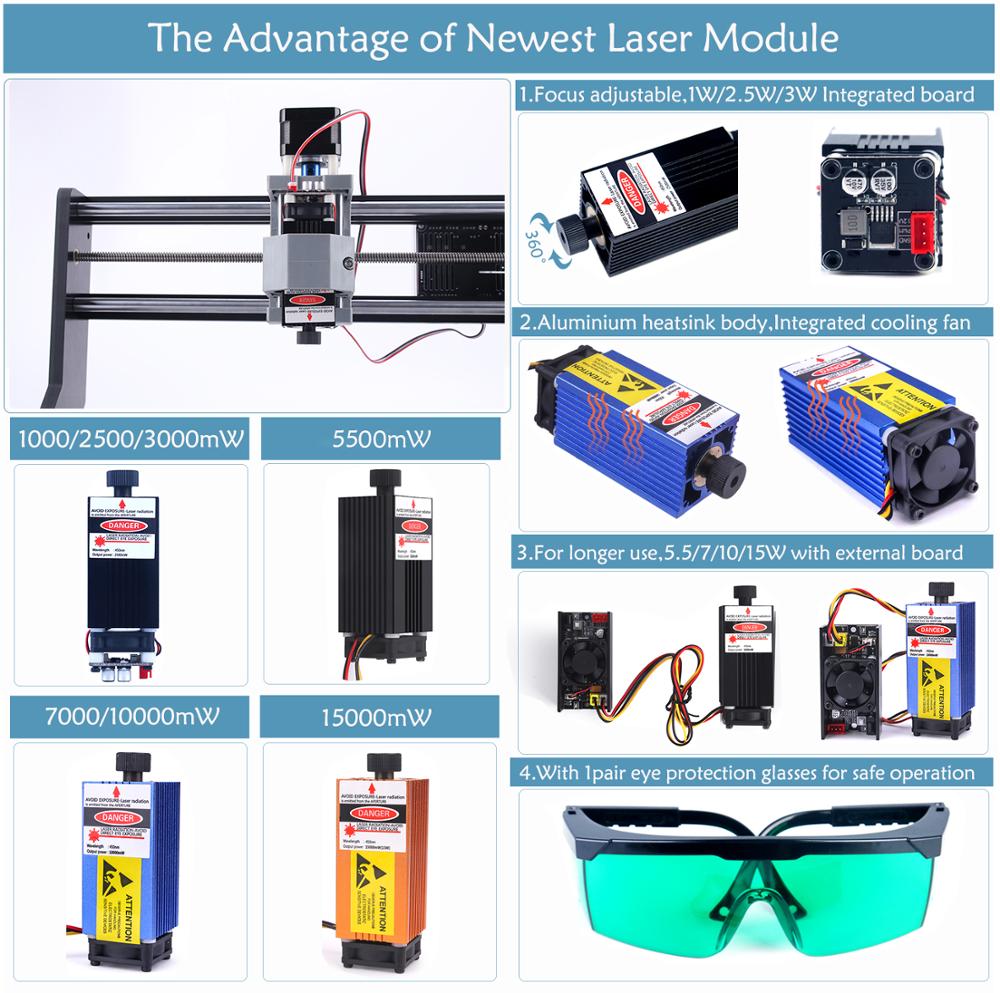

• Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.

• Laser wavelength: 445nm-450nm blue laser

• Drive mode: external ACC constant current drive

• Cooling method: forced air cooling

• Operating voltage: 12V  DC

• Control interface: 2 * 2.54 (TTL control switch, PWM control power)

• Shell material: aluminum, surface anodized

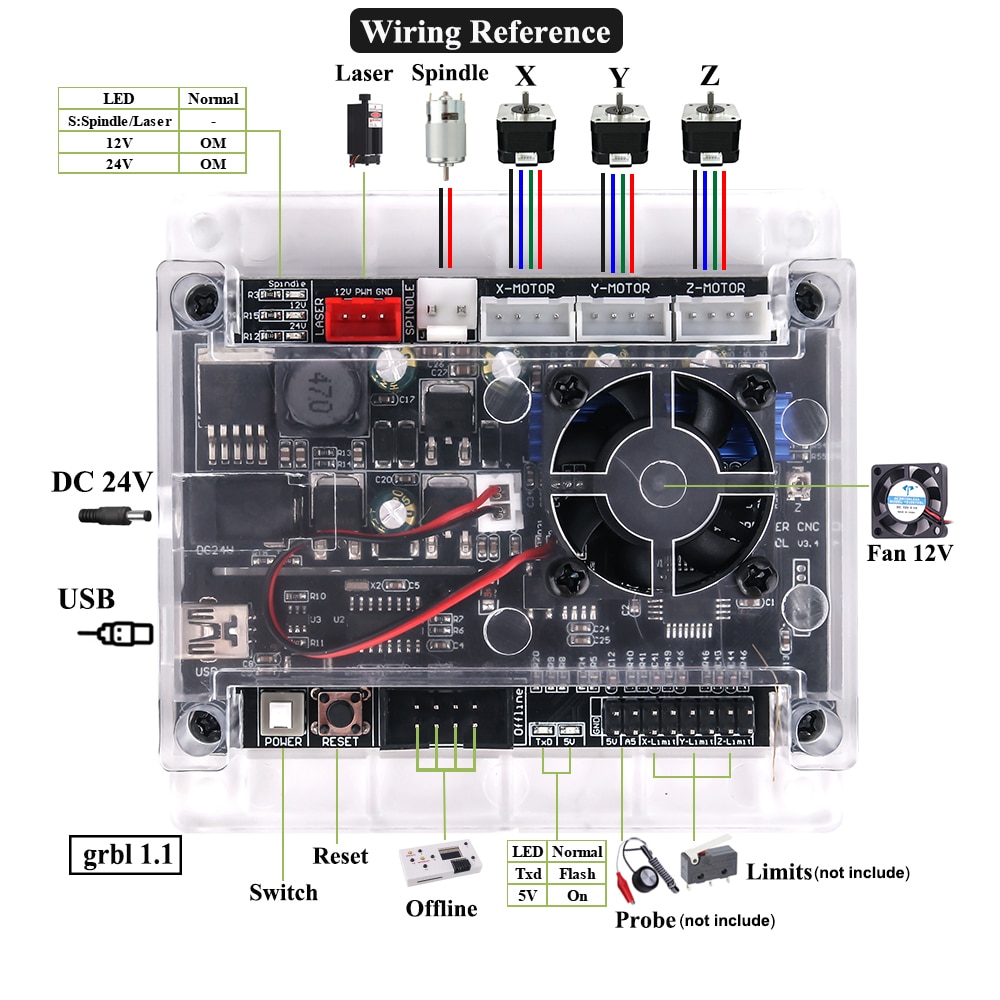

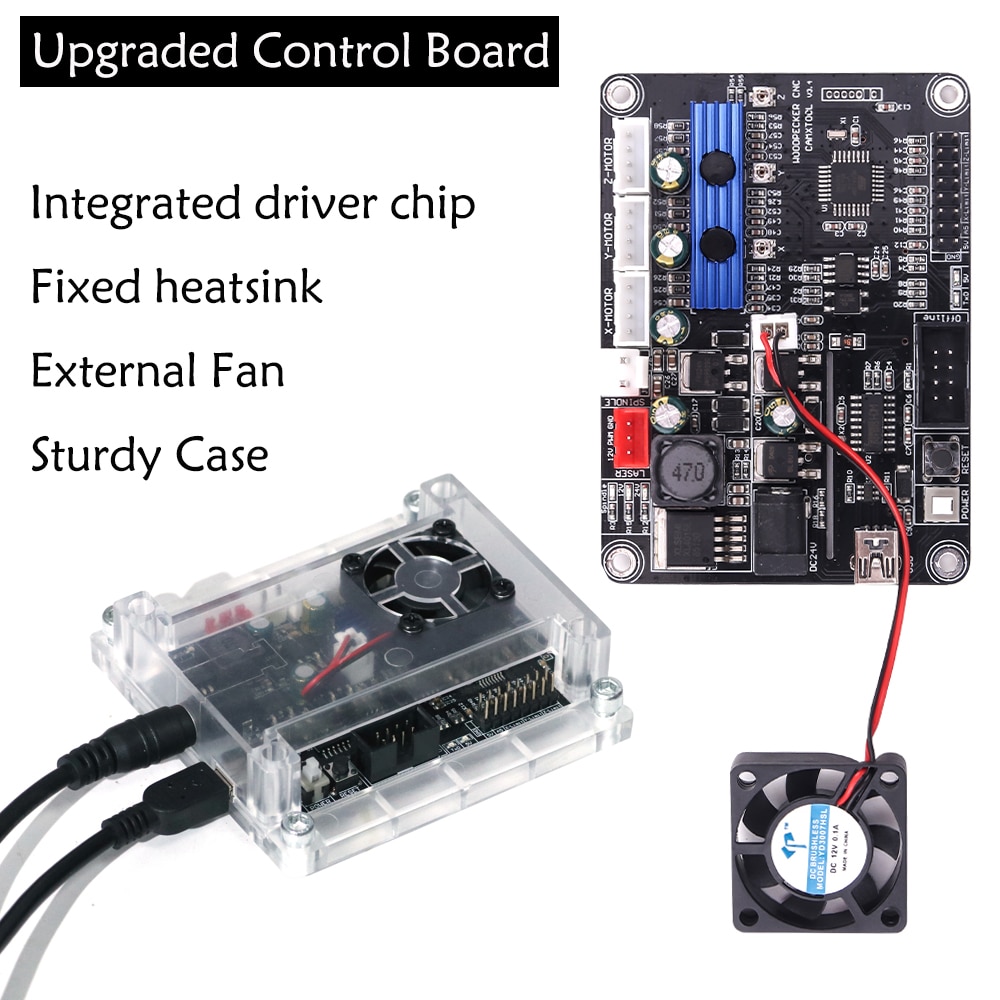

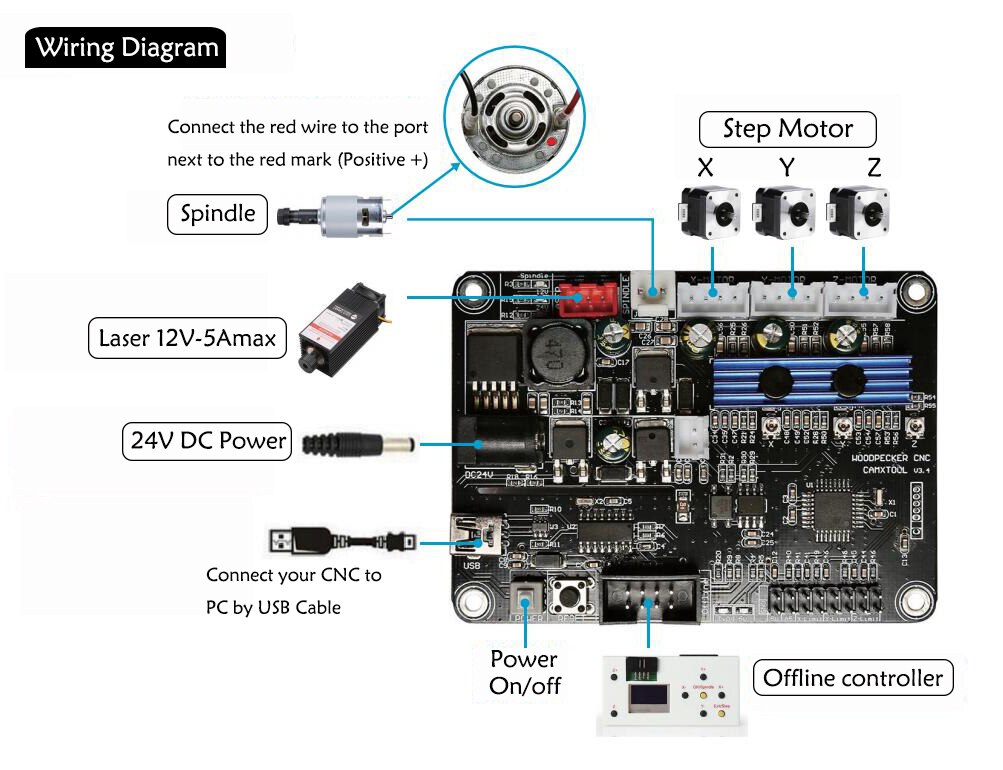

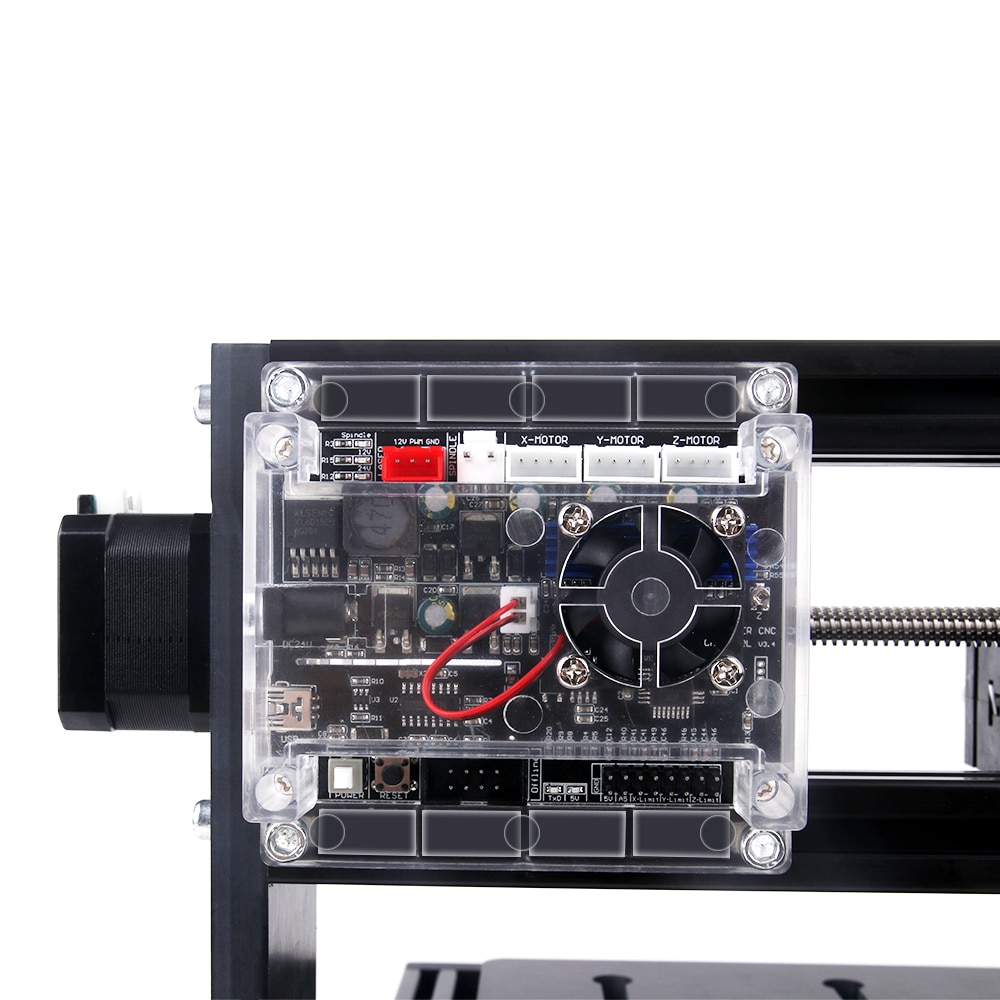

The advantages of Upgraded Control Board

1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.

2. Upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving.

3. Improved power interface: the original plastic interface changed to all metal shielded interface.

4. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

5. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.

5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.

6. 12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.

7. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

8.Added heat sink to avoid burning the control board or the offline controller

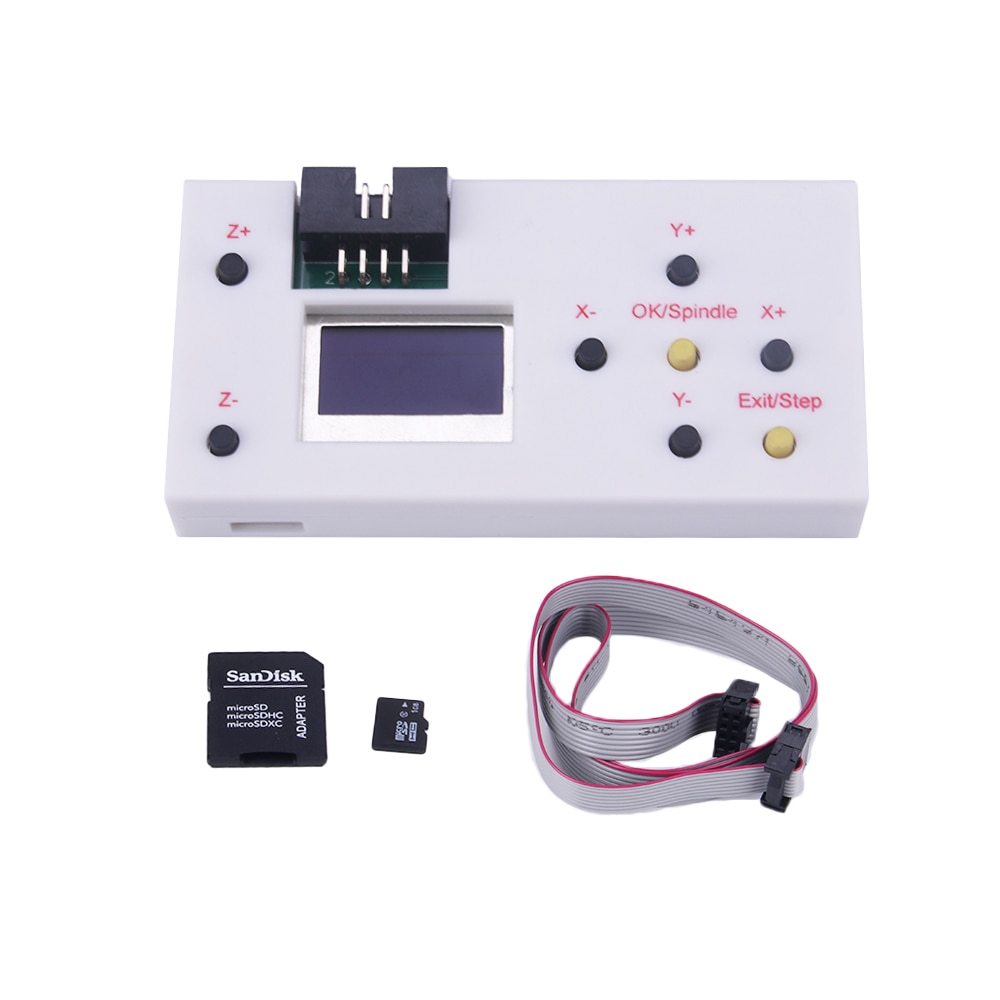

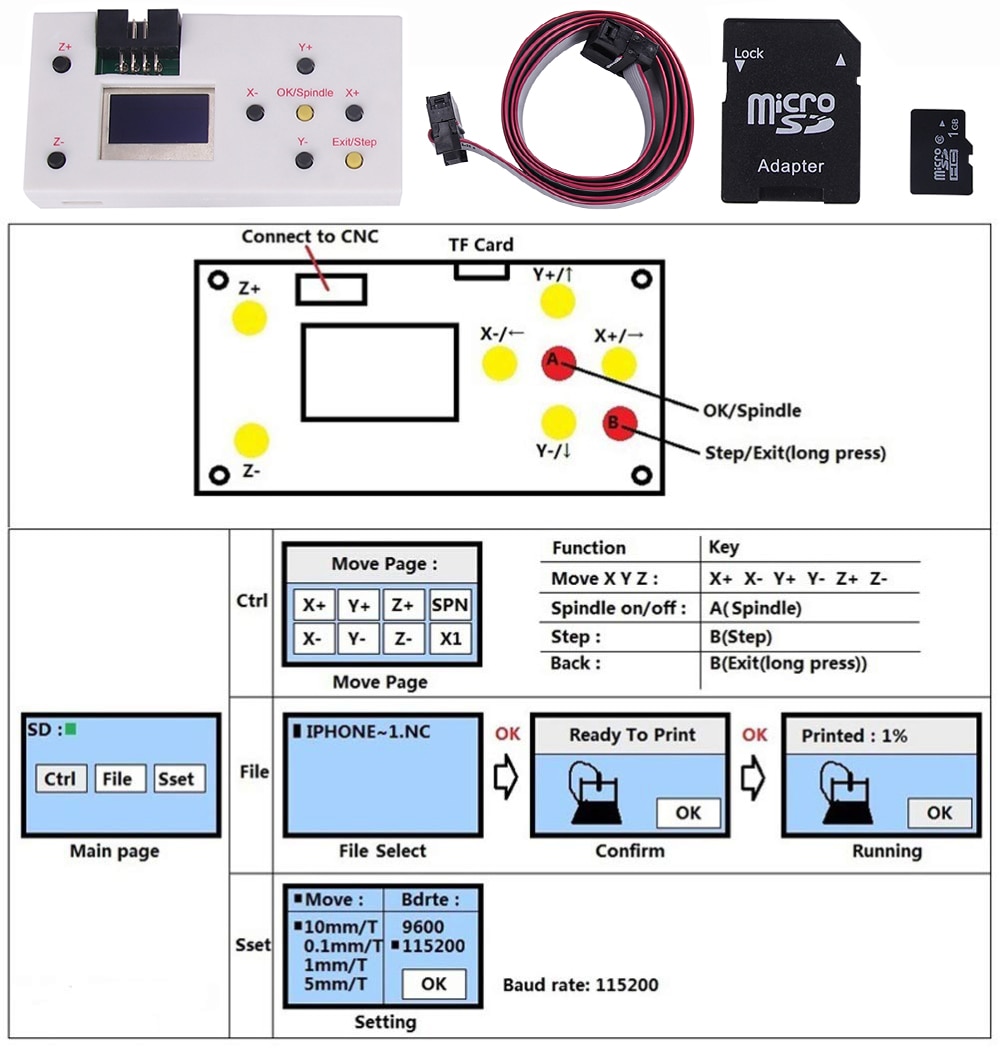

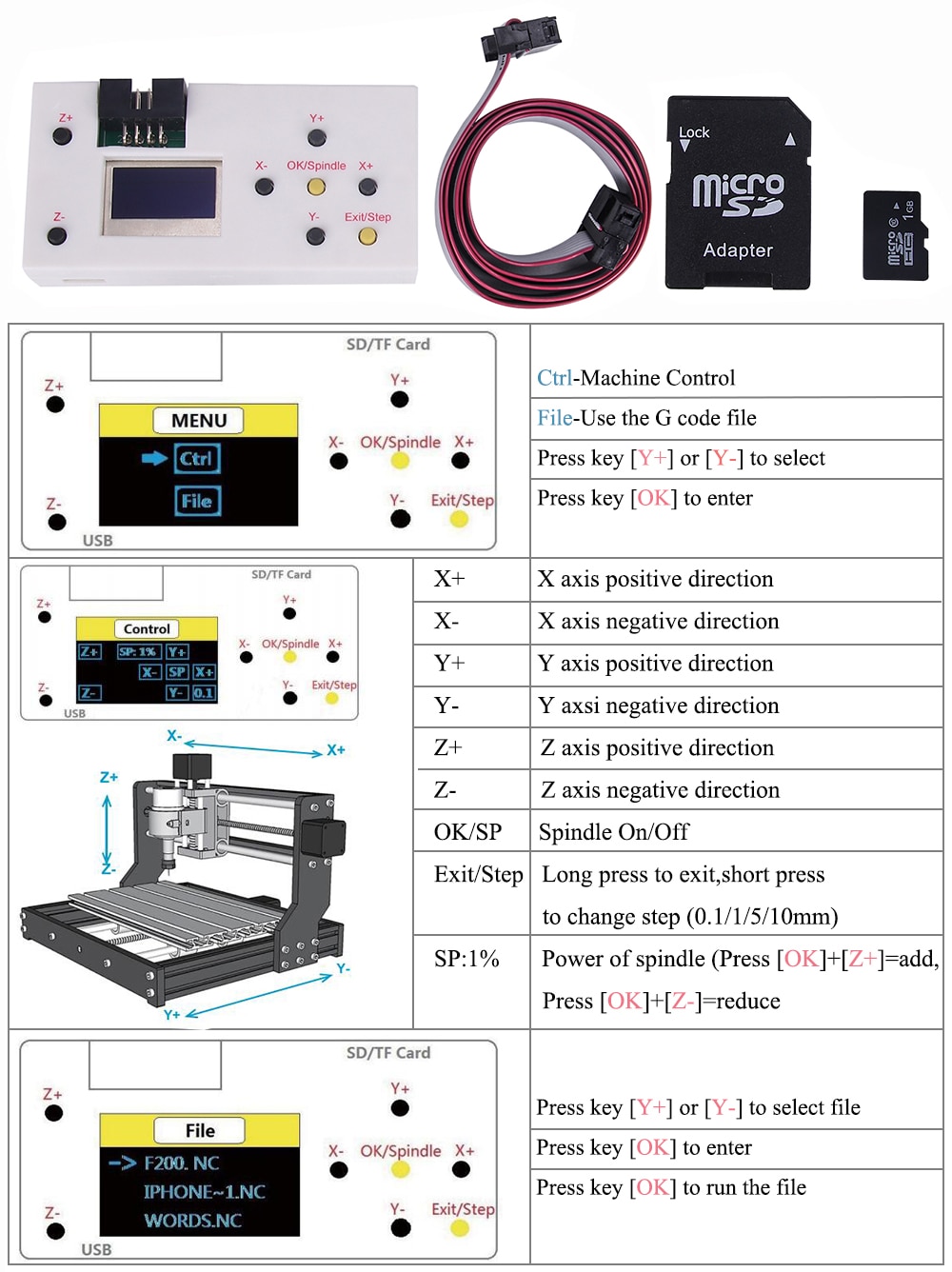

Offline controller : LCD screen with installed 1GB large SD card

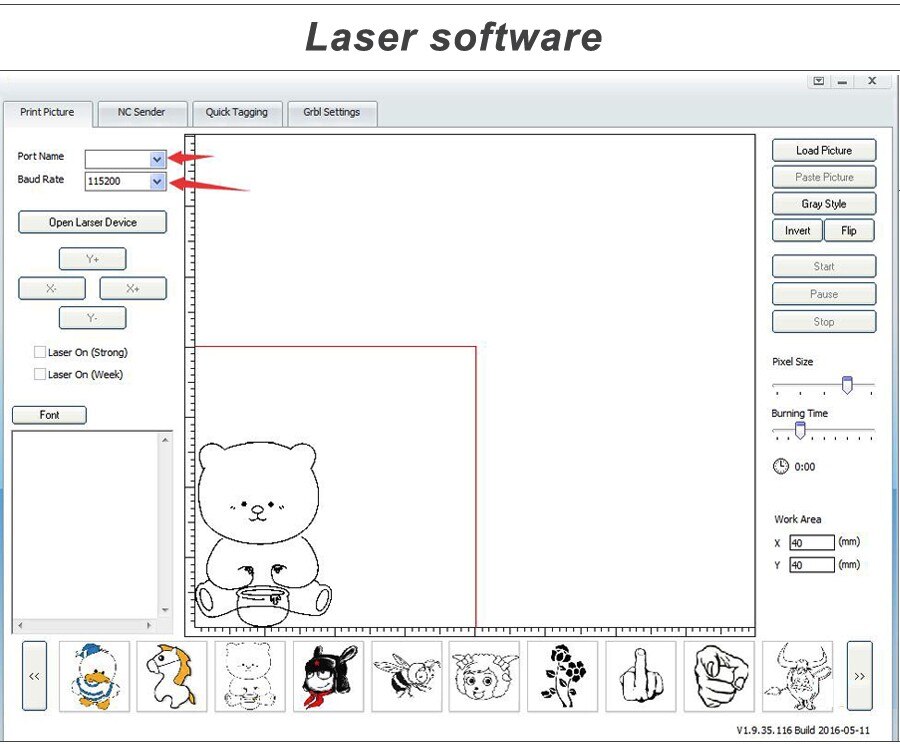

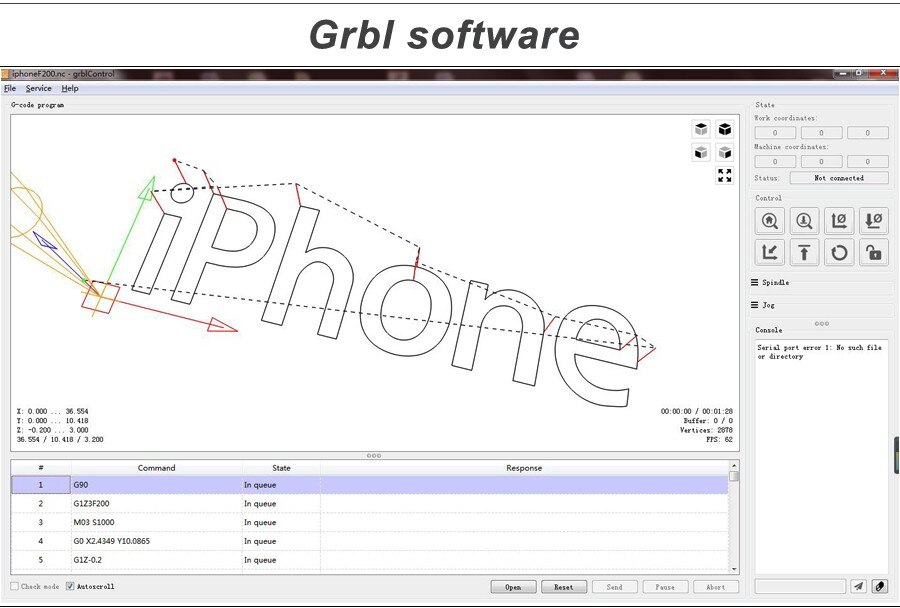

About software and instructions

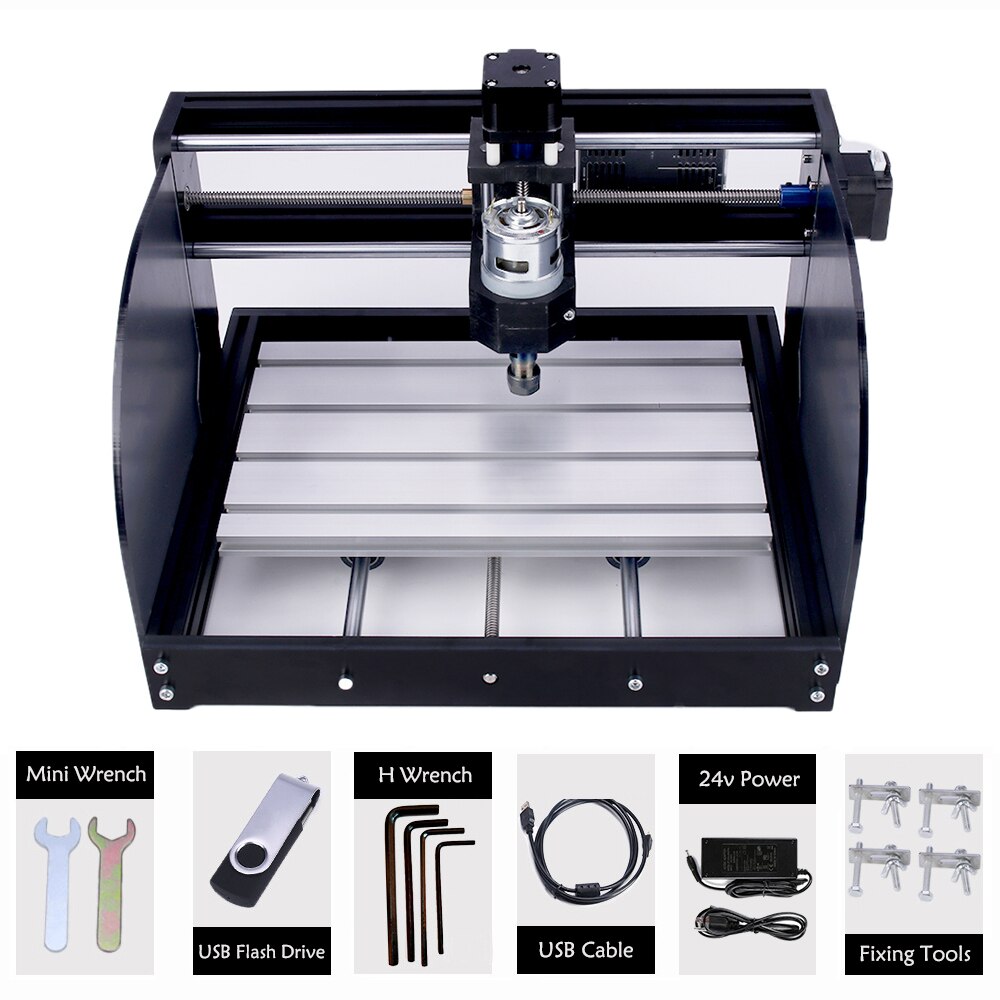

• A 4GB USB Flash Drive includes software and installation instructions along with the package.

• You can also download from our Web Cloud Disk(We’ll send you after shipment).

• Or tell me your email address, we’ll send you the software and installation instructions.

Brief introduction

A.What area it can used for?

CNC 3018 router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.

B.What materials it can used for?

It can work forWood, acrylic,plastic,Jade, PCB ,PVCAdvertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal formilling, engraving, drilling & cutting.

C. Samples

Shipping Methods:

1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.

2)Air/Sea Shipment: Please provide us your air port information.

2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.

3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days     will be needed for some remote place.

Shipment Time:

1. For samples within 1-3 workdays

2. Wholesales Orders : 2-5 workdays according to different quantities

3. OEM orders:7-10 days after receiving your sample confirmation and payment.

Problem and Feedback:

Please contact us first when you have problem

Give us the opportunity to resolve any problem

We will try our best to help youto solve the problem.

Your satisfaction is very important for our store,

So please contact us before you want to leave a negative feedback.

Thanks very much in advance.

Refund:

If you are not satisfied with our package like the products is damage,

Please  contact us immediately,we’ll help you r refund if it’s our mistake.

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems
