Supported Formats:jpg, bmp, svg, G-code
Main features: weak light positioning test, dot matrix engraving, gray engraving, engraving contour, solid engraving

Applications
1. Spindle router bit engraving: wood, plastic, PCB, acrylic, plywood, etc.
2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.

About software and instructions
One USB Flash Drive includes software and installation instructions along with the package.
You can also download from our Web Cloud Disk(We’ll send you after shipment).
Or tell me your email address, we’ll send you the software and installation instructions.

About Shipping
1, Poland warehouse: Orders from EU countries will be shipped from Poland warehouse, delivery time is about 3-10 days
2, Russia warehouse:Orders from Russia will be shipped from Moscow warehouse,time for Main city:5-10 days,Remote areas:10-20 days
3, Spain warehouse: Orders from Spain will be shipped from Madrid warehouse, delivery time is about 3-5 days
3, China warehouse: Other countries will ship from China via DHL UPS or Fedex, the delivery time is about 8-15 days

About Return& Refund
Local free return service,supports US,CA,RU,DE,FR,ES,NE,UK,AU,BR,Israel,KR,SA,UAE,PL,IT 16 countries.
Other countries need buyer to pay for return postage.

About Warranty service
One-year’s warranty,all your after-sales problems under protection.
15-day’s part free warranty,any parts damaged within 15 days after receiving the product will be replaced.

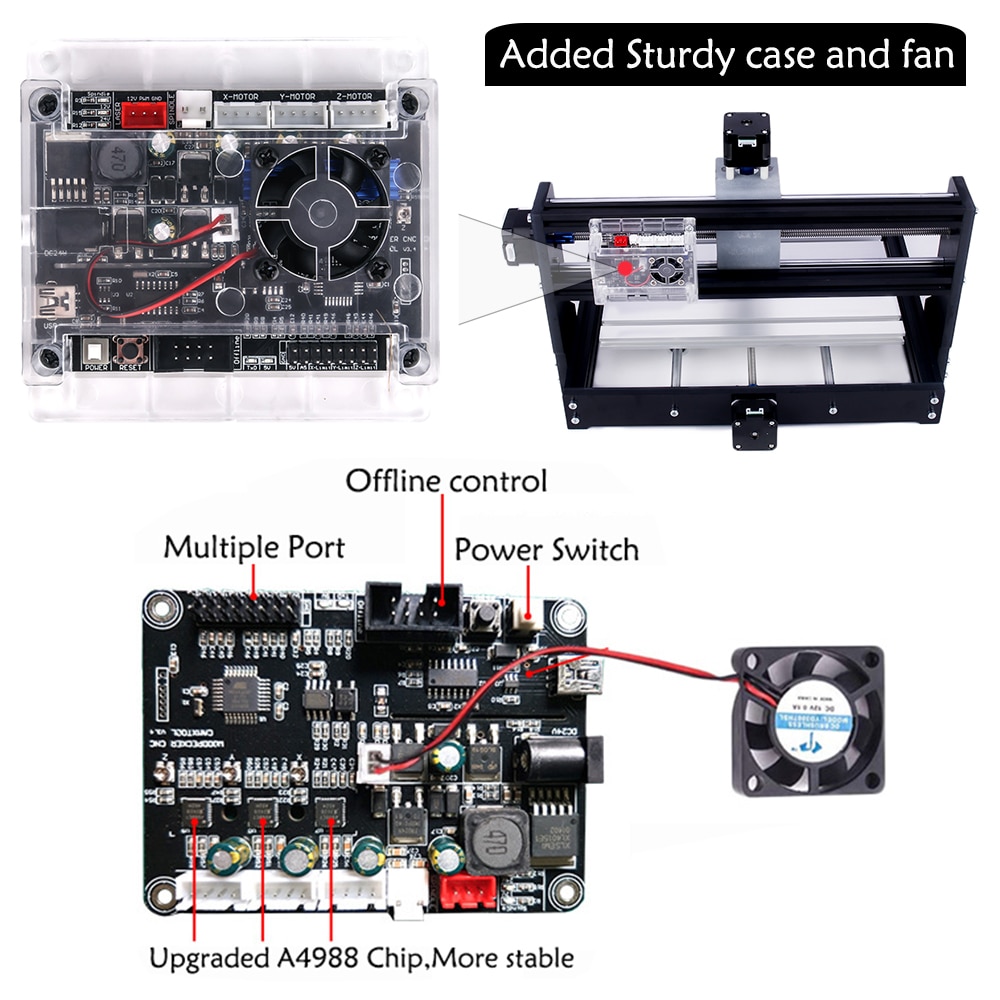

The advantages of Upgraded Control Board

1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.

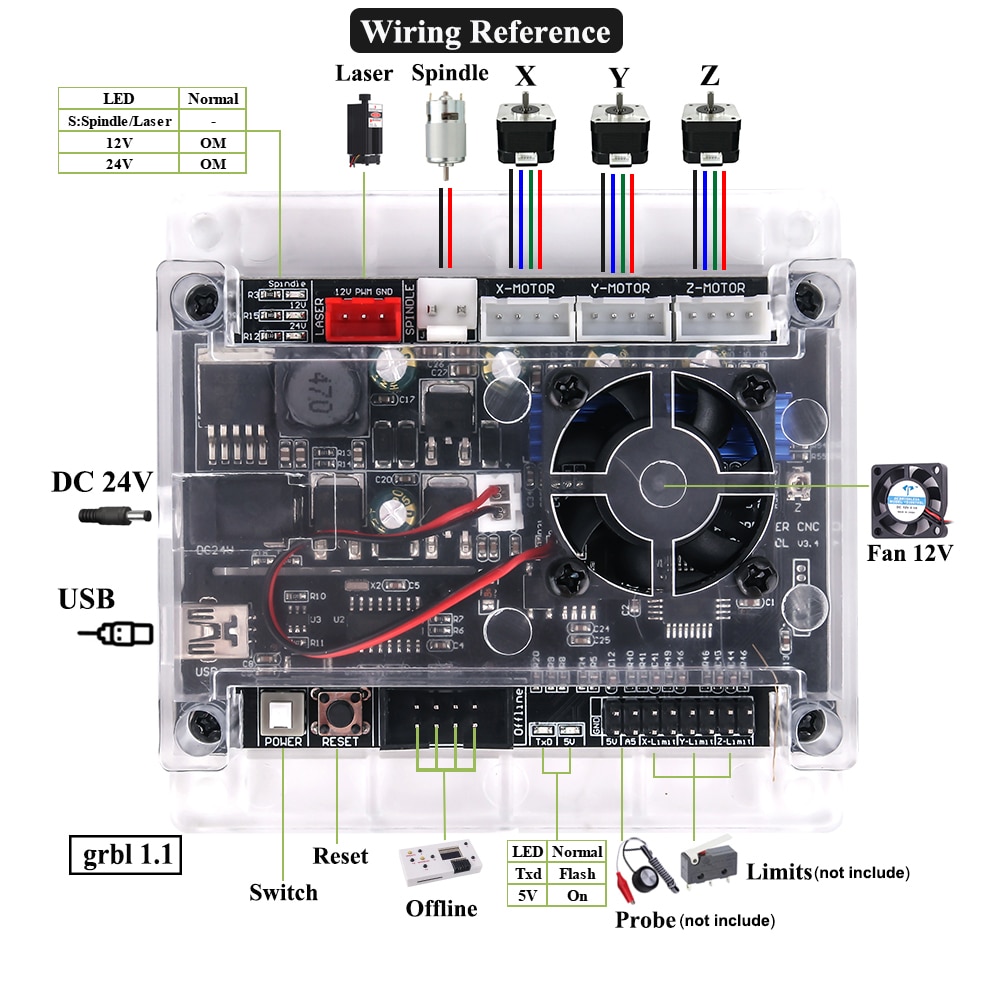

2. Upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving.

3. Improved power interface: the original plastic interface changed to all metal shielded interface.

4. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

5. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.

5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.

6. 12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.

7. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

8.Added heat sink to avoid burning the control board or the offline controller

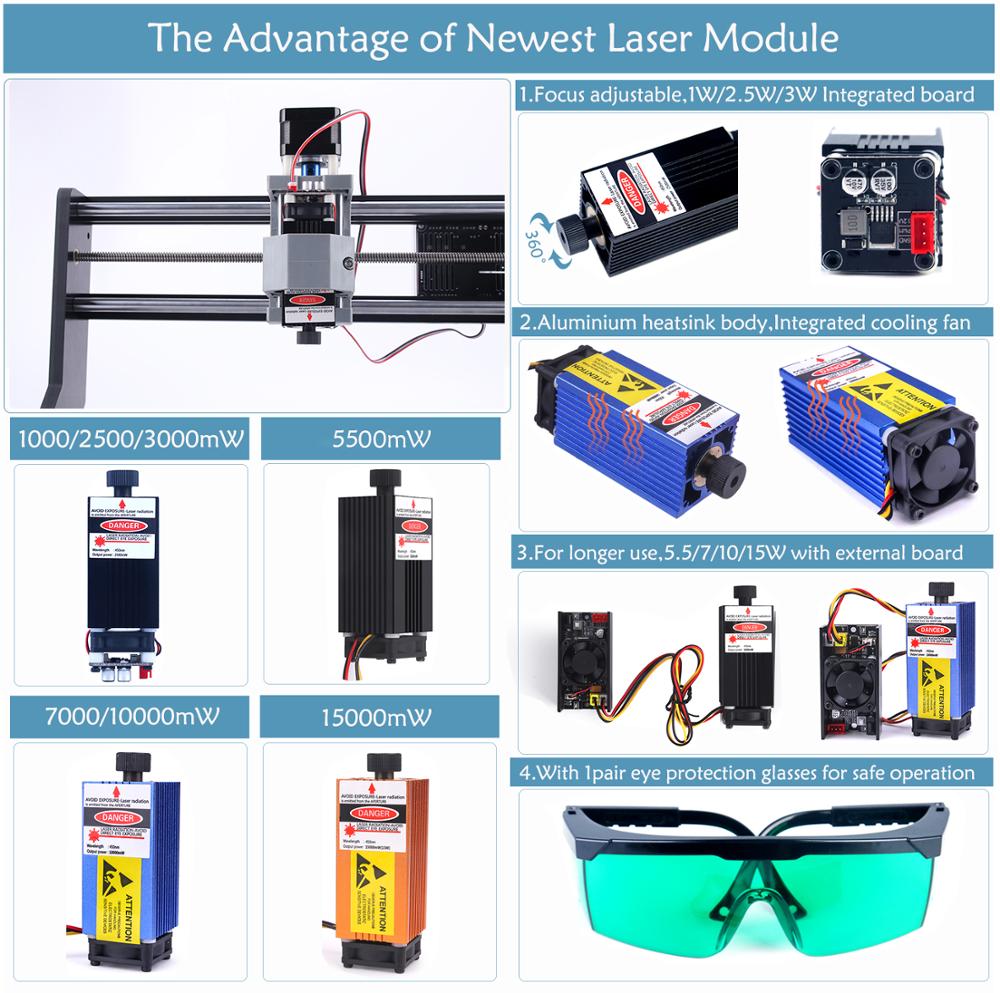

• Upgraded 1000mW/ 2500mW/ 5500mW / 7000mW/ 10W/ 15W Laser

• Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.

• Laser wavelength: 445nm-450nm blue laser

• Drive mode: external ACC constant current drive

• Cooling method: forced air cooling

• Operating voltage: 12V  DC

• Control interface: 2 * 2.54 (TTL control switch, PWM control power)

• Shell material: aluminum, surface anodized

•

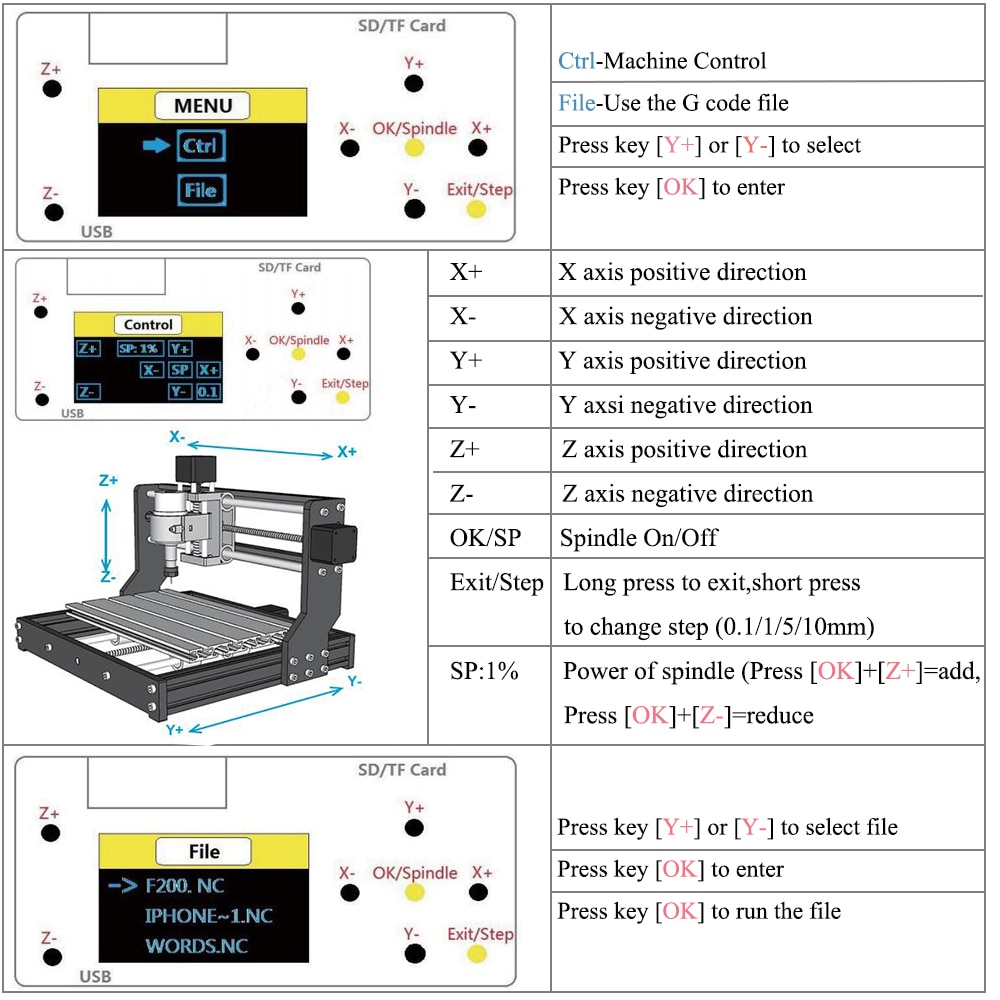

Offline controller : LCD screen with installed 1GB large SD card
