Description

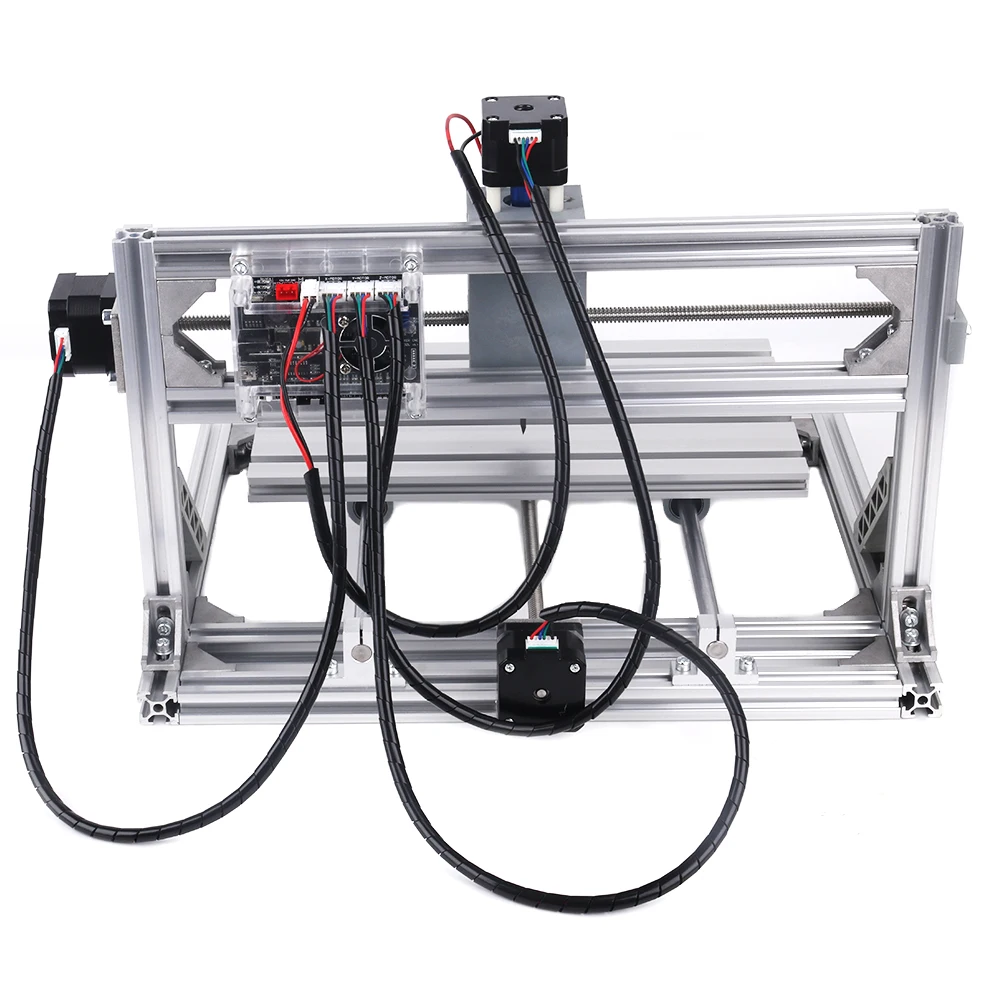

DIY 3018 CNC Router Machine GRBL Control Mini Laser Engraving 1000MW/2500MW/5500MW/7W/10W/15W Lasers

• Control board:Three-axis drive, dual Y-axis
• Laser:Support offline laser output 3P, Support PWM TTL function
• Aluminium Frame: Durable, beautiful appearance, high precision and long life

Applications

1. Three-axis CNC engraving: wood, plastic, PCB, acrylic, plywood, etc.

2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.


Warranty service

One-year’s warranty,all your after-sales problems under protection.

15-day’s part free warranty,any parts damaged within 15 days after receiving the product will be replaced.



Brief introduction



A. What area it can used for?

CNC 3018 router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.



B. What materials it can used for?

It can work for Wood, acrylic,plastic,Jade, PCB ,PVC Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.



C. Samples

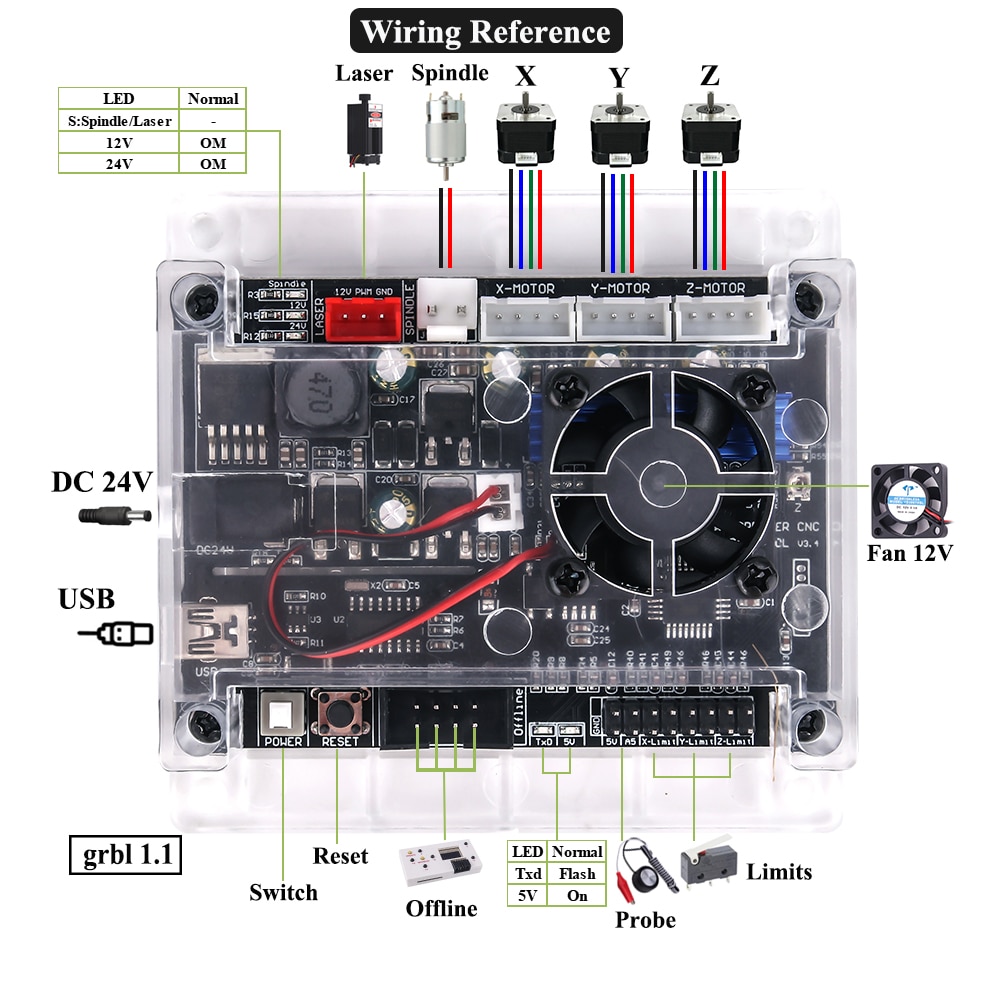

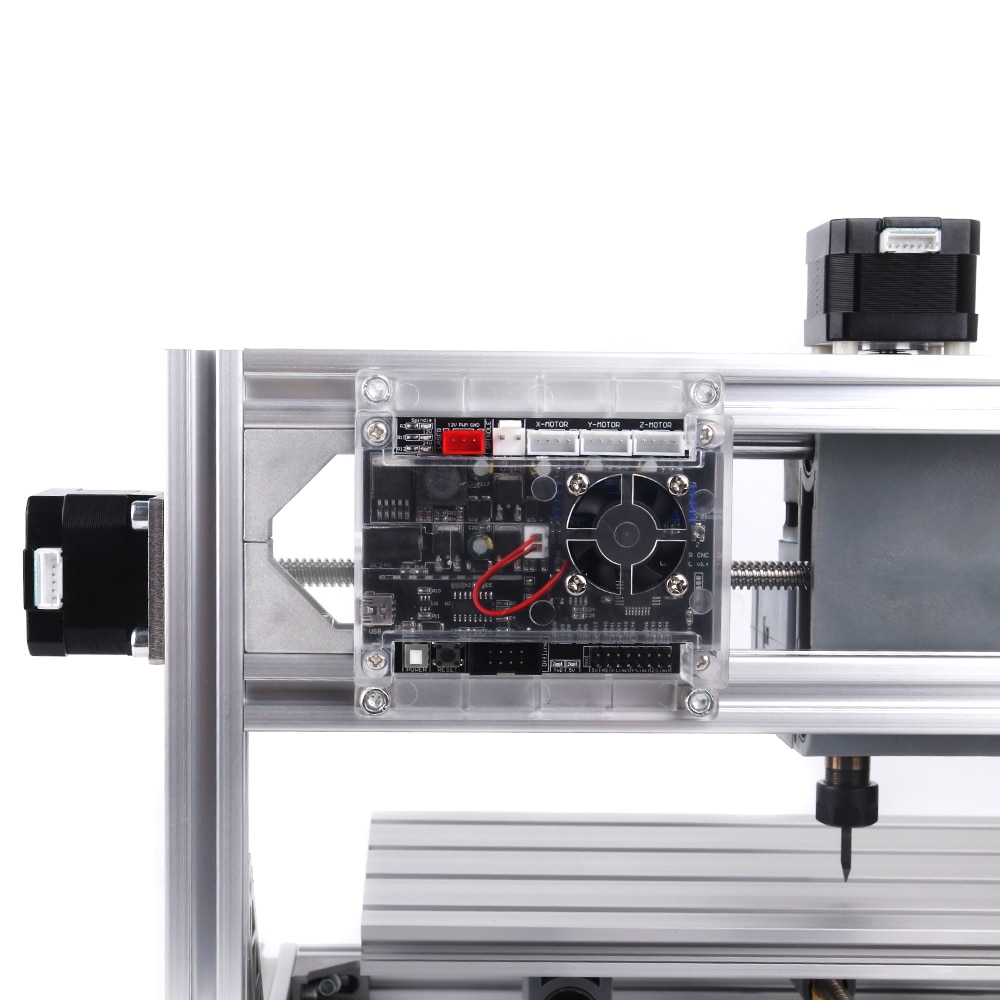

The advantages of Upgraded Control Board

1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.

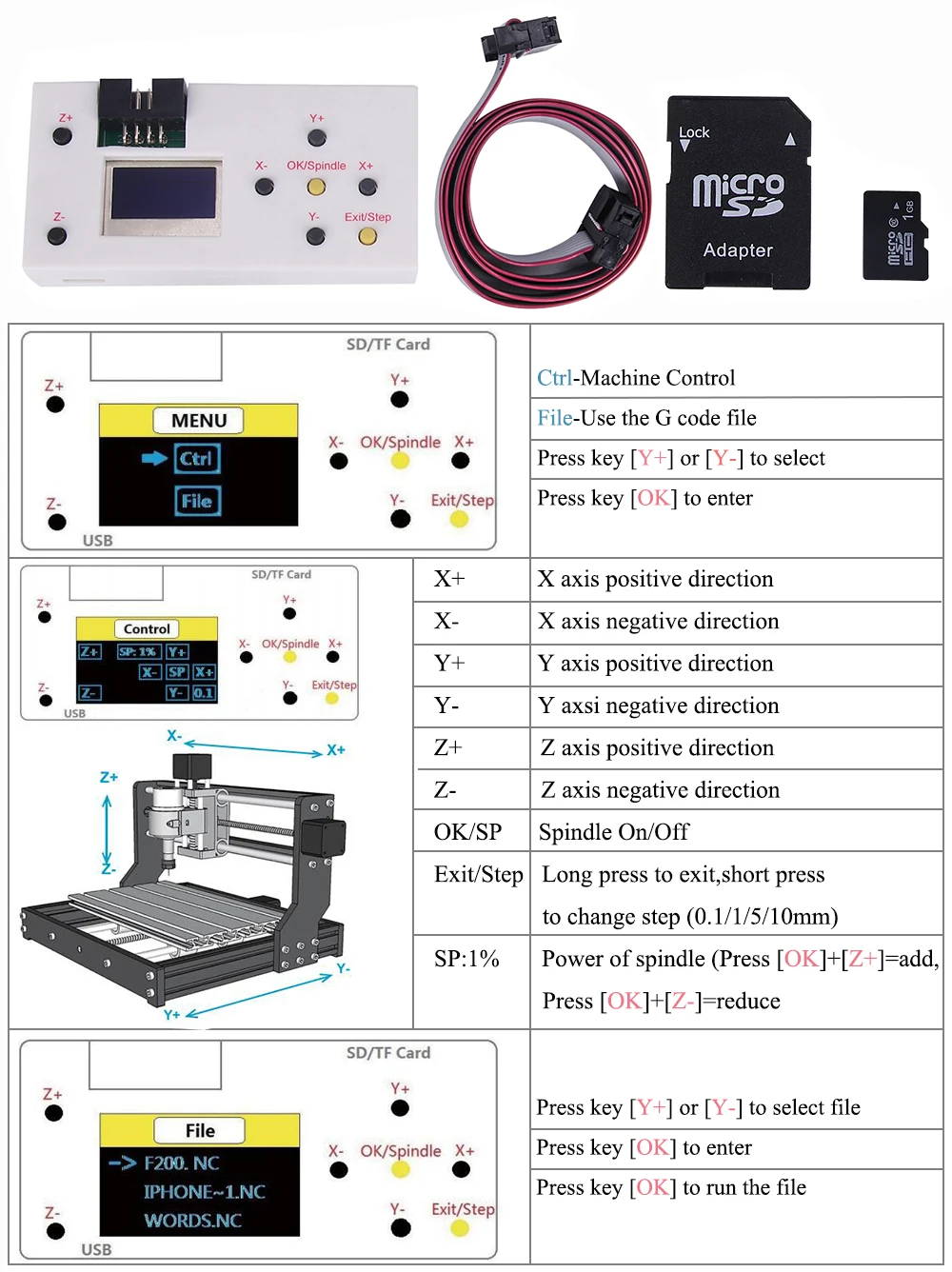

2. Upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving.

3. Improved power interface: the original plastic interface changed to all metal shielded interface.

4. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

5. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.

5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.

6. 12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.

7. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

8.Added heat sink to avoid burning the control board or the offline controller

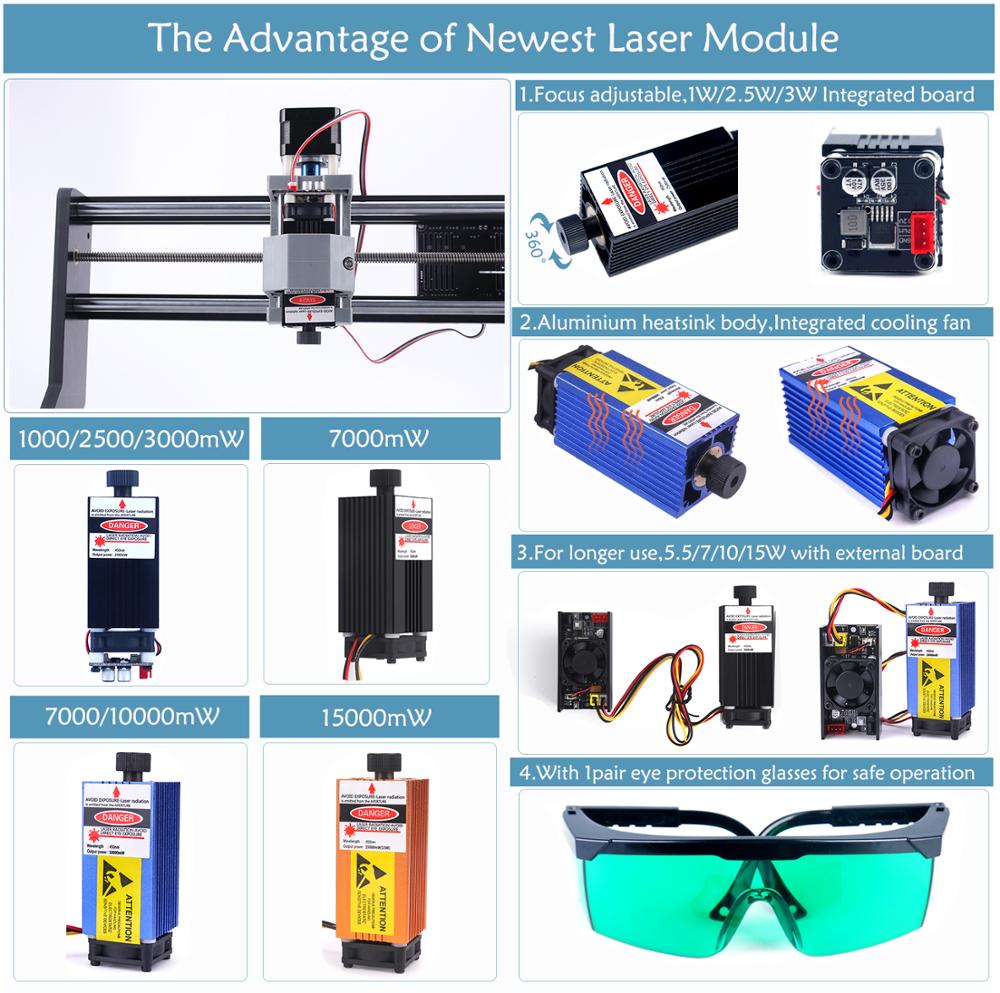

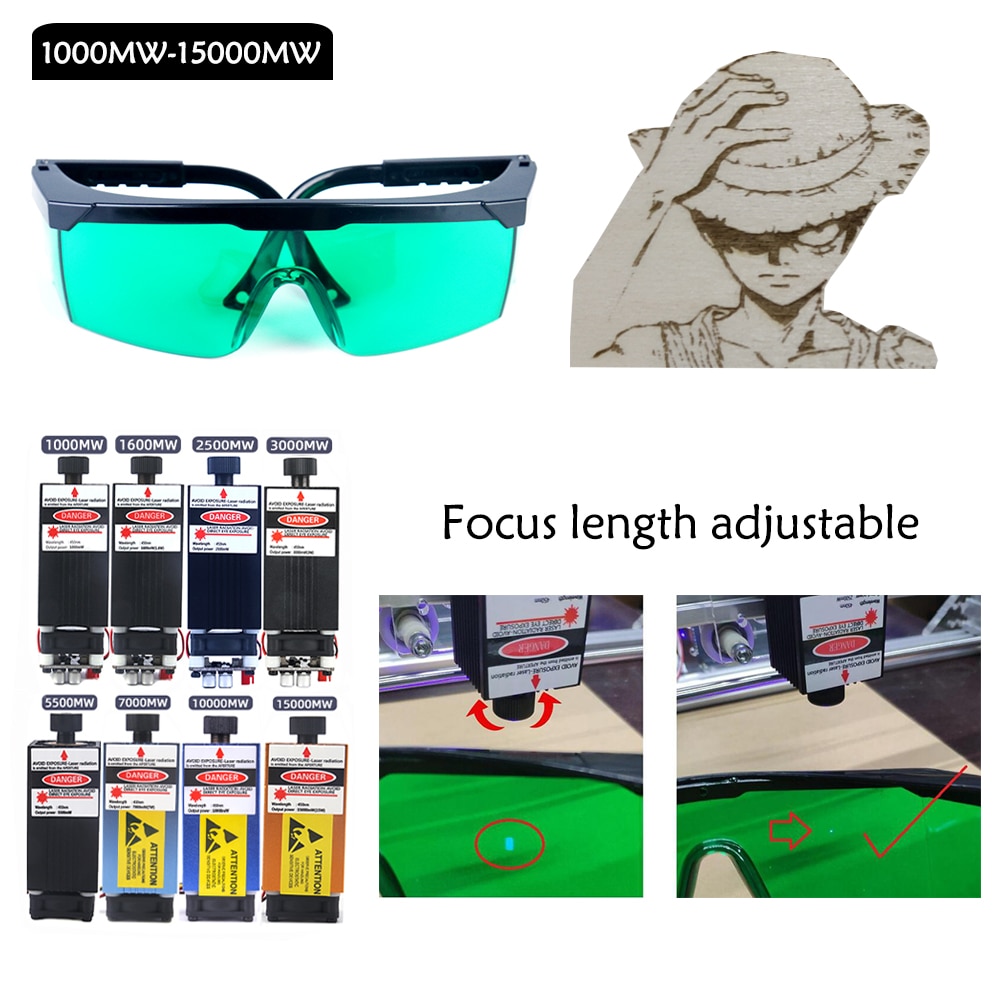

• Upgraded 500mW/ 2500mW/ 3500mW / 5500mW/ 15W Laser Module
• Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.
• Laser wavelength: 445nm-450nm blue laser
• Drive mode: external ACC constant current drive
• Cooling method: forced air cooling
• Operating voltage: 12V  DC
• Control interface: 2 * 2.54 (TTL control switch, PWM control power)
• Shell material: aluminum, surface anodized













About software and instructions

A 4GB USB Flash Drive includes software and installation instructions along with the package.

You can also download from our Web Cloud Disk(We’ll send you after shipment).

Or tell me your email address, we’ll send you the software and installation instructions.
