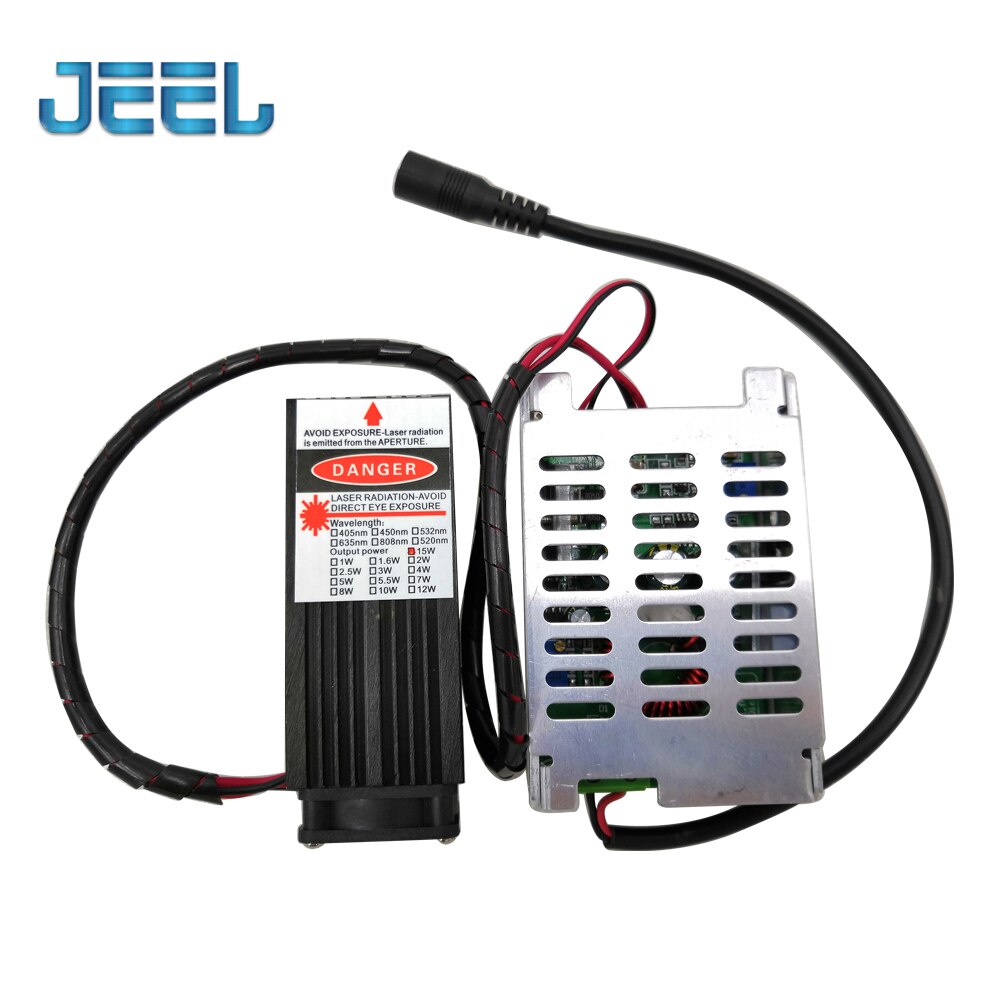

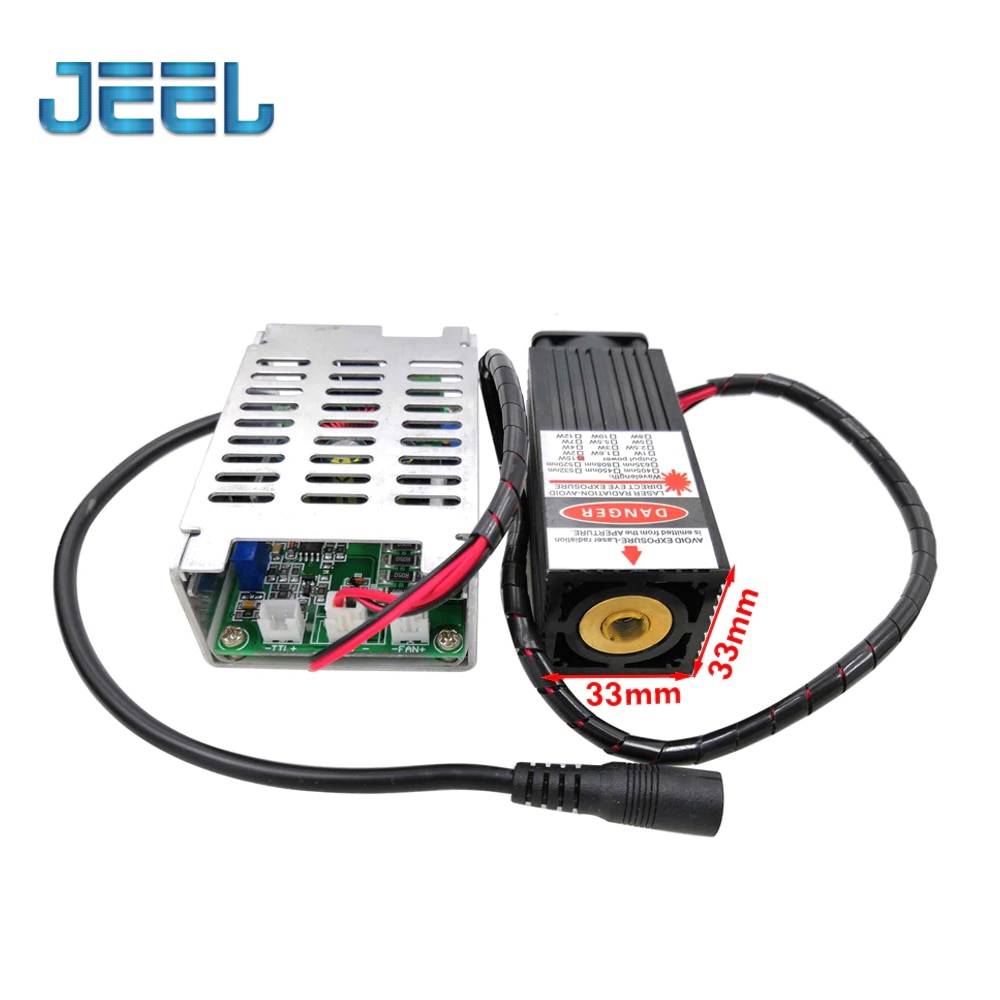

DIY 15W Laser Module Fixed Focus Laser Head Engraving Module Diode  , For CNC  Laser Engraver/Wood Cutting /Metal Marking

– Please wear the protective glass when you use the laser module.

– Do not touching the laser light directly in case that hurt the body and skin.

– Keep children and pets away from the laser module when it working.

– Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,

the yellow cord is Signal(S). Please make sure you know how to connect it.

Or it might damage the laser module!

– Any quality problem, please send a detailed video to us with a problem description.

Please DO NOT disassemble the laser module without our permission.

Or it might cause the damage. Thank you.

–Material:hard aluminum + brass

–Operating Voltage:DC = 12V

–Wavelength:450 (Blu-ray)

–Output Power: Pulse 15W average 8W

–Modulation frequency:TTL can be modulated

–Working Current: <3A

–Focal length:18mm( can not be adjusted)

–Operating temperature:15 C ~ 45 C

–Usage:Carving stainless steel, iron, anodized aluminum, ceramics, stone, wood, bamboo, leather, plastics,

etc.

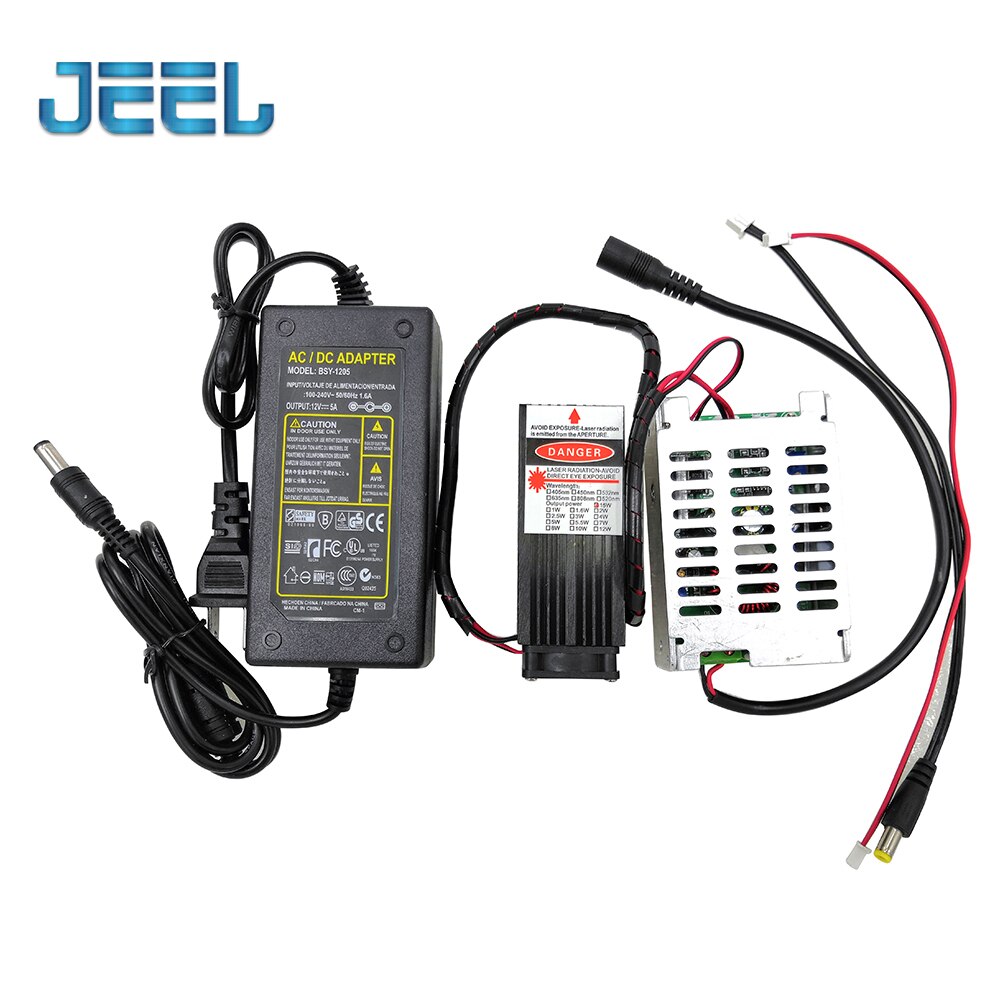

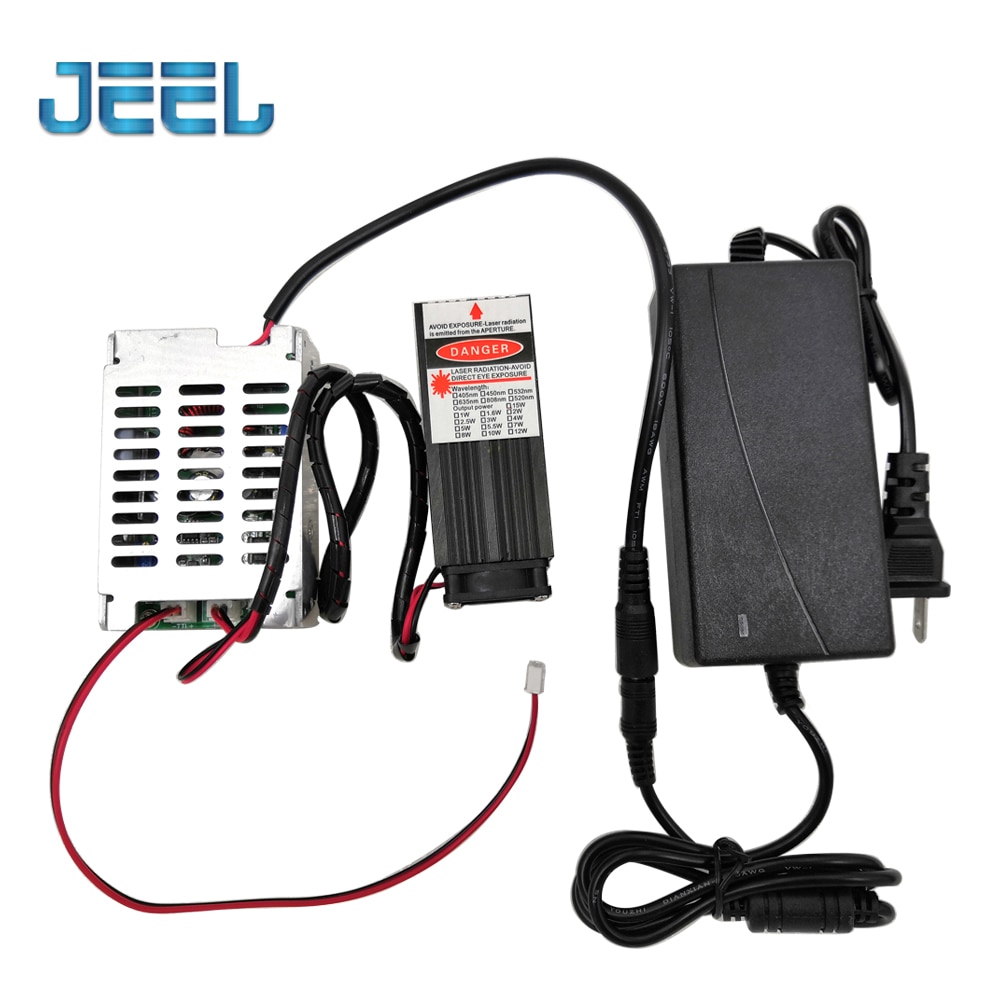

Package Include:

1*Laser Head

1*Power supply
