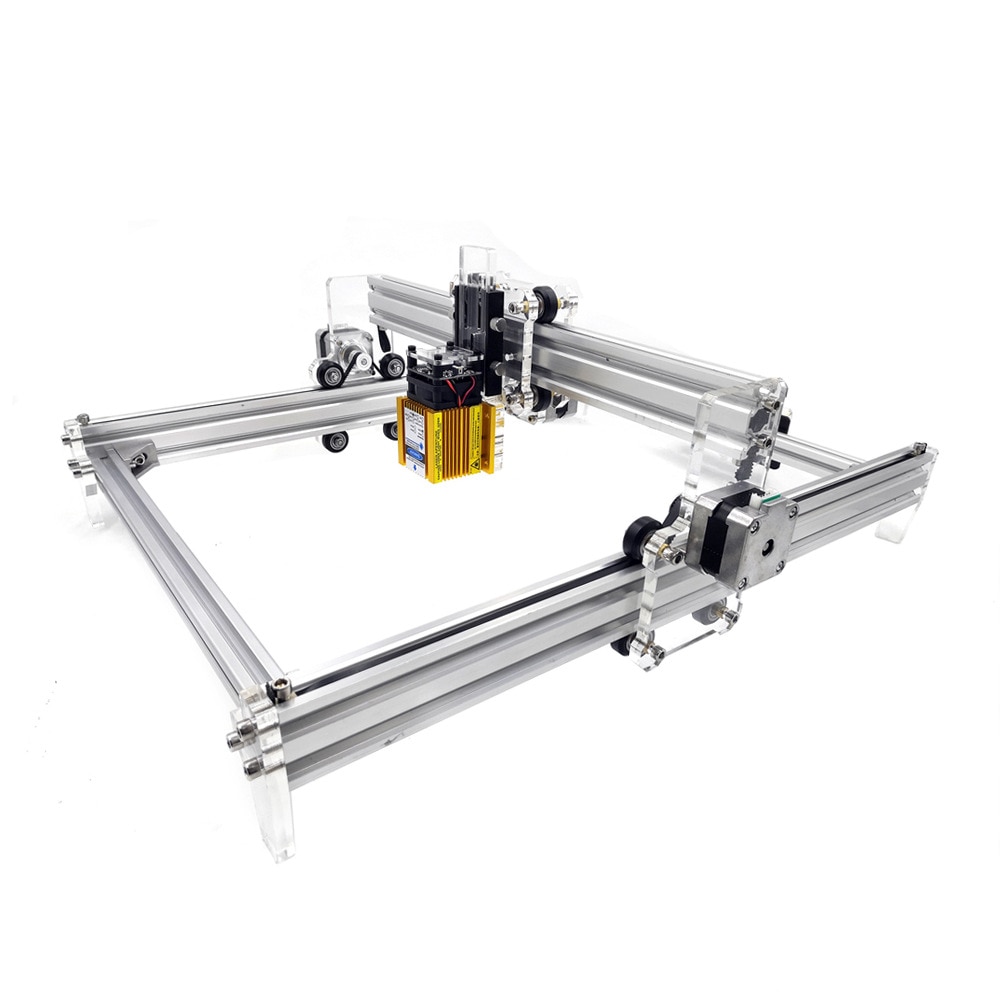

DIY 15W Laser Engraving Machine 3040 CNC Laser Engraver 15000mW Cutting Tool

Specification



• Working area: 30 * 40cm/11.81 * 15.74inch (maximum)
• Input voltage: AC 100V-240V, 50 / 60Hz
• Working Voltage:DC 12V,5A
• Laser power: 12V 5A
• Number of axes:  2 Axis (X axis double Y axis)
• Accuracy: 0.01MM
• V-slot aluminum matching rolling bearing X24 is better and more stable.
• Y-axis dual motor, new custom 42H34S-1304A stepper motor.

Laser and Software

• Laser Power(options):500mw/2500mw/5500mw/15000mw
• Laser Wavelength: 0.5w(405nm), 2500mw/5500mw/15000w(450nm)
• Laser power is adjustable to suit a variety of materials.15W violet laser module with heatsink (2500MW /5500MW Laser focus is adjustable, 15W Laser with fixed focus )
• Supports PWM TTL modulated laser power
• Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
• Engraving Accuracy:0.01mm
• Supported Formats:jpg, bmp, svg, G-code
• Software System : Laser Engraver/ Laser GRBL/Benbox
• (Laser GRBL support many kinds language. We will send GRBL1.1 for controller, if you need Benbox, please contact us!)
• Sysytem Support;Win XP/7/8/10
• Main features: weak light positioning test, dot matrix engraving, gray engraving, engraving contour, solid engraving

Application

• Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
• Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
• Non-engravable material:all metals, stones, ceramics, glass, reflective materials, transparent materials.

Installation:
This Laser engraver is shipped in bulk.Buyer is required to install on yourself.We’ll provide you softwares and
instructions.


Detail Pictures

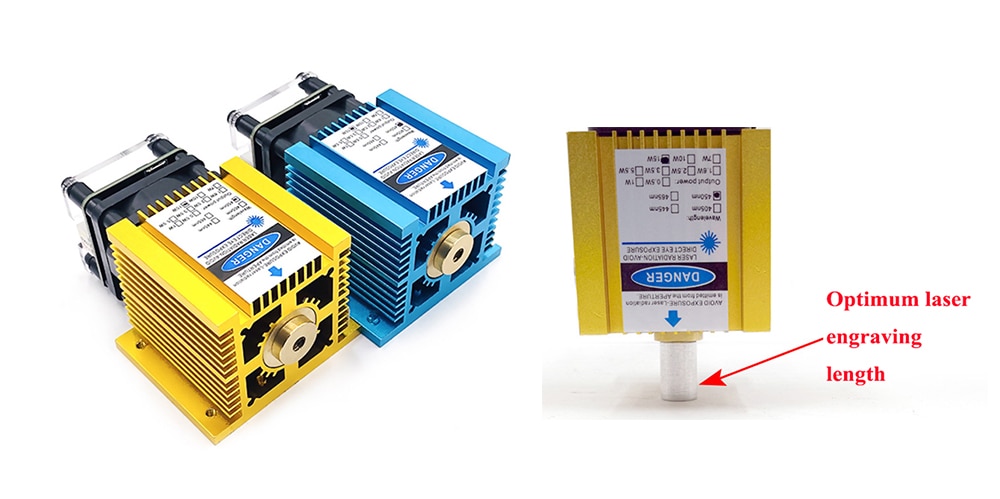

Laser Module 500mW/2500mW/5500mW/15W

• Blue-violet module, 33mm(15W,51MM), 3P/2P-2P connection, supports PWM/TTL
• Laser wavelength: 405nm-450nm blue laser
• Drive mode: external ACC constant current drive
• Cooling method: forced air cooling
• Operating voltage: 12V DC
• Control interface: 2 * 2.54 (TTL control switch, PWM control power)
• Shell material: aluminum, surface anodized

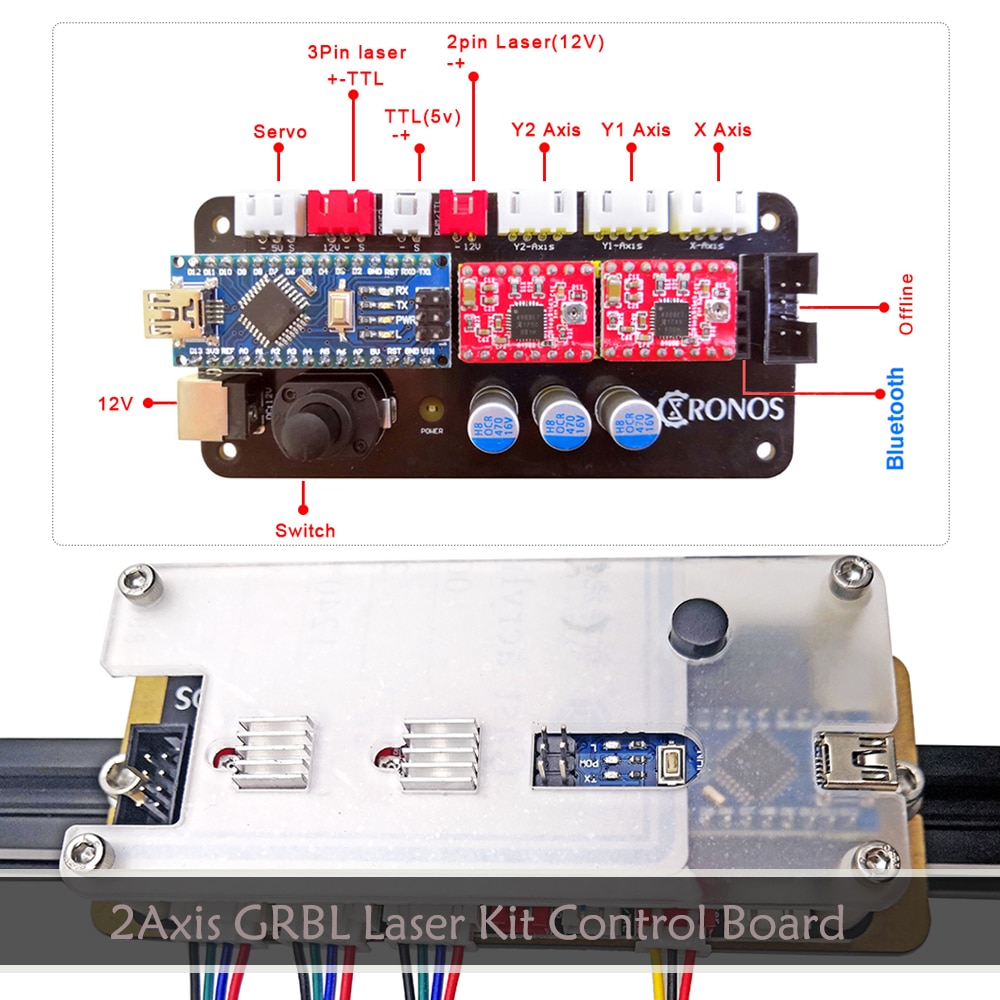

Upgraded Control Board

• A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.
• Metal power interface: the old plastic interface changed to all metal shielded interface.
• USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

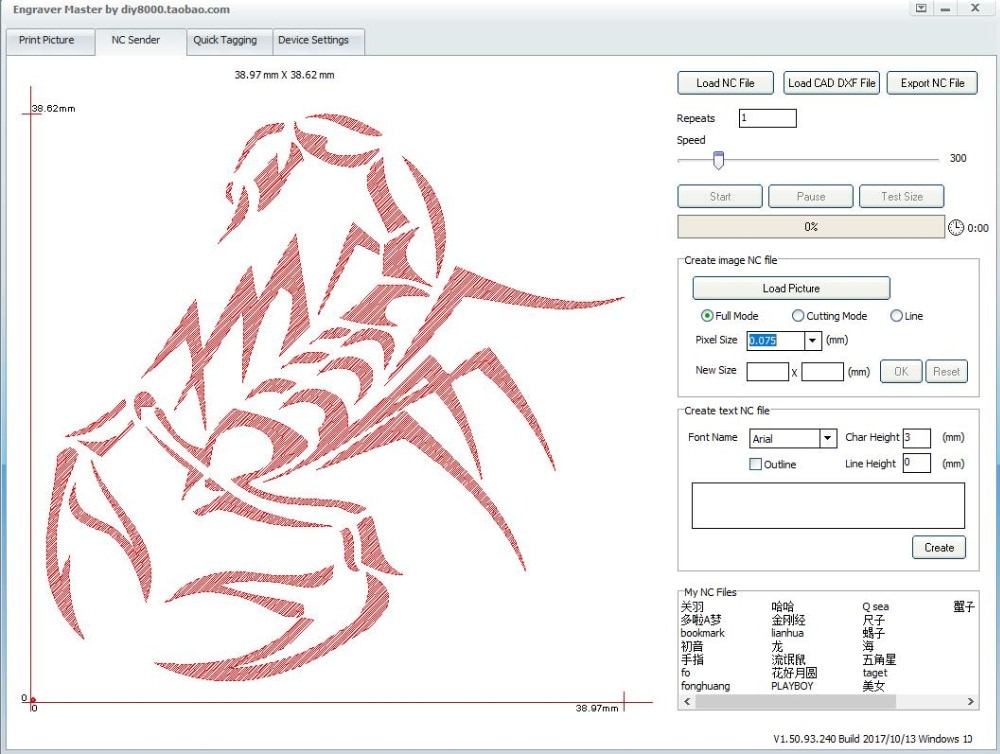

Software and instructions

• Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment).

• Or tell me your email address, we'll send you the software and installation instruction



Brief introduction



A. What area it can used for?

• Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.

B. What materials it can used for?

• Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
• Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc

C. Samples
