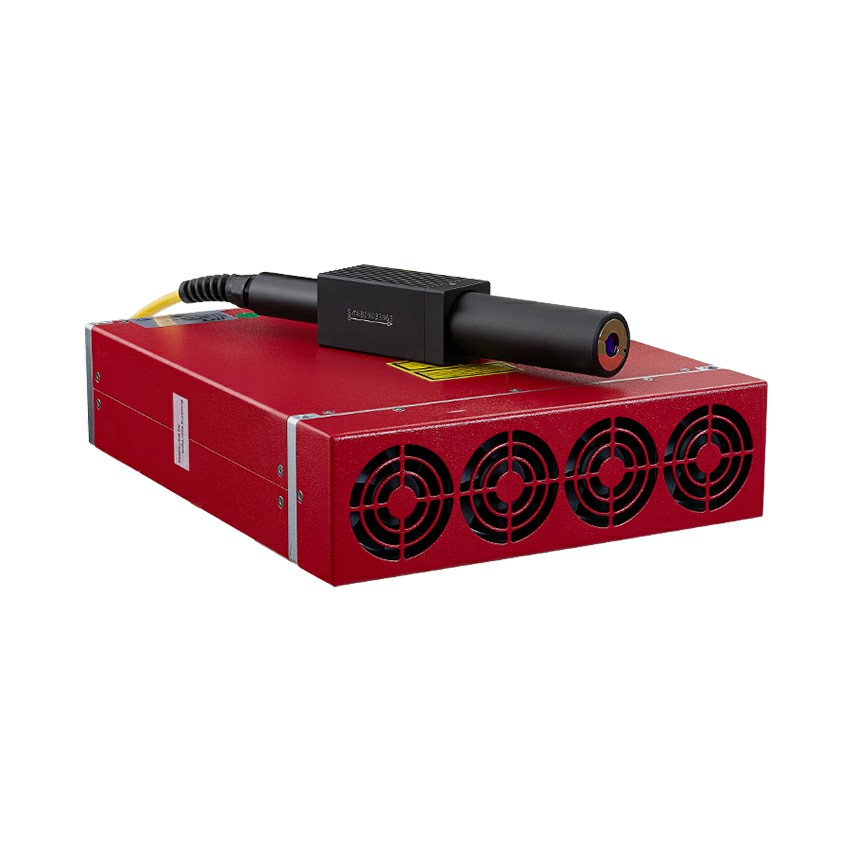

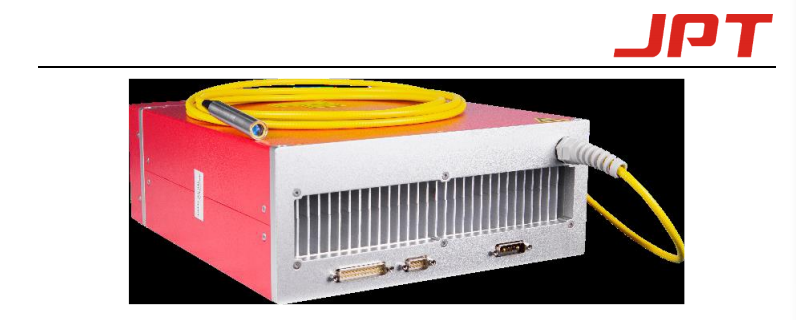

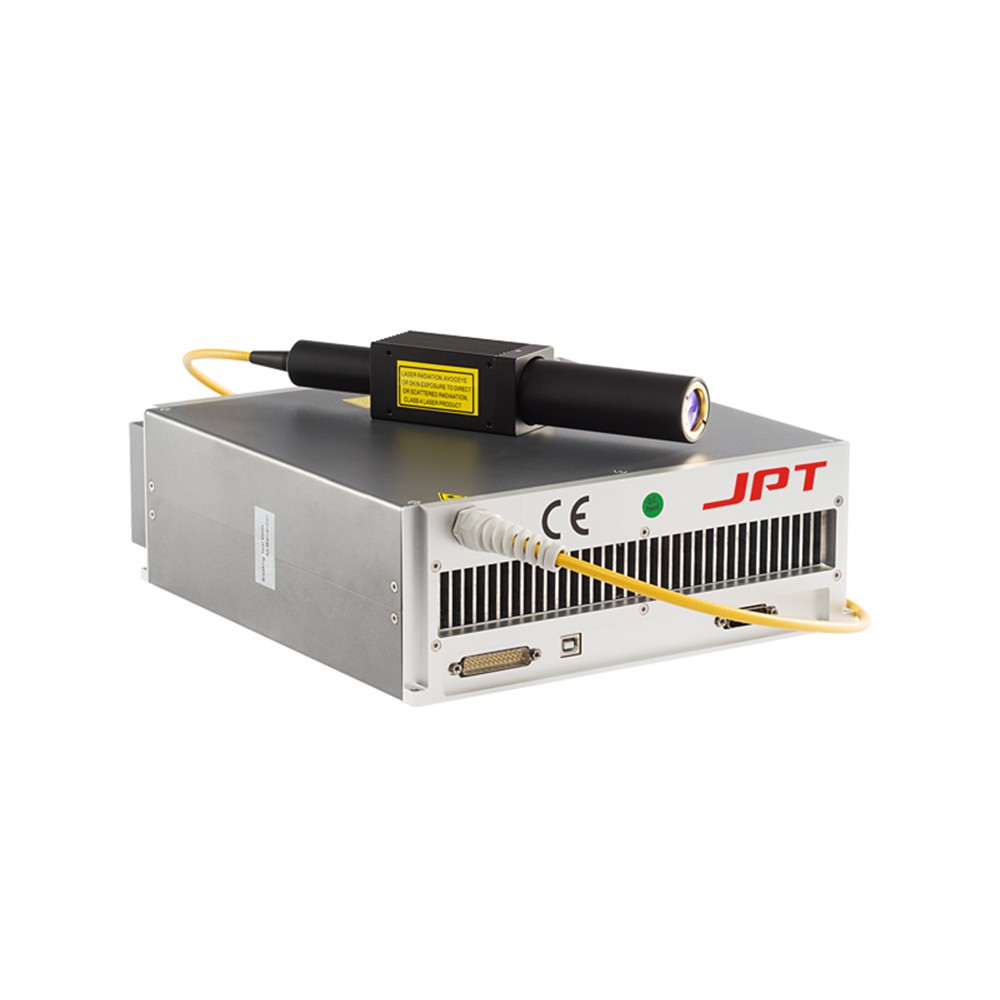

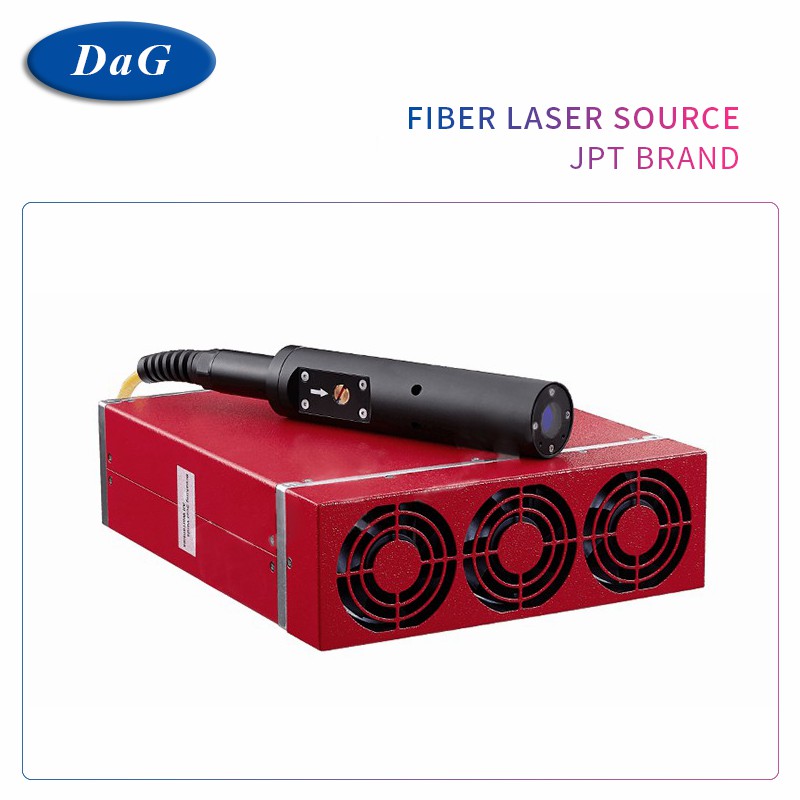

20W 30W 50W 60w 100W JPT mopa for laser marking machine Metal engraving cutting jewelry gold silver optical fiber Laser source
The M7 series is a high power fibre laser using a direct electrically modulated semiconductor laser as the seed source (MOPA) solution, with perfect laser characteristics and good pulse shape control. Compared to Q-modulated fibre lasers, the MOPA fibre laser pulse frequency and pulse width are independently controllable, allowing for constant high peak power output and a wider range of substrates to be marked by adjusting the two laser parameters. In addition, the higher output power makes it particularly advantageous for high-speed marking applications, turning the impossibility of a Q-modulated laser into the possibility of a MOPA.
Products Descriptions
Product Advantages
–Scribing, Drilling
–Marking on fly
–Sheet metal cutting, Welding
–Laser derusting
–Surface treatment
–Metal surface processing, Peeling coating
–Marking on fly
–Sheet metal cutting, Welding
–Laser derusting
–Surface treatment
–Metal surface processing, Peeling coating
Technical Parameters
|
Item
|
Unit
|
Parameter
|
||||
|
Product Model
|
|
LP-20
|
LP-30
|
LP-50
|
||
|
M2
|
|
< 1.5
|
< 1.8
|
|||
|
Delivery Cable Length
|
m
|
2
|
3
|
|||
|
Nominal Average Output Power
|
W
|
> 20
|
> 30
|
> 50
|
||
|
Maximum Pulse Energy
|
mJ
|
0.8
|
1.25
|
|||
|
Pulse Repetition Rate Range
|
kHz
|
1 ~ 600
|
||||
|
Pulse Duration
|
ns
|
200
|
||||
|
Output Power Stability
|
%
|
< 5
|
||||
|
Cooling Method
|
|
Air Cooled
|
||||
|
Supply DC Voltage (VDC)
|
V
|
24
|
||||
|
Current Consumption
|
A
|
<5
|
<7
|
<10
|
||
|
Environmental Supply Current
|
A
|
>5
|
>7
|
>10
|
||
|
Power@20℃
|
W
|
<110
|
<150
|
<220
|
||
|
Central Emission Wavelength
|
nm
|
1064
|
||||
|
Emission Bandwidth@3dB
|
nm
|
< 15
|
||||
|
Polarization
|
|
Random
|
||||
|
Output Beam Diameter
|
mm
|
7±0.5
|
||||
|
Output Power Tuning Range
|
%
|
0 ~ 100
|
||||
|
Operation Temperature
|
℃
|
0 ~ 40
|
||||
|
Storage Temperature
|
℃
|
-10 ~ 60
|
||||
|
N.W
|
KG
|
3.75
|
4.25
|
8.2
|
||
|
Size(L×W×H)
|
mm
|
245 × 200 × 65
|
245 × 200 × 65
|
325 × 260 × 75
|
||
|
Unit
|
Parameter
|
|||||||
|
Product Model
|
M7-60
|
M7-80
|
M7-100
|
M7-120
|
||||
|
M2
|
<1.8
|
|||||||
|
Delivery Cable Length
|
m
|
3
|
||||||
|
Nominal Average Output Power
|
W
|
>60
|
>80
|
>100
|
>120
|
|||
|
Maximum Pulse Energy
|
mJ
|
1.5
|
2.0
|
1.5
|
1.5
|
|||
|
Pulse Repetition Rate Range
|
kHz
|
1 ~ 4000
|
||||||
|
Pulse Duration
|
ns
|
2~500
|
||||||
|
Output Power Stability
|
%
|
<5
|
||||||
|
Cooling Method
|
Air Cooled
|
|||||||
|
Supply DC Voltage (VDC)
|
V
|
48
|
||||||
|
Current Consumption
|
A
|
<6
|
<7
|
<8
|
<9
|
|||
|
Environmental Supply Current
|
A
|
>6
|
>7
|
>8
|
>9
|
|||
|
Power@20℃
|
W
|
<260
|
<300
|
<400
|
<450
|
|||
|
Central Emission Wavelength
|
nm
|
1064
|
||||||
|
Emission Bandwidth@3dB
|
nm
|
<15
|
||||||
|
Polarization
|
Random
|
|||||||
|
Output Beam Diameter
|
mm
|
7±0.5
|
||||||
|
Output Power Tuning Range
|
%
|
0 ~ 100
|
||||||
|
Operation Temperature
|
℃
|
0 ~ 40
|
||||||
|
Storage Temperature
|
℃
|
-10 ~ 60
|
||||||
|
N.W
|
KG
|
8.5
|
13.2
|
|||||
|
Size(L×W×H)
|
mm
|
325 × 260 × 75
|
350 × 280 × 112
|
|||||
Applications & Samples
Applicable Industries
✦Tools
✦Medical instruments
✦Charger
✦Power bank
✦Bearing
✦Hardware
etc.
Applicable Materials
✦Metal:
Stainless steel,
Carbon steel,
Aluminium,
Titanium,
Platinum,
Gold,
Silver,
Copper,
Brass,
Zinc…
✦Non-metal: ABS, PVC…

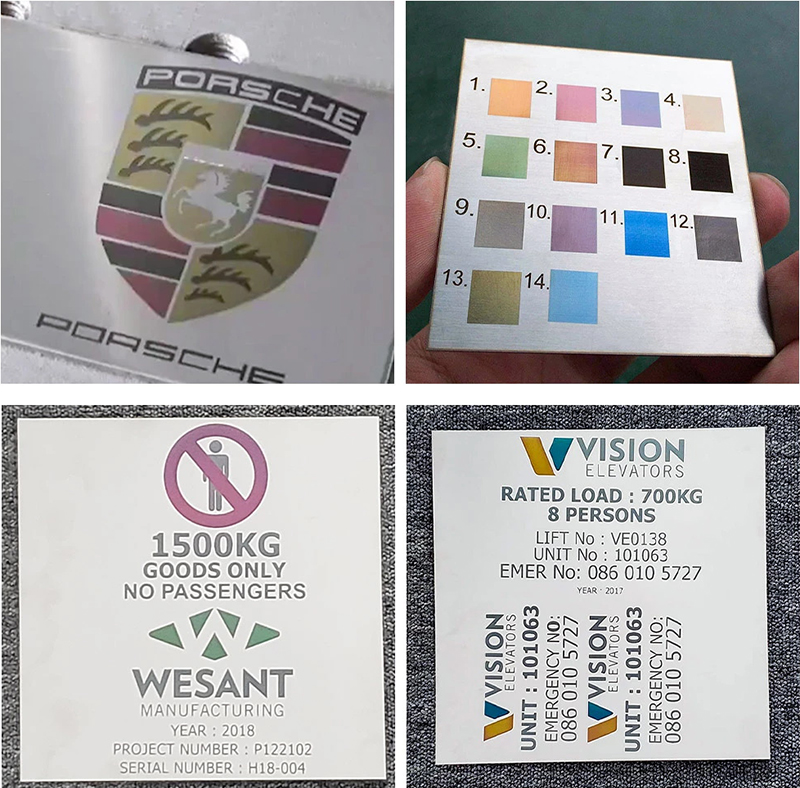

Samples
