Description

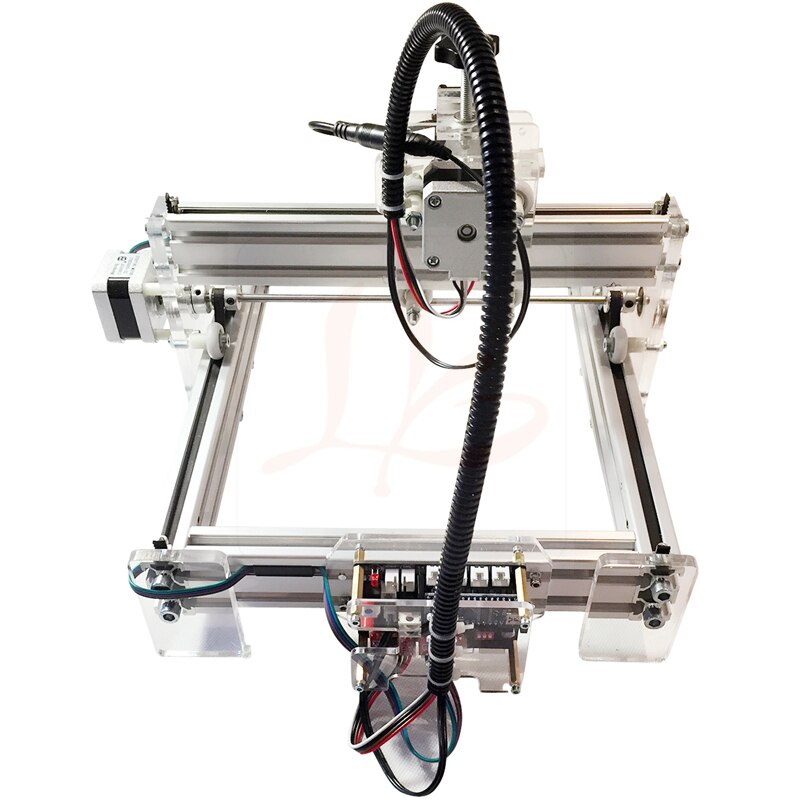

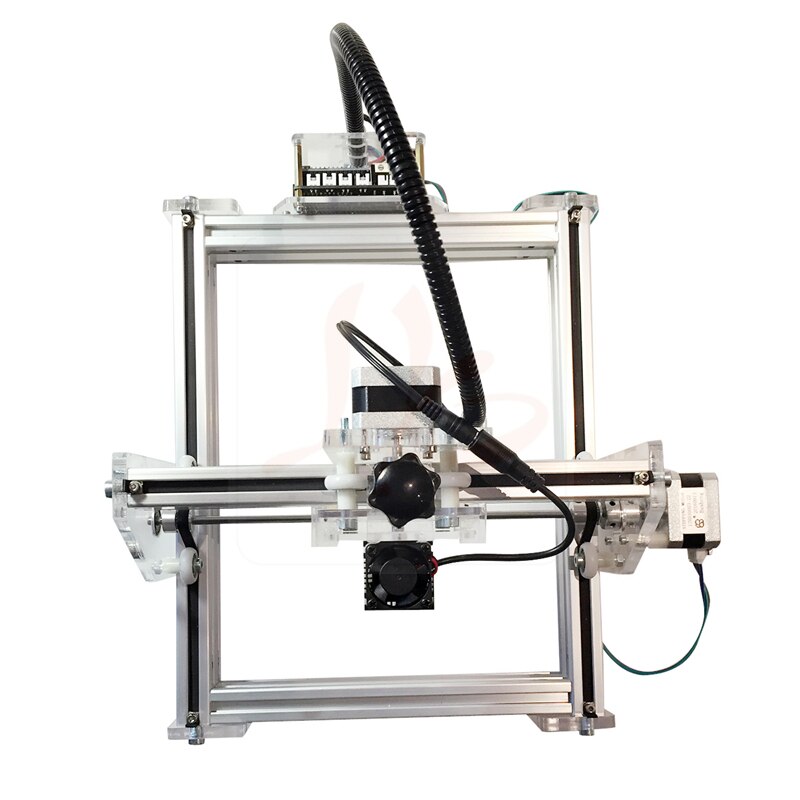

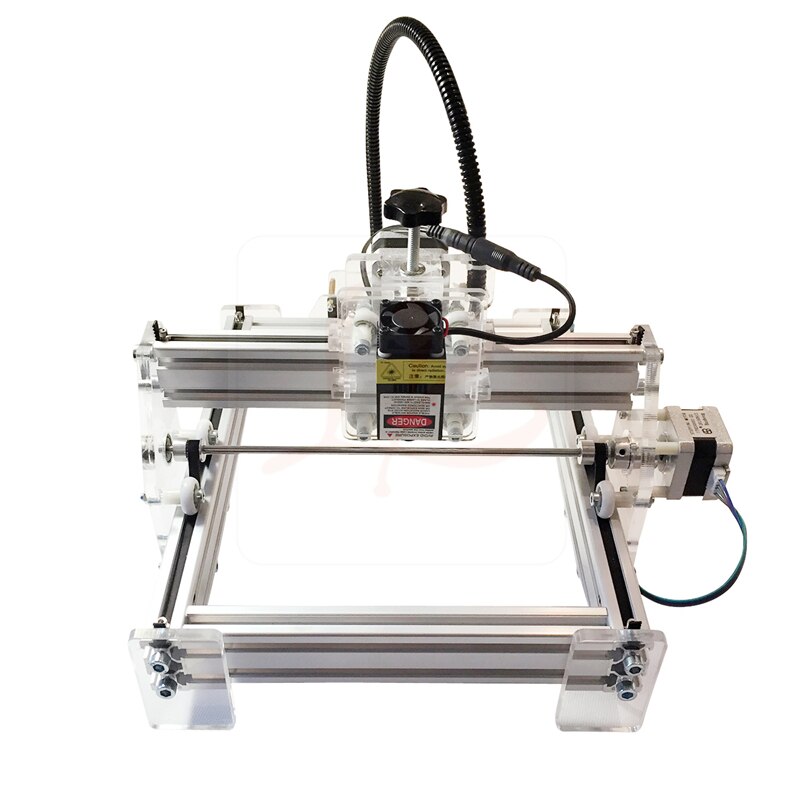

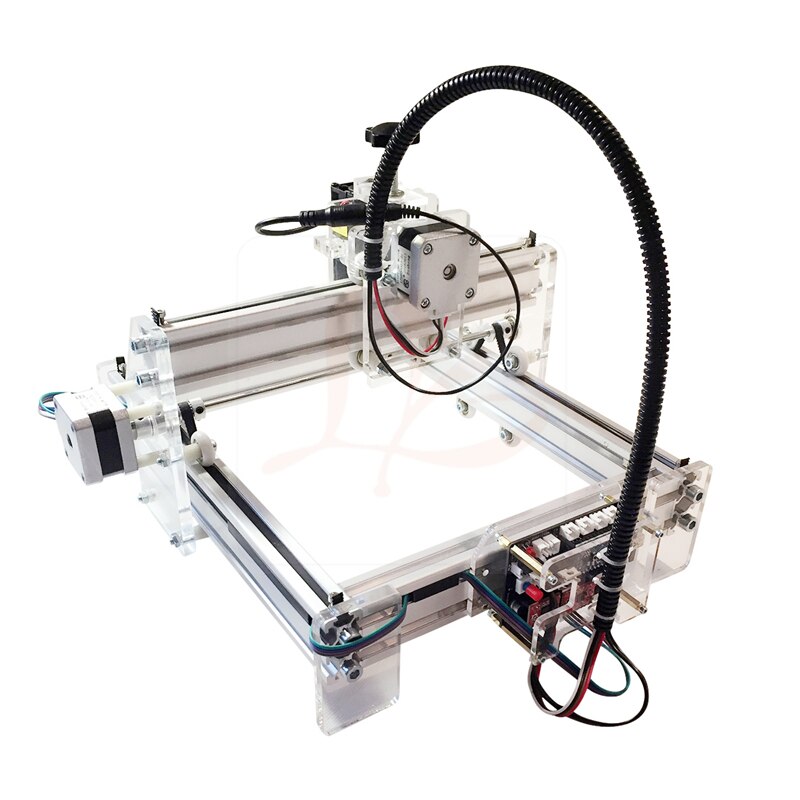

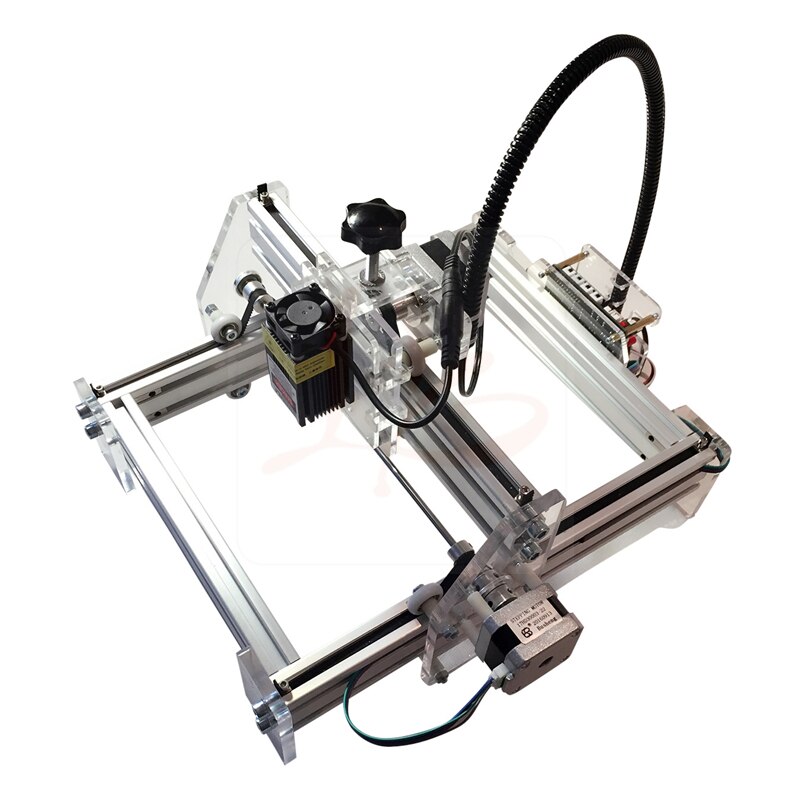

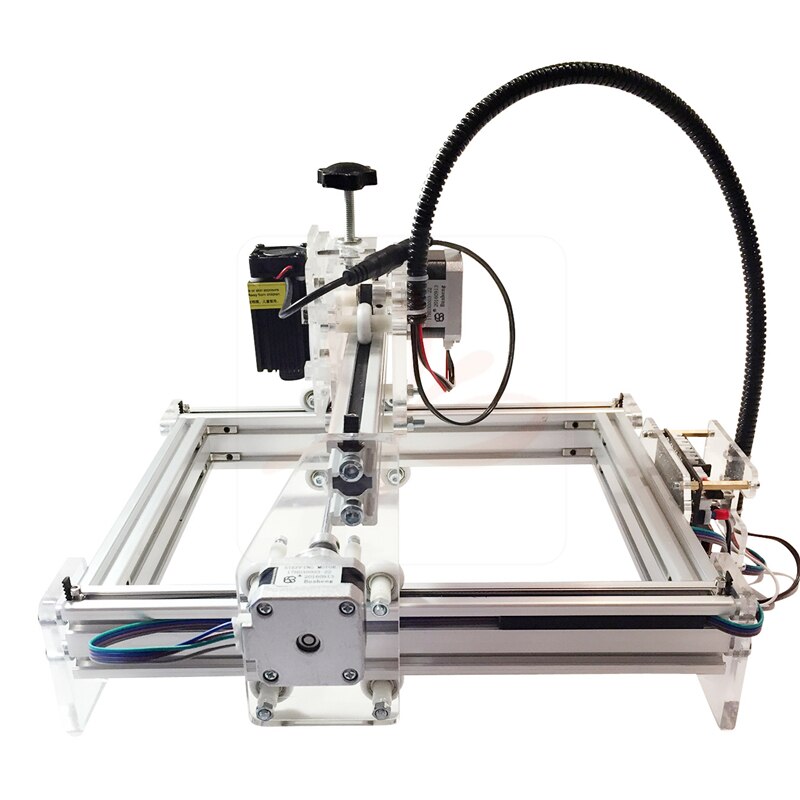

Disassembled LY 500mw 2500mw 10W Blue Violet 2017 mini Laser Engraving Machine laser height adjustable Carving Size 20*17CM



Specs for laser machine:

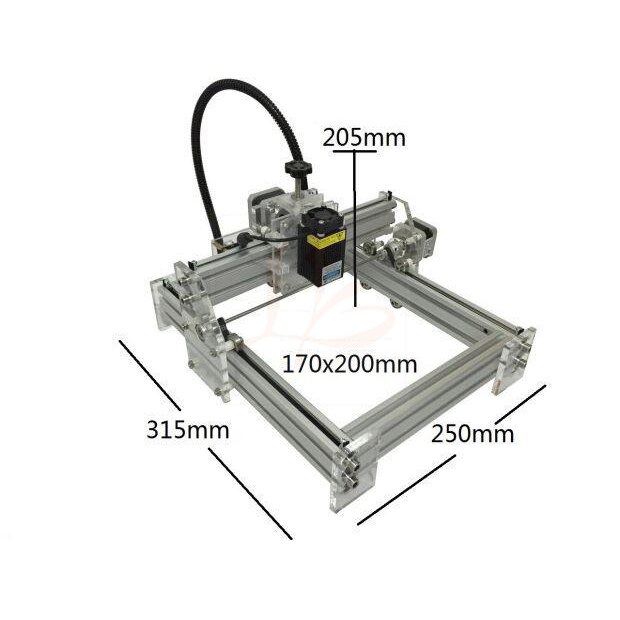

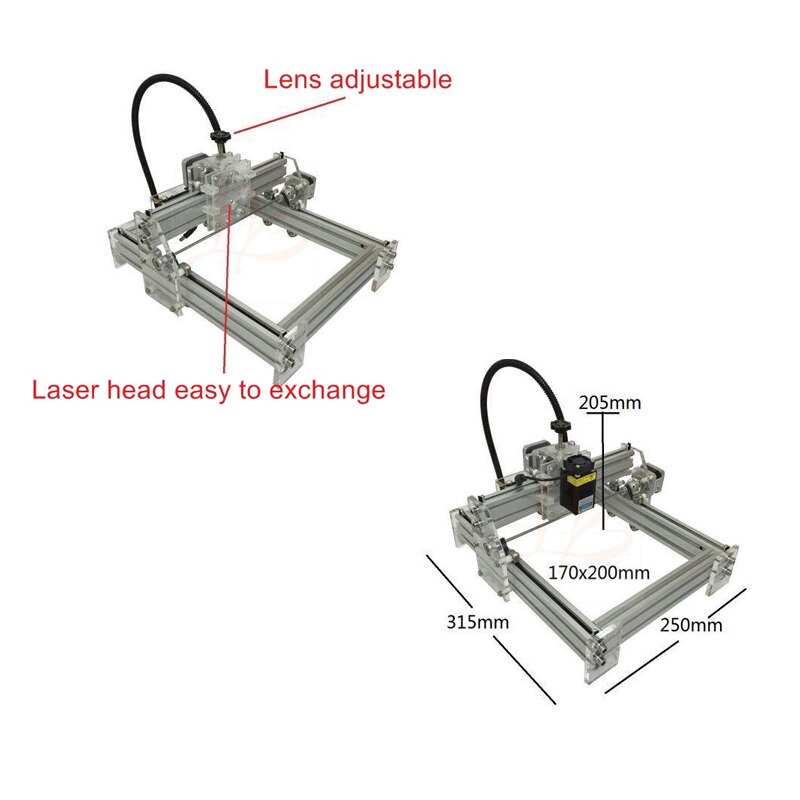

Size:315MM*250MM*205MM(Length*Width*Height)
Engraving area:200MM*170MM
Power:      500MW/ 2500MW/ 5500MW/ 10000MW(10W)
Voltage:5V/12V
Input voltage:12V
Axis:X  double Y(Mainboard support 3 axis)
Accuracy:0.1MM
Main features: low light positioning, sculpture preview, grayscale engraving, contour engraving, solid engraving

Advantages:
1. Power adjustable by software

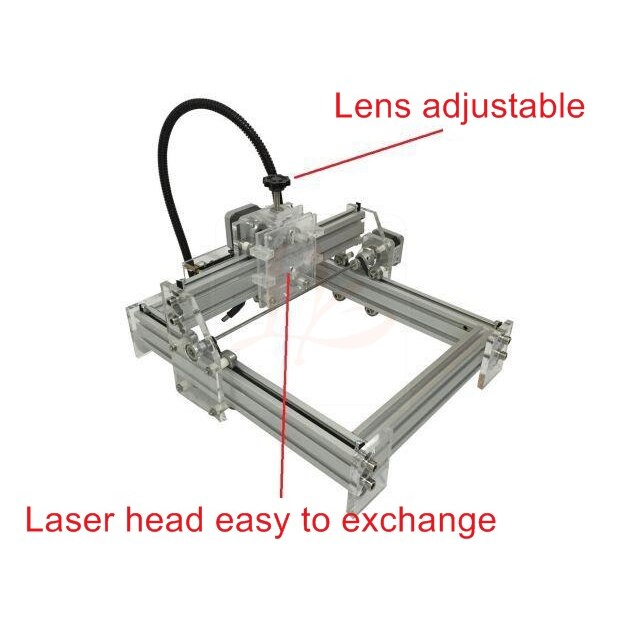

2. Fast exchangeable laser head design + up & down laser focus adjustable
3. Max engraving area: 20*17CM
4. Full aluminum+ Thick acrylic stuff,nice outlooking & more stable
5. Software easy to use,whole life-time free upgrading service.
6. Double motor design,more swift & accurate.
7. Engraving item no height limitation,can directly put machine on target item.(For example desk)

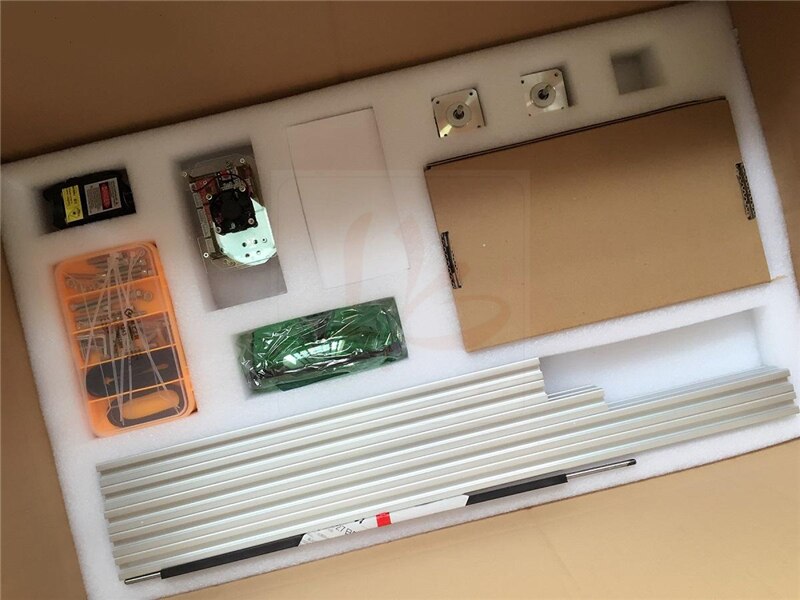

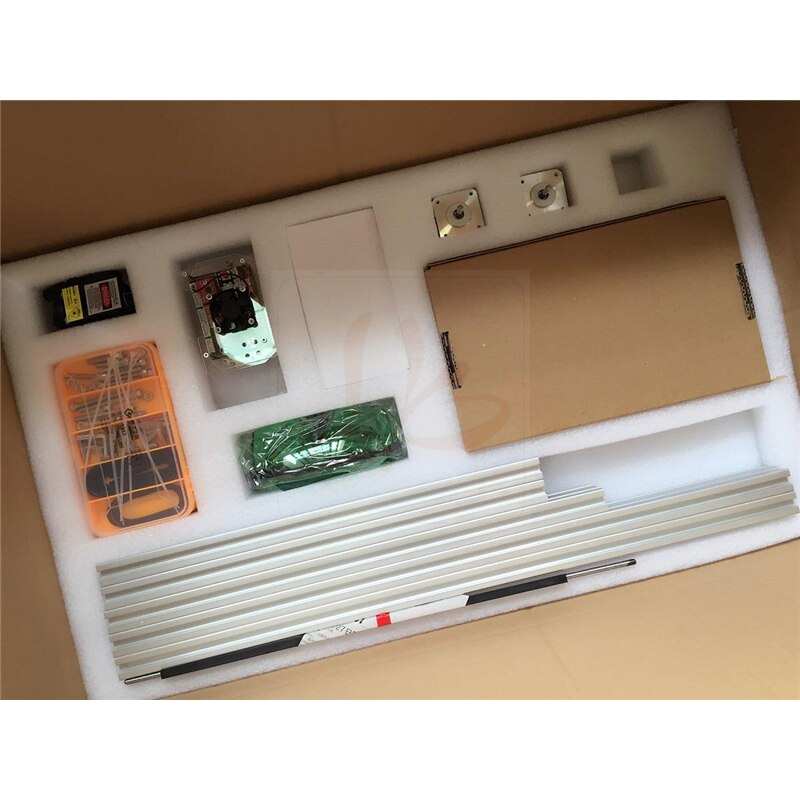

8. For saving shippingcost,we use disassembled package,when get machine,install machine follow instruction is ok.

Note: For sake of protect mainboard,we will pull out X,Y line,when get machine,install as instruction is ok.

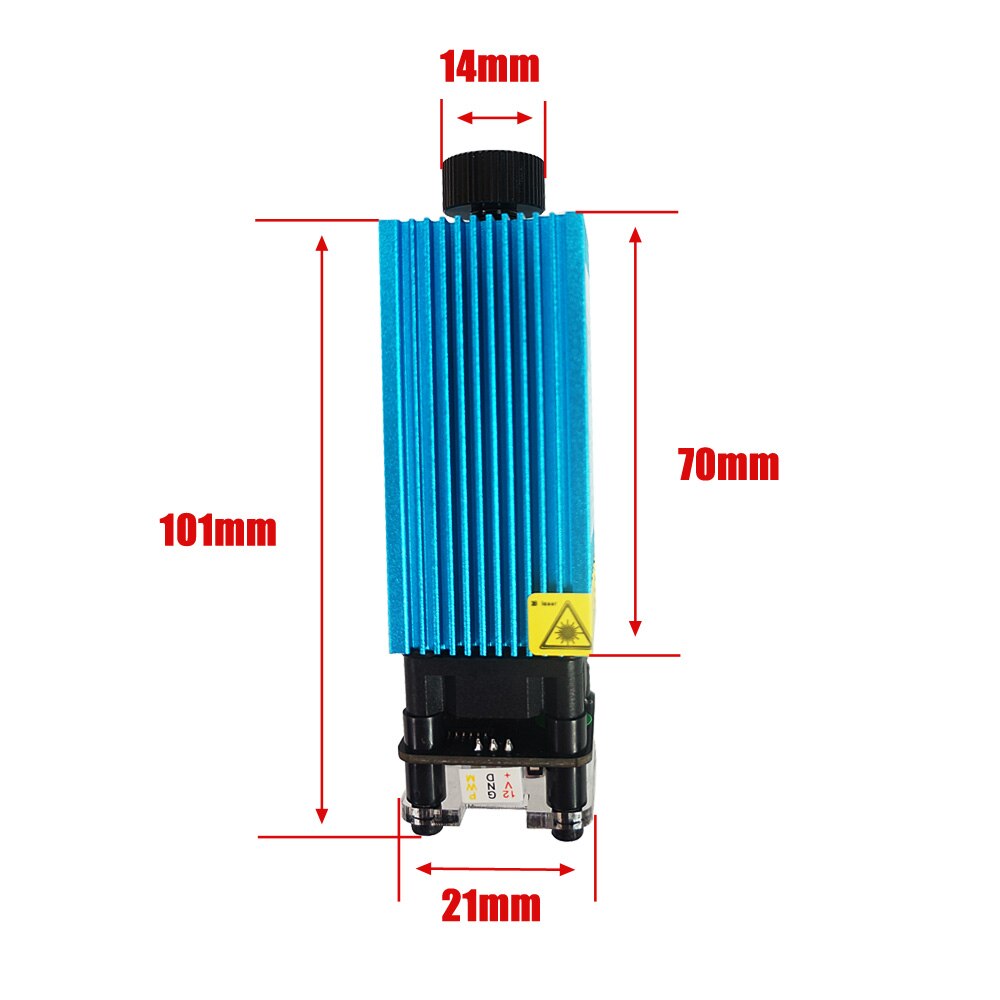

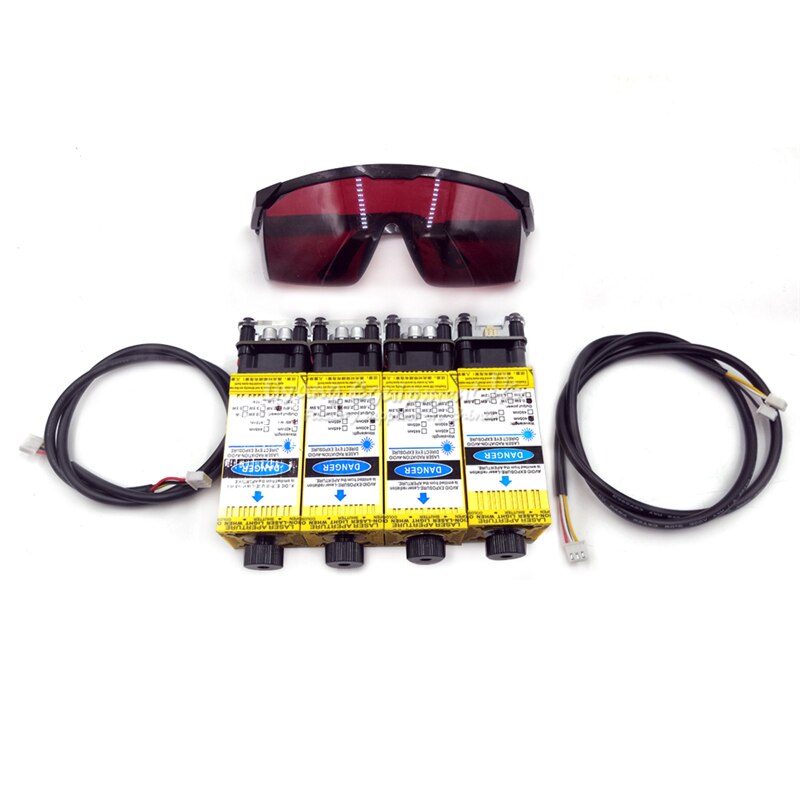

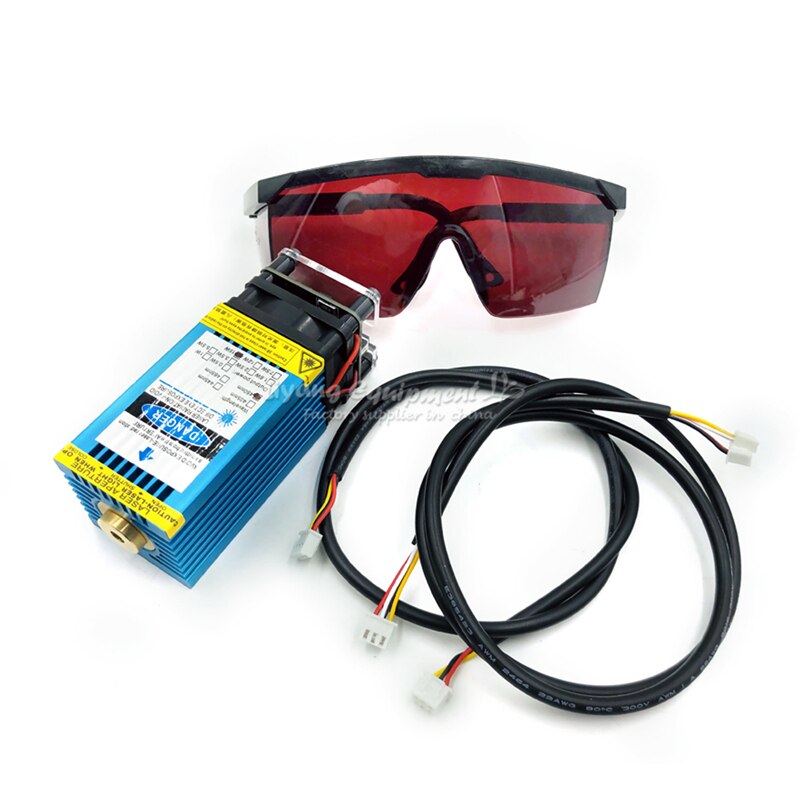

Specs for laser head:

1. Size: 33*33*65mm
2. Wavelength: 405nm-450nm
3. Drive mode: external ACC constant current drive

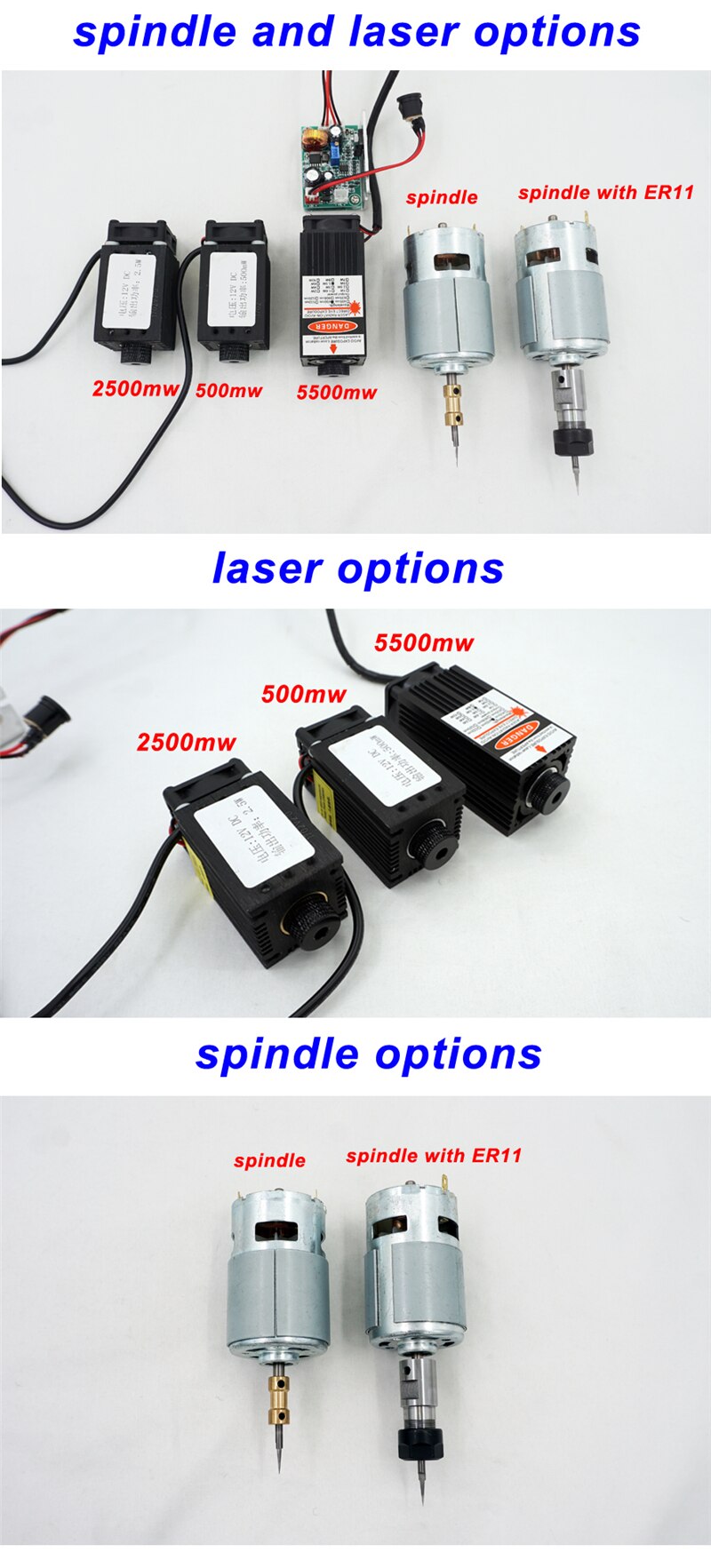

4. Laser power: 500MW / 2500MW / 5500MW / 10W ( if you need 3500MW/ 7000MW/ 15W, pls contact our seller)
5. Control mode: TTL/PWM
6. Working voltage: DC = 12V
7. Operating current:  <3A
8. Cooling mode: forced air cooling
9. Material: aluminum, anodized surface
10. Material form: copper
     (RE:7W 10W 15W laser focal length not adjustable, focal length 1.8cm.)
11. Work temperature:-47-75 degree
12. Frequency:0-30Khz

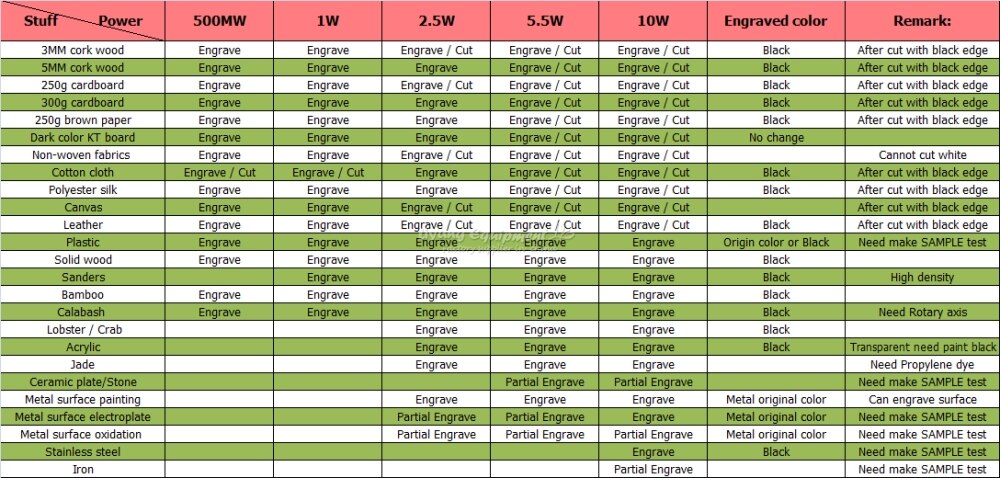

Application:

Cannot do:
Metal(10W can ),stone,ceramic plate,jewellery,reflecting materials,crystal stuff,soft stuffm so ect.

Can do:
Wood,plastic,paper,bamboo,animal angle,leather,plastic mobile case,stampe,sponge so ect.

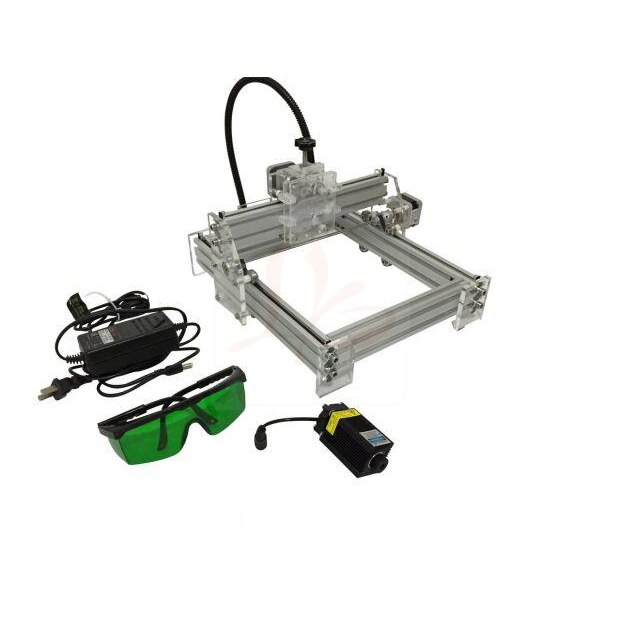

Packing list:

Machine x 1
Power cable x 1
USB date line x 1
Protect glasses x 1
Test wood board x 1
Wrench x 1

Announce:
Item not for commercial use, not for big batch production use.
For personal DIY only, make life more funny & interesting.
