Description

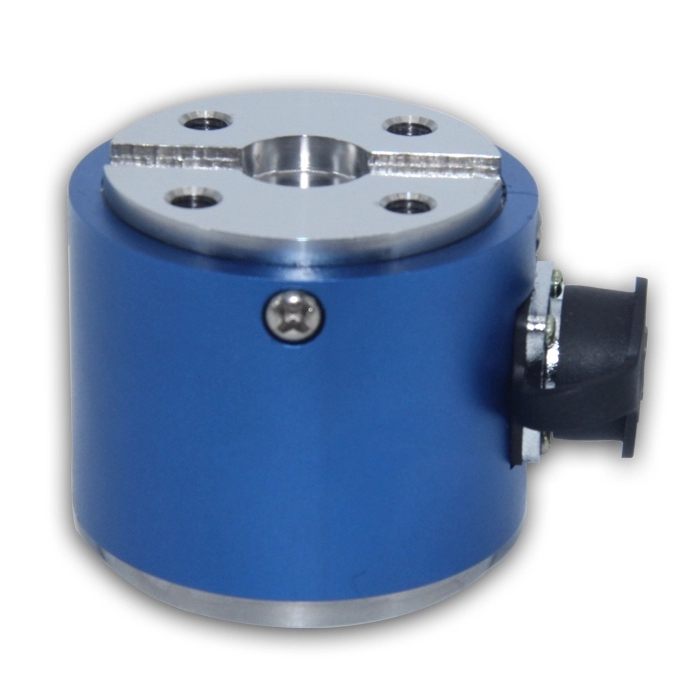

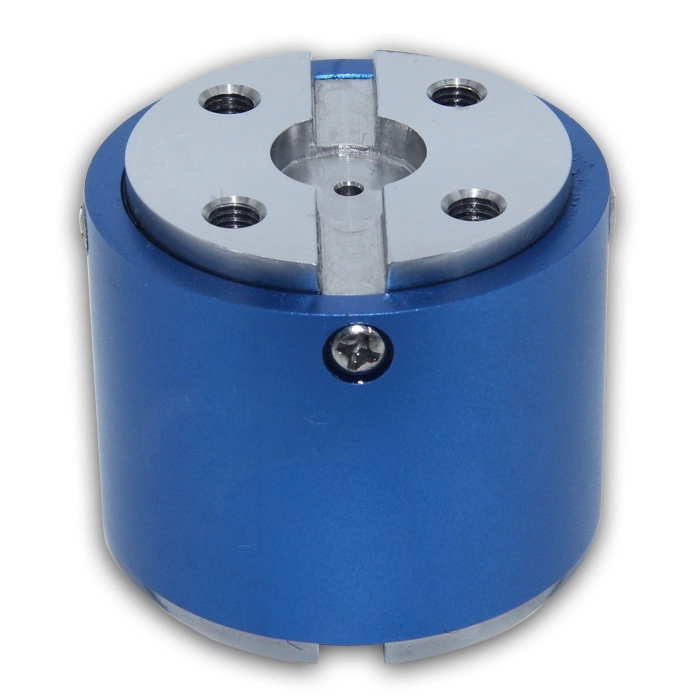

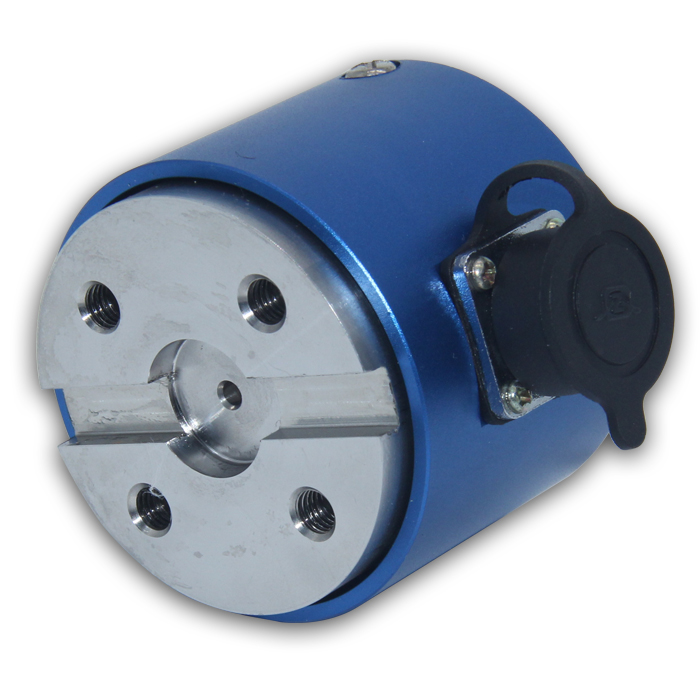

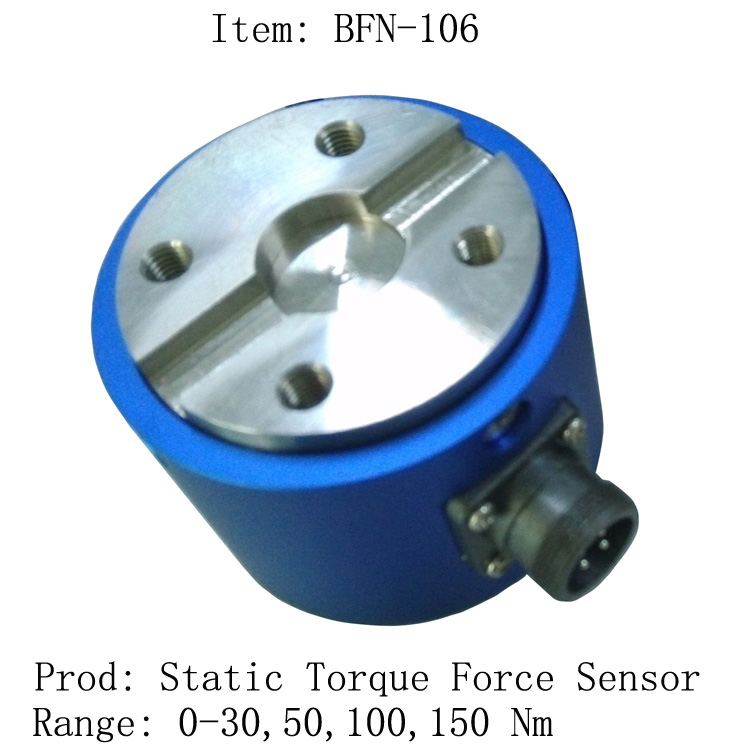

BFN-106 Static Torque Sensor



Product Features & Applications:



1. The resistance strain is a sensitive element with high accuracy and stable and reliable performance.

2. Static torque measurement.

3. Install both ends of the keyway



PARAMETERS:



Rated Load :0~30,50,100 150 Nm

Sensitivity :1.5±10%mV/V

Zero Output :±1%F.S

Non-linearity :≤±0.1, 0.3% F.S.

Hysteresis :≤±0.05% F.S.
Repeatablity :≤±0.05% F.S.
Creep :≤±0.03% F.S/30min

Temp. effect on span (%F.S/10℃): 0.03F.S/10℃
Temp. effect on zero (%F.S/10℃): 0.03%F.S/10℃

Input resistance (Ω) : 350,750±10Ω

Output resistance (Ω) : 350,700±5Ω

Response Frequency : 100μS
Insulation resistance (MΩ) : ≥5000MΩ/100V

Voltage (V) : 10VDC(9-15VDC)
Compensated Temperature Range :-10-60℃

Use Temperature Range :-20-65℃

Safe overload (%F.S) : 150%F·S
Limit overload (%F.S) : 200%F·S
Cable Size : Ø5.2×3m

Mode of Connection : Red /E+,Black /E-,Green /S+,White /S-

Material :Stainless Steel. Steel Alloy, Aluminum

Others :Customized

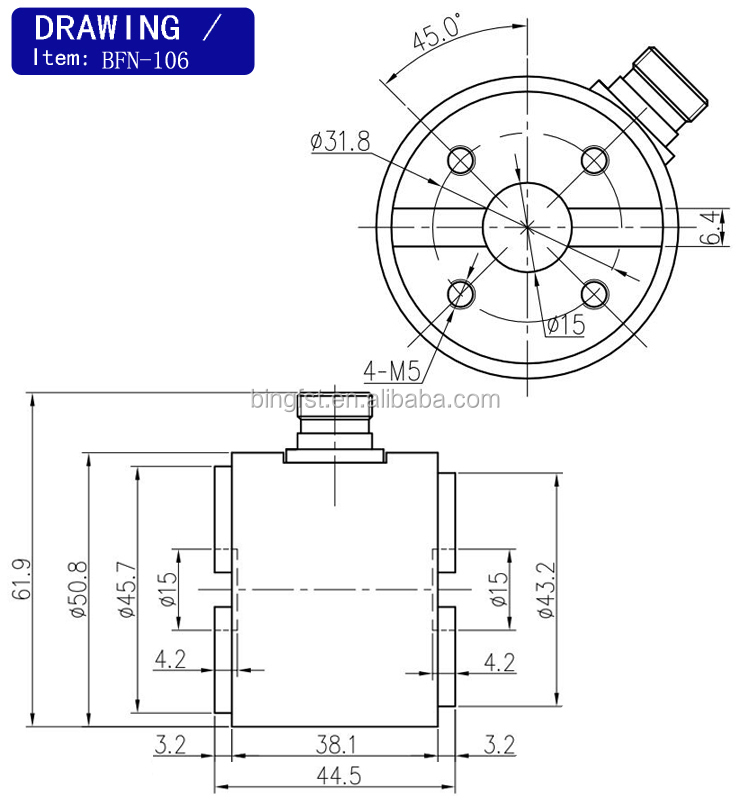

RODUCT DETAILS:

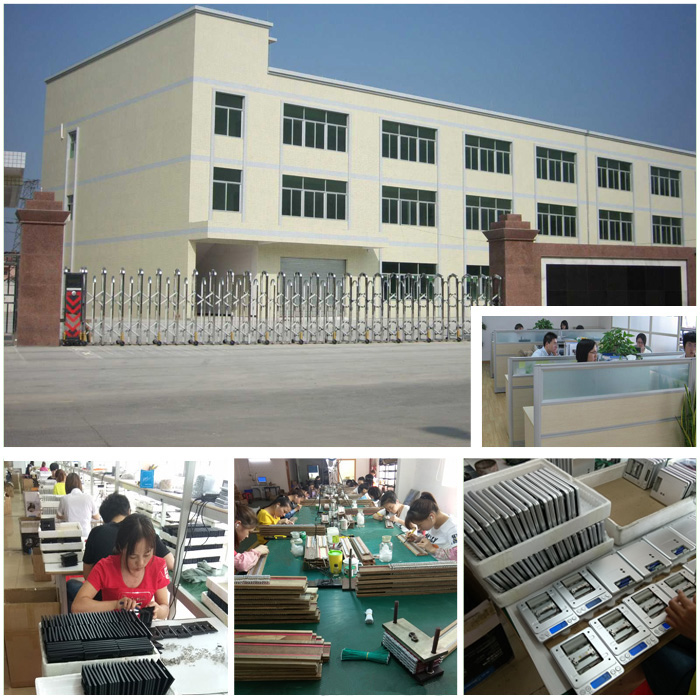

Company Information:



Bingf Science And Technology Co. Ltd , is a large group companies with more than 10 years experience in manufacturing and exporting of intelligent products, product range covers sensors , electronic scales, weighing control devices etc .



Packaging & Shipping:





FAQ:



1.Why choose our factory?
A: Bingf Science and Technology CO., Ltd is a professional manufacturer with more than 10 years experience specialized in developing and producing various kinds of sensors and scales etc.
2. How long is your delivery time?
A: Usually the delivery time is 3-25 days.
3. Can you make OEM products?
A: Yes, we also make ODM products.
4. How long is your warranty?
A: One year.
5. Can you provide the sample to check?
A: Sure, we can .The sample time is 1~7 days normally.
6. What payment terms can you accept?
A: We accept EXW, FOB, CIF etc , USA dollars and RMB are both ok.
