Description
- Brand Name: HoldPeak
- DIY Supplies: ELECTRICAL
- Certification: None
- Origin: CN(Origin)
- Model Number: HP-990C
- AC Current: NO
- Is Smart Device: no
- AC Voltage: NO
- Measuring Resistance Range: 600-60M
- Operating Mode: Auto range
- Measuring Inductance Range: NO
- Display Type: Digital Display
- DC Current: NO
- DC Voltage: NO
- Measuring Capacitance Range: 9.999nF-99.99mF
- Dimensions: 200*36*26mm
- Operating Temperature: 0 – 40 ℃
- Display: 5999
- Measuring Voltage Range: 20V
- Continuity Buzzer: YES
- Diode Test: YES
- LED/Zener: YES
- Battery Test: YES
- Relative Value: YES
- Auto Power Off: YES
- SCAN Mode Function: YES
- Battery Type: 1.5V(AAA)*2
HoldPeak HP-990C Digital SMD Tester Capacitance Meter Resistance Meter Diode/Battery Test with Carry Box Power Battery Tester
HP-990C is a handheld and battery operated very convenient small Tool, that is specially used to measuring SMD(Surface Mounting Device),there are resistor, Capacitor, Diode, Zener and LED.
HP-990C have the continuity checking function,battery power Measurement.
HP-990C is designed to meet IEC1010-1 standard and Stipulation of 2-Pollution Grade.
HP-990C conform to the European Union’s following Requirement:CE regulation 89/336 (EMC Electromagnetic Compatibility).
The entire outer surface of the Meter case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty.

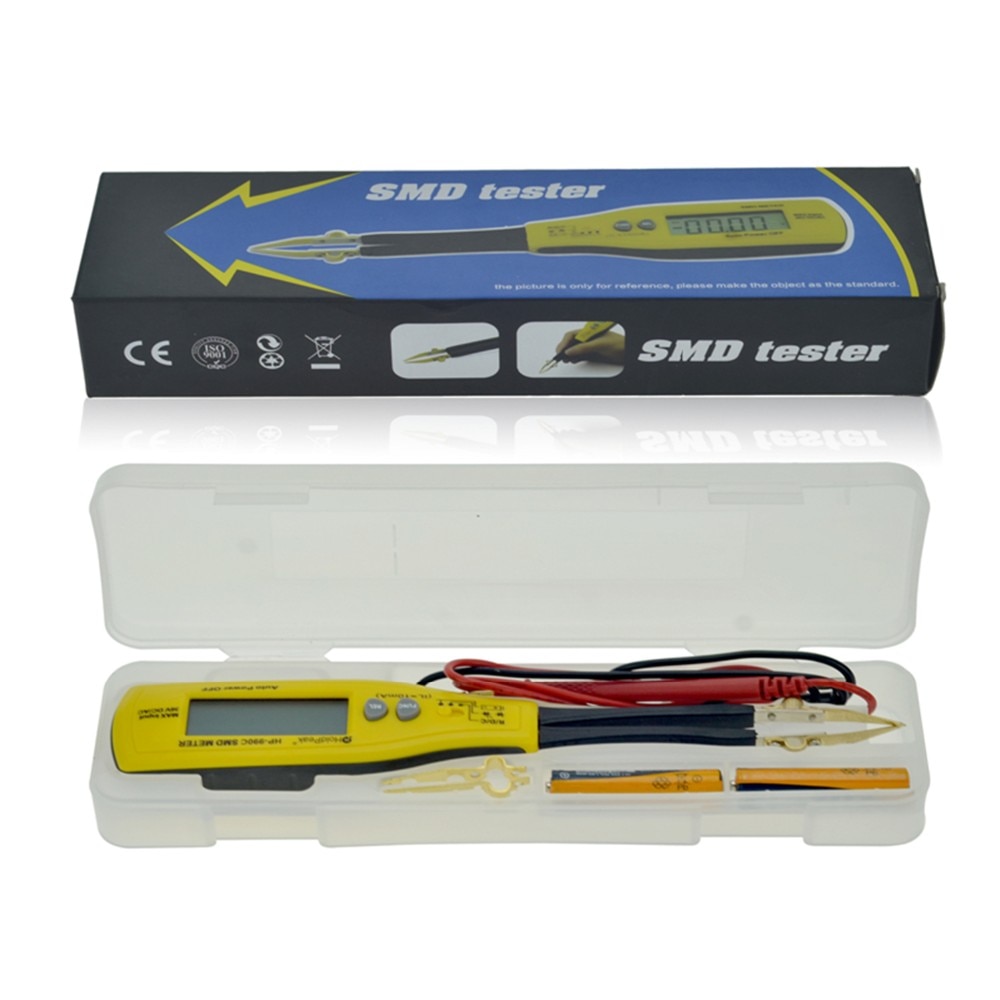

Packing list
HoldPeak HP-990C SMD Tester x 1
English Manual x 1
Test Lead x 1
