Description
- Brand Name: HABOTEST
- DIY Supplies: ELECTRICAL
- Certification: CE
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: HT112B
- AC Current: 600mA
- Is Smart Device: no
- AC Voltage: 600V
- Measuring Resistance Range: 60MΩ
- Operating Mode: Button
- Measuring Inductance Range: N/A
- Display Type: Digital Display
- DC Current: 600mA
- DC Voltage: 600V
- Measuring Capacitance Range: 60mF
- Dimensions: 11.3cm*6.8cm*1.7cm
- Operating Temperature: 0 – 40 ℃
- Brand Name: HABOTEST
- Product Name: HT112B Digital Smart Multimeter
- Color: Black
- Counts: 6000 counts
- AC/DC Voltage Range: 0-600V
- AC/DC Ampere Range: 0-600mA
- Resistance: 0-60MΩ
- Frequency: 0-10MHz
- Duty: 0.1%-99%
- Capacitance: 0-60mF
- Auto/Manual Range: Auto
- SMART Function: Yes
- Auto Recognition of probe inserted: Yes
- Tips of blow the fuse: Yes
- Live Test: Yes
- NCV: Yes
- Diode Test: Yes
- Continuity: Yes
- Data Hold: Yes
- True RMS: Yes
- Low battery indication: Yes
- Auto Power Off: Yes
- Backlight: Yes
- Flashlight: Yes
- Weight: Approx.150g
- Size: 11.3cm*6.8cm*1.7cm
- Power suppy: 2*CR2302 Batteries

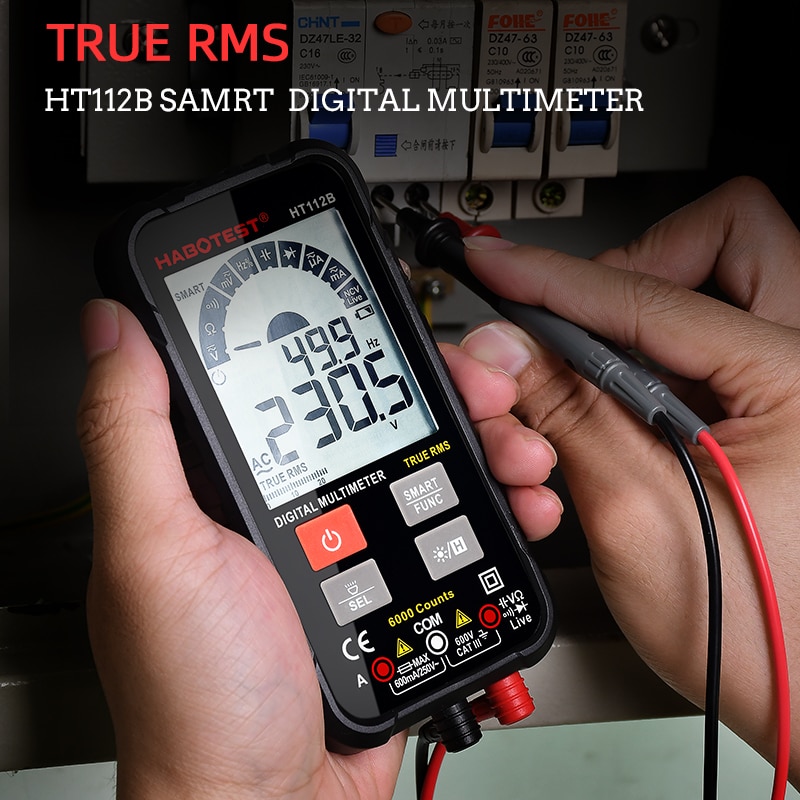

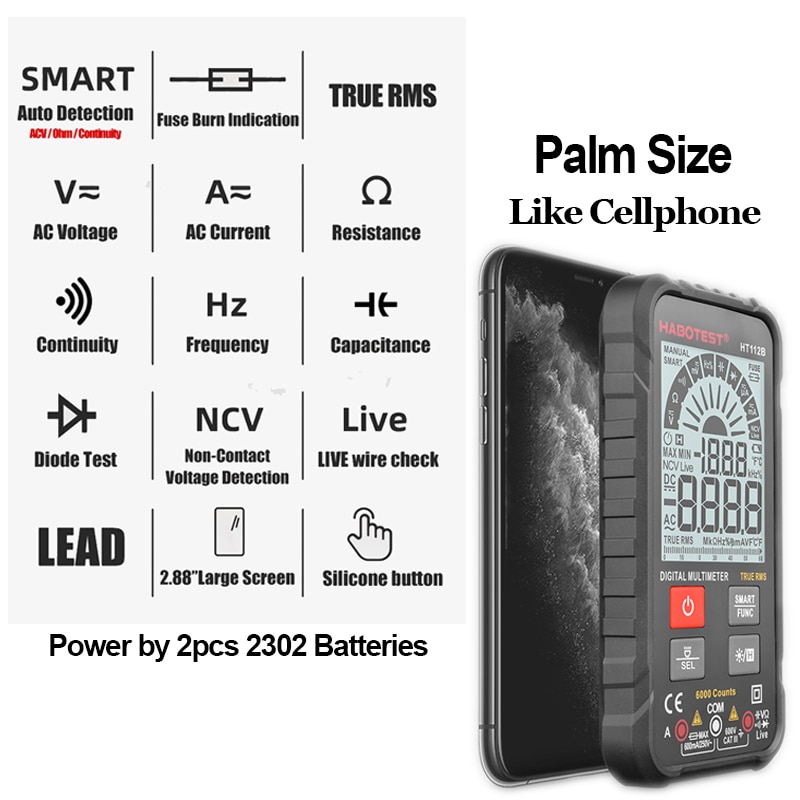

Digital Multimeter Tester Professional Auto Range Battery Test Smart Mini Multi Meter Capacitance Amp NCV Voltmeter HT112B
Technical Details Of HT112B
DC Voltage: 60mV/600mV/6V/60V/600V
±（0.5%+3）
AC Voltage: 60mV/600mV/6V/60V/600V
±（1.0%+3）
DC Current: 6000uA/60mA/600mA
± (1.2%+5)
AC Current: 6000uA/60mA/600mA
± （1.5%+5）
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
± （4.0%+5）
Capacitance:6nF/60nF/600nF/6uF/60uF/600uF
/6mF/60mF
± （4.0%+5）
Frequency:10Hz/100Hz/1000Hz/10kHz/100kHz
/1000kHz/10MHz
± （1.0%+5)
Duty: 1%~99% ± (3.0%+5)
Counts: 6000 Counts
Auto/Manual Range: Auto
SMART Function: Yes

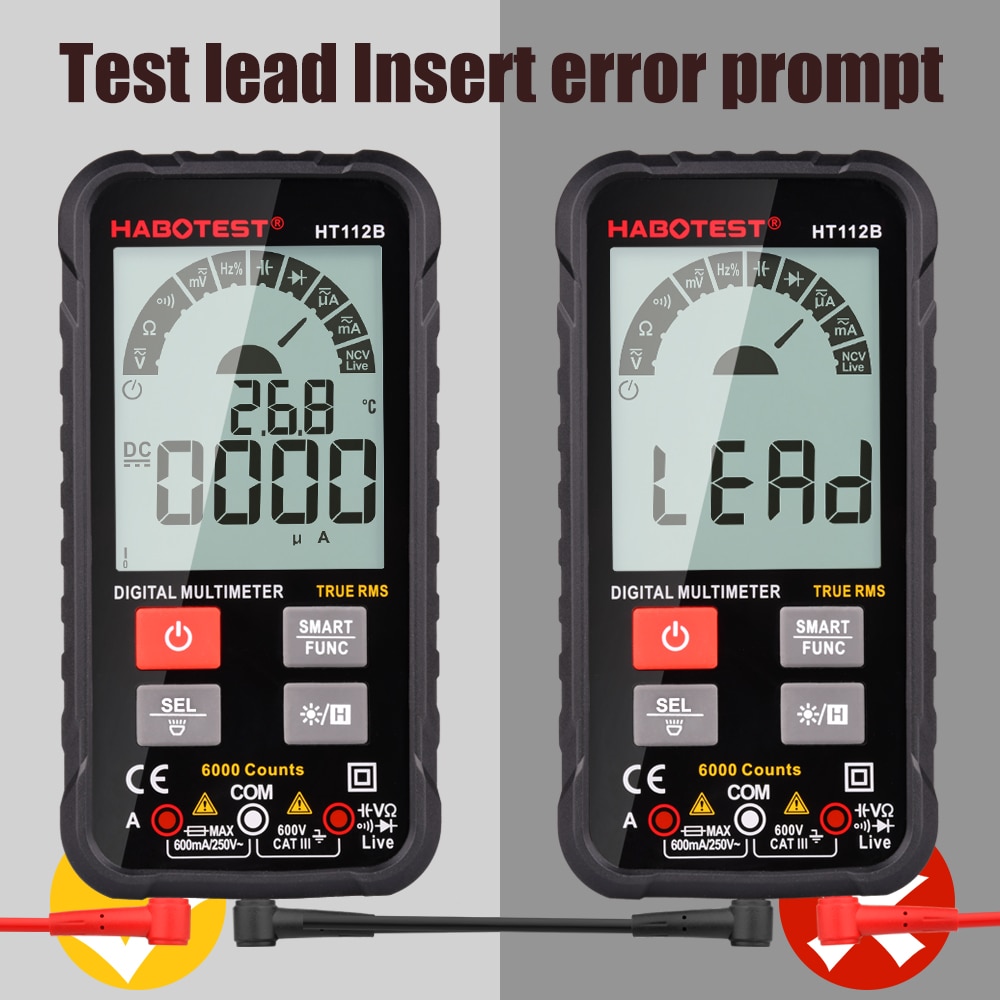

Auto recognition of probe inserted into current input: Yes
Tips of blow the fuses: Yes
Functions: Live Test/ NCV/ Diode Test/
Continuity/ Data Hold/ True RMS
Low Battery Indication: Yes
Auto Power Off: Yes
Backlight: Yes
Flashlight: Yes
Power Supply: 2*3V CR2032 Batteries
Packing List
HT112B*1
Testlead *1
Fabric Bag*1
CR2032 Battery*4
Fuse*1

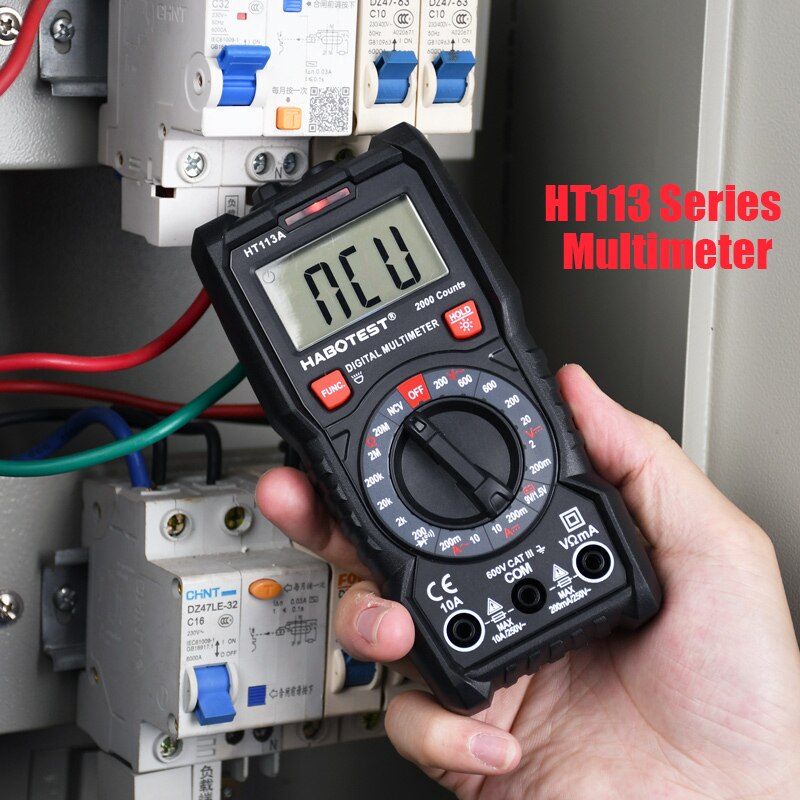

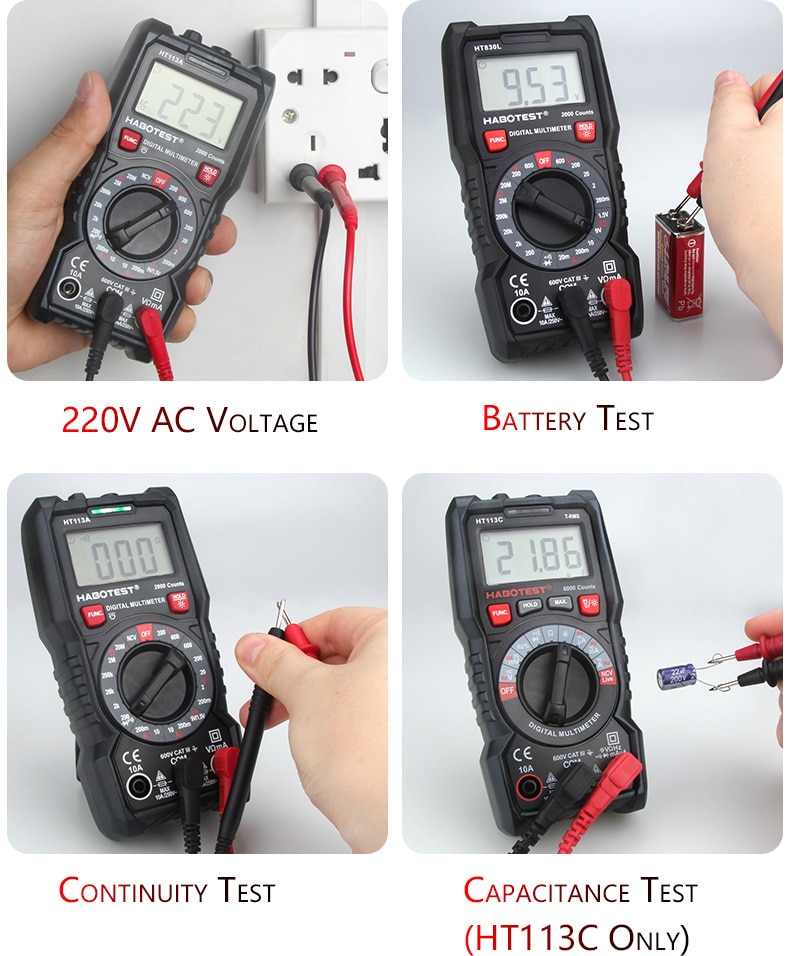

Technical Details Of HT113 Series
