Description
- Brand Name: NoEnName_Null
- Model Number: TM09A
- With Backlight Or Not: YES
Digital Copper Foil Thickness Tester Meter For Copper Foil Gauge for PCB Copper-Clad Plates LCD Backlight TM09A
1.Introduction:

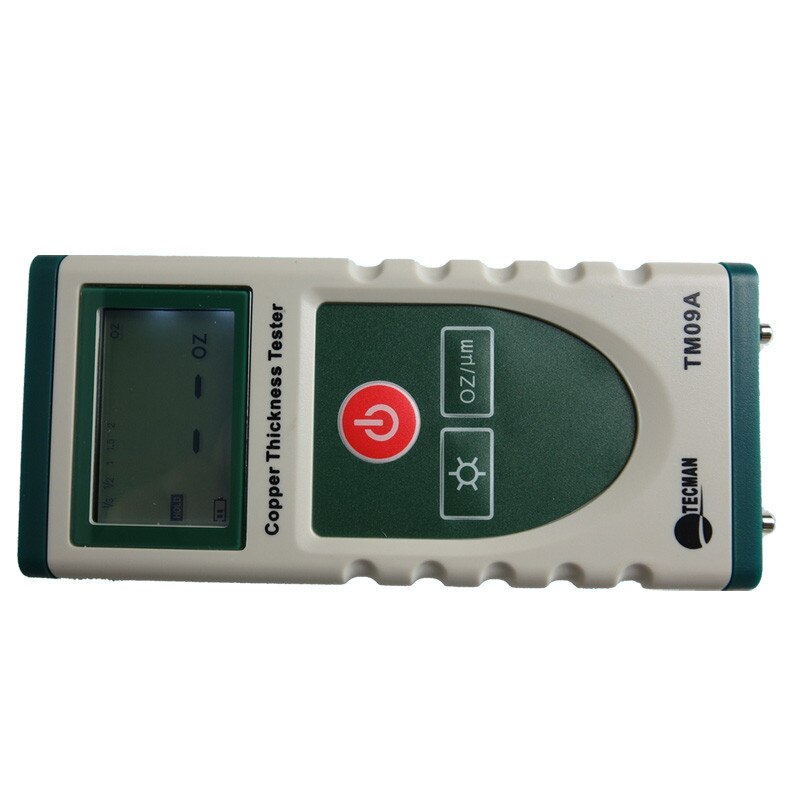

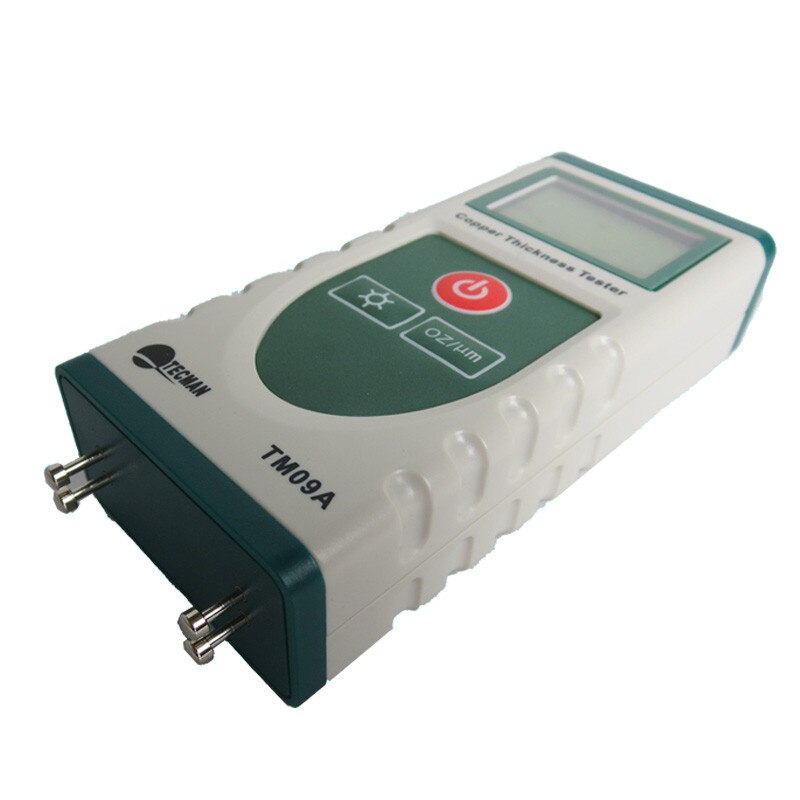

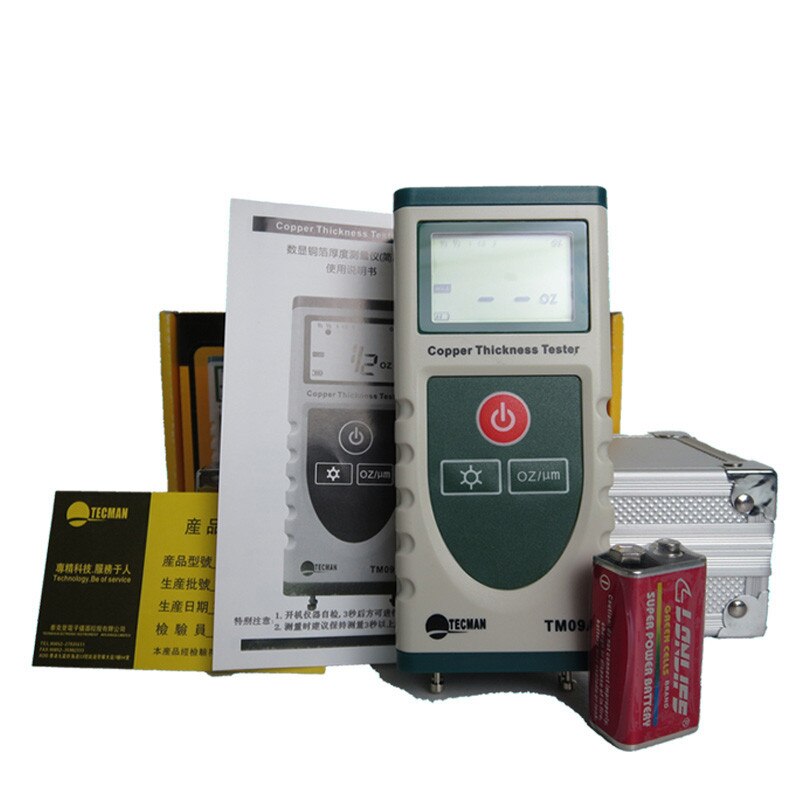

Digital copper foil thickness tester for copper foil board for PCB copper clad board LCD backlight TM09A
The instrument is a precision digital copper thickness tester. It uses high-precision sampling circuits and micro-processing chips. It can quickly display the copper thickness of the digital and can be directly perceived. The instrument can be used to detect the copper foil thickness of PCB copper clad board, PCB substrate, CCL, FPC board. The measurement range covers 1/3 OZ to 2 OZ. It is the instrument of choice for measuring the thickness of copper foil in the PCB industry.
2.Feature:
Precise digital copper thickness tester.
The measurement range covers 1/3 OZ to 2 OZ.
Unit conversion between OZ and μm.
battery is low.
If there is no operation for 30 seconds, the data hold function and the automatic power off function.
LCD backlight for easy reading.
It is the instrument of choice for measuring the thickness of copper foil in the PCB industry.
3.Specifications:
Measuring Range:
Inch: 1/3OZ, 1/2OZ, 1OZ, 1.5OZ, 2OZ
Metric: 12μm, 17μm, 35μm, 53μm, 70μm
Response Time: 1.5s
Display: LCD

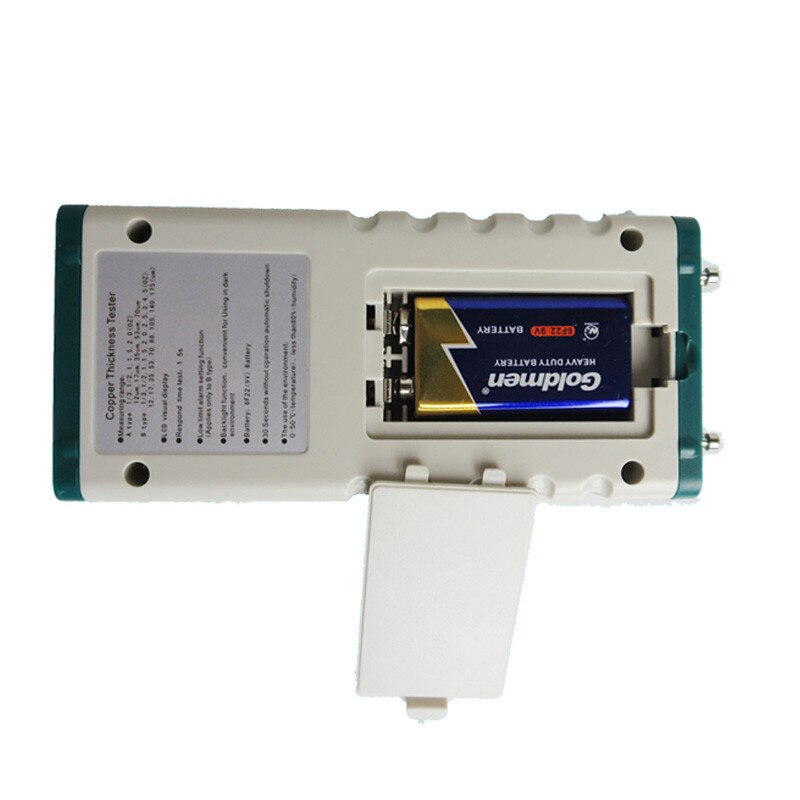

Power Supply: 1 * 9V Battery (Not included package)
Operating Environment: 0-50°C, Less than 80% Humidity
Item Size: 140 * 60 * 33mm / 5.5 * 2.36 * 1.3in
Item Weight: 111g / 3.91oz
Package Size: 20 * 11 * 6cm / 7.87 * 4.33 * 2.36in
Package Weight: 204g / 7.21oz
