Description
Product Overview
PRODUCT SPECIFICATIONS
|
Input Power
|
80W
|
40W
|
20W
|
3W
|
|
Output Power
|
10W
|
5.5W
|
4W
|
1.6W
|
|
Laser Beam Size
|
0.06mm
|
0.08mm
|
0.15mm
|
0.08
|
|
NO. of Laser Source
|
2
|
1
|
1
|
1
|
|
Cork Wood Cutting Thickness
(1pass) |
8mm
|
5mm
|
3mm
|
1mm
|
|
Stainless Steel Engraving Speed
|
7200mm/min
|
3000mm/min
|
X
|
X
|
|
Painted Metal
|
✓
|
✓
|
✓
|
X
|
|
Solid wood Cutting (1pass)
|
2-3mm
|
1mm
|
1mm
|
X
|
|
Black Acrylic Cutting (1pass)
|
5mm
|
3mm
|
2mm
|
X
|
|
Anodized Aluminium
|
✓
|
✓
|
X
|
X
|
|
Ceramics/Glass
|
work with hot transfer paper
|
work with hot transfer paper
|
work with hot transfer paper
|
work with hot transfer paper
|
|
Bone Engraving
|
✓
|
✓
|
✓
|
✓
|
|
Food Engraving
|
✓
|
✓
|
✓
|
✓
|
|
Leather Engraving
|
✓
|
✓
|
✓
|
✓
|
|
Rubber Engraving
|
✓
|
✓
|
✓
|
✓
|
Application Material
Product Description

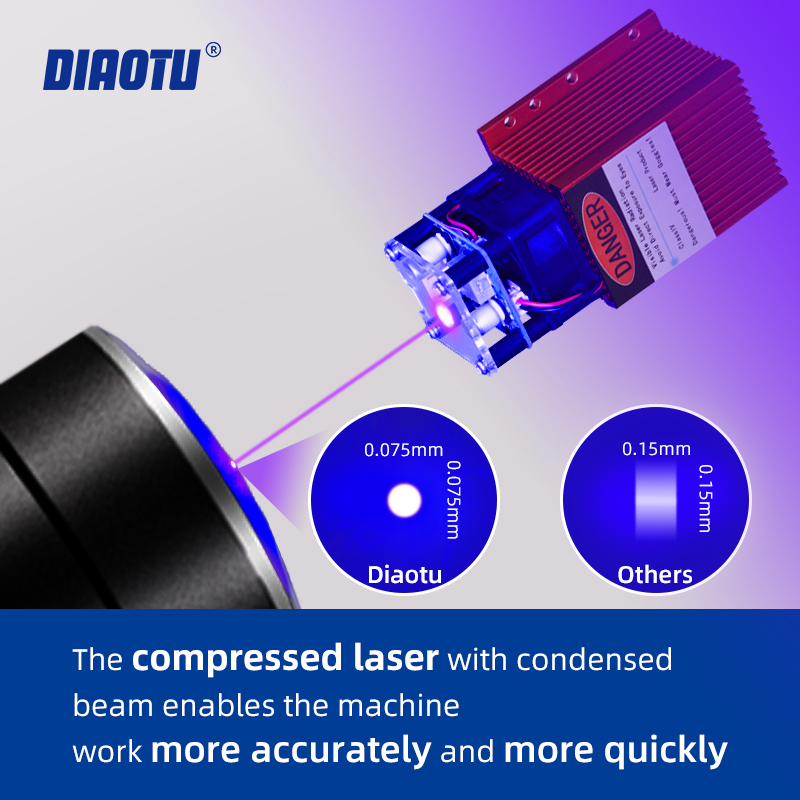

1. Light Spot Compression Technology:With the same energy laser beam, the spot is compressed from the original 0.3mm to 0.08mm. The light spot gathers energy for more efficient carving. More efficient, shorter time, preciser.

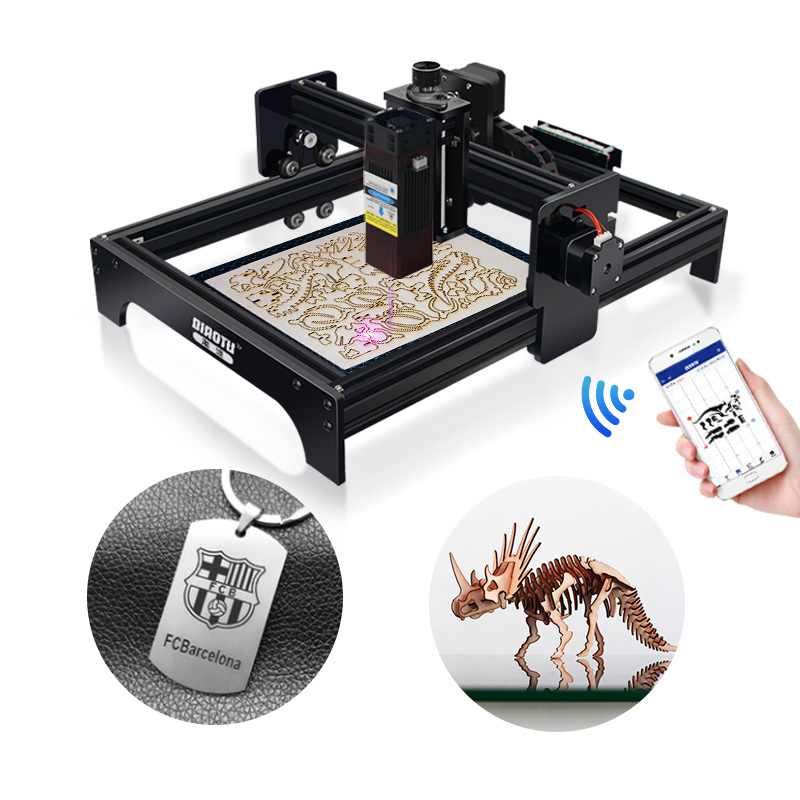

2. New Design:New lifting device can be adjusted up and down(0-8cm); Aluminum alloy frame lightweight structure and it has slide on guide rail. Improve exhaust position, exhaust the smoke during engraving to protect the laser head; Drag chain wiring and dual Y-axis design to ensure high-speed and stable operation.

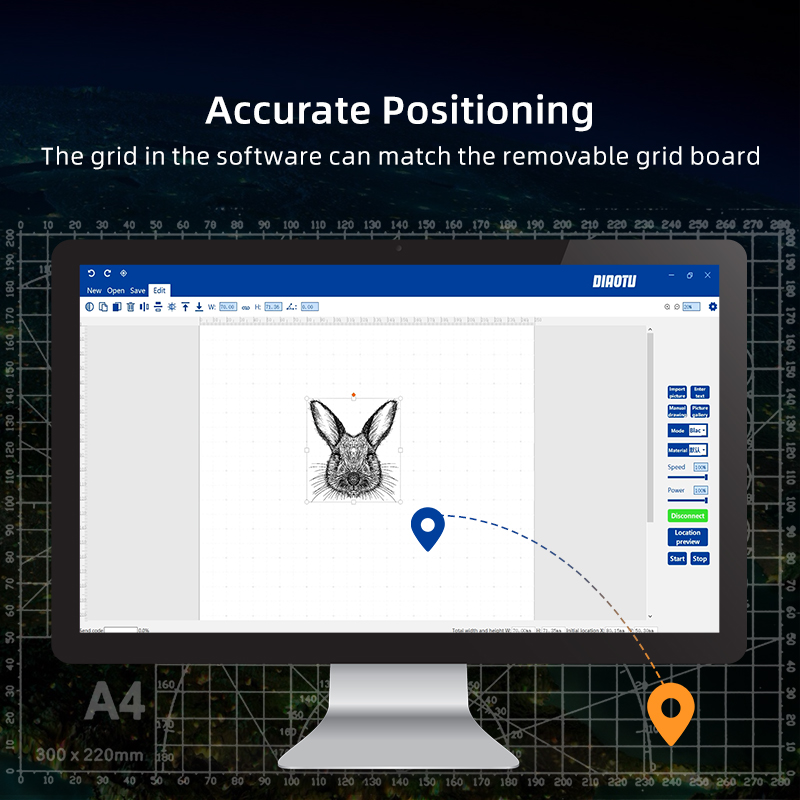

3. Self-design Software: Diaotu Engraving Machine is our self-design software equipped with ARM Architecture chip.You can import photos from your phone and edit them in the app. The engraving material parameters can be shown directly without setting them in the app manually. After the last operation exits, the app will display the last operation when next engraving. The built-in grid of the software is the same as the actual position of the engraving machine. APP is easier to operate than Lightburn and our app can be installed on both phones and computers.
4. Special Cutting Function: Accurately cut paper, cloth, wood, leather within 2mm. Larger laser head, better heat dissipation and longer battery life.
5. We offer warranty and friendly customer service. If you have any problems during the installation process, please feel free to contact us. We will direct you remotely.
2. New Design:New lifting device can be adjusted up and down(0-8cm); Aluminum alloy frame lightweight structure and it has slide on guide rail. Improve exhaust position, exhaust the smoke during engraving to protect the laser head; Drag chain wiring and dual Y-axis design to ensure high-speed and stable operation.
3. Self-design Software: Diaotu Engraving Machine is our self-design software equipped with ARM Architecture chip.You can import photos from your phone and edit them in the app. The engraving material parameters can be shown directly without setting them in the app manually. After the last operation exits, the app will display the last operation when next engraving. The built-in grid of the software is the same as the actual position of the engraving machine. APP is easier to operate than Lightburn and our app can be installed on both phones and computers.
4. Special Cutting Function: Accurately cut paper, cloth, wood, leather within 2mm. Larger laser head, better heat dissipation and longer battery life.
5. We offer warranty and friendly customer service. If you have any problems during the installation process, please feel free to contact us. We will direct you remotely.
