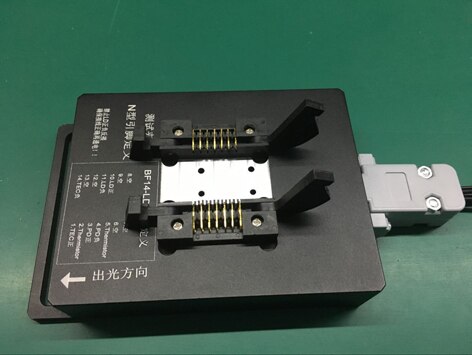

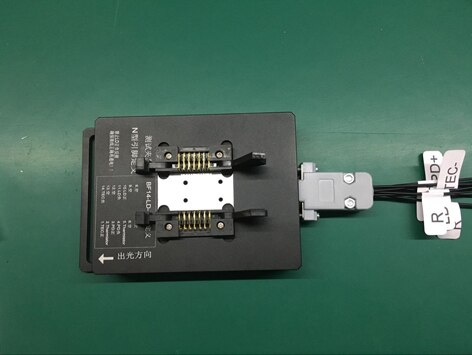

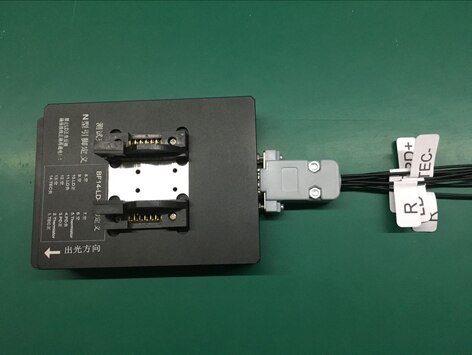

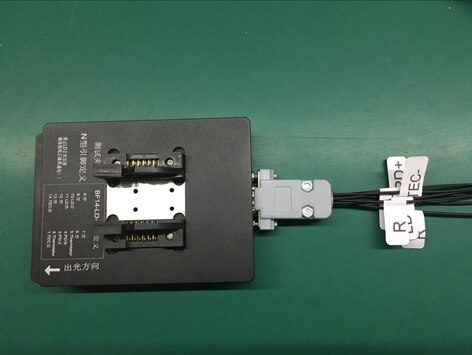

DFB laser butterfly Fixture base 14 pin drive base SOA fixture base

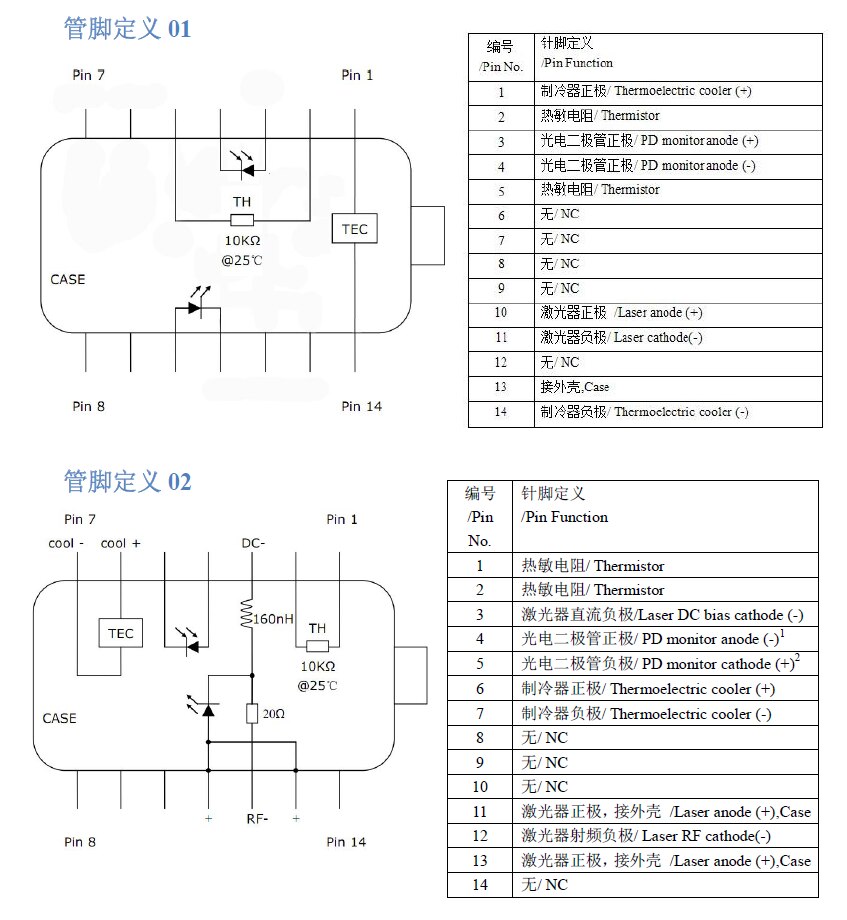

type1 pin definition 01 N type
type2 pin definition 02 S type
type3 pin definition 03 BF8
type4 universal type
Note which pin when photographing
This fixture is for communication and sensing industries.BF14、BF8、TFDevelopment and design of series butterfly lasers,Suitable for common useNShape、SType andBF8Small butterfly package laser,Custom pin definition for customers provides custom services。The butterfly clamp can be used to test the laser without welding.、Debugging and test use,Avoid laser damage and failure caused by misconnection of pins。Suitable for many research institutes、Use by colleges and universities and related production enterprises。The company can provide but is not limited to the following pin definitions:BF14-NType、BF14-SType、BF8Small butterfly type。
Product Features
Features
No soldering required to protect the original state of the laser pins
Card holder pins are gold plated on spring steel surface to reduce contact resistance
DB9 interface for easy connection with test instruments
Polishing of the contact between the fixture and the laser base, effective heat dissipation
U-shaped groove design at the front of the fixture for easy fixing with the optical platform
main application
Butterfly laser related test bench construction
Laser detection fixture for mass production
