Description

Brand Name: HKNA
Origin: CN(Origin)
Certification: CE
Place of Origin: Shanghai, China
Brand Name: Lanry
Model Number: DF6100-EH

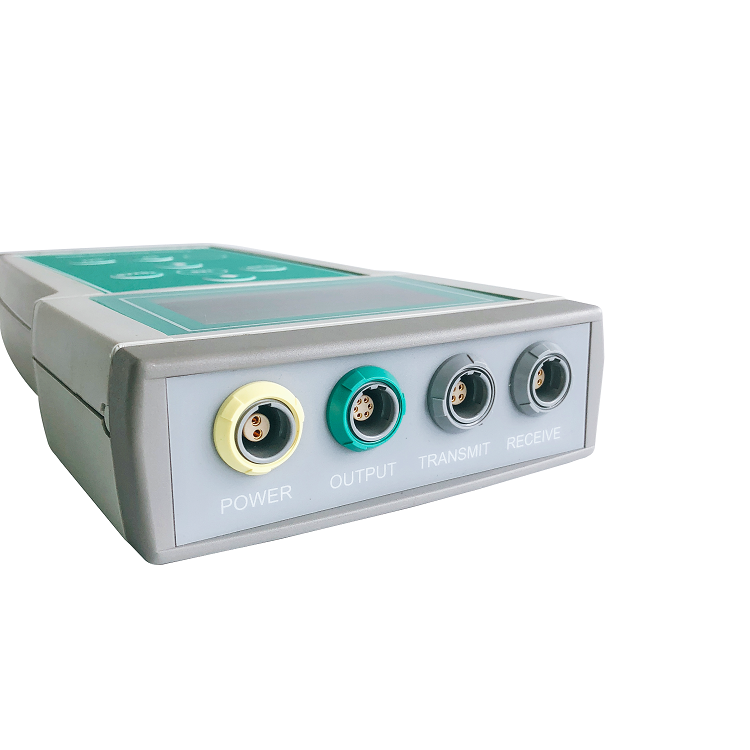

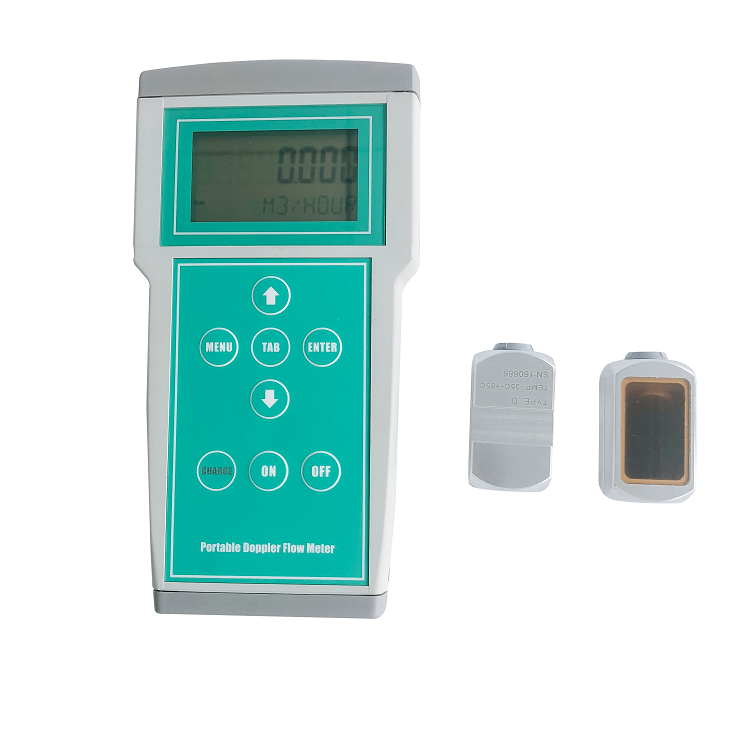

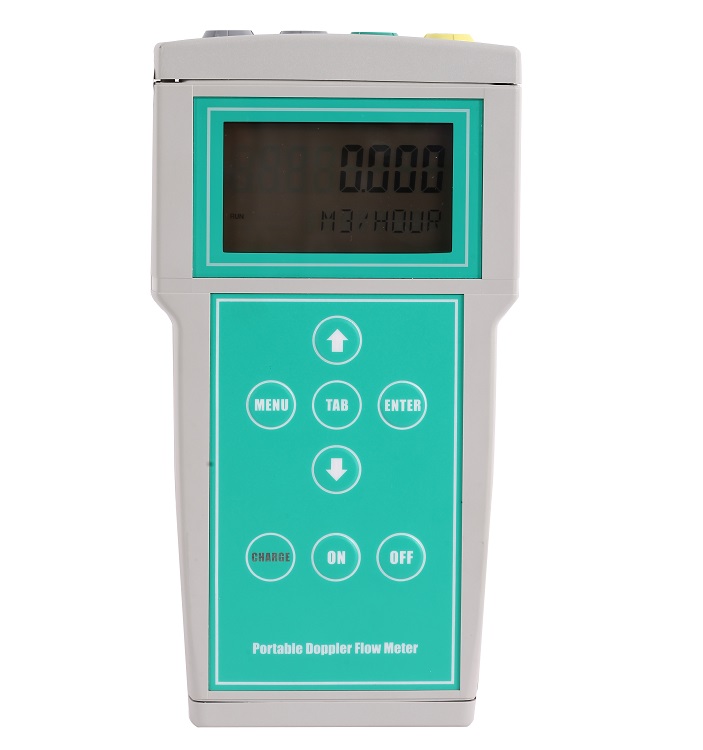

Product Name: DF6100-EH Lanry Handheld Flow Meter Doppler
Output: 4-20mA /Frequency/Pulse
Accuracy: 0.5% — 2.0% F.S.
High Temp: -35-200 °C
Transducer type: non-invasive
Transducer Material: Metal
Pipe diameter range: DN 40-4000
Operation temperature: -20~60℃
Application: Measuring Liquids
Power supply: 85~265VAC

Product Description

DF6100-EH Lanry Handheld Flow Meter Doppler is designed to measure volumetric flow of within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.

DF6100-EH Lanry Handheld Flow Meter Doppler can display flow rate and flow totalizer, etc., and is configured with 4-20mA, Relays for Totalizer and Alarm outputs.

Features

◆DF6100-EH Lanry Handheld Flow Meter Doppler is suitable for pipe sizes ranging from 40 to 4000mm
◆ For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
◆Excellent low flow rate measurement ability, low to 0.05m/s
◆A wide range of flow measurement, high flow rate can reach 12m/s
◆ High-temperature transducer is suitable to liquids of -35℃ ~ 200℃

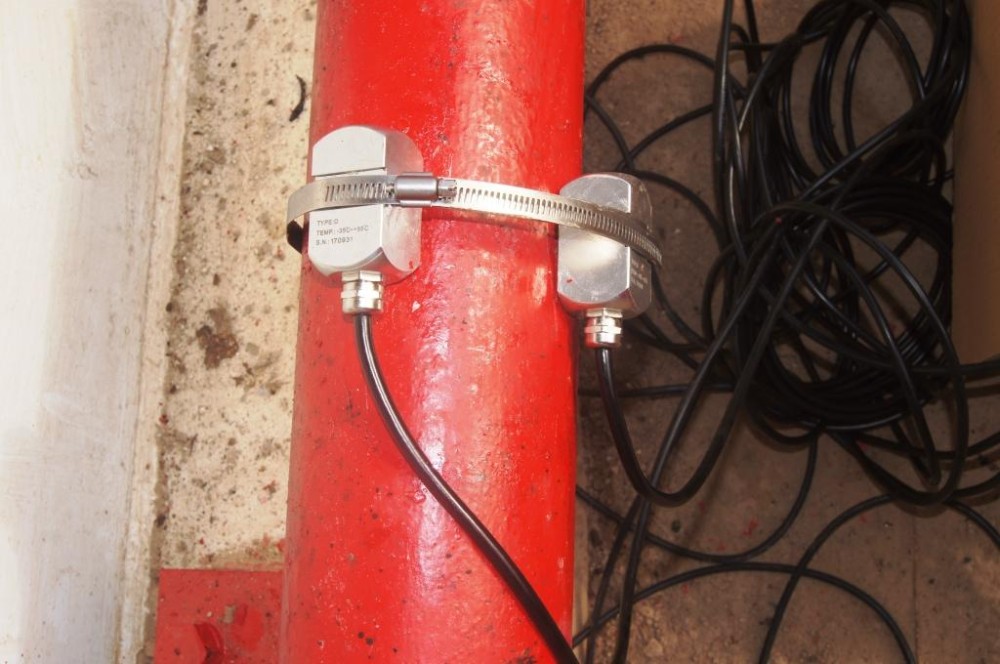

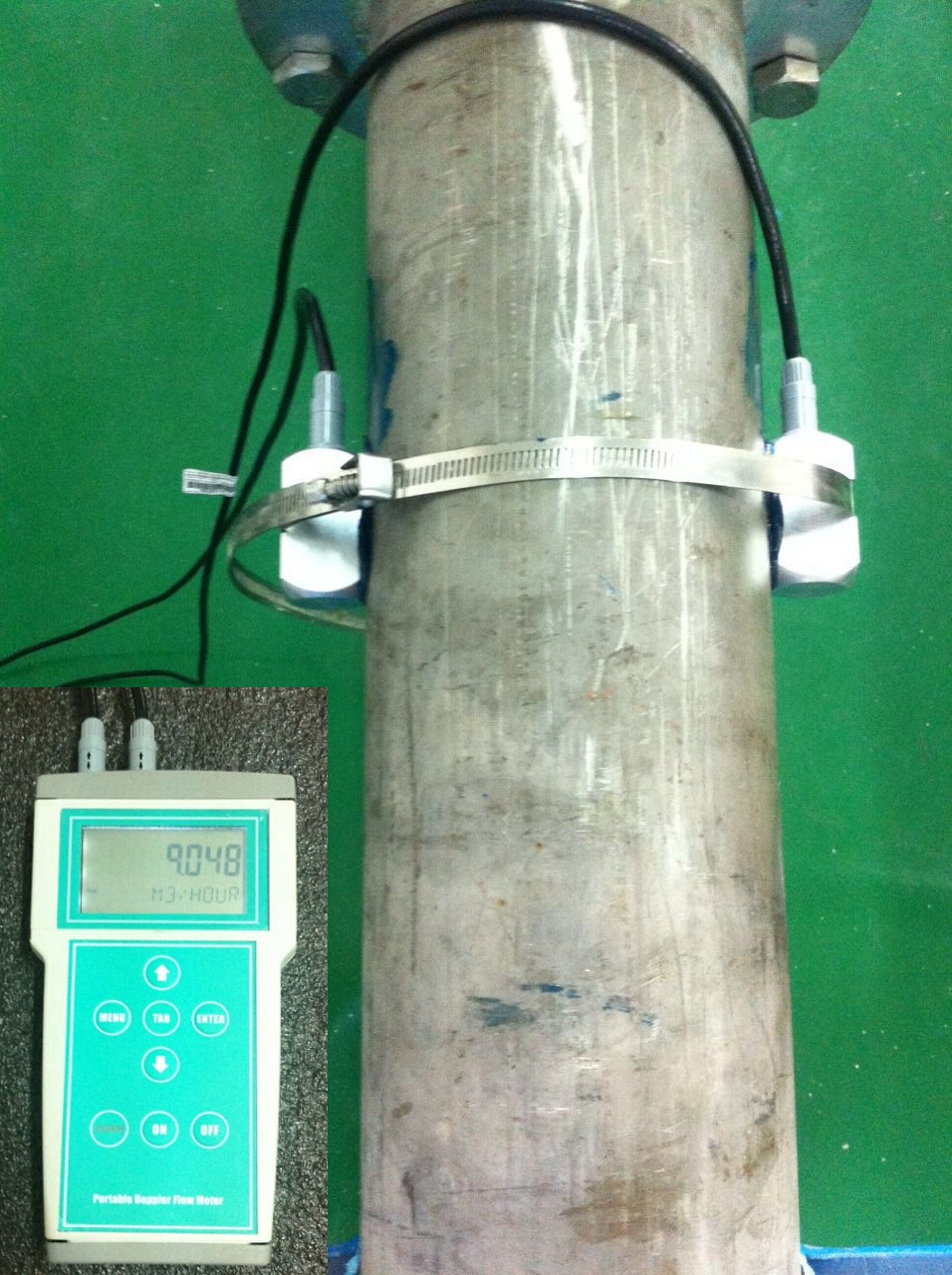

◆ Do not need to shut down the pipe flow when installing the transducers
◆ User-friendly configuration
◆ 4-20mA, OCT outputs available.
◆ Accuracy: 2.0% Calibrated span
◆Rechargeable battery can work up to 14 hours

Application

◆Raw sewage
◆Activated sludge
◆ Ground water
◆Pulp and paper slurries
◆Chemical slurries
◆Drainage
◆ Mining recirculation

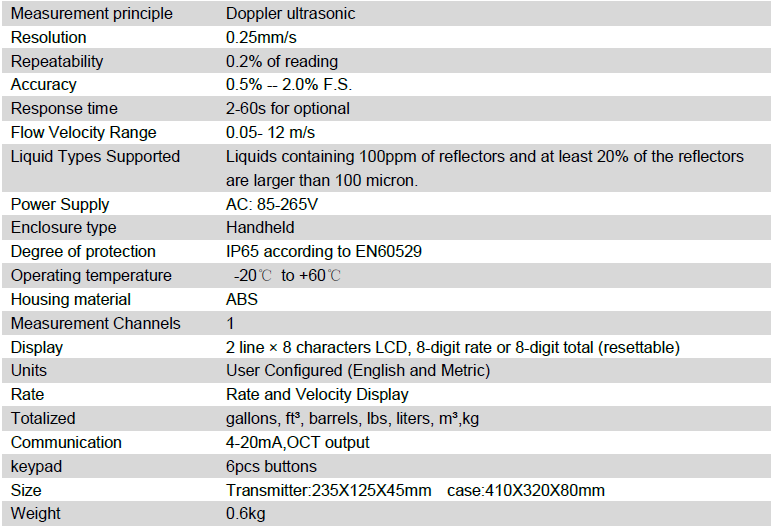

DF6100-EH Lanry Handheld Flow Meter Doppler Specifications :Transmitter

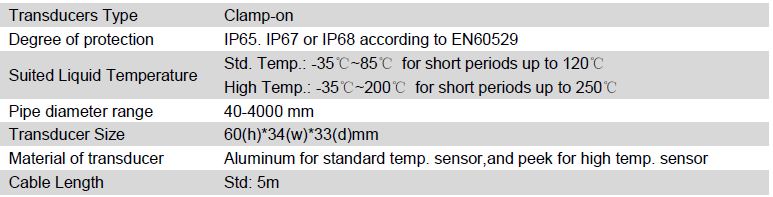

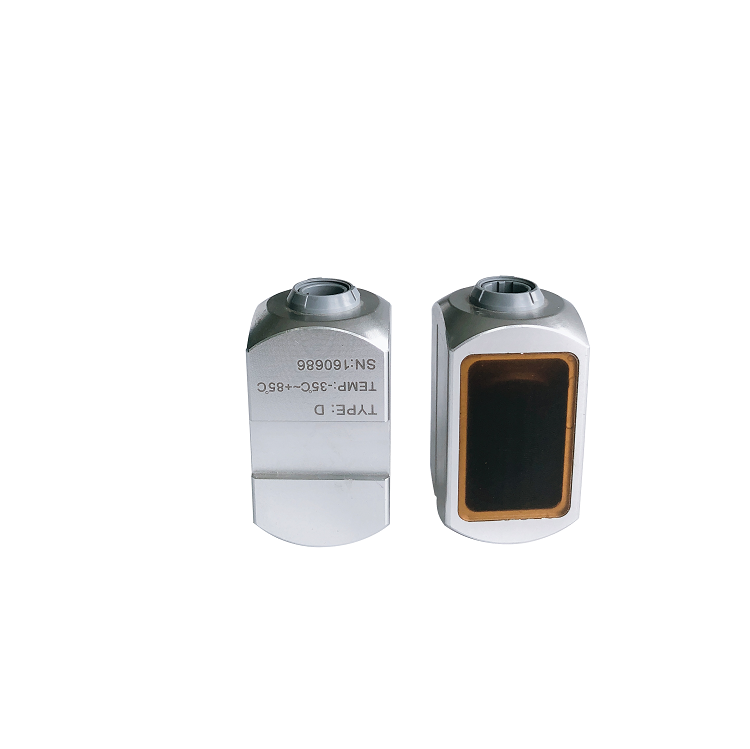

DF6100-EH Lanry Handheld Flow Meter Doppler Specifications :Transducer

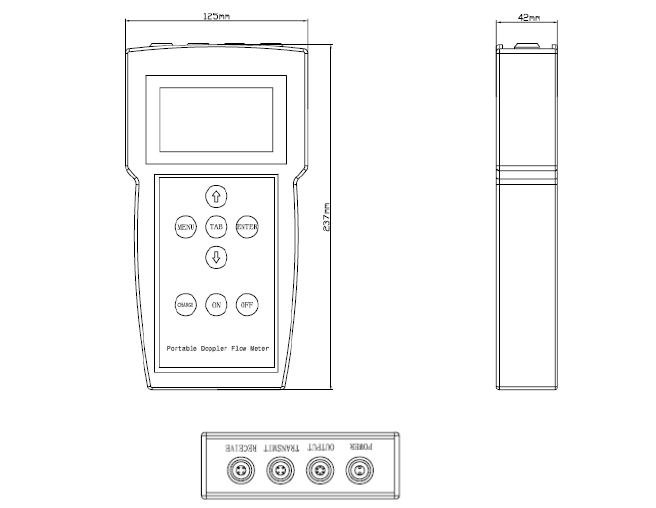

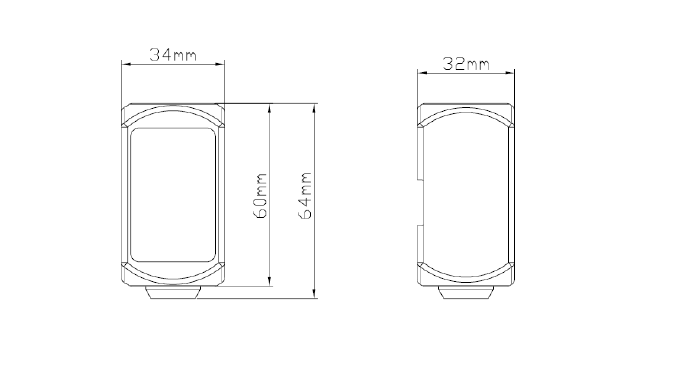

DF6100-EH Lanry Handheld Flow Meter Doppler Diamensional Sketches:

Standard size: 60(h)*34(w)*32(d)mm

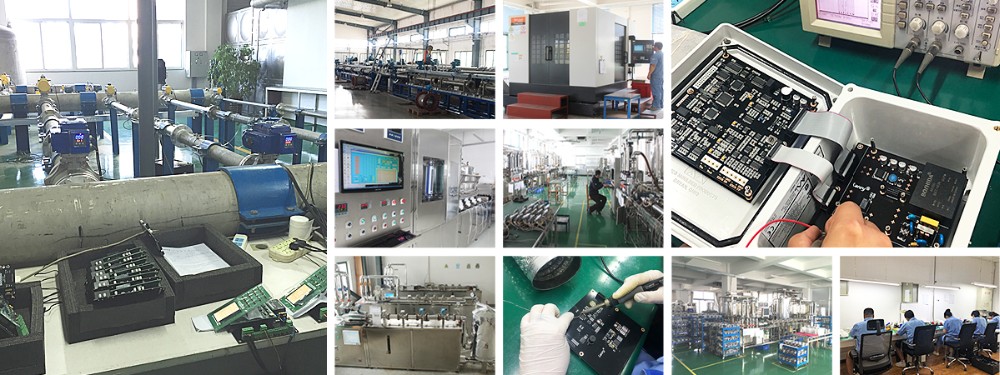

Factory Equipment
