DC12V 24V 180kg.cm Steel Gear High Torque Servo with Potentiometer for Robot Mechanical Arm

  • Home
  • DC12V 24V 180kg.cm Steel Gear High Torque Servo with Potentiometer for Robot Mechanical Arm
Sale!

DC12V 24V 180kg.cm Steel Gear High Torque Servo with Potentiometer for Robot Mechanical Arm

$175.56

100 in stock

SKU: 1005002917693624 Category:

Description

  • Brand Name: LanYuXuan
  • Certification: CE
  • Origin: CN(Origin)
  • DIY Supplies: ELECTRICAL
  • Place of Origin: Guangdong, China
  • Brand Name: TZT
  • Model Number: 50775
  • Name: High Torque Steering Servo
  • Model: XJD-X1
  • Working voltage: DC12-24V
  • No load current: <500mA
  • Rotation angle: 330 degree MAX. (0-360 degree, adjustable)
  • Angular velocity: 0.5s/60degree, when 24V;1.0s/60degree, when 12V
  • Maximum torque(actual measurement): 260kg.cm(24V) ;2496N.cm(24V) ;130kg.cm(12V) ;1248N.cm(12V)
  • Voltage signal input range: 0-5V
  • Size: 95.5*60.5*102.6mm
  • Gear material: Steel

DC12V 24V 180kg.cm Steel Gear High Torque Servo with Potentiometer for Robot Mechanical Arm



Product Description



Functions:
– Designed with potentiometer
– Potentiometer control, remote control
– Current adjustment and angle adjustment
– CW and CCW switching, AD & PWM switching, pulse width 1-2ms & 0.5-2.5ms
– Compatible with Futaba, JR, SANWA, Hitec, etc.

Parameters:
– Model: XJD-X1
– Working voltage: DC12-24V
– No load current: <500mA
– Maximum torque(actual measurement): 260kg.cm(24V) ;2496N.cm(24V) ;130kg.cm(12V) ;1248N.cm(12V)
– Angular velocity: 0.5s/60degree, when 24V;1.0s/60degree, when 12V
– Rotation angle: 330 degree MAX. (0-360 degree, adjustable)
– Input mode: PWMIN is PWM signal; ADIN is analog voltage signal(potentiometer)
– Pulse signal input range: 0.5ms-2.5ms for all “multi channal controller”, 1ms-2ms for drone remote controller, SCM program, Arduino, etc.
– Voltage signal input range: 0-5V
– Control accuracy: 0.32 degree
– Weight: 530g
– Gear material: Steel

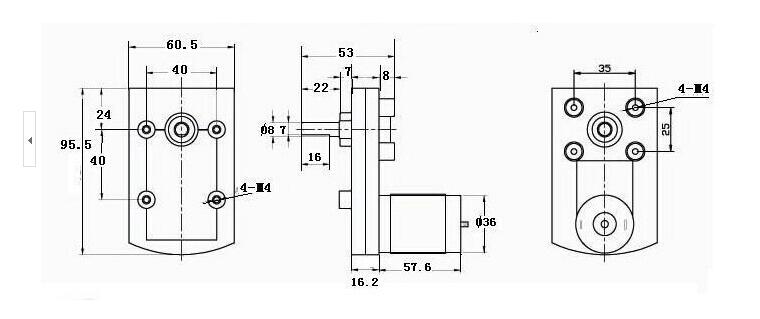

– Size: 95.5*60.5*102.6mm
– Application: Robot, mechanical arm, other high torque control area
– Power input: DC12-24V
– Motor output: 12-24V

Package Included:
– 1 x Servo

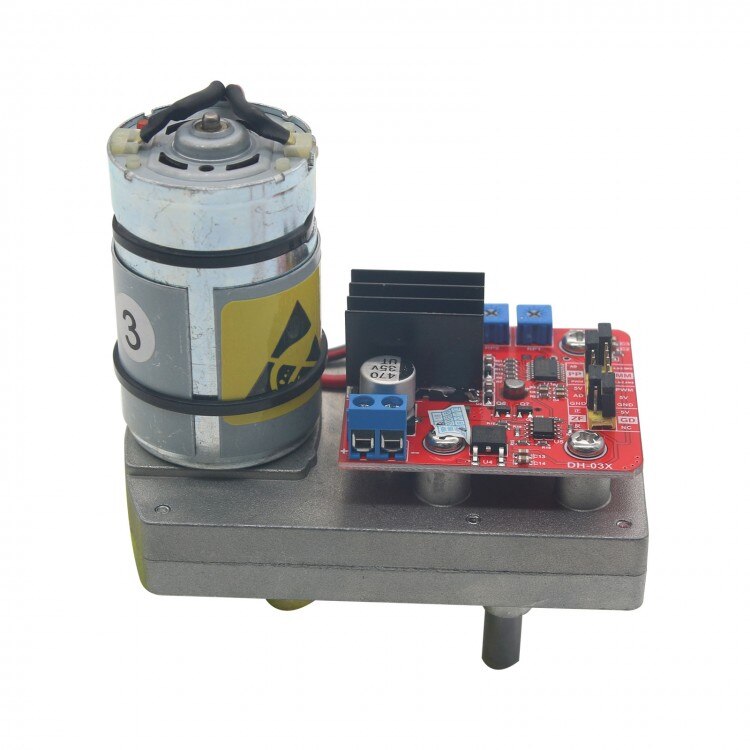

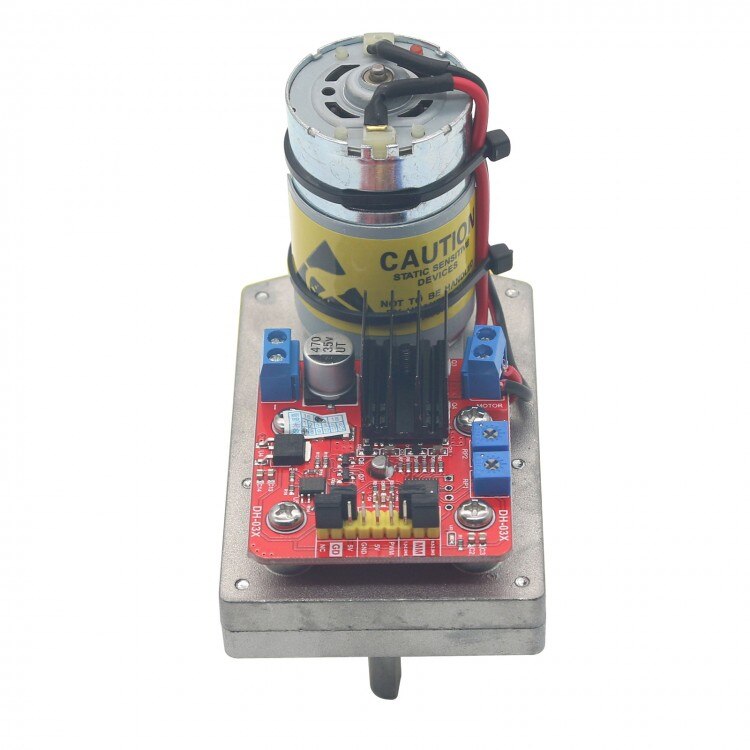

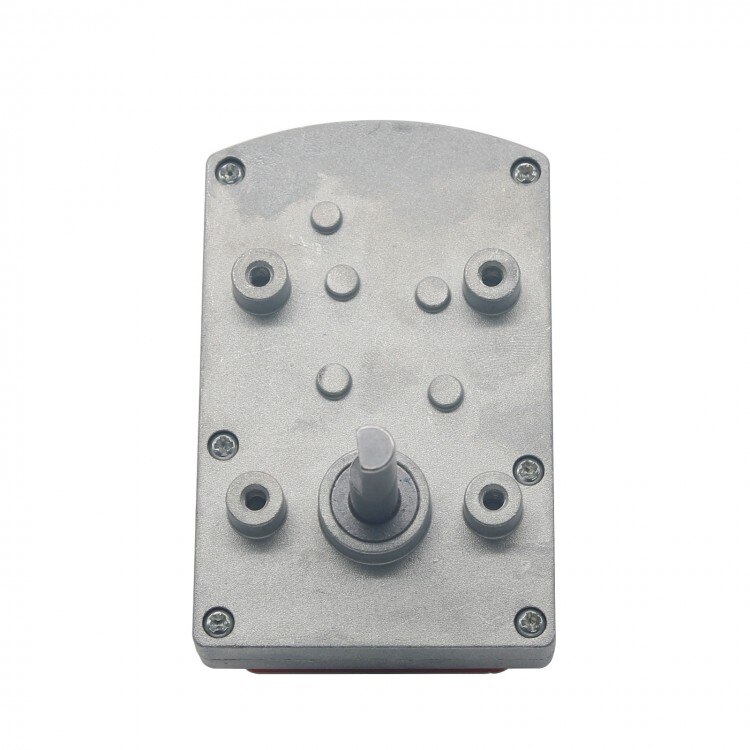

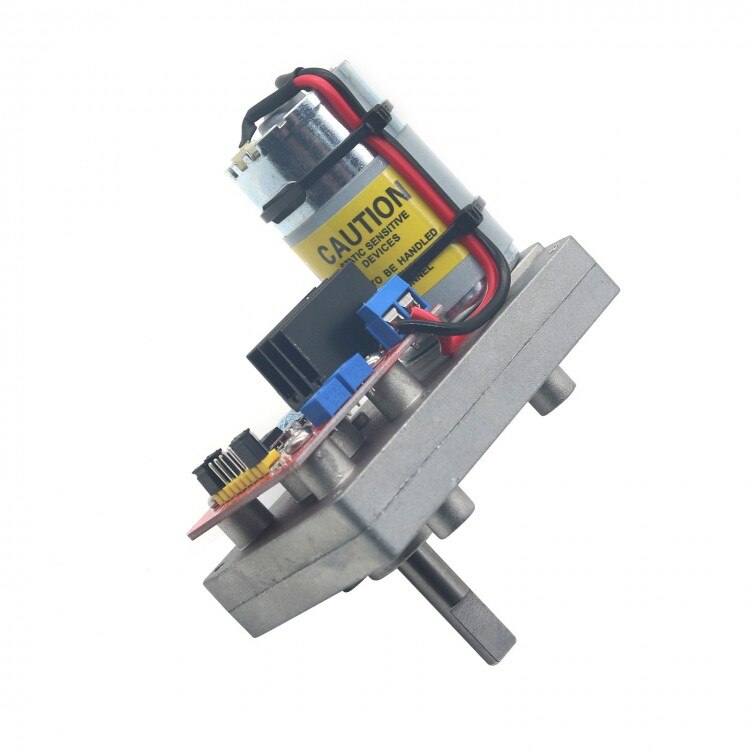

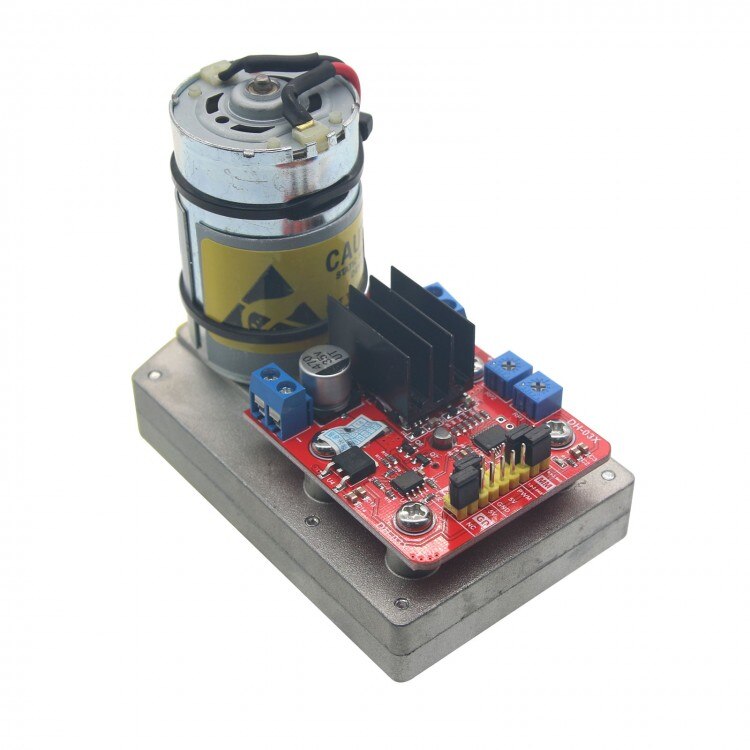

Detail photo
