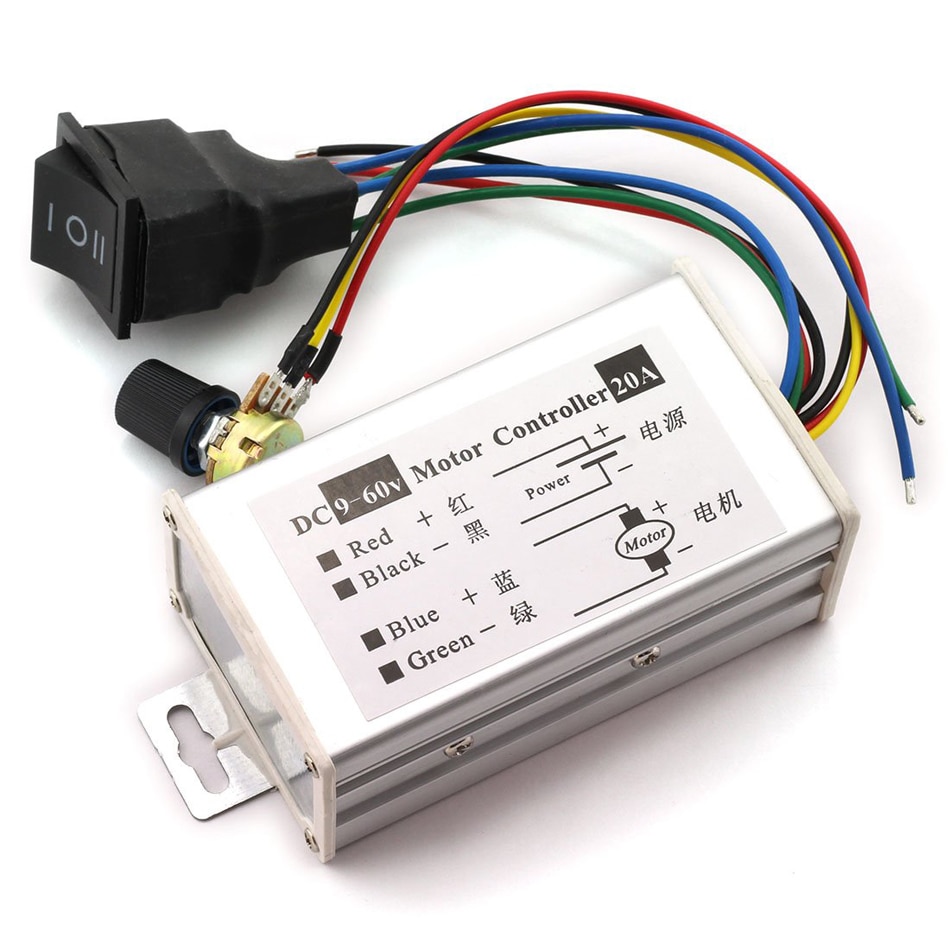

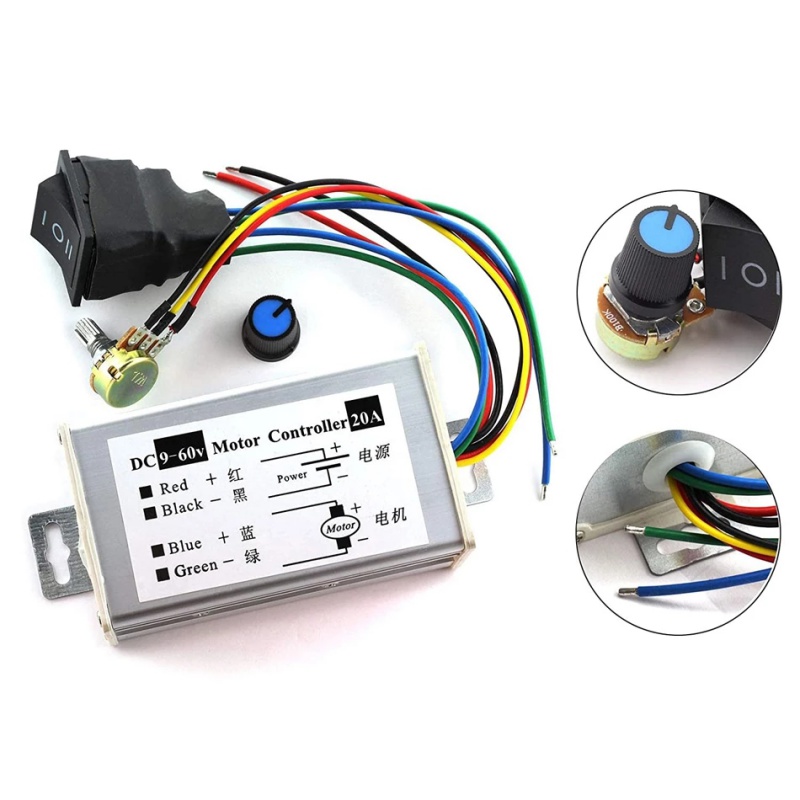

DC 9V 12V 24V 48V 60V 20A Reversible Motor Speed Controller Regulator Driver PWM

Specification:
Product Name: PWM DC Motor Speed Controller
Work Voltage: DC 9-60V
Output Current: 0-20A
Continuous Power: 1200W (max)
Control Frequency: 25KHZ
Speed Range: 0%-100%
Output Voltage: Load Linear
Speed Mode: Potentiometer
Speed Type: Adjusting current
Forward/Reverse Rotation: YES
Suitable Motor: DC brush
Fix Mode: Mounting Lug
Mounting Lug Hole Spacing: 104mm
Potentionmeter Hole Diameter: 7mm

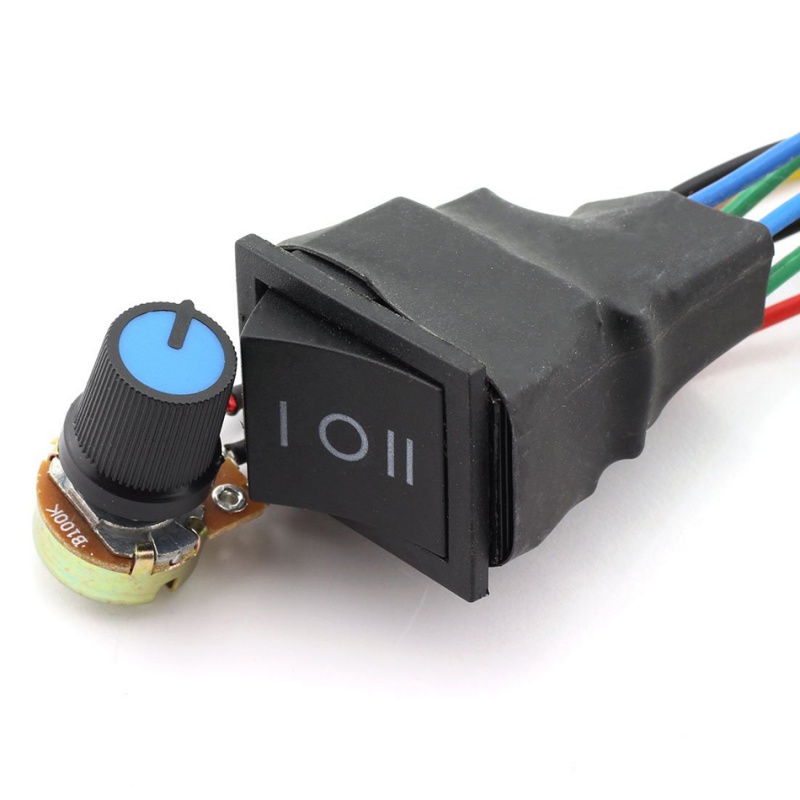

Forward/Reverse Button Size: 31x26mm, hole 28x22mm
Module Size: 92x52x36mm

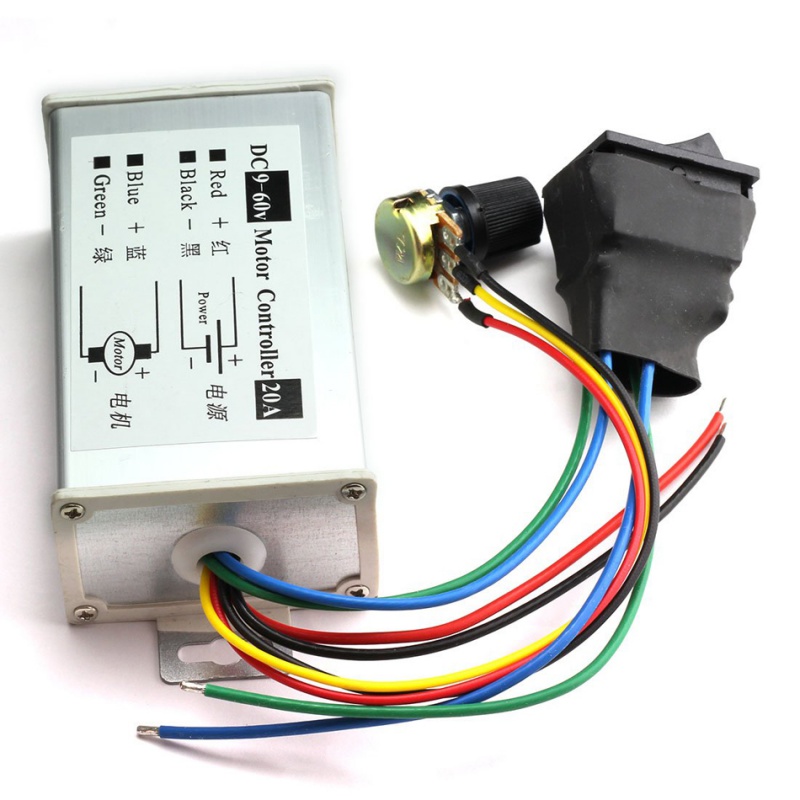

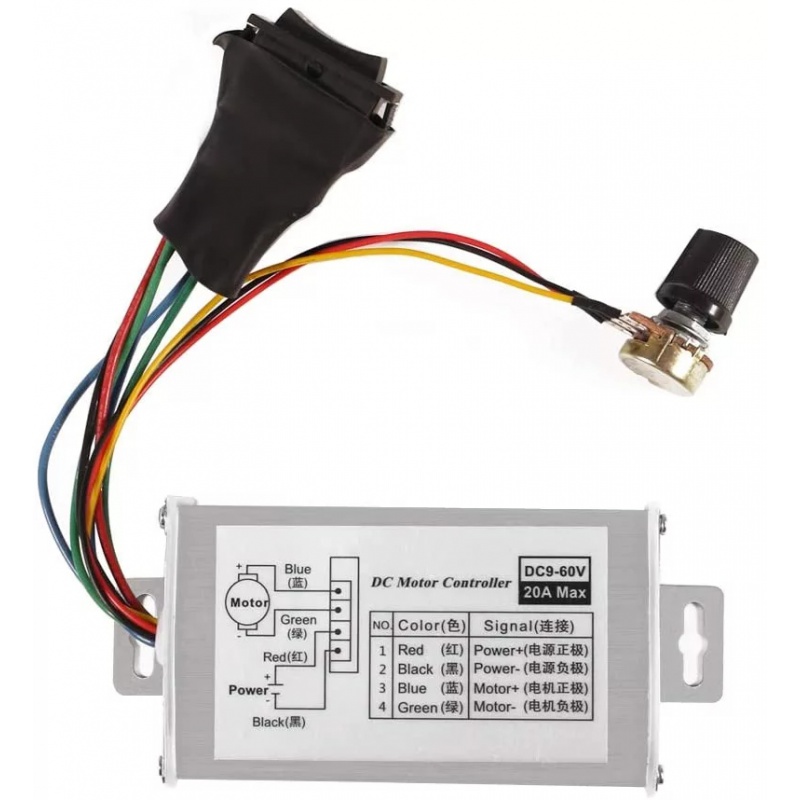

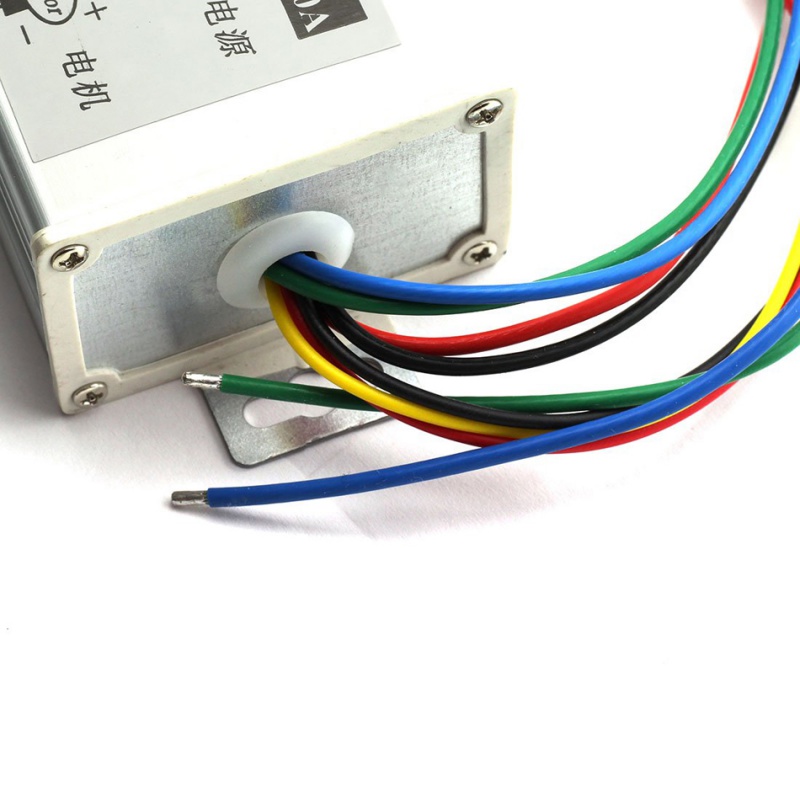

Connection:
Red Line: Positive power supply +
Black Line: Negative power supply –
Blue Line: Positive motor +
Yellow Line: Negative motor –

Note: Please do not switch direction while high speed running, can not be used for electrombile.

Package:
1pcs 20A 9-36V DC Motor Speed Controller
