Description
- Brand Name: HJZ Laser
- Origin: CN(Origin)
- Certification: ce
- Certification: CE
Products Description

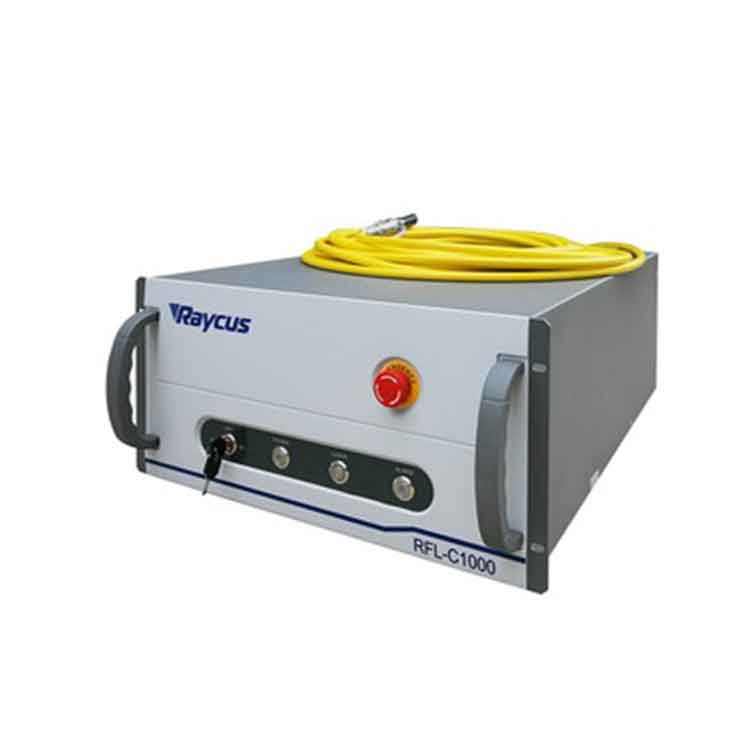

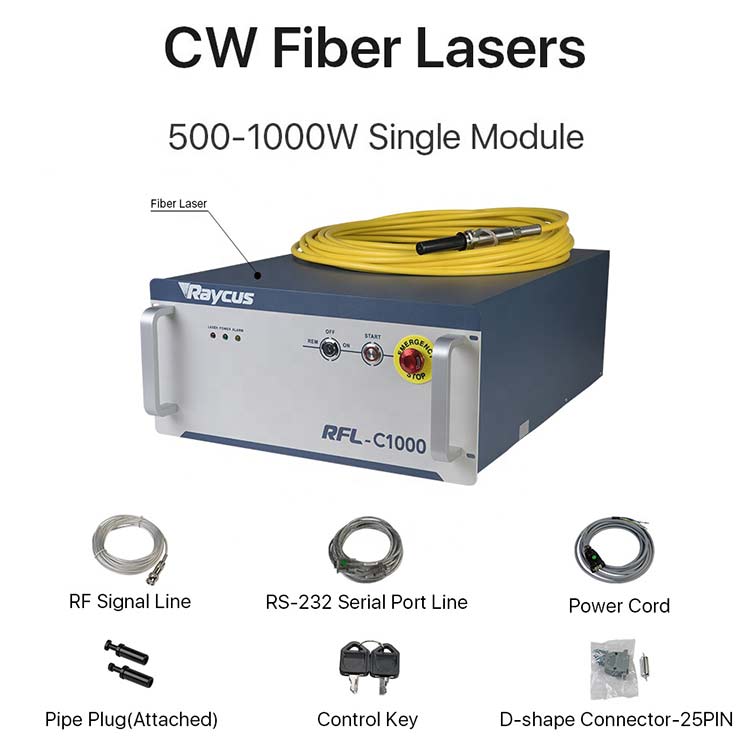

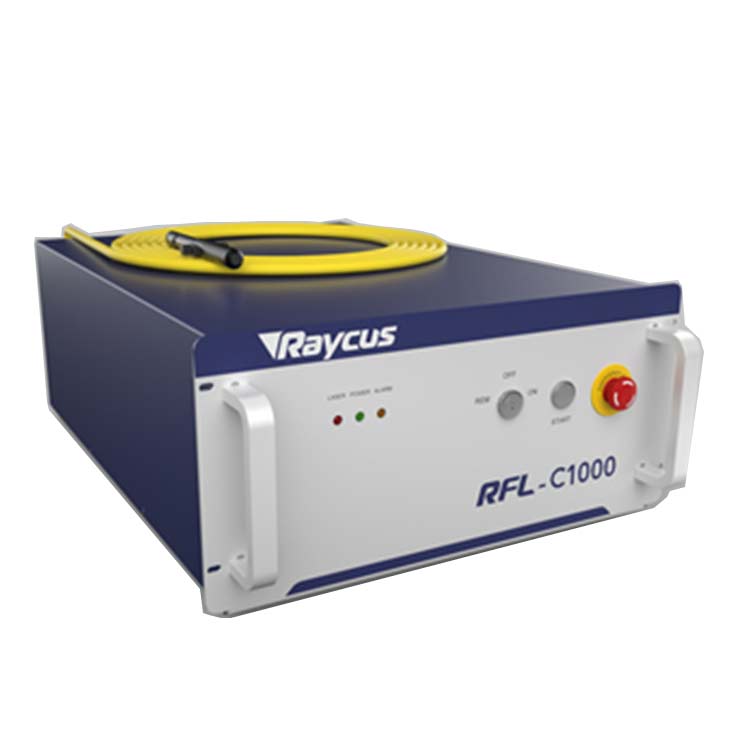

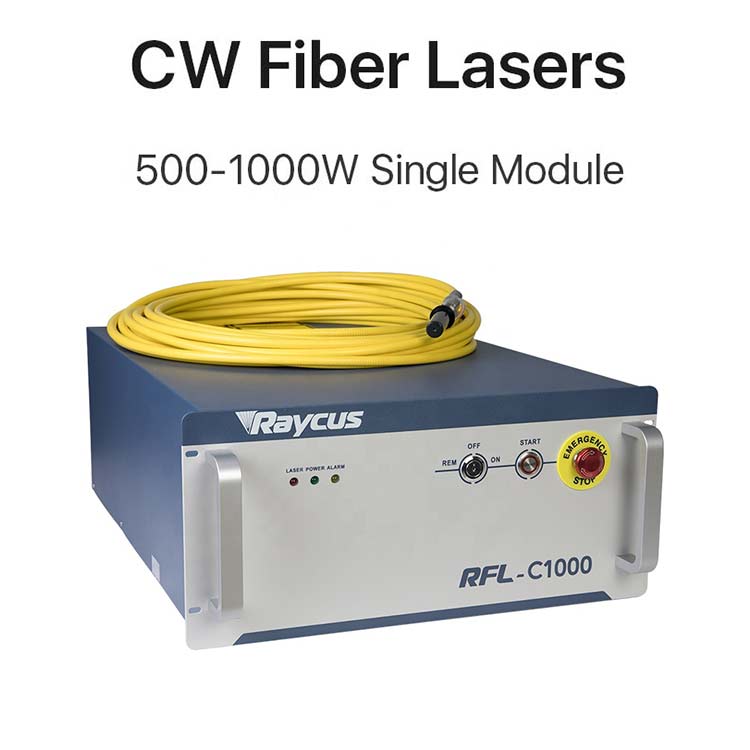

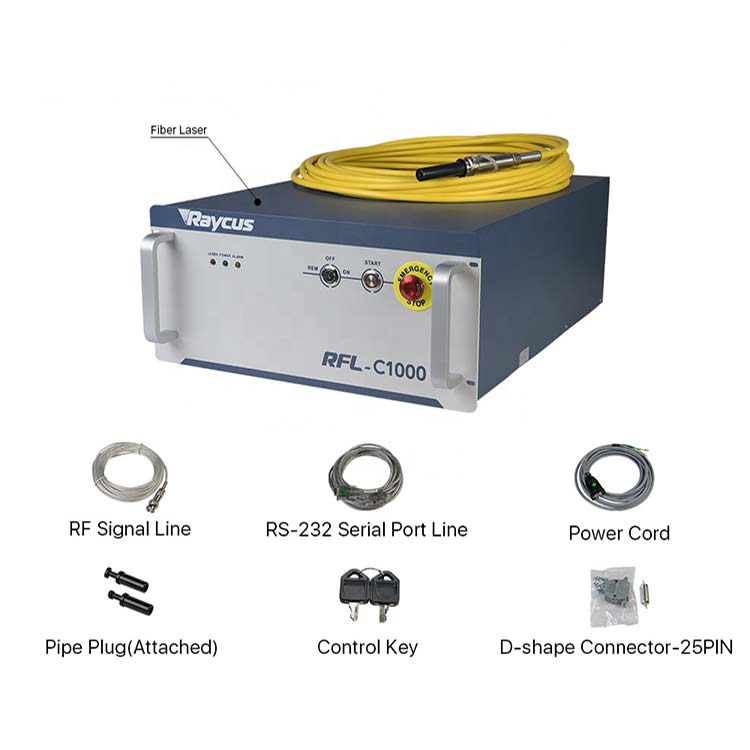

1000W raycus cw laser source
The Raycus laser has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and stronger anti-high anti-reflective ability to ensure a more stable and precise cutting effect in thick plate cutting.
The product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut plate has a narrow slit and a bright cross-section.
The product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut plate has a narrow slit and a bright cross-section.
product Features
1. High electro-optical conversion efficiency
2. Resistant to high reaction
3. Efficient sheet cutting
4. Output fiber length can be customized
5. Maintenance-free operation
6. Wide modulation frequency range
Product Paramenters
|
Type
|
RFL-C1000
|
|
Average output power（W）
|
1000
|
|
Center wavelength (nm)
|
1080±5
|
|
Operating mode
|
CW/Modulate
|
|
Maximum modulation frequency（KHZ）
|
5
|
|
Output power stability
|
±1.5%
|
|
Red light
|
Yes
|
|
Output connector
|
QBH（customizable）
|
|
Beam quality（M2）
|
1.3（25 μm）
|
|
Polarization state
|
random
|
|
Output fiber length（m）
|
20（customizable）
|
|
Input power
|
200-240
|
|
Control mode
|
externalRS232/externalAD
|
|
Power adjustment range
|
10-100
|
|
Power consumption
|
3600
|
|
size（mm）
Width*height*depth |
485*748*237（With handle）
|
|
weight（KG）
|
＜50
|
|
cooling method
|
Water Cooling
|
|
Operating temperature（℃）
|
10-40
|
Application

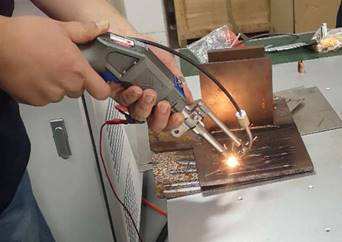

laser welding

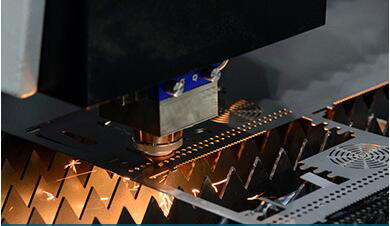

laser cutting
Product packaging
FAQ
Q:What are the primary products of your company?
A: Our primary products include laser engraving machine, laser marking machine, laser cutting machine, laser welding machine, and laser spare parts. Q: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. At the same time, you can send us the sample for testing. Q: When I got this machine, but I don’t know how to use it. What should I do?
A: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail. Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed. Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you. Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 200 countries worldwide. So please don’t worry, you will receive the parcel in good condition. Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment. Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
A: Our primary products include laser engraving machine, laser marking machine, laser cutting machine, laser welding machine, and laser spare parts. Q: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. At the same time, you can send us the sample for testing. Q: When I got this machine, but I don’t know how to use it. What should I do?
A: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail. Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed. Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you. Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 200 countries worldwide. So please don’t worry, you will receive the parcel in good condition. Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment. Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
